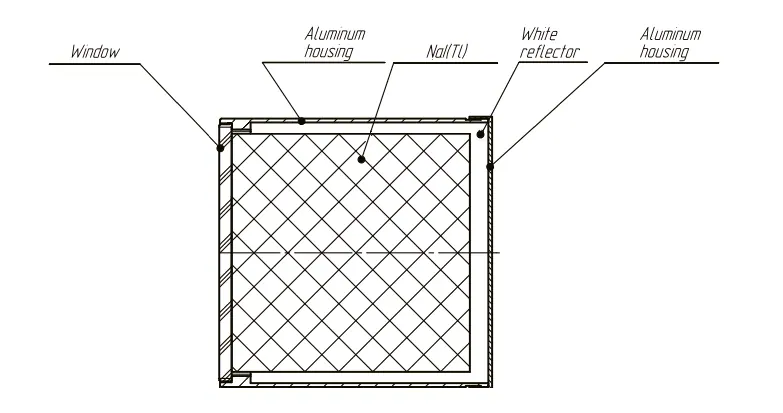

The general encapsulated NaI(Tl) scintillator is a Gamma-ray detector whose NaI(Tl) crystal is cut into a cylinder and housed in aluminum cases.
For measurements, the radiation can enter from one face of the cylinder or the side, and light output can be obtained from the optical window mounted at the other face.
General encapsulated NaI(Tl) scintillator is used for scintillation measurement or scintillation spectrometer detector for ordinary Gamma-ray because its shape enables it to obtain a uniform light output and the best energy resolution.
1 ) Encapsulation material options
Metal container: Aluminum, Stainless steel
Optical window: K9 glass, Quartz, Sapphire
2 ) Special flanges, mounting fixtures or other modifications
1 ) Emission spectrum well matched with the sensitivity curve of photomultiplier tubes (PMTs)
2 ) High light output
3 ) Good energy resolution
4 ) Maximum crystal size: Diameter 150mm x Height 400mm
Model | Crystal Size(mm) | Encapsulation | Energy Resolution(Cs-137) |
NaI-D25H25 | Dia. 25.4 x 25.4 | Aluminum housing with K9 glass window | ≤8.0%@662keV or better |
NaI-D25H40 | Dia. 25.4 x 40.0 | Aluminum housing with K9 glass window | ≤8.0%@662keV or better |
NaI-D40H40 | Dia. 40.0 x 40.0 | Aluminum housing with K9 glass window | ≤8.0%@662keV or better |
NaI-D50H50 | Dia. 50.8 x 50.8 | Aluminum housing with K9 glass window | ≤8.0%@662keV or better |
NaI-D63H63 | Dia. 63.5 x 63.5 | Aluminum housing with K9 glass window | ≤8.0%@662keV or better |
NaI-D76H76 | Dia. 76.2 x 76.2 | Aluminum housing with K9 glass window | ≤8.0%@662keV or better |
NaI-D127H127 | Dia. 127 x 127 | Aluminum housing with K9 glass window | ≤8.0%@662keV or better |
Note: other size or specifications can be customized according to your requirements. | |||
Send us your dimensions, orientation, surface finish and quantity. Our engineers reply with a technical proposal and price.
