LiAlO2 (Lithium Aluminate) crystal is the most important substrate for the high-temperature superconducting thin film. It matches very well with high temperatures superconducting materials such as YBaCuO and has the characteristics of low dielectric constant and low microwave loss. LiAlO2 is a potential substrate for III-V nitride thin films due to its excellent lattice match to GaN, chemical stability at high temper...
LiAlO2 (Lithium Aluminate) crystal is the most important substrate for the high-temperature superconducting thin film. It matches very well with high temperatures superconducting materials such as YBaCuO and has the characteristics of low dielectric constant and low microwave loss. LiAlO2 is a potential substrate for III-V nitride thin films due to its excellent lattice match to GaN, chemical stability at high temperature and cost effective than ZnO. LiAlO2 crystal can replace ZnO and sapphire as optical substrate. Lithium Aluminate (LiAlO2 ) single crystal has a lower lattice mismatch with GaN crystal to be an excellent substrate for GaN film.

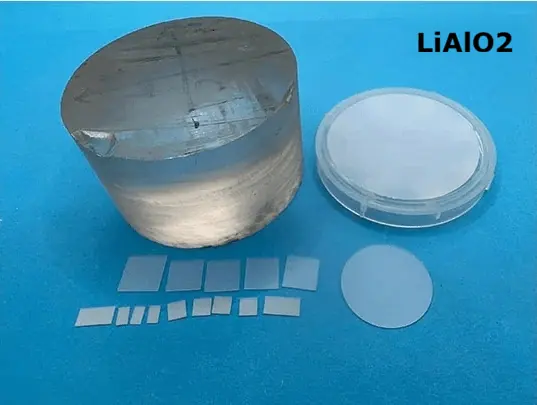

OST Photonics offers high quality LiAlO2 substrates for researchers and industries. Crystal orientation, size and thickness can be customized according to your requirements.
Good lattice matching with YBaCuO
Low dielectric constant
Low microwave loss
Substrate for high-temperature superconducting thin film
Substrate for III-V nitride thin films
Optical substrate
Orientation:<100>,<001>, etc.
Dimension: 1”, 2”, 10x5mm, 10x10mm, 15x15mm, 20x15mm, 20x20mm, etc.
Thickness: 0.5mm, 1.0mm, etc.
Available items: wafers, substrates, blanks and customized optics
Crystal Structure | Tetragonal |
Lattice Constant | a=5.17 Å c=6.26 Å |
Melting Point | 1900 ℃ |
Density | 2.62 g/cm3 |
Hardness | 7.5 Mohs |
Mismatch Rate with GaN<001> | 1.4% |
Orientation | <100>,<001>, etc. |
Orientation Tolerance | ±0.5° or better |
Dimension | 1”, 2”, 10x5mm, 10x10mm, 15x15mm, 20x15mm, 20x20mm, etc. |
Dimension Tolerance | ±0.1 mm or better |
Thickness | 0.5mm, 1.0mm, etc. |
Thickness Tolerance | ±0.05 mm or better |
Surface Finish | Single side polished (SSP)/Double sides polished (DSP) |
Roughness | Ra≤5Å |
Package | Class 100 clean bag, Class 1000 super clean room |
Send us your dimensions, orientation, surface finish and quantity. Our engineers reply with a technical proposal and price.
