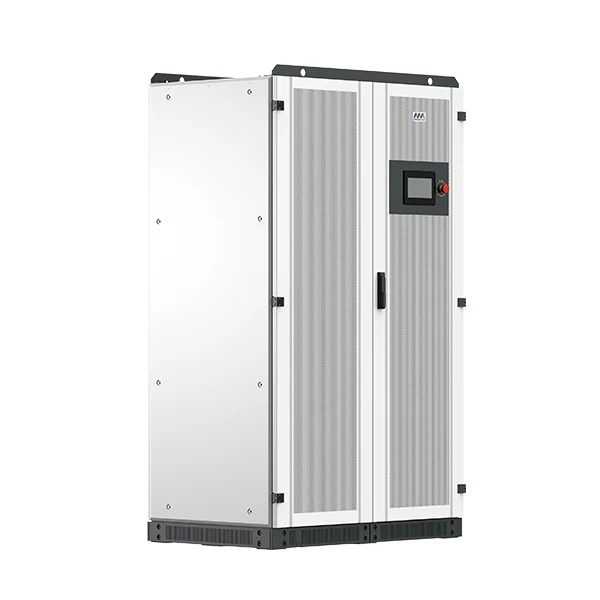

Megarevo MPS Series 30/50/100/250/500kW Microgrid Inverter
500 kW
Megarevo MPS Series 30/50/100/250/500kW Microgrid Inverter is a bidirectional microgrid inverter / PCS rated at 500 kW, the power conversion stage between a battery bank and an industrial AC bus in grid-tied, island and hybrid microgrid modes.
Standards Referenced On The Original Datasheet
- NRS097
- IEC
What This Product Changes On Your Project
- Firmware grid codes for export limitation and reactive power control, which is what most utility connection approvals ask for
- Multiple MPP trackers, so roof sections at different pitches and orientations do not have to share one string
- Transformerless topology keeps conversion loss and unit weight down at this power class
- Grid protection built in - anti-islanding, insulation monitoring, residual-current monitoring and surge protection
- Outdoor-rated enclosure that can be wall-mounted next to the array instead of inside a plant room
Application Scenarios
- Commercial rooftop PV exporting to the utility under a net-metering or feed-in scheme
- Ground-mount arrays where several sub-arrays share one inverter station
- Solar-plus-storage retrofits on sites that already have PV
- Backup-capable installations that must ride through utility outages
- Off-grid and weak-grid sites running PV, battery and generator together
Who It Is For
- PV installers and EPC contractors specifying inverters for grid connection approval
- Distributors carrying inverter lines for commercial rooftop work
- System integrators building solar-plus-storage and microgrid systems
- Asset owners standardising on one inverter platform across a portfolio
Problems It Solves
- Grid codes that reject an installation without export limitation and reactive power control
- Conversion loss and heat derating that quietly erode plant yield in summer
- Separate PV and storage conversion stages that double the failure points and the commissioning time
- Monitoring that cannot be read by the customer's existing supervisory system
Technical Features
- Smart cooling with temperature-based derating rather than abrupt shutdown
- RS485 and wireless monitoring interfaces
- Independent MPP trackers, each tracking its own string set
- Transformerless conversion topology
- DC switch, DC reverse-polarity protection and surge protection on both DC and AC sides
Published Specification Data
These figures come from the manufacturer datasheet for this model. Where a value you need is not listed, ask for the full datasheet rather than assuming a typical figure.
| Rated power | 500 kW |
|---|---|
| Brand | Megarevo |
| Communication | RS485 |
| Max working altitude | 5,000m |
| Cooling | Air Cooling |
Quality Control
- Aged and burn-in run before packing, so early-life failures happen in the factory
- Serialised traceability from cell batch to finished unit
- Packing inspection and photo record before container loading
- Incoming inspection of cells, power electronics and structural parts before assembly
- Capacity and internal-resistance grading so cells within a pack are matched
Customization Options
- DC connector type to match the array already specified
- Extended warranty term
- Customer branding on packaging and documentation
- Grid code and AC voltage configuration for the destination market
How It Compares With The Alternatives
| Separate PV inverter plus battery inverter | One conversion stage means one set of wiring, one monitoring platform and one warranty, at the cost of less freedom to mix brands later. |
|---|---|
| A microinverter array | String conversion costs less per kW at commercial scale; microinverters win on complex shading and per-module monitoring. |
| An oversized single inverter | Several MPP trackers serve differently oriented roof sections without splitting the array, so one unit covers what would otherwise need two. |
Getting This Product Right On Site
- 1
Mount out of direct afternoon sun and leave the clearance the manual specifies for airflow
- 2
Commission the monitoring interface at the same visit, not as a follow-up trip
- 3
Record the firmware version so a later fleet update can be planned
- 4
Verify the array string voltage against the MPPT window at the site's record low temperature
- 5
Select the grid code for the destination market before energising
Megarevo MPS Series 30/50/100/250/500kW Microgrid Inverter - Buyer Questions
Can this inverter work with batteries from another brand
What is the lead time and minimum order quantity
Does the inverter support export limitation
What monitoring is included
What is the warranty term
How is the inverter packed and shipped
