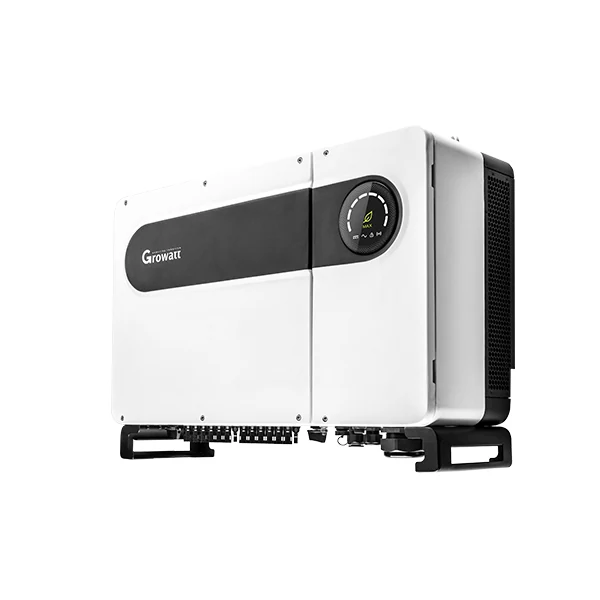

Growatt MAX 50/60/70/80/100/110/125KTL3 LV On Grid Inverter
Growatt MAX 50/60/70/80/100/110/125KTL3 LV On Grid Inverter converts the rating listed in the specification table of PV output for direct grid export. Multiple MPP trackers let one unit serve roof sections at different orientations without splitting the array across more inverters.
What This Product Changes On Your Project
- Multiple MPP trackers, so roof sections at different pitches and orientations do not have to share one string
- Transformerless topology keeps conversion loss and unit weight down at this power class
- Grid protection built in - anti-islanding, insulation monitoring, residual-current monitoring and surge protection
- Outdoor-rated enclosure that can be wall-mounted next to the array instead of inside a plant room
- Standard monitoring interfaces so the plant reports into existing supervisory software
Application Scenarios
- Solar-plus-storage retrofits on sites that already have PV
- Backup-capable installations that must ride through utility outages
- Off-grid and weak-grid sites running PV, battery and generator together
- Industrial microgrids switching between grid-tied and island operation
- Commercial rooftop PV exporting to the utility under a net-metering or feed-in scheme
Who It Is For
- PV installers and EPC contractors specifying inverters for grid connection approval
- Distributors carrying inverter lines for commercial rooftop work
- System integrators building solar-plus-storage and microgrid systems
- Asset owners standardising on one inverter platform across a portfolio
Problems It Solves
- Roof geometry that forces strings of different lengths and orientations onto one inverter
- Grid codes that reject an installation without export limitation and reactive power control
- Conversion loss and heat derating that quietly erode plant yield in summer
- Separate PV and storage conversion stages that double the failure points and the commissioning time
Technical Features
- Transformerless conversion topology
- DC switch, DC reverse-polarity protection and surge protection on both DC and AC sides
- Anti-islanding, grid monitoring and residual-current monitoring for utility approval
- Smart cooling with temperature-based derating rather than abrupt shutdown
- RS485 and wireless monitoring interfaces
Published Specification Data
These figures come from the manufacturer datasheet for this model. Where a value you need is not listed, ask for the full datasheet rather than assuming a typical figure.
| Brand | Growatt |
|---|---|
| Nominal voltage | 585V |
| Protection degree | IP65 IP66 |
| Relative humidity | 0-100% |
| Max working altitude | 4000m |
| Cooling | Smart air cooling |
| Max DC voltage | 1100V |
| MPPT voltage range | 200V-1000V |
| MPP trackers | 6 6 7 7 10 10 10 10 |
| Max efficiency | 98.80% |
| European efficiency | 98.40% |
| MPPT efficiency | 99.90% |
| Topology | Transformerless |
| THDi | <3% |
| Power factor | 0.8leading …0.8 |
| Warranty | 5 years / 10 years |
Quality Control
- Incoming inspection of cells, power electronics and structural parts before assembly
- Capacity and internal-resistance grading so cells within a pack are matched
- Full-function test on every finished unit, not a sample from the batch
- Insulation and dielectric withstand testing on completed assemblies
- Aged and burn-in run before packing, so early-life failures happen in the factory
Customization Options
- Grid code and AC voltage configuration for the destination market
- Monitoring accessory selection - Wi-Fi, GPRS or RS485 to an existing logger
- DC connector type to match the array already specified
- Extended warranty term
How It Compares With The Alternatives
| Separate PV inverter plus battery inverter | One conversion stage means one set of wiring, one monitoring platform and one warranty, at the cost of less freedom to mix brands later. |
|---|---|
| A microinverter array | String conversion costs less per kW at commercial scale; microinverters win on complex shading and per-module monitoring. |
| An oversized single inverter | Several MPP trackers serve differently oriented roof sections without splitting the array, so one unit covers what would otherwise need two. |
Getting This Product Right On Site
- 1
Commission the monitoring interface at the same visit, not as a follow-up trip
- 2
Record the firmware version so a later fleet update can be planned
- 3
Verify the array string voltage against the MPPT window at the site's record low temperature
- 4
Select the grid code for the destination market before energising
- 5
Mount out of direct afternoon sun and leave the clearance the manual specifies for airflow
Growatt MAX 50/60/70/80/100/110/125KTL3 LV On Grid Inverter - Buyer Questions
What is the lead time and minimum order quantity
Does the inverter support export limitation
What monitoring is included
What is the warranty term
How is the inverter packed and shipped
Which grid codes can this inverter be set to
