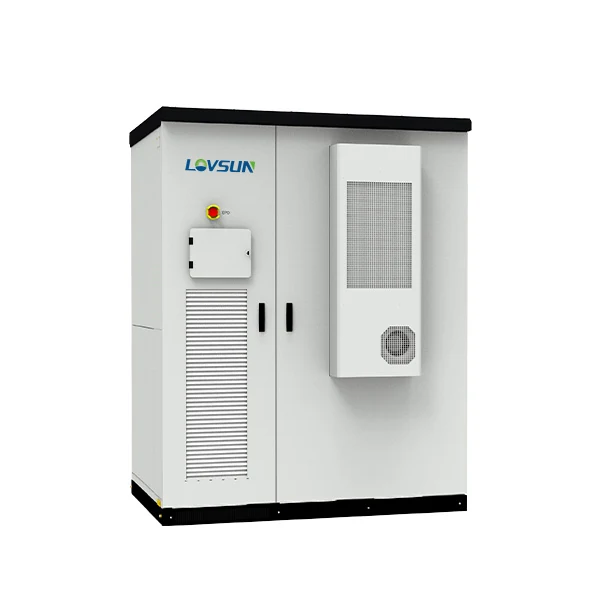

ECube100TD215A 100kW 215kWh Air Cooling BESS Cabinet
100 kW / 215 kWh
ECube100TD215A 100kW 215kWh Air Cooling BESS Cabinet is an outdoor all-in-one energy storage cabinet rated at 100 kW / 215 kWh. It arrives wired and tested, which removes the rack-by-rack integration work that normally sits on the EPC's critical path.
What This Product Changes On Your Project
- Remote monitoring over standard industrial protocols, so the system reports into an existing SCADA or EMS
- Outdoor-rated enclosure removes the cost of a dedicated, ventilated battery room
- Pre-integrated and factory-tested, so site work is foundation, cabling and commissioning rather than assembly
- Battery, thermal management, BMS and fire suppression are specified against each other by one supplier
- Modular capacity - additional units run in parallel as the site load or tariff exposure grows
Application Scenarios
- Sites whose grid connection cannot be upgraded, using storage instead of more feeder capacity
- Mining, quarry and remote industrial sites running a diesel-PV-storage hybrid
- EV charging hubs buffering the grid draw of simultaneous fast-charge sessions
- Manufacturing plants shaving monthly demand peaks set by start-up loads
- Commercial campuses shifting PV output from midday into the evening tariff window
Who It Is For
- Distributors supplying C&I storage into their own installer network
- EPC contractors delivering commercial and industrial storage projects
- Industrial plant engineers managing demand charges and process continuity
- Independent power producers and grid-side project developers
Problems It Solves
- Battery-room construction, ventilation and fire compliance that can cost more than the batteries
- Multi-vendor integration risk when cells, PCS and controls come from three suppliers with three warranties
- Demand charges set by a handful of peak intervals each month rather than by total consumption
- Grid connection capacity that will not be upgraded in time for the site's growth plan
Technical Features
- Thermal management sized to hold cell temperature spread across the pack, which is what drives uneven ageing
- Fire detection and suppression designed into the enclosure rather than added by the installer
- Parallel operation of multiple units under one energy management layer
- Industrial communication interfaces for SCADA, EMS and remote diagnostics
- Cells, racks, BMS, thermal management and fire suppression integrated and tested before shipment
Published Specification Data
These figures come from the manufacturer datasheet for this model. Where a value you need is not listed, ask for the full datasheet rather than assuming a typical figure.
| Energy capacity | 215 kWh |
|---|---|
| Cooling | Air cooling |
| Rated AC power | 100KW |
| Communication | CAN/Ethernet / 485 |
Quality Control
- Packing inspection and photo record before container loading
- Incoming inspection of cells, power electronics and structural parts before assembly
- Capacity and internal-resistance grading so cells within a pack are matched
- Full-function test on every finished unit, not a sample from the batch
- Insulation and dielectric withstand testing on completed assemblies
Customization Options
- Capacity and power rating configured to the site's measured load profile
- Grid code and AC voltage set for the destination market
- Enclosure colour and customer branding
- Communication protocol mapped to the site's existing EMS or SCADA
How It Compares With The Alternatives
| A site-built battery room | The enclosure, thermal system and fire protection ship as one tested assembly, so the site does not have to build, ventilate and certify a room for them. |
|---|---|
| A diesel generator | Storage responds in milliseconds and has no fuel logistics, but it holds a finite energy budget - most industrial sites end up running both, with storage taking the peaks. |
| Grid connection upgrade | A capacity upgrade is a utility timeline the site does not control. Storage is a capital item the site can schedule itself. |
Getting This Product Right On Site
- 1
Commission with the supplier's sequence and record the baseline before the first billing cycle
- 2
Review the demand-charge line on the first two bills against the model and retune the dispatch schedule
- 3
Send twelve months of interval meter data so the system is sized against the real demand curve, not the connected load
- 4
Confirm grid code, AC voltage and any export limitation required by the utility before production
- 5
Prepare a level foundation, cable routes and a clear service envelope around the enclosure
ECube100TD215A 100kW 215kWh Air Cooling BESS Cabinet - Buyer Questions
Can several units run in parallel
Do you support commissioning and after-sales on site
What is the minimum order quantity
What is the lead time on this system
Can the system be sized for our specific load profile
What certification does the system carry
