PV800 Solar Pump Inverter
MPPT solar pump inverter for three phase AC and PMSM pumps, with dual DC and AC input.
View Product ›
Four problems customers bring us most often, and what KEWO puts in front of each one — from sizing through commissioning to after sales support.
Solution
Sites with no grid connection, or with a supply too weak and too expensive to run a pump on, still need water for irrigation, livestock and domestic supply.
A PV array, a pump and a KEWO solar pump inverter. The DC generated by the solar modules goes straight into the inverter and is converted to AC to drive the pump. Output frequency follows sunlight intensity in real time through MPPT, so no battery bank is needed — water is stored in a tower or tank instead of electricity.
Get A Custom Solution
Pump power, head and daily flow requirement are matched to array size.
Voc and Vmp of the array are checked against the inverter MPPT window.
PV350, PV800, SG100, SG320 or SG600 is selected for the pump rating.
Dry run, tank full, over current and low frequency stop are configured.
Optional GPRS module for remote start, stop and status.
MPPT solar pump inverter for three phase AC and PMSM pumps, with dual DC and AC input.
View Product ›
SG320 solar pump drive with high MPPT efficiency, dry run protection and remote monitoring.
View Product ›
SG600 series MPPT solar pump inverter from 0.3 kW upwards with dual supply operation.
View Product ›
GPRS DTU wireless terminal for remote control and status monitoring of solar pump drives.
View Product ›Solution
Fans, pumps and compressors that run direct on line at full speed waste energy whenever the process does not need full flow, and start with high inrush current that stresses the motor and the supply.
Fitting a vector control AC drive lets the motor follow the actual process demand. For machines with permanent magnet motors the AD800S drives PMSM directly for a further gain, and where speed control is not needed a soft starter removes the starting shock on its own.
Get A Custom Solution
Motor rating, duty cycle and load type are recorded.
AD350, AD800 or AD800S is sized to motor current, not just kW.
Input reactor, EMC filter or sine wave filter added where the install needs it.
Motor auto tuning, V/F or vector mode and protection limits are set.
Parameters recorded and the operator is trained on the keypad.
High performance vector control drive with open loop and closed loop vector modes, torque control and wide speed range.
View Product ›
AD800S drives permanent magnet synchronous motors for energy saving retrofits on existing machines.
View Product ›
Small and smart current vector control drive for induction motors, with rich terminal functions and PG card option.
View Product ›
Online soft starter with the bypass built in, so no external AC contactor is needed.
View Product ›Solution
An OEM building machines in volume needs a drive that fits the panel, holds torque at low speed, talks to the machine controller and can be bought at a stable price with a stable lead time.
The AD series covers general purpose duty through to closed loop vector and torque control. AS850T handles CNC spindle speed and position, AS850Z replaces fixed speed hydraulic pump drive on injection moulding machines, and SD350/SD800 give an IP54 sealed version for dusty machines.
Get A Custom Solution
Control mode, IO count, communication and enclosure rating are agreed.
A sample is supplied for testing against your own machine.
A fixed parameter set is defined so every unit ships pre-configured.
Units are full load tested and bar code tracked before shipment.
Application engineers stay available for field questions.
High performance vector control drive with open loop and closed loop vector modes, torque control and wide speed range.
View Product ›

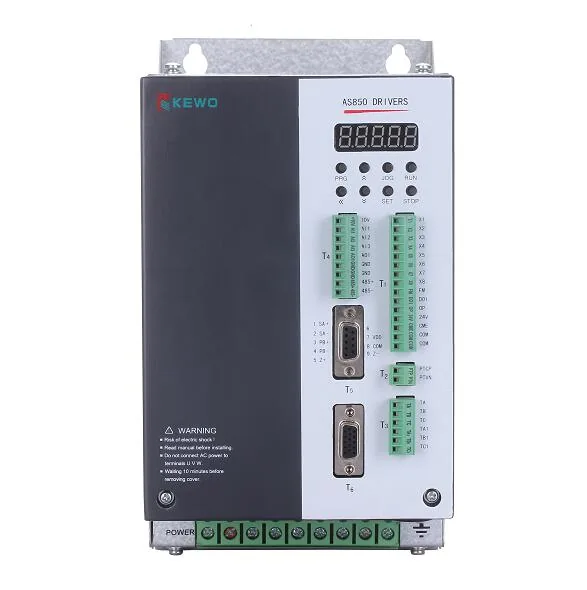

AC servo drive giving speed and position control on CNC machine tool spindles.
View Product ›
Servo drive for permanent magnet motors on injection moulding machines, replacing fixed speed hydraulic pump drive.
View Product ›
Sealed IP54 version of the SD350 and SD800 drive for dusty and humid installations.
View Product ›Solution
A PWM drive puts a fast rising voltage edge on the motor cable. Over long runs this stresses the winding insulation and radiates interference that upsets nearby instrumentation, and the installation may still have to meet EMC limits.
EMC input and output filters suppress conducted and radiated interference from 100 kHz to 30 MHz. A dv/dt filter limits the rate of rise at the motor terminals, and a sine wave filter turns the PWM output into a near sine wave for the longest runs. AC and DC reactors reduce harmonics back onto the supply.
Get A Custom Solution
Cable length, motor insulation class and site EMC requirement are checked.
AC input reactor and EMC input filter reduce harmonics and conducted noise.
dv/dt or sine wave filter is chosen from the cable length.
DC braking unit and resistor are added where fast stopping is required.
Installation is checked for correct screening and earthing.
Suppresses EMI and radio interference on the supply side of the drive, 100 kHz to 30 MHz.
View Product ›

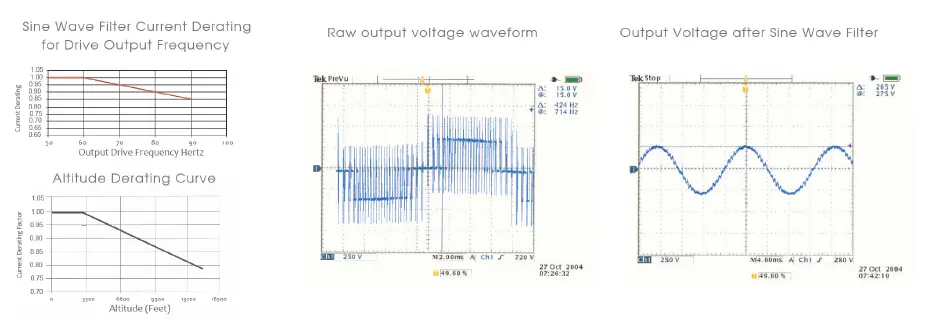

Converts the PWM output into a near sine wave, protecting motor insulation on long cable runs.
View Product ›
Limits the rate of voltage rise at the motor terminals to protect the winding insulation.
View Product ›
Reduces supply side harmonics and protects the drive from voltage surges on the incoming line.
View Product ›FAQ
KEWO manufactures the drive, the soft starter and the peripheral equipment, and supplies solar panels, submersible pumps and cabinets alongside the solar pump inverters so a pumping system can be bought as one package. Installation is done by your own contractor or by our distributor locally.
Yes. As well as standard products we provide custom-made automation solutions and renewable energy technology. Send the specification and an engineer will work through it with you.
Service and application engineers respond within 24 hours. For overseas markets we send application and service engineers to visit regularly for application consulting, OEM solutions and repairs, and free spare parts are supplied inside the 18 month guarantee.
Tell us what the machine or the pumping system has to do and we will come back with the drive, the peripherals and the commissioning notes.
