Simple low cost VFD for basic speed control where the full AD series function set is not needed.
Frequency Inverter
Simple low cost VFD for basic speed control where the full AD series function set is not needed.
| 1. Specification of AD110 small and economical type 1PH, 220V input, 3 phase output VFD | |||||
| Model | AD110-2S0.1G | AD110-2S0.2G | AD110-2S0.4G | AD110-2S0.75G | |
| Output | Rated output power | 100w | 200w | 400w | 750w |
| Rated output current | 0.8A | 1.0A | 2.0A | 3.8A | |
| Overload tolerance | 150% rated current for 60s | ||||
| Max output voltage | 3 phase 240V | ||||
| Input | Rated input voltage | single phase 200- 240VAC | |||
| Voltage Tolerance | Single phase 180 -250VAC | ||||
| Frequency accurace | ±5% | ||||
| Power capacity | 0.8 KVA | ||||
| Cooling Method | Nature Air- Cooling | ||||
| Consumption wattage | 15w -25w | ||||
| Using conditions of AD110 VFD | ||
| Operation conditions | Ambient Temperature | -10℃ to 50℃ |
| Relative Humidity | < 85% ( no condensation Allowed) | |
| Atmosphere pressure | 86 to 105Kpa | |
| Installation Site Altitude | <1000m | |
| Vibration | <20Hz | |
| Storage Transportation conditions | Air Temperature | -10℃ to 60℃ |
| Ambient Humidity | < 90% ( no condensation allowed) | |
| Vibration | <20Hz | |
| Pollution Degree | 2 Class: good for factory type environment | |
7. Summary of parameters settings of AD110 VFDs
| Parameter | explanation | settings | Factory setting |
| P00 | Frequency reference | 0 ~ 99Hz ( unit: 0.5Hz) | |
| P01 | source of frequency command | 0: Interface keypad control 1: Interface Potentiometer 2：exterior potentiometer 3:Rs485 | 1 |
| P02 | Run/stop of operation command | 0:interface keypad control 1:Rs485 2:Forward running while power input 3:Reverse Running while power input 4:Exterior input | 0 |
| P03 | Stop method | 0: Cost stop 1: Ramp stop 2: Brake stop | 1 |
| P04 | Max output frequency | 0 ~ 100Hz | 65Hz |
| P05 | Min Output frequency | 0 ~ 100Hz | 5Hz |

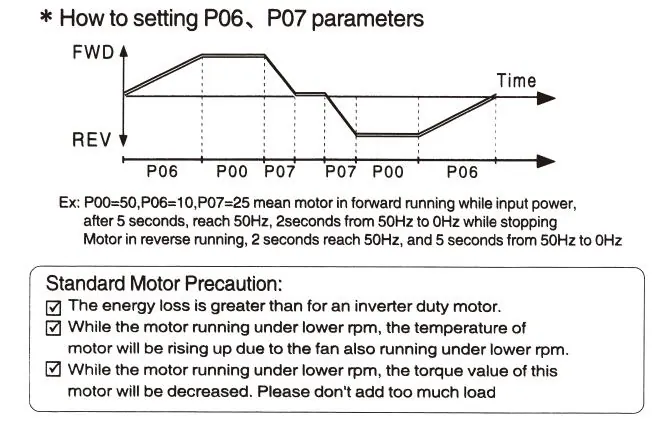

| P06 | Acceleration time | 0 ~ 250Hz/sec | 50Hz/sec |
| P07 | Deceleration time | 0 ~ 250Hz/sec | 50Hz/sec |
| P08 | Brake lead time | 0 ~3 sec | 0.3 sec |
| P09 | Brake value | 0~ 60% | 20%% |
| P10 | 3Hz VF value | 0 ~ 50% | 4% |
| P11 | 50Hz | 0 ~ 99% | 98% |
| P12 | Rs485 frame ASCII | 0:7E1 1:7O1 2:8N2 3:8E1 4:8O1 | 20%% |
| P13 | Rs485 protocol | 0:4800 1:19200 2：9600 3: 38400 | 1 |
| P14 | Communication address | 1 ~ 255 | 1 |
| P15 | MI mode selection | 0: MI1 FWD/stop, MI2 REV/STop 1: MI1 RUN/stop, MI2 FWD/REV 2:MI1 RUN/Stop, MI2 Multiple-stop speed | 0 |
| P16 | MO mode selection | 0: Running indication 1: Max output frequency arrive 2: Fault indication | 0 |
| P17 | Multiple -step speed command | P04~p05 | 50 |
| P18 | Frequency arrive frequency | P04~p05 | 50 |
| P19 | overload tolerance | 1 ~ 100% | 50% |
| P20 | Temperature tolerance | 1℃ ~80℃ | 80℃ |
| P21 | Speed proportion | 0.25 ~100 | 1 |
