EMC Input Filter

Suppresses EMI and radio interference on the supply side of the drive, 100 kHz to 30 MHz.

EMC Input Filter

Filter

Product Overview

Suppresses EMI and radio interference on the supply side of the drive, 100 kHz to 30 MHz.

  • RangeDrives Peripheral Equipment
  • GroupFilter
  • ManufacturerShenzhen Kewo Electric Technology Co., Ltd., Shenzhen, China
  • Guarantee18 months free repair
  • Lead timeStock and production, confirmed at quotation
Request A QuoteEmail Us About EMC Input FilterDownload Catalogue

Input filter ( Input Filter)

Production introduction
Input filter can prevent EMI or radio interference to power cable, which come from inverter. Also can prevent EMI and radio interference into inverter, which come from power cable. It can suppress effectively radio interference of voice frequency equipment. the applicable wavelength is 100K to 30MHz.

Production application
The equipment, that can produced strong interference, or sensitive to EMI, request installed power cable filter.
Such as SCR silicon control rectifier, variable speed drive, motor equipment, switching power supply circuit.

Working environment
Maximum working height: 2000m. if working more than 2000m, current derating 2% for every 100m higher.
Working temperature: -25℃to 45℃.comparative moisture not over 90%
No hazardous gas, no inflammables and explosives.
With well-ventilated condition, ventilation devices shall be mounted if installation in panels.

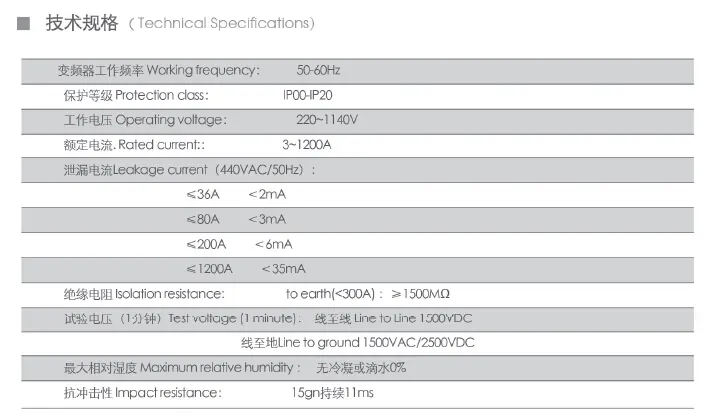

EMC Input filter

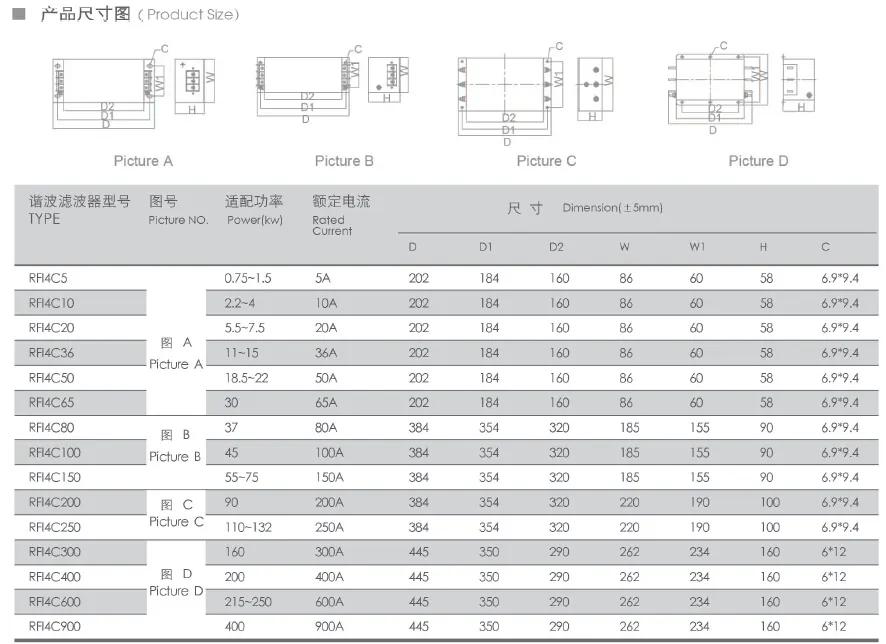

Dimension
EMC Input filter

Who It Is For And What It Solves

  • Installations that have to meet EMC limits on the supply or motor side
  • Long motor cable runs where dv/dt stress on the winding is a concern
  • Fast stopping applications such as centrifuges, wire drawing machines, cranes and elevators
