DC braking unit

Integrated braking unit and braking resistor on the DC bus side of AC drive, which can consumed regenerated energy from motor when motor decelerated quickly.

Application:
In generally, the braking unit and braking resistor request to install industrial application cases, which need fast stop, braking, quick stop and position request. The DC bus voltage will rise swiftly when frequency inverter decelerating, and motor locate in generating status if the driving load is bigger. The feedback regenerated energy should be consumed quickly and keep DC bus voltage in a certain safe value, otherwise inverter will be trip of over voltage. It is popular used in centrifugal machine, cable drawing machine. Crane, elevator…

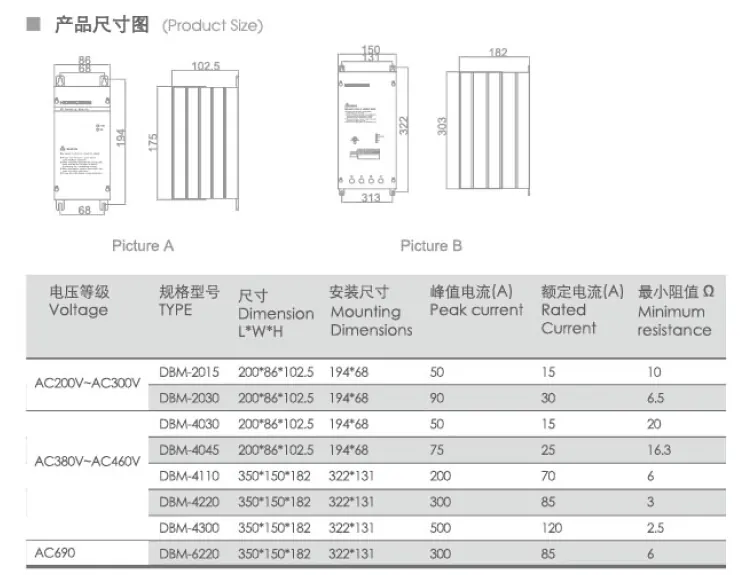

Technical specification:
1. fully specification: 15kw, 30kw, 55kw, 75kw, 90kw, 110kw, 132kw. Paralle connecting is avaialbe, no capacitory limit
2.Wide voltage input with adjusting voltage range DC250V to 800V.
3. Easy operation and friendly interface.
4. Built in kinds protection function such as short circuit, under voltage, over voltage, over current and over heat.
5. Configure parameters memorized function and fault reminding function
6. Resistor is optional, also provide resistors cabinet.

DC Braking Unit

Who It Is For And What It Solves

  • Installations that have to meet EMC limits on the supply or motor side
  • Long motor cable runs where dv/dt stress on the winding is a concern
  • Fast stopping applications such as centrifuges, wire drawing machines, cranes and elevators
