AS850Z AC Servo Drive For PMSM Of IMM

AS850-Z Hybrid Servo Drive For PMSM Of Injection Molding Machine

AS850Z series servo drive for permanent magnet synchronous motor (PMSM), is KEWO own developed hydraulic electric servo drive system for injection molding machine energy saving. It has following advantage, high energy saving, high power factor, quick response and high accuracy control, etc. AS850Z has powerful overload capability even under low speed, 180% rated torque for 30s under 0 speed is possible to ensure good pressure keeping ability.
Output frequency range: 0 to 400Hz.
Input voltage: 3 phase 380V±15%, 2.2kw to 90kw
Pressure signal reference: external analog 0-10V, 0-1A.
Protection function: Input phase missing, input under voltage, over voltage, over current, over load, over heat, external disturbing .
Cooling method: force cooling
Mount: Wall mount
Function features
Energy saving: up to 60% energy saving compare to traditional fixed pump system. 75% is possible be achieved according to difference injection condition.
Lower oil temperature: reduce 5-10 degrees
High repeated accuracy: To achieve high accuracy flow and pressure control
Long pressure holding time: It is favorable for big wall thickness.
Quick response: frequency response up to 50ms.

AS850Z AC Servo Drive Enhanced Features:
1. Design the signal correction algorithm and match to work high performance under low speed characteristic to solve the creep problem of IMM. Because his given signal reference is nonlinearity characteristic.
2. Due to switching frequently in flow control mode, so we adopt fuzzy control to realize smooth switch of flow and pressure control.
3. Adopt flow control with pressure compensation to eliminate effect of flow estimate accuracy.
4. Adopt noise control method to reduce the fluctuation of output pressure of oil pump.
5. Monitoring temperature of motor and drive in whole journey, parameters adjusting in real time

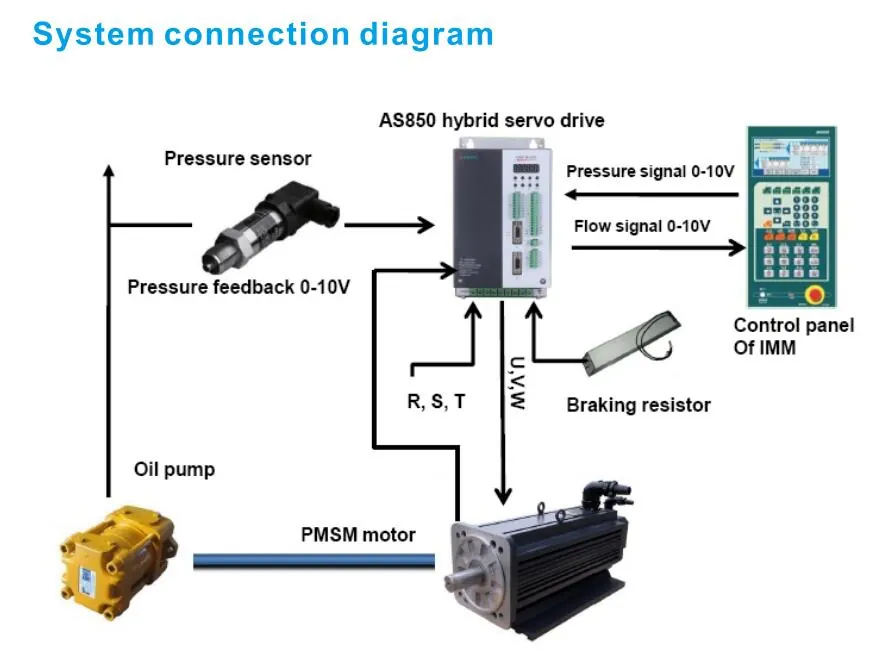

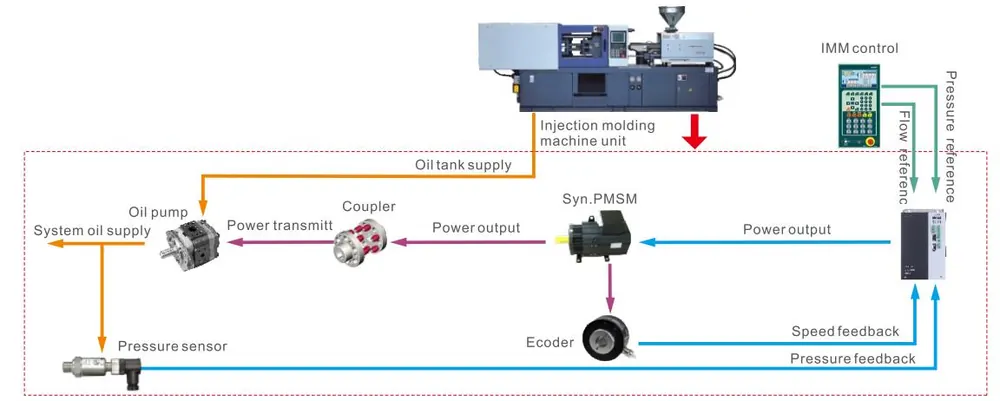

System connection for energy saving with hybrid servo drive

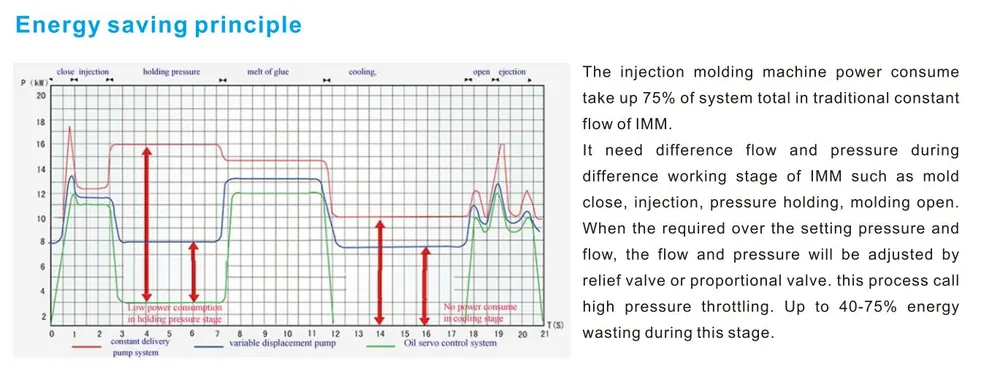

Energy saving comparison diagram

The injection molding machine power consume take up 75% of system total in traditional constant flow of IMM.
It need difference flow and pressure during difference working stage of IMM such as mold close, injection, pressure holding, molding open. When the required over the setting pressure and flow, the flow and pressure will be adjusted by relief valve or proportional valve. this process call high pressure throttling. Up to 40-75% energy wasting during this stage.

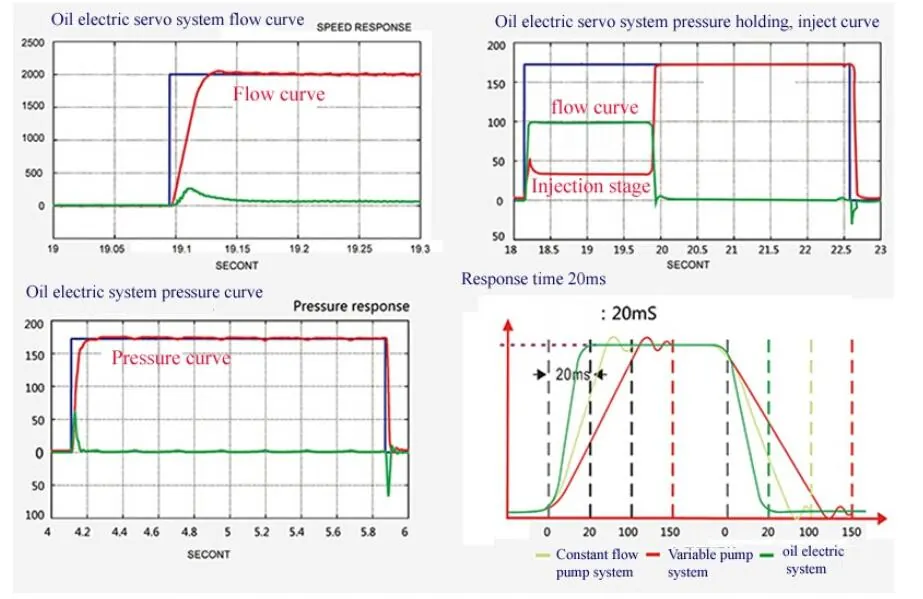

Oil servo drive system performance.
System curve of Kewo AD850Z servo drive in IMM application

AS850Z AC Servo DriveTechnical data

Model selection

Servo drive model	Input voltage	Rated output power (KW)	rated input power (A)	Rated output current (A)	braking resistor power selecting	braking resistor (Ω)	Braking unit
AS850Z4T017	3 phase 380V	7.5	20.5	17	1000	>90	built in
AS850Z4T025		11	26	25	1000	>40
AS850Z4T032		15	35	32	1000	>32
AS850Z4T037		18.5	38.5	37	2500	>32
AS850Z4T45		22	46.5	45	2500	>16	external connect
AS850Z4T60		30	62	60	2500	>16
AS850Z4T75		37	76	75	5000	>8
AS850Z4T91		45	92	91	5000	>8
AS850Z4T112		55	113	110	5000	>8
AS850Z4T150		75	157	150	5000	>8
AS850Z4T175		93	180	175	5000*2	>8*2
AS850Z4T210		110	214	210	5000*2	>8*2
AS850Z4T250		132	256	250	5000*2	>8*2
AS850Z4T300		160	307	300	5000*2	>8*2

Application:

1. Injection molding machine

2. pressure die casting machine

3 . brick machine

4. shoes machinery

5. Pressing machine

6. Aluminum extrusion machine

7. Hydraulic, CNC punching machine

8. Civil engineering machine

9. Other hydraulic machinery
