Solar DC Pump Sets

Matched DC solar pump sets supplied together with the drive as a complete system.

Solar DC Pump Sets

System Components

Product Overview

Matched DC solar pump sets supplied together with the drive as a complete system.

  • RangeSolar Pump Inverters
  • GroupSystem Components
  • ManufacturerShenzhen Kewo Electric Technology Co., Ltd., Shenzhen, China
  • Guarantee18 months free repair
  • Lead timeStock and production, confirmed at quotation
Request A QuoteEmail Us About Solar DC Pump SetsDownload Catalogue

48VDC high efficiency solar well pumps and DC controller
Automatic dc Submersible Solar Water Pump

Product Description
Irrigation water pump from river with solar is mainly used for all kinds of water supply and drainage, fountain, solar system and all other field requires 10m-200m head solar water pump irrigation, widely used in industries,
agricultural irrigation, petrochemical industries, medicinal industries, and all kinds of water process.
There are two solar pump controller system.
1.Solar DC pumps system
a, Low DC input,
b, small flow output compare to AC pumps with low power. up to 0.75kw
c, low cost invest
2. Solar 3 phase AC pumps system
a, Need high DC input ( 310VDC for 220V AC pumps, 540VDC for 380VAC pumps)
b, Large flow output, big water head is available, power form 0.75kw to 400kw
c. Big cost invest original
** Features of new PMSM solar DC pumps system.
High efficiency, small size, light weight, more functions
MPPT function
Automatically working function
Work with both solar power and electricity, can connect with solar panels and AC electricity at same time,
will use solar power in advance which is more higher efficient than MTTP function.
Do not need float switch, if there is no water in well for 1 minute, solar water pump dc brushless will stop working automatically. After 30 minutes, pump will start automatically power on to test whether there is water or not.
When power on the solar pump system, controller will detect the system of energy source to see it is solar panels or batteries, then start working.
If there is solar power then use solar power, if no so ar power will use batteries automatically.
****Models selection list
DC 24V 48V 72V Solar Pump with Controllers Solar Panels
Model Rate/Max. Flow (m³/h) Rate/Max. Head (m) Input Power (W) Solar Power (W) Voltage (V) Height (mm) Weight (kg) Outlet dimater (mm) Pump diameter Packing Size(mm) Power of each panel Vmp/ VOC (V) Qty. (PCS) Connection Way
mm
3SSW1.8-16-48-120 0.5/18 9//16 120 180 DC48V 420 4.6 32 75 120*120*520 250W 30/36 2 2pcs in series
3SSW2-18-48-150 0.7/20 13/18 150 225 420 4.9 32 75 120*120*520 250W 30/36 2 2pcs in series
3SSW2.5-30-48-200 0.7/2.5 20/30 200 300 440 4.6 32 75 120*120*520 250W 30/36 2 2pcs in series
3SSW2.6-40-48-400 1/2.6 30/40 400 600 440 4.9 32 75 120*120*520 250W 30/36 2 2pcs in series
3SSW2.7-52-48-550 1/2.7 40/52 600 750 510 5.3 32 75 120*120*550 250W 30/36 4 2 rows in parallel of 2 pcs in series, total is 4pcs
3SSW3-63-48-600 1/3.0 48/63 600 900 510 5.3 32 75 120*120*550 250W 30/36 4 2 rows in parallel of 2 pcs in series, total is 4pcs
3SSW3-78-48-750 1/3.0 60/78 750 1125 510 5.3 32 75 120*120*550 250W 30/36 6 3 rows in parallel of 2 pcs in series, total is 6pcs
3SSW3-22-48-300 2/3.0 16//22 300 450 440 5.3 32 75 120*120*520 250W 30/36 2 2pcs in series
3SSW4-33-48-550 2/4.0 22/33 550 825 510 5.3 32 75 120*120*550 250W 30/36 4 2 rows in parallel of 2 pcs in series, total is 4pcs
3SSW5-40-48-750 2/5.0 33/40 750 1125 510 5.8 32 75 150*150*550 250W 30/36 6 3rows in parallel of 2 pcs in series, total is 6pcs

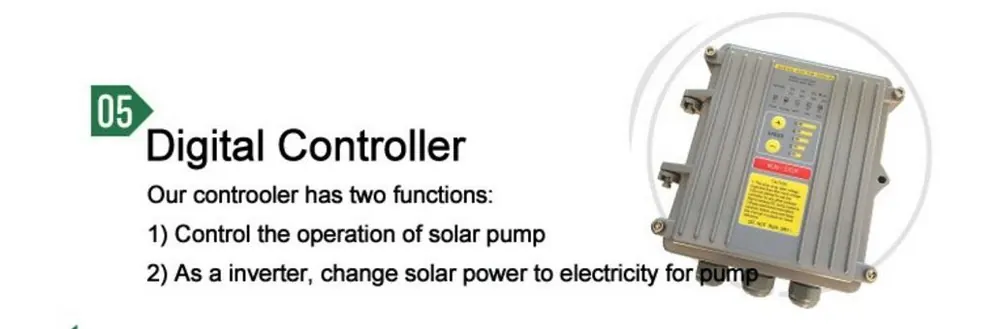

Solar DC pumps inverter and Pumps Sets

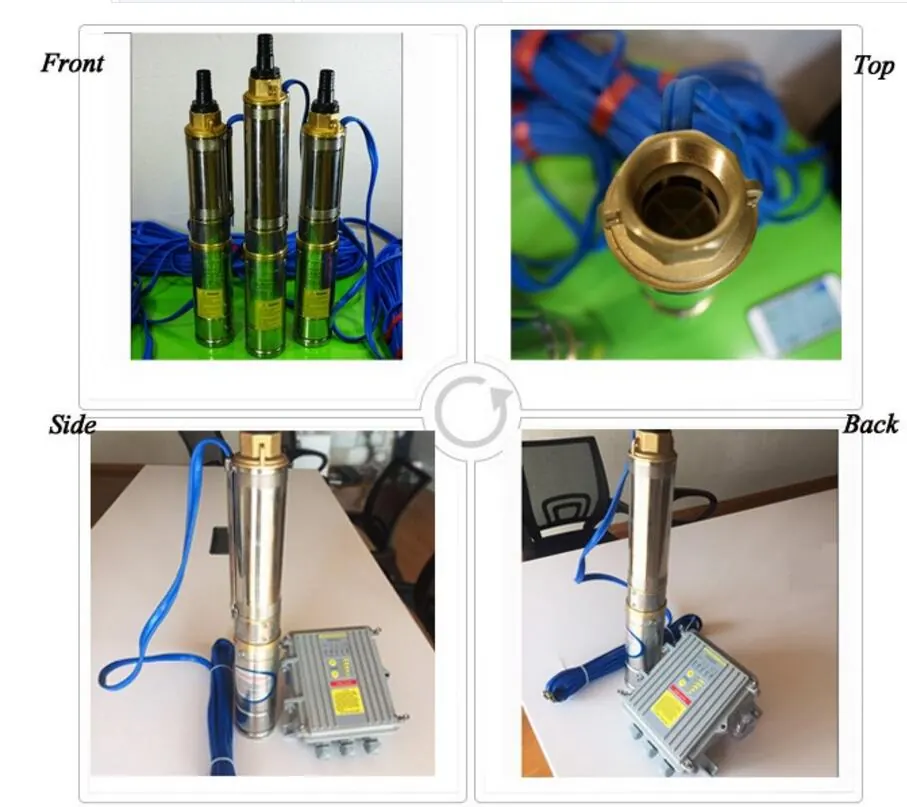

Solar DC pumps inverter and Pumps Sets

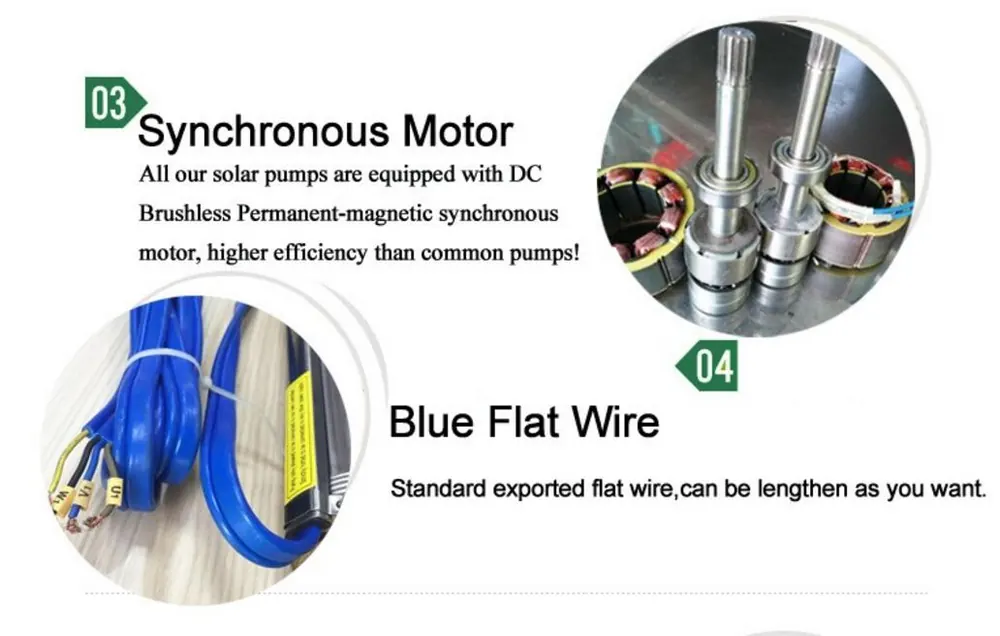

Solar DC pumps inverter and Pumps Sets

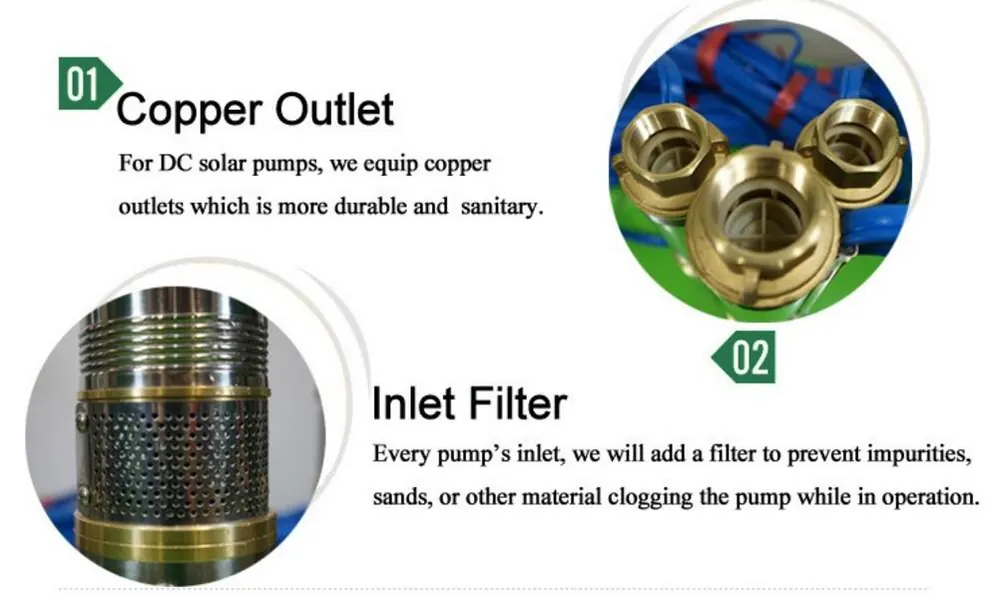

Solar DC pumps inverter and Pumps Sets
If you need high flow and high water head, please select our sun great series solar AC pumps.


Who It Is For And What It Solves

  • Irrigation contractors and farm projects that have no reliable grid supply
  • Rural and municipal water supply projects using elevated tanks or reservoirs
  • Solar EPC companies building complete PV pumping systems
  • Distributors in Africa, the Middle East, South Asia and Latin America
