1390 CO2 Laser Engraving Cutting Machine

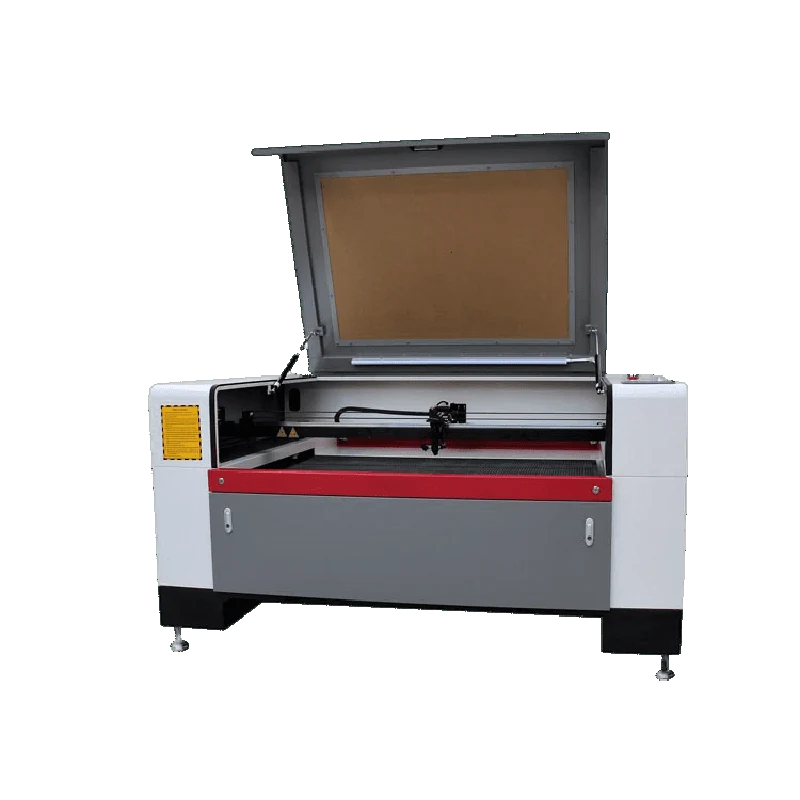

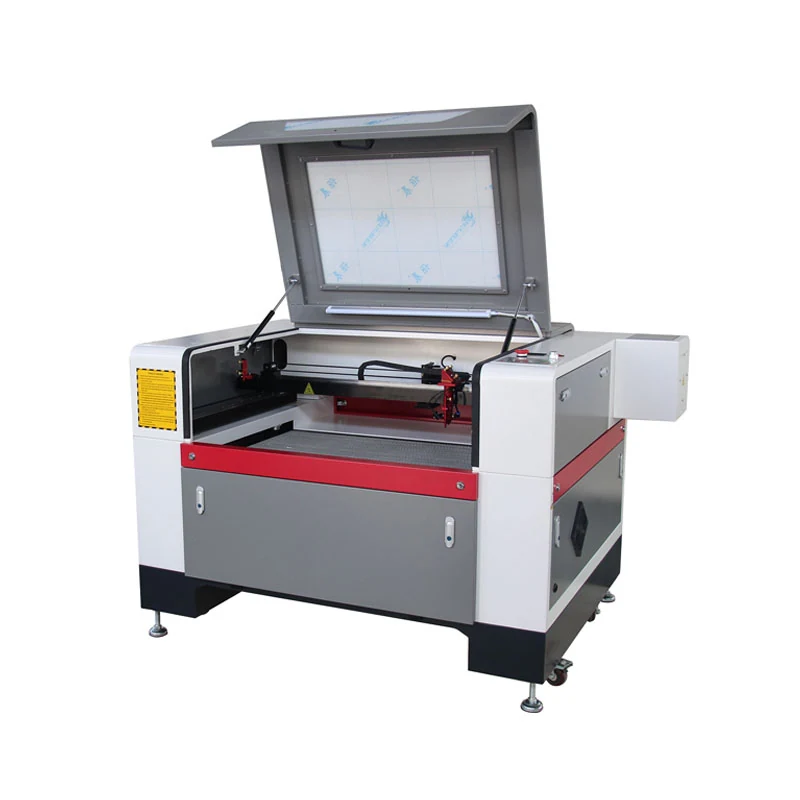

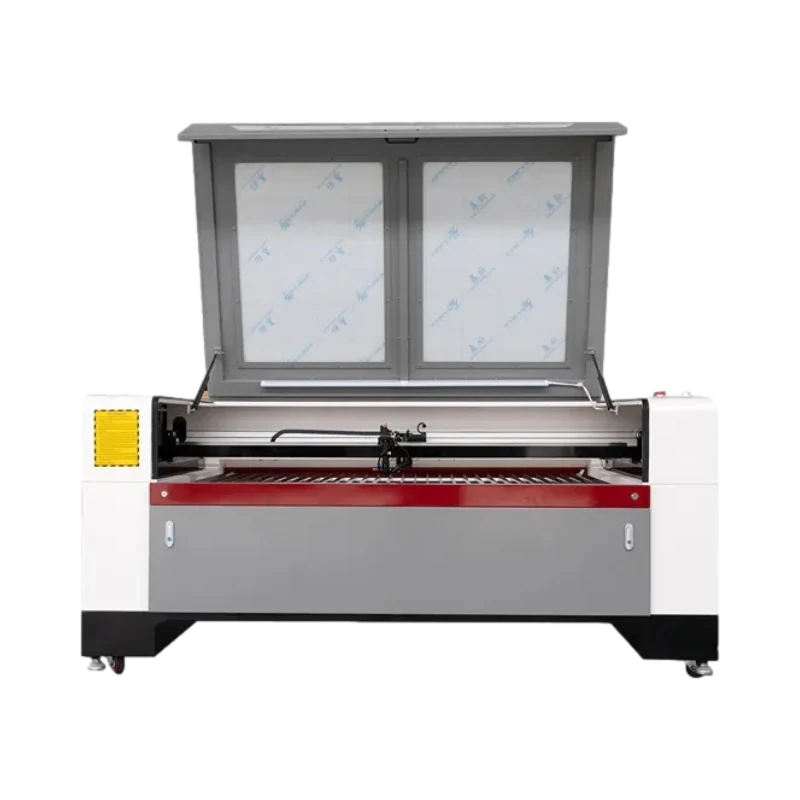

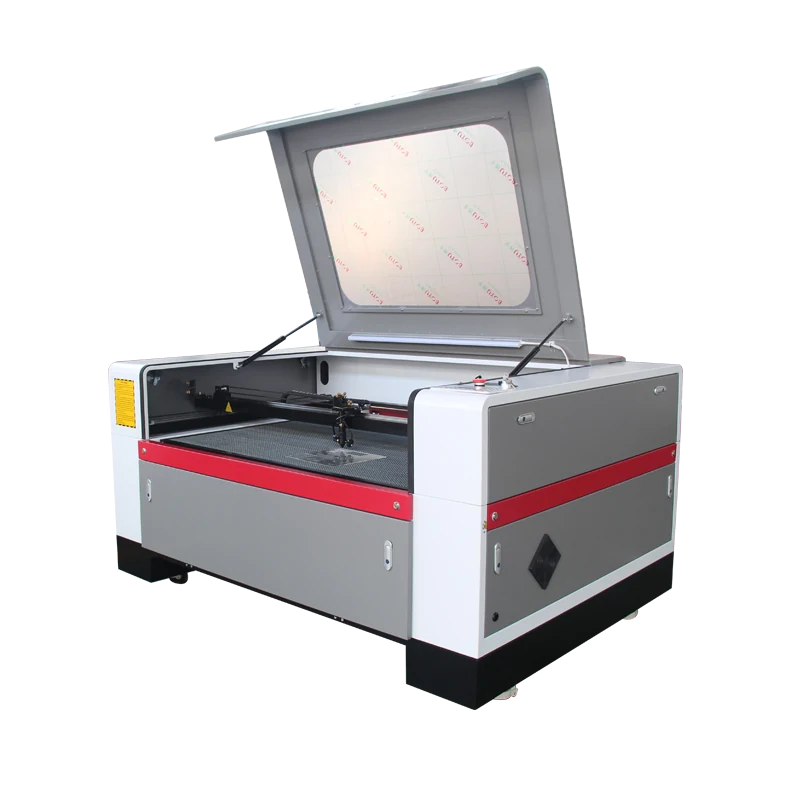

The WH-1390 is a CO2 laser engraving and cutting machine with a 1300 x 900 mm work area, designed for non-metallic materials. It features a dual-head configuration option and power selections from 60 W to 150 W.
Product Overview
What This Machine Is Built To Do
The WH-1390 is a CO2 laser engraving and cutting machine with a 1300 x 900 mm work area, designed for non-metallic materials. It features a dual-head configuration option and power selections from 60 W to 150 W. The machine uses a Ruida 6445G control system with offline USB support and breakpoint resume functionality. Optical components include II-VI high-transmittance focusing lenses and reflector mirrors to maintain beam consistency. It supports materials such as acrylic, wood, paper, bamboo, and dual-color boards. The bed offers blade or honeycomb table options, and the unit includes front and rear material access for flexible workflow.
- Ruida 6445G control system enables offline USB operation and breakpoint resume for long jobs
- II-VI high-transmittance lenses ensure a constant beam for precise engraving on non-metals
- Dual laser head option increases throughput for repetitive engraving tasks
- Front and rear material access allows for loading larger sheets without moving the machine
- Omni-directional wheels enable easy repositioning within the workshop
- Water cooling system supports continuous 24-hour uniform output from the laser tube
Where It Is Used
Application Scenarios
- Signage workshops cutting acrylic letters and dual-color boards
- Garment producers engraving leather patches and fabric patterns
- Craft makers cutting wooden puzzles and bamboo items
- Electronics manufacturers marking PCBs or plastic casings
- Promotional product suppliers engraving pens, flasks, and nameplates
Buyer Fit
Who It Is For
- Sign makers who need to cut acrylic and wood with high precision
- Garment factories requiring reliable marking on leather and fabric
- Small batch manufacturers producing custom promotional items
- Workshops replacing manual cutting with automated laser processing
- Machine dealers stocking versatile non-metal laser cutters
Process Problems
Problems It Solves
- Offline USB control removes dependency on a connected PC for every job
- Breakpoint resume saves time if power fails during long engraving runs
- High-transmittance optics reduce power loss, ensuring cleaner edges on acrylic
- Dual head option doubles output for simple repetitive patterns
- Front and rear access solves the problem of loading oversized sheets in tight spaces
Engineering
Technical Features
- Ruida 6445G control system with offline USB support and breakpoint resume
- II-VI high-transmittance focusing lenses and reflector mirrors for beam consistency
- Stepper motor driving system with 0.01 mm resetting positioning accuracy
- Water cooling system for continuous 24-hour laser tube operation
- Dual laser head configuration option for increased processing speed
- Omni-directional wheels and front/rear material access for flexible placement
Specifications
Published Figures For 1390 CO2 Laser Engraving Cutting Machine
Every value below is taken from the machine data sheet. Where a range is given the exact figure depends on the model and power you order.
| Model | WH-1390 |
|---|---|
| Work Size | 1300 x 900 mm |
| Machine Size | 1820 x 1320 x 1020 mm |
| Laser Head Quantity | 2 Pcs |
| Laser Power | 60 W / 80 W / 100 W / 130 W / 150 W |
| Work Table | Blade table / Honeycomb table |
| Engraving Speed | 0-60000 mm/min |
| Cutting Speed | 0-30000 mm/min |
| Driving System | Stepper motor |
| Resetting Positioning Accuracy | 0.01 mm |
| Laser Tube Cooling | Water cooling |
| Max Power | About 1 kW |
| Machine Control | DSP controlling |
| Power Supply | AC 110 - 220 V, 50 - 60 Hz |
| Min. Shaping Character | Chinese 2 mm x 2 mm, English 1 mm x 1 mm |
| Supported Graphic | BMP, PLT, DST, DXP, and AI |
| Software Supported | CorelDraw, AutoCAD, Photo shop |
| Operating Temperature | 0°C~45°C |
| Operating Humidity | 5%~95% |
| Standard Assistant Parts | 550W Exhaust fan*2units, Water pump*2units, 195w air compressor*2units |
Materials
Materials It Handles
- Acrylic
- Wooden boards
- Paper
- Bamboo
- Dual-color boards
- Other non-metallic materials
Working Process
From File To Finished Part
Design or import graphics in CorelDraw, AutoCAD, or Photoshop
Export file to supported format such as BMP, PLT, DST, DXP, or AI
Load material onto blade or honeycomb table
Select file via DSP control or insert USB drive for offline operation
Adjust focus manually or with optional autofocus
Start job; machine uses stepper motors to position laser head
Quality Control
Quality Control Before Shipment
- II-VI high-transmittance lenses ensure beam consistency and precision
- Ruida 6445G control system provides stable operation and breakpoint resume
- Stepper motor driving system achieves 0.01 mm resetting positioning accuracy
- Water cooling system supports continuous 24-hour uniform output
Options
Customisation Options
- Choose laser power: 60 W, 80 W, 100 W, 130 W, or 150 W
- Select work table type: Blade table or Honeycomb table
- Add CW3000w/CW5000/CW5200 chiller for better temperature control
- Include motorized up down table for easier material handling
- Add autofocus module for quick focus adjustment
- Install red dot pointer for visual alignment
- Add rotary axis for cylindrical items
- Upgrade to servo motor driving system for higher speed
Comparison
How It Compares With The Alternatives
| Single head CO2 laser | The dual head option allows simultaneous processing or faster repetition of simple patterns |
|---|---|
| Fiber laser | CO2 lasers cut non-metals like acrylic and wood which fiber lasers cannot process |
| Manual cutting | Laser cutting provides 0.01 mm positioning accuracy and complex shape capability without tooling |
Operating Notes
Use Guide
- Ensure water cooling system is filled and running before operation
- Use air assist to prevent flame and clear debris during cutting
- Clean lenses regularly to maintain transmittance and cutting power
- Check exhaust fans are operating to remove fumes safely
- Use offline USB mode for standalone operation without a PC
Buyer Questions
1390 CO2 Laser Engraving Cutting Machine FAQ
What is the work area size?
The work size is 1300 x 900 mm.
What laser power options are available?
You can choose 60 W, 80 W, 100 W, 130 W, or 150 W.
Can it cut metal?
No, this is a CO2 laser designed for non-metallic materials like acrylic, wood, and leather.
What is the positioning accuracy?
The resetting positioning accuracy is 0.01 mm.
Does it support offline operation?
Yes, the Ruida 6445G control system supports offline USB usage.
What software files are supported?
It supports BMP, PLT, DST, DXP, and AI files, compatible with CorelDraw, AutoCAD, and Photoshop.
