150w Real-time Auto focus Laser Cutting Machine
The WH9060 and related models are CO2 laser cutting machines designed for non-metal processing on uneven surfaces. The system features a follow-up laser head that automatically adjusts the height relative to the material surface, maintaining a consistent...
Product Overview
What This Machine Is Built To Do

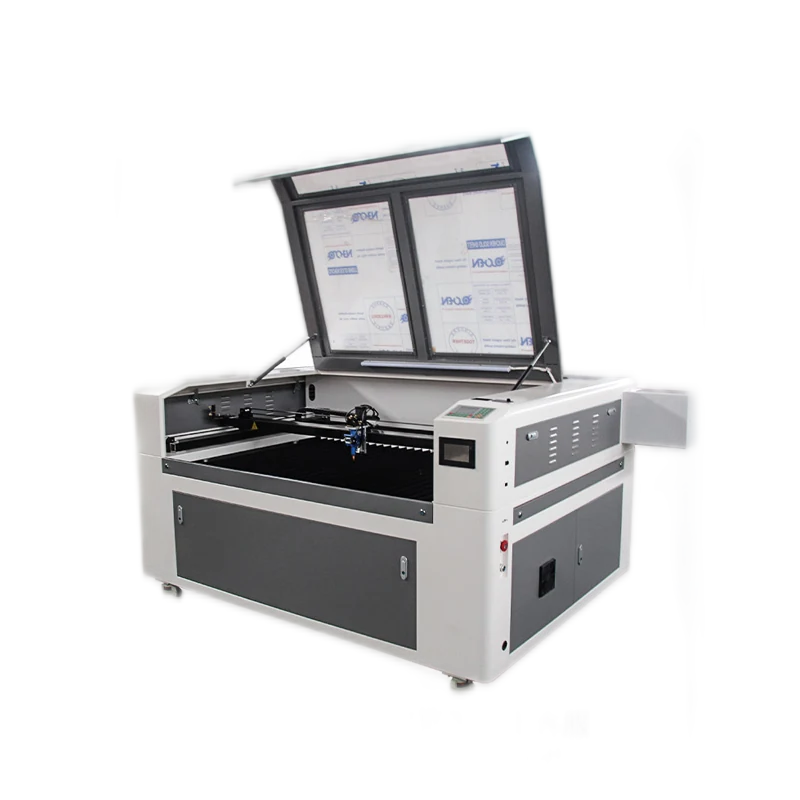

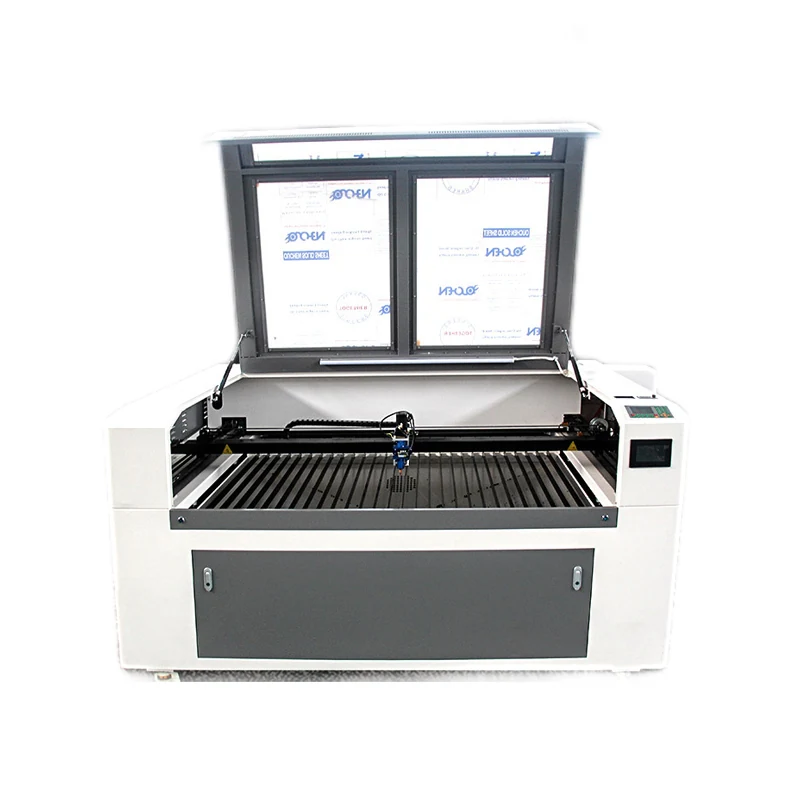

The WH9060 and related models are CO2 laser cutting machines designed for non-metal processing on uneven surfaces. The system features a follow-up laser head that automatically adjusts the height relative to the material surface, maintaining a consistent focal length across flat, curved, and sloped items like corrugated cardboard. With laser power options of 80 W, 100 W, 130 W, or 150 W, these machines use Reci laser tubes and Ruida control panels to deliver smooth cutting and stable operation. The work areas range from 900 x 600 mm to 1800 x 1200 mm, accommodating various production scales while supporting standard file formats including DXF, AI, and CDR.
- Follow-up laser head automatically adjusts height to maintain consistent focus on uneven surfaces
- Supports cutting of flat, curved, and sloped non-metal materials without manual re-focusing
- Ruida control panel with 3.5-inch color screen allows offline operation and easy file retrieval
- Reci laser tubes provide adjustable power settings for smooth cutting and stable operation

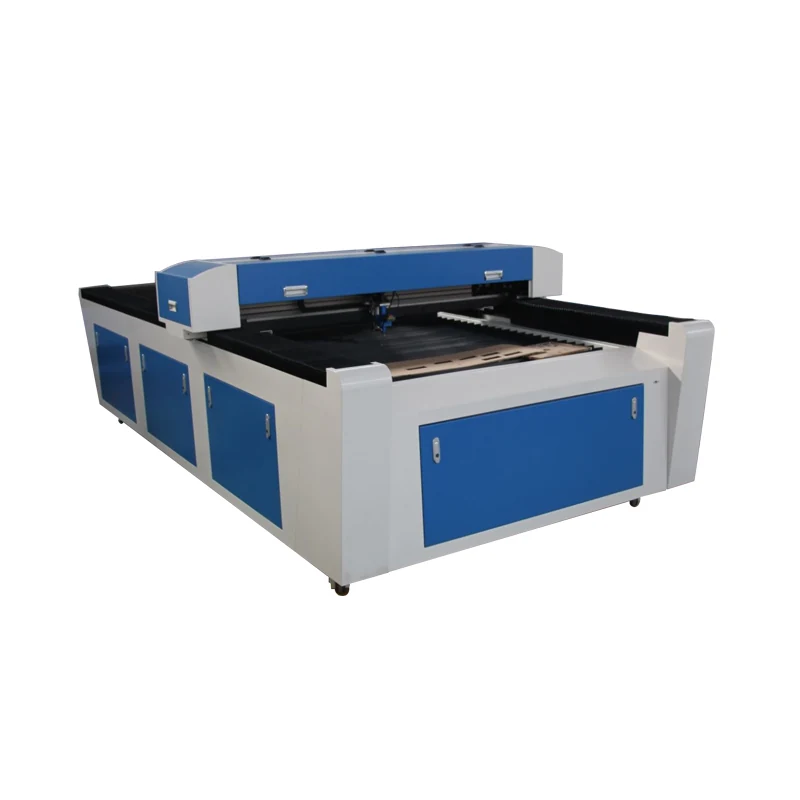

- Four standard work sizes from 900 x 600 mm to 1800 x 1200 mm fit different workshop spaces
- Water cooling system with protection ensures consistent laser tube performance during long runs
Where It Is Used
Application Scenarios
- Packaging workshops cutting corrugated cardboard with uneven surfaces
- Signage producers cutting curved wooden boards or acrylic sheets
- Textile factories cutting synthetic fabrics with varying thicknesses
- Craft manufacturers processing sloped non-metal materials
- Small batch production of gaskets and seals from flexible materials
Buyer Fit
Who It Is For
- Packaging manufacturers requiring precise cuts on uneven cardboard
- Signage workshops cutting curved or irregular non-metal materials
- Textile producers cutting synthetic fabrics with consistent line width
- Machine dealers offering versatile CO2 cutters for mixed applications
- Small businesses replacing manual cutting with automated laser precision
Process Problems
Problems It Solves
- Manual focus adjustment wastes time on curved or uneven materials
- Inconsistent focal length causes varying cut widths on sloped surfaces
- Standard flat-bed cutters cannot handle corrugated cardboard effectively
- Complex file formats require expensive software for machine operation
- Laser tube overheating leads to unstable power output during long shifts
Engineering
Technical Features

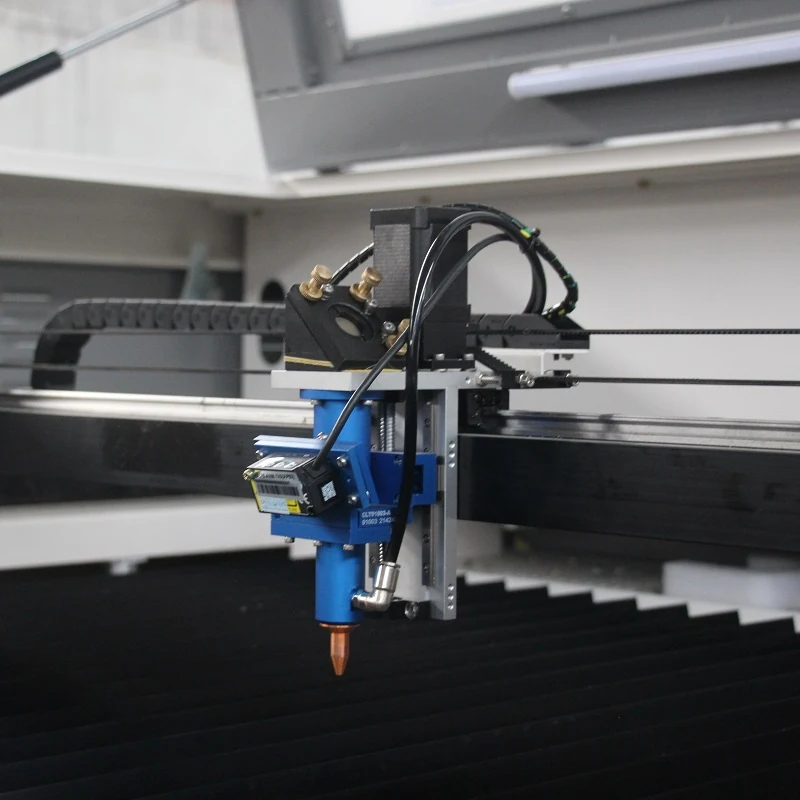

- Follow-up laser head automatically adjusts height to material surface
- Reci laser tube with adjustable power for smooth cutting
- Ruida control panel with 3.5-inch color screen and offline capability
- Water cooling system with protective mechanism for stable operation
- Supports PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG file formats
- AC110/220V, 50/60Hz power supply compatibility for global markets
Specifications
Published Figures For 150w Real-time Auto focus Laser Cutting Machine
Every value below is taken from the machine data sheet. Where a range is given the exact figure depends on the model and power you order.
| Model | WH9060 / WH1390 / WH1610 / WH1812 |
|---|---|
| Work Size | 900x600mm / 1300x900mm / 1600x1000mm / 1800x1200mm |
| Laser Power | 80W / 100W / 130W / 150W |
| Laser Tube Type | Sealed glass CO2 laser |
| Cooling Method | Water cooling with water protective system |
| File Format Supported | PLT/DST/AI/DXF/BMP/JPG/CAD/CDR/DWG |
| Power Supply | AC110/220v, 50/60hz |
| Rated Power | <1500w |
| Driving System | AC110/220v, 50/60hz |
| Assistant Parts | Air pump, Water pump/cooling chiller, 550w Air blower |
Materials
Materials It Handles
- Corrugated cardboard with uneven surfaces
- Curved wooden boards
- Flat non-metallic materials
- Sloped non-metallic materials
- Textiles and synthetic fabrics
Working Process
From File To Finished Part
Import design files in supported formats like DXF or AI into Ruida control
Position material on the cutting bed ensuring it fits within work area
The follow-up laser head automatically adjusts height to match surface
Set power and speed parameters on the 3.5-inch color screen
Execute cutting with consistent focal length across flat or curved areas
Unload finished parts and check cooling system water level
Quality Control
Quality Control Before Shipment
- Laser tube power is adjustable to ensure smooth cutting edges
- Water protective system monitors cooling to prevent tube overheating
- Follow-up head calibration ensures consistent focus on uneven surfaces
- Control panel verifies file integrity before starting cutting operations
Options
Customisation Options
- Custom processing sizes available beyond standard WH1390 and WH1325
- Choice of 80W, 100W, 130W, or 150W laser power
- Voltage configuration for 110V or 220V markets
- English user manuals and video guidance included
Comparison
How It Compares With The Alternatives
| Fixed-focus CO2 laser cutter | The follow-up head maintains focus on curved surfaces, while fixed-focus cutters require flat materials |
|---|---|
| Manual die cutting | Laser cutting offers flexible design changes without new tooling costs, though die cutting may be faster for single simple shapes |
| Fiber laser cutter | CO2 machines cut non-metals effectively, whereas fiber lasers are designed for metal cutting and cannot process cardboard or wood |
Operating Notes
Use Guide
- Ensure water cooling system is filled and functioning before operation
- Clean the follow-up sensor lens regularly to maintain accurate height adjustment
- Use air assist to prevent smoke staining on cut edges of paper or fabric
- Verify material is non-metallic as CO2 lasers do not cut metal
- Store original files in supported formats for easy retrieval on the control panel
Buyer Questions
150w Real-time Auto focus Laser Cutting Machine FAQ
Can this machine cut curved surfaces?
Yes, the follow-up laser head automatically adjusts its height to the material surface, allowing it to cut curved wooden boards and uneven cardboard.
What is the maximum laser power available?
The machine is available with laser power options of 80W, 100W, 130W, or 150W, using sealed glass CO2 laser tubes.
Which file formats does the control system support?
The Ruida control panel supports PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, and DWG file formats.
How does the cooling system work?
The machine uses a water cooling method with a water protective system and includes a water pump or cooling chiller to maintain stable laser tube temperature.
Is the work area customizable?
Yes, besides standard models like WH9060 and WH1390, the processing size can be customized according to your specific needs.
What warranty is provided?
We provide a two-year warranty on the whole machine and free lifetime technical support for all our laser equipment.
