WH1290 CCD Camera Laser Cutting Machine

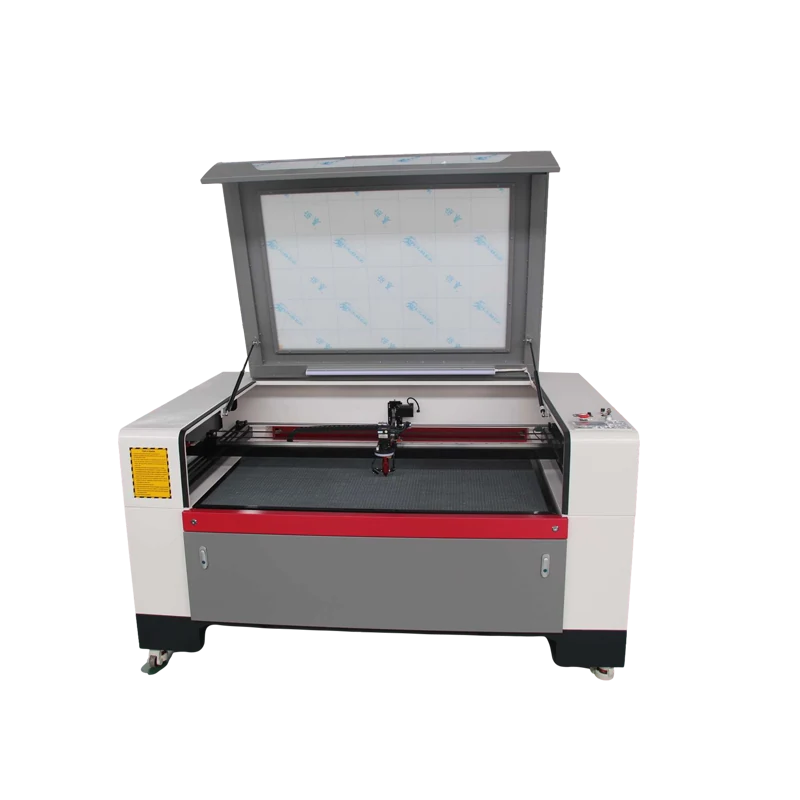

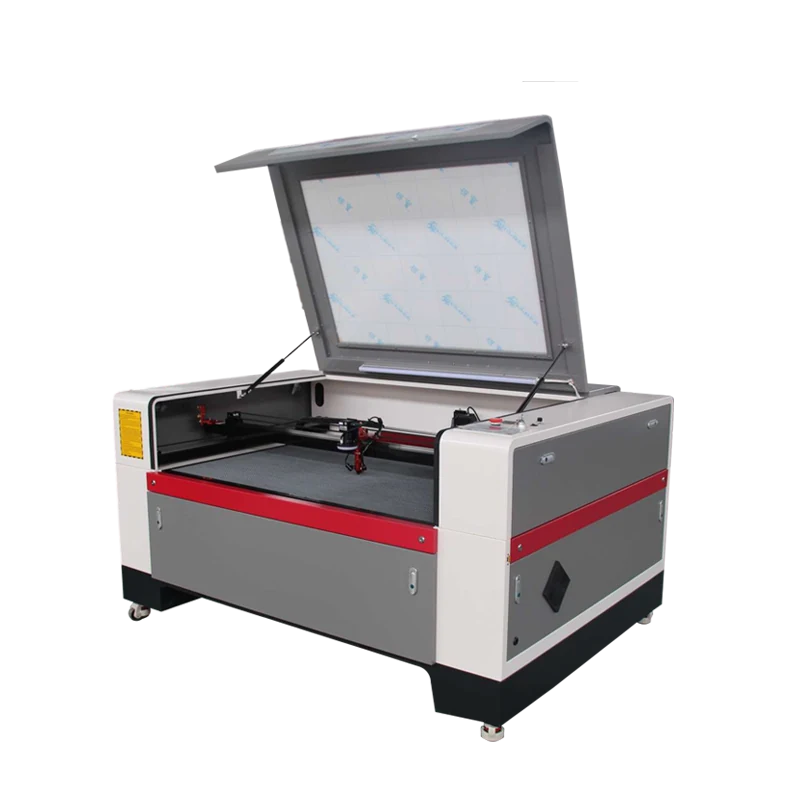

The WH1290 CCD Camera Laser Cutting Machine is a CO2 laser cutter with a 1200 x 900 mm work area and an integrated high-definition industrial vision system.
Product Overview
What This Machine Is Built To Do
The WH1290 CCD Camera Laser Cutting Machine is a CO2 laser cutter with a 1200 x 900 mm work area and an integrated high-definition industrial vision system. It uses Ruida or Leetro control software to locate printed marks on materials, allowing the laser to cut along irregular contours without manual alignment. The machine supports 80 W to 180 W Beijing RFR or RECI laser tubes, cutting nonmetal materials up to 30 mm thick. It is designed for workshops producing custom-shaped parts from printed sheets, such as stickers, leather goods, or acrylic templates, where precise registration to existing graphics is required.
- Vision system automatically detects printed marks to align cuts with existing graphics
- Cuts along irregular contours at any angle without manual material repositioning
- Switches between standard cutting software and positioning software for flexible workflows
- Recognizes multiple different patterns simultaneously on a single sheet
- Subdivided stepper motors and high-precision couplings maintain dimensional accuracy
- Supports 80 W to 180 W laser tubes for varying material thicknesses and speeds
Where It Is Used
Application Scenarios
- Producing die-cut stickers where the cut line must follow the printed artwork
- Cutting custom leather patches with precise registration to embossed or printed logos
- Fabricating acrylic templates that require holes aligned to specific printed features
- Creating packaging samples where the die line must match the printed fold marks
- Processing pre-printed fabric or paper materials with complex contour requirements
Buyer Fit
Who It Is For
- Sign makers needing to cut printed vinyl or acrylic with perfect graphic alignment
- Garment producers cutting leather or fabric patches registered to printed designs
- Packaging suppliers creating custom boxes or inserts from printed board
- Machine dealers offering vision-guided cutting solutions to local workshops
- Hardware manufacturers producing gaskets or insulation parts from printed sheets
Process Problems
Problems It Solves
- Manual alignment of cut paths to printed graphics is slow and prone to human error
- Standard laser cutters cannot follow irregular contours defined by existing marks
- Switching between standard cutting and vision-guided cutting requires different machines
- Misaligned cuts result in wasted material when graphics are pre-printed
- Complex multi-pattern sheets require time-consuming individual positioning for each part
Engineering
Technical Features

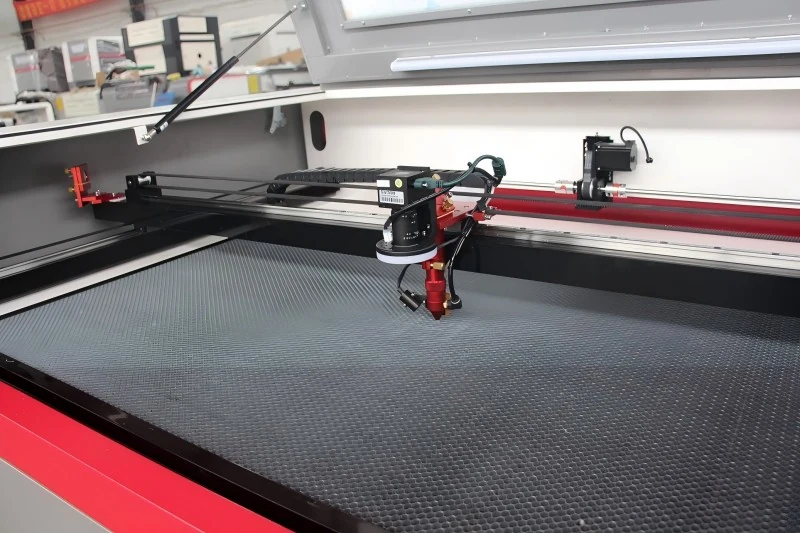

- High-definition industrial CCD camera for fast and accurate mark recognition
- Dual software modes: standard cutting and vision-guided positioning cutting
- Ruida or Leetro control system for reliable motion and laser management
- Subdivided stepper motors with high-precision couplings for smooth movement
- Intelligent angle adjustment to accommodate materials placed at any rotation
- Water cooling system with optional CW3000, CW5000, or CW5200 chillers
Specifications
Published Figures For WH1290 CCD Camera Laser Cutting Machine
Every value below is taken from the machine data sheet. Where a range is given the exact figure depends on the model and power you order.
| Model | WH1290 CCD Camera Laser Cutting Machine |
|---|---|
| Work Area | 1200 x 900 mm |
| Laser Power | 80 W / 100 W / 130 W / 150 W / 180 W |
| Laser Tube Brand | Beijing RFR or RECI |
| Laser Tube Life | 10000 hours |
| Engraving Speed | 0-60000 mm/min |
| Cutting Speed | 0-30000 mm/min |
| Max Cutting Thickness | 0-30 mm (depends on material) |
| Control System | Ruida / Leetro |
| Cooling System | Water cooling |
| Voltage | AC110/220v, 50/60hz |
Materials
Materials It Handles
- Printed acrylic sheets
- Leather goods with embossed or printed marks
- Vinyl and sticker materials
- Fabric with printed patterns
- Paper and cardboard packaging
- Wood and bamboo sheets
Working Process
From File To Finished Part
Place material on the 1200 x 900 mm honeycomb or slat table
Load design file into the positioning cutting software
Use the CCD camera to scan and locate reference marks on the material
Software adjusts the cut path to match the detected mark position and angle
Laser cuts or engraves the material following the aligned path
Unload finished parts and clear debris from the work area
Quality Control
Quality Control Before Shipment
- Camera recognition speed and accuracy tested before shipment
- Laser alignment checked to ensure cut path matches detected marks
- Mechanical movement tested for smoothness using subdivided stepper motors
- Water cooling system leak tested to ensure stable tube temperature
Options
Customisation Options
- Choose between 80 W, 100 W, 130 W, 150 W, or 180 W laser tube power
- Select Beijing RFR or RECI brand laser tube
- Add double heads for increased throughput
- Install motorized up/down table for easier loading
- Include rotary axis for cylindrical objects
- Upgrade to CW3000, CW5000, or CW5200 chiller
- Add auto focus and red dot pointer
Comparison
How It Compares With The Alternatives
| Standard CO2 laser cutter | The CCD camera allows cutting registered to printed marks, whereas a standard cutter requires manual alignment or pre-cut blanks |
|---|---|
| Die cutting machine | The laser offers flexibility to change shapes instantly without making new dies, though die cutting is faster for high-volume identical parts |
| Digital cutting plotter | The laser cuts thicker materials up to 30 mm and can engrave, while plotters are limited to thin films and cannot engrave |
Operating Notes
Use Guide
- Ensure reference marks on the material are high contrast and clean for camera detection
- Select the correct software mode: positioning for registered cuts, standard for general work
- Check water level and temperature in the cooling system before long runs
- Adjust air pump pressure to minimize flame and residue on acrylic edges
- Verify material thickness does not exceed the focus range for the selected lens
Buyer Questions
WH1290 CCD Camera Laser Cutting Machine FAQ
What is the main advantage of the CCD camera?
The camera automatically detects printed marks on the material, allowing the laser to cut along irregular contours that match existing graphics without manual alignment.
Can this machine cut metal?
No, this is a CO2 laser designed for nonmetal materials like acrylic, wood, leather, fabric, and plastic. It cannot cut metal.
What laser tube options are available?
You can choose from 80 W, 100 W, 130 W, 150 W, or 180 W tubes from Beijing RFR or RECI, with a rated life of 10000 hours.
How thick can the machine cut?
The maximum cutting thickness is up to 30 mm, depending on the material type and the laser power selected.
Is the software difficult to use?
The machine includes both standard cutting software and positioning cutting software. The positioning software handles the camera detection and alignment automatically.
What cooling system is required?
The machine uses a water cooling system. You can optionally upgrade to a CW3000, CW5000, or CW5200 industrial chiller for better temperature stability.
