200w 300w 500w 600w CO2 laser Cutting Machine

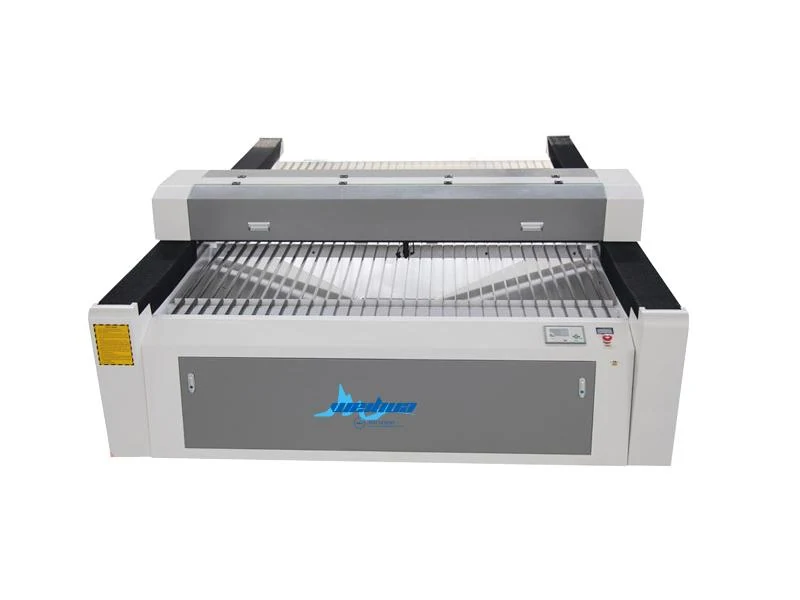

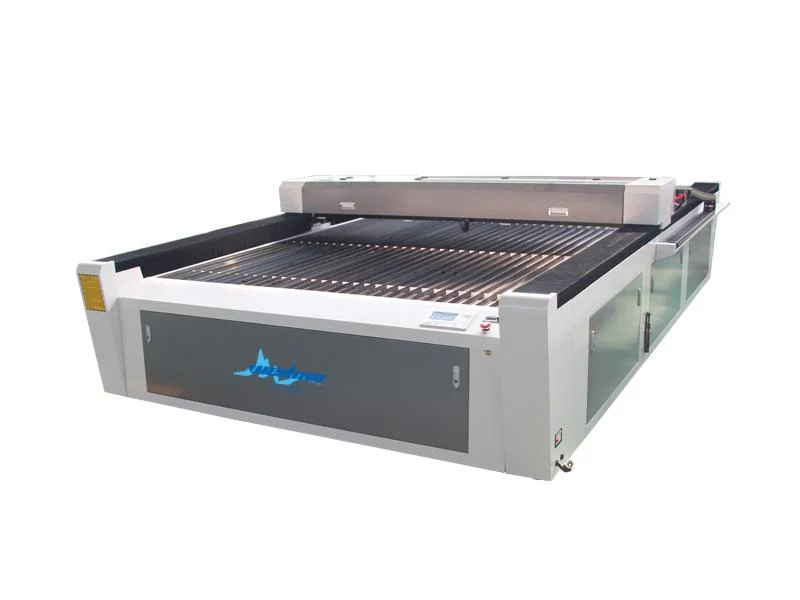

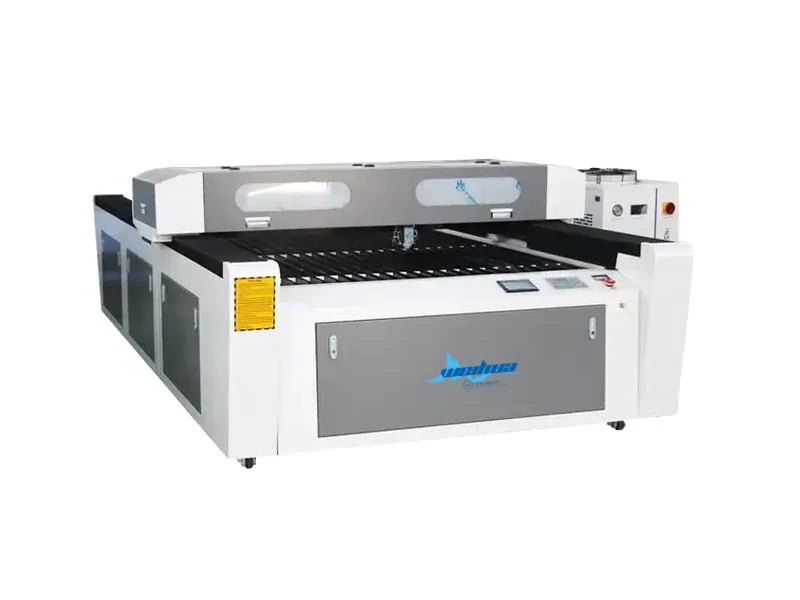

The WH1325 and WH2030 are large-format CO2 laser cutters for nonmetal materials, configured with sealed glass laser tubes at 220 W, 300 W, 500 W or 600 W.
Product Overview
What This Machine Is Built To Do
The WH1325 and WH2030 are large-format CO2 laser cutters for nonmetal materials, configured with sealed glass laser tubes at 220 W, 300 W, 500 W or 600 W. The 600 W source cuts 30 mm acrylic at 14 to 16 mm/s and 30 mm wood at 18 to 20 mm/s, while the 220 W source handles 5 mm acrylic at 31 to 33 mm/s. With an X/Y positioning accuracy of ±0.05 mm and repeatability of ±0.01 mm, these machines serve workshops needing to process large sheets of acrylic, wood, leather or die-cutting board without frequent tube replacement.
- Cut 30 mm acrylic at 14 to 16 mm/s with the 600 W tube option
- Sealed CO2 glass laser tubes are available in 220 W, 300 W, 500 W and 600 W configurations
- Ruida control system and DSP board manage complex vector files from DXF, AI and CDR formats
- Optional auto-focus lifting head adjusts focal distance for varying material thicknesses
- Enclosed distribution box reduces dust accumulation and electrical interference during long runs
- Two bed sizes available: 1300 x 2500 mm and 2000 x 3000 mm for large sheet handling
Where It Is Used
Application Scenarios
- Signage workshops cutting 10 to 30 mm acrylic letters and light box panels
- Packaging producers cutting die-cutting boards and templates from 5 to 20 mm stock
- Furniture manufacturers cutting 20 mm medium-density board and plywood components
- Leather goods workshops cutting complex patterns from leather and synthetic materials
- Art studios cutting large-format wood and acrylic pieces for exhibitions
Buyer Fit
Who It Is For
- Signage fabricators needing to cut thick acrylic without a band saw
- Die-cutting board producers requiring consistent edge quality on templates
- Workshops replacing manual cutting methods with automated CO2 laser processing
- Machine dealers offering large-format nonmetal cutting solutions to local clients
Process Problems
Problems It Solves
- Manual cutting of thick acrylic leaves rough edges that require polishing
- Small-format lasers force users to tile designs, creating alignment errors
- Dust from cutting wood and acrylic interferes with electronics in open distribution boxes
- Fixed-focus heads require manual adjustment for every change in material thickness
- Low-power tubes cannot cut 20 mm or 30 mm materials efficiently or at all
Engineering
Technical Features
- Sealed CO2 glass laser tube with selectable power output up to 600 W
- Ruida control system with DSP board for processing vector and raster files
- Stepper motor driving system with Leadshine drivers for X and Y axis movement
- CW6000 water chiller for maintaining laser tube temperature during operation
- Optional auto-focus laser head for automatic focal distance adjustment
- Enclosed distribution box designed to be dust-proof and interference-resistant
Specifications
Published Figures For 200w 300w 500w 600w CO2 laser Cutting Machine
Every value below is taken from the machine data sheet. Where a range is given the exact figure depends on the model and power you order.
| Models | WH1325 / WH2030 |
|---|---|
| Cutting Size WH1325 | 1300 x 2500 mm |
| Cutting Size WH2030 | 2000 x 3000 mm |
| Laser Power | 220 W / 300 W / 500 W / 600 W |
| Laser Type | Sealed CO2 glass laser tube |
| Positioning Accuracy | ±0.05 mm |
| Repeatability Accuracy | ±0.01 mm |
| Control System | Ruida control |
| Driving System | Stepper motor & Leadshine driver |
| Cooling System | CW6000 chiller |
| Rated Power | 1500 W |
| Power Supply | AC110/220 ±10%, 50Hz-60Hz |
| Supported File Formats | DST, PLT, BMP, DXF, AI, CDR, CIF, PCX, DWG |
Materials
Materials It Handles
- Acrylic sheet
- Wood and plywood
- Medium-density board (MDF)
- Die-cutting board
- Paper and cardstock
- Leather and synthetic materials
Working Process
From File To Finished Part
Import vector or raster file into Ruida control software
Set cutting speed and power based on material thickness and type
Adjust focal distance using optional auto-focus head or manual method
Start cutting process with CW6000 chiller active
Monitor cut quality and adjust speed if edge residue appears
Unload finished parts and clear debris from the bed
Quality Control
Quality Control Before Shipment
- Laser tube warranty is 360 days for the sealed CO2 glass source
- Positioning accuracy is checked against ±0.05 mm standard before shipping
- Distribution box is tested for dust resistance and electrical shielding
- Chiller system is verified for stable temperature control during operation
Options
Customisation Options
- Select laser tube power: 220 W, 300 W, 500 W or 600 W
- Choose bed size: 1300 x 2500 mm or 2000 x 3000 mm
- Add optional auto-focus lifting head for automatic focal adjustment
- Configure power supply for AC110 V or AC220 V destination markets
Comparison
How It Compares With The Alternatives
| Low-power 80 W CO2 laser | The 220 W to 600 W options cut materials up to 30 mm thick, which low-power tubes cannot process |
|---|---|
| Fiber laser metal cutter | CO2 lasers cut nonmetals like acrylic and wood effectively, whereas fiber lasers are designed for metals |
| Manual band saw cutting | Laser cutting provides ±0.05 mm accuracy and complex internal shapes without tooling changes |
Operating Notes
Use Guide
- Match cutting speed to tube power: 600 W cuts 30 mm acrylic at 14 to 16 mm/s
- Ensure CW6000 chiller is running before activating the laser tube
- Clean the lens regularly to prevent power loss from dust or resin buildup
- Use the optional auto-focus head when switching between 5 mm and 20 mm materials
- Verify power supply voltage matches AC110 V or AC220 V configuration before startup
Buyer Questions
200w 300w 500w 600w CO2 laser Cutting Machine FAQ
What is the maximum thickness this machine can cut?
With the 600 W laser tube, the machine cuts acrylic up to 30 mm at 14 to 16 mm/s and wood up to 30 mm at 18 to 20 mm/s.
What file formats does the control system support?
The Ruida control system supports DST, PLT, BMP, DXF, AI, CDR, CIF, PCX and DWG file formats.
Is the laser tube covered by warranty?
Yes, the sealed CO2 glass laser tube comes with a 360-day warranty.
What is the positioning accuracy?
The machine holds an X/Y positioning accuracy of ±0.05 mm and a repeatability accuracy of ±0.01 mm.
Can I upgrade the focus system later?
An optional auto-focus lifting head is available for automatic focal adjustment, which can be specified at purchase.
What cooling system is required?
The machine includes a CW6000 water chiller to maintain the laser tube temperature during operation.
