Contour Laser Cutter For Fabric with Vision CCD Camera
The WH-1325 is a CO2 laser contour cutter equipped with a Canon vision system for automated fabric processing. It supports work sizes from 1300 x 2500 mm up to 2000 x 3000 mm, with laser power options ranging from 80 W to 180 W.
Product Overview
What This Machine Is Built To Do
The WH-1325 is a CO2 laser contour cutter equipped with a Canon vision system for automated fabric processing. It supports work sizes from 1300 x 2500 mm up to 2000 x 3000 mm, with laser power options ranging from 80 W to 180 W. The machine uses a stainless steel meshed worktable and Trocen control system to manage automatic feeding and correction. It reads patterns directly from PLT, DST, DXF, DWG, AI, and LAS formats, allowing direct output from AutoCAD and CorelDRAW. This setup is designed for textile workshops that need to cut complex contours on flexible materials without manual alignment.
- Canon camera vision system captures images in 2000 x 2900 mm format for wide-area scanning
- Automatic edge enhancement and multi-point positioning minimize distortion in peripheral images
- Trocen control system enables seamless switching between Chinese and English interfaces
- Stainless steel crawler platform supports large-format cutting without manual table adjustment
- Automatic feeding and correction function reduces labor time for loading flexible fabrics
- Supports direct file output from AutoCAD and CorelDRAW to eliminate format conversion errors
Where It Is Used
Application Scenarios
- Garment factories cutting embroidered patches or lace overlays with complex contours
- Automotive interior suppliers processing floor mats from foam or synthetic leather
- Toy manufacturers cutting multi-layer fabric components for stuffed animals
- Handbag producers cutting leather panels with precise alignment to printed patterns
- Signage workshops engraving and cutting acrylic or wood using the same CO2 source
Buyer Fit
Who It Is For
- Textile subcontractors replacing die-cutting for small batch custom orders
- Garment producers needing to cut embroidery designs without manual pinning
- Machine dealers offering vision-based cutting to local apparel manufacturers
- Automotive trim shops processing irregular shapes in foam and leather
Process Problems
Problems It Solves
- Manual alignment of fabric to printed patterns causes scrap and slows production
- Die-cutting tooling costs are prohibitive for short runs or frequent design changes
- Peripheral image distortion in vision systems leads to mis-cut edges on large sheets
- Flexible materials shift during cutting, requiring constant operator attention
- File format incompatibility between design software and cutter control systems
Engineering
Technical Features

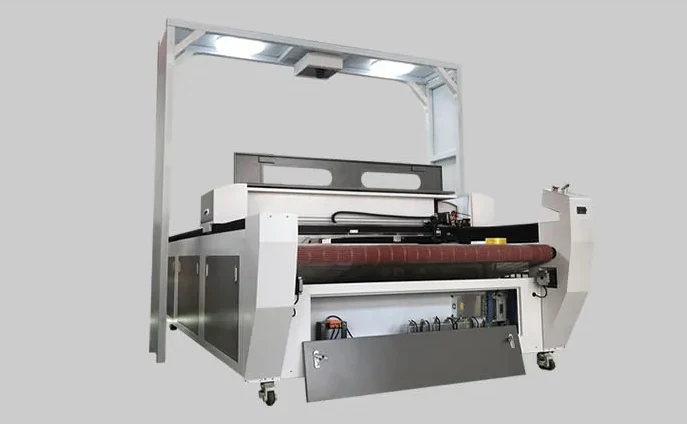

- Canon brand camera for wide-angle and long focal length image capture
- Trocen control system with large operating panel for clear interface visibility

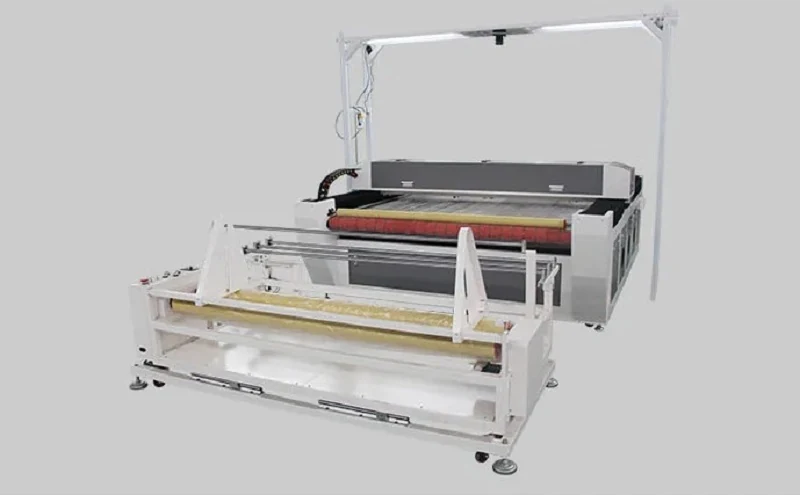

- Stainless steel meshed worktable for ventilation and material support

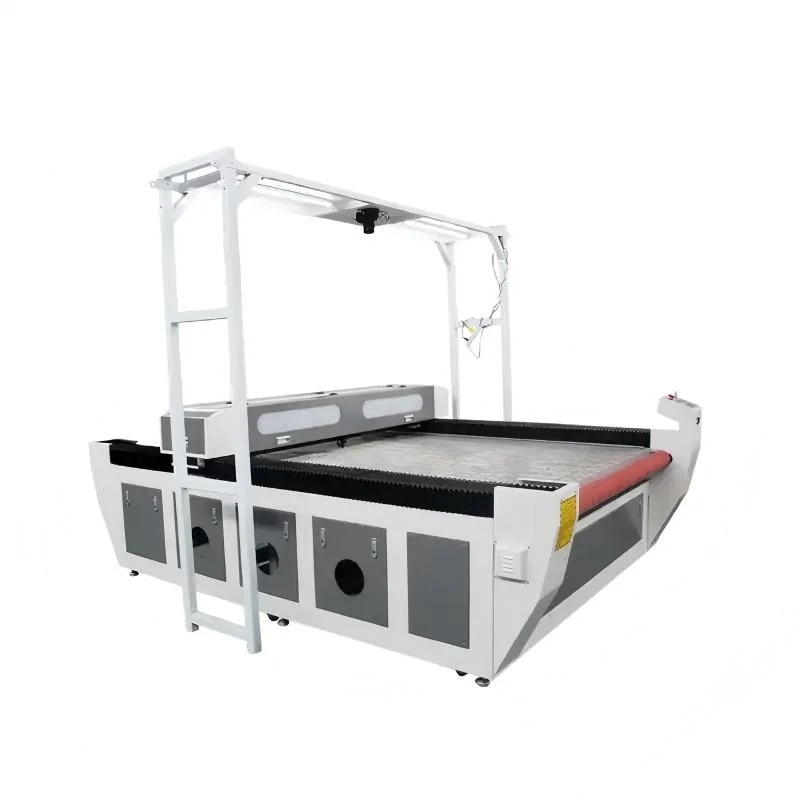

- Automatic stainless steel crawler platform for continuous feeding
- Step motor driving system with belt transmission for smooth movement
- Taiwan CSK linear guide rails for stable motion on the X and Y axes
- Hailea brand air pump with three air blowers for edge cooling
- Pressure roller and red dot pointer for material holding and positioning
Specifications
Published Figures For Contour Laser Cutter For Fabric with Vision CCD Camera
Every value below is taken from the machine data sheet. Where a range is given the exact figure depends on the model and power you order.
| Model | WH-1325 / WH-1626 / WH2030 |
|---|---|
| Work Size | 1300×2500 mm / 1600×2600 mm / 2000×3000 mm |
| Laser Power | 80 W / 100 W / 130 W / 150 W / 180 W |
| Laser Type | CO2 laser |
| Wavelength | 10.6 um |
| Cooling Way | Water cooling |
| Rated Power | <=1500 W |
| Camera Brand | Canon |
| Control System | Trocen |
| Driving System | Step motor |
| Guide Way | Taiwan CSK linear guide rail |
| Air Pump | 1 unit, Hailea brand |
| Air Blower | 3 units |
| Format Supported | PLT, DST, DXF, DWG, AI, LAS |
Materials
Materials It Handles
- Fabrics and textiles
- Leather and synthetic leather
- Clothing and embroidery
- Toys and plush materials
- Handbag components
- Automobile mats
- Foam and insulation
Working Process
From File To Finished Part

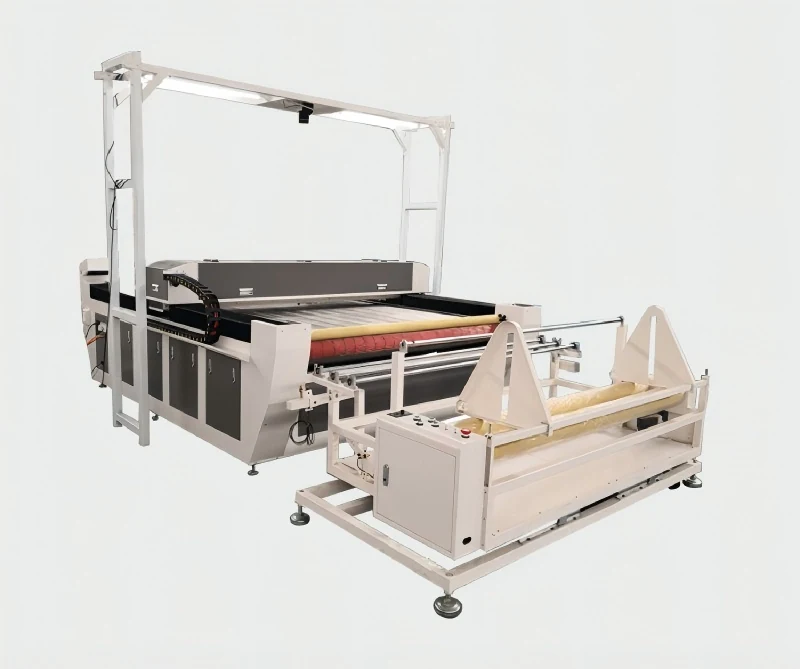

Load fabric roll onto the automatic feeding rack
Capture pattern with Canon camera using 2000 x 2900 mm format
Software performs edge enhancement and feature positioning
Select material file from PLT, DXF or AI formats
Activate automatic correction to align cutting head with contours
Cut using CO2 laser with air assist to prevent charring
Quality Control
Quality Control Before Shipment
- Vision system checks peripheral image distortion before cutting starts
- Automatic correction function verifies alignment during feeding
- Water cooling system maintains laser tube temperature stability
- Pressure roller ensures material remains flat during high-speed cutting
Options
Customisation Options
- Work size can be customized to 2000 x 5000 mm for long rolls
- Laser power selectable from 80 W to 180 W based on material thickness
- Interface language switchable between Chinese and English
- Voltage configuration adjusted for destination country power supply
Comparison
How It Compares With The Alternatives
| Manual die-cutting press | The laser cutter requires no tooling cost and changes designs instantly, but is slower for very thick leather |
|---|---|
| Standard CO2 cutter without vision | The vision system aligns automatically with printed patterns, saving hours of manual pinning per batch |
| Rotary knife cutting machine | The laser seals edges on synthetic fabrics to prevent fraying, which a knife cannot do |
Operating Notes
Use Guide
- Clean the Canon camera lens regularly to prevent image noise affecting positioning
- Check water chiller level before each shift to protect the CO2 laser tube
- Use air assist to blow away smoke and prevent yellowing on light fabrics
- Verify file format compatibility with CorelDRAW or AutoCAD before sending to Trocen
- Adjust pressure roller tension for different fabric thicknesses to prevent slipping
Buyer Questions
Contour Laser Cutter For Fabric with Vision CCD Camera FAQ
What file formats does the vision cutter accept?
It supports PLT, DST, DXF, DWG, AI, and LAS, allowing direct output from AutoCAD and CorelDRAW.
Can the machine cut thick leather?
Yes, with the 180 W option it can cut thicker materials, though speed decreases with density.
How does the vision system handle pattern distortion?
The software uses automatic edge enhancement and multi-point positioning to minimize distortion in peripheral images.
Is the control system easy to operate?
It uses a Trocen system with a large panel and simple interface, switchable between Chinese and English.
What is the maximum work size?
Standard models go up to 2000 x 3000 mm, with customization available for 2000 x 5000 mm.
How is the machine cooled?
It uses a water cooling system to maintain the CO2 laser tube at a stable operating temperature.
