1325 Laser Cutting Machine
The WH-1325 is a flatbed CO2 laser cutter with a 1300 x 2500 mm work area, designed for large-format non-metal processing. It uses a sealed CO2 laser tube, defaulting to a Reci tube with a lifespan of up to 10,000 hours, and offers power options from 80 W to...
Product Overview
What This Machine Is Built To Do

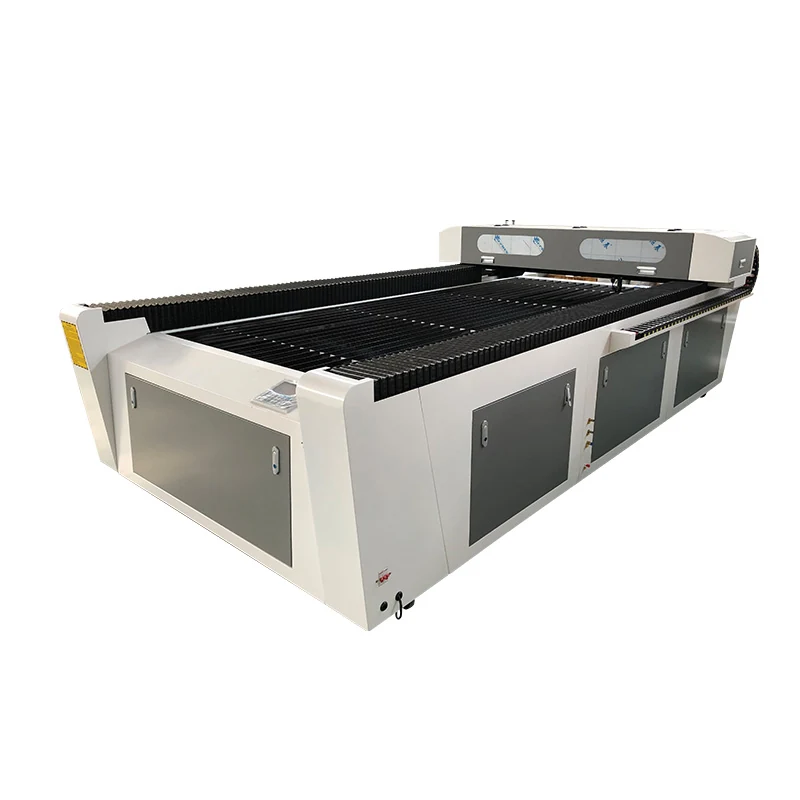

The WH-1325 is a flatbed CO2 laser cutter with a 1300 x 2500 mm work area, designed for large-format non-metal processing. It uses a sealed CO2 laser tube, defaulting to a Reci tube with a lifespan of up to 10,000 hours, and offers power options from 80 W to 300 W. The machine features a dual-drive Y-axis system on Taiwan CSK 20 mm linear guide rails, ensuring stable movement at speeds up to 60,000 mm/min. It is built for signage workshops and packaging manufacturers that need to cut acrylic, wood, or dense foam without the edge damage associated with mechanical sawing.

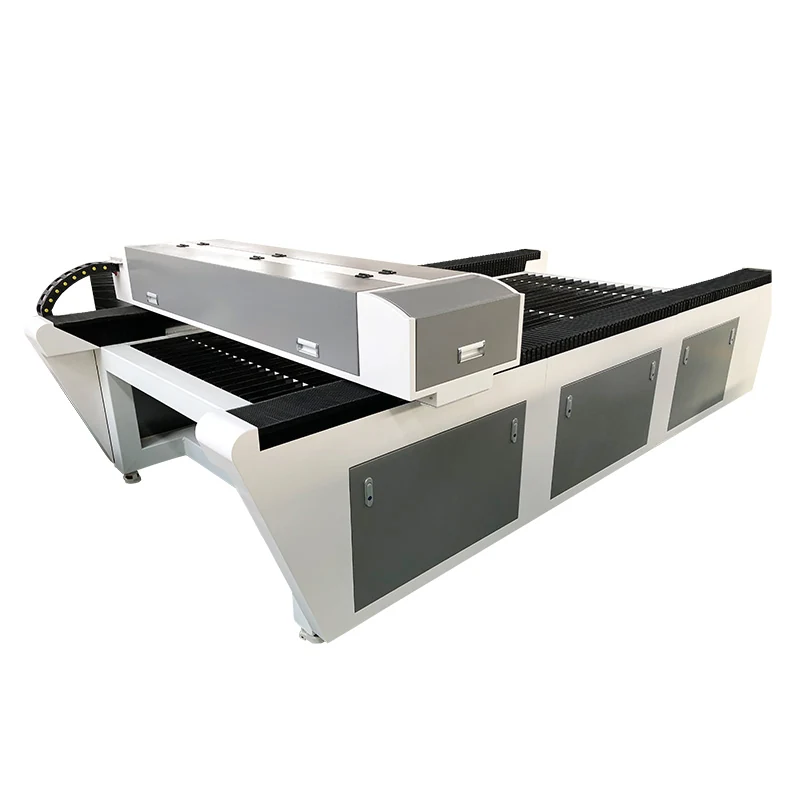

- Dual-drive Y-axis with CSK 20 mm rails keeps the gantry square during high-speed moves
- Reci laser tube rated for 10,000 hours reduces replacement frequency for daily production

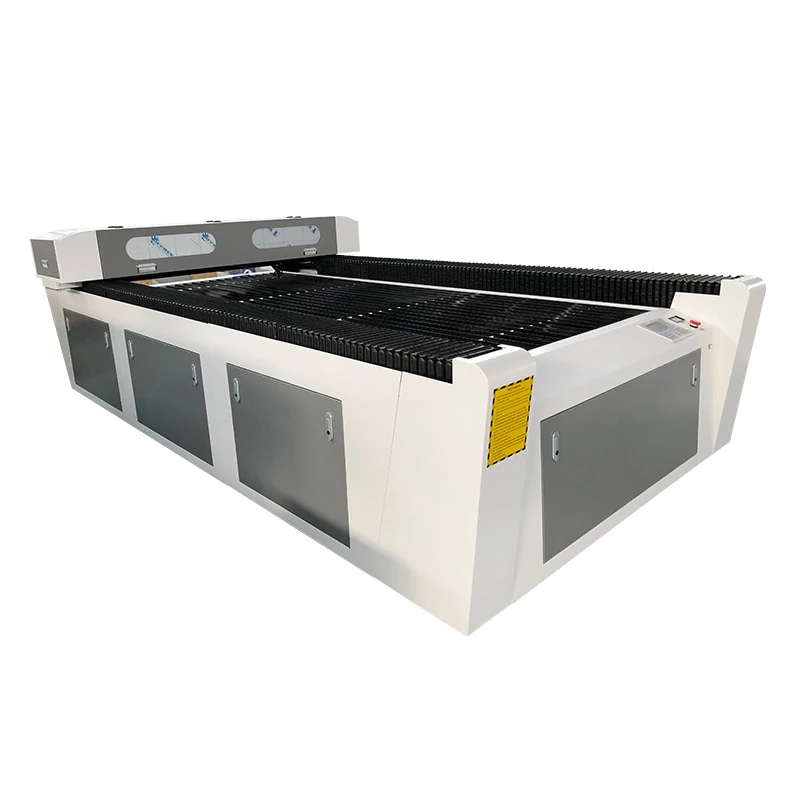

- Blade table with individual leveling devices prevents material from resting on cut slag
- Three 550 W blowers and dedicated exhaust zones clear smoke to protect lens optics
- S&A water chiller with automatic temperature control stabilizes laser power output
- Supports 1300 x 2500 mm sheets, allowing full-size acrylic or plywood cutting
Where It Is Used
Application Scenarios
- Signage workshops cutting large acrylic letters and two-color boards
- Packaging manufacturers prototyping or cutting corrugated cardboard and foam
- Textile producers cutting synthetic fabrics and leather patches
- Model makers cutting basswood, MDF, and acrylic for architectural displays
- Industrial gasket makers cutting rubber and silicone sheets
Buyer Fit
Who It Is For
- Sign shops replacing mechanical routers for non-contact cutting of brittle plastics
- Fabricators needing to process full-size 4x8 ft sheets without manual tiling
- Workshops requiring low maintenance on the bed due to self-leveling blade strips
- Buyers who need a machine that runs on standard AC 110-220V power
Process Problems
Problems It Solves
- Mechanical sawing causes cracking in acrylic; this laser melts a clean edge instead
- Single-drive gantries drift out of square on large beds; dual-drive prevents this
- Smoke accumulation burns material edges; three-zone extraction removes fumes quickly
- Laser power drops as the tube heats up; S&A chiller maintains constant temperature
- Manual leveling of the bed takes time; individual blade strips self-adjust to material
Engineering
Technical Features
- Taiwan CSK 20 mm linear guide rails for smooth low-friction movement
- Dual-drive system on the Y-axis for synchronized gantry motion
- Sealed CO2 laser tube with up to 10,000 hour lifespan

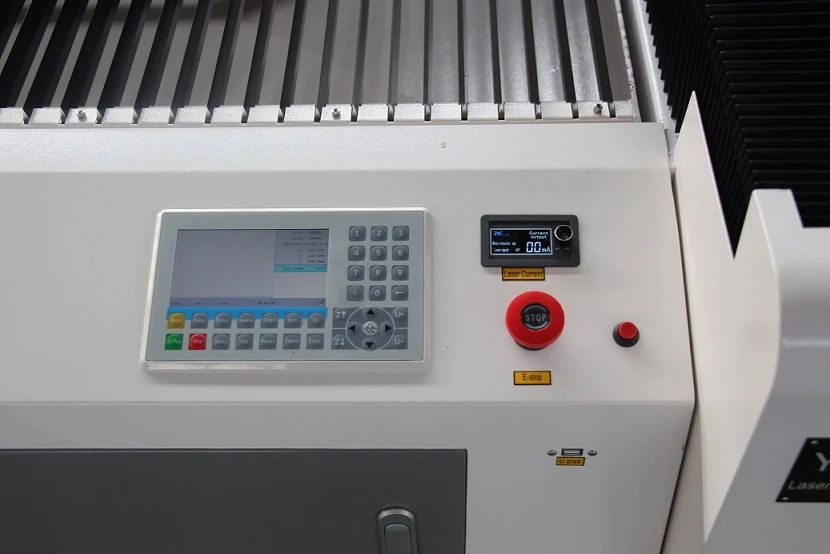

- DSP controller for standalone operation and file management
- Oxidized blade strips with low reflectivity to reduce back-flash
- Dust-proof covers and protective shields for guide rails
Specifications
Published Figures For 1325 Laser Cutting Machine
Every value below is taken from the machine data sheet. Where a range is given the exact figure depends on the model and power you order.
| Model | WH-1325 |
|---|---|
| Work Area | 1300 x 2500 mm |
| Machine Size | 2950 x 1800 x 1100 mm |
| Laser Type | Sealed CO2 Laser Tube |
| Laser Power | 80W / 100W / 130W / 150W / 200W / 300W |
| Cutting Speed | 0 - 60,000 mm/min |
| Positioning Accuracy | 0.01 mm |
| Min Text Size | English 1mm, Chinese 2mm |
| Cooling System | Water Cooling |
| Control System | DSP Controller |
| Power Supply | AC 110-220V, 50-60Hz |
| Work Table | Blade Table or Honeycomb Table |
Materials
Materials It Handles
- Acrylic and organic glass
- Plywood and MDF
- Leather and fabric
- Rubber and silicone
- Cardboard and paper
Working Process
From File To Finished Part
Prepare vector files in CorelDraw, AutoCAD, or Illustrator
Export as BMP, PLT, DST, DXP, or AI format
Load material onto the blade or honeycomb table
Set power and speed parameters on the DSP controller
Run the job; the dual-drive gantry moves at up to 60,000 mm/min
Unload finished parts and clear debris from the blade strips
Quality Control
Quality Control Before Shipment
- Each blade strip has its own leveling device to ensure a flat surface
- Guide rails are covered with dust-proof shields to prevent contamination
- Water chiller maintains constant temperature to stabilize laser output
- Exhaust system uses three zones to remove smoke and prevent edge burn
Options
Customisation Options
- Select laser power from 80 W to 300 W based on material thickness
- Choose between a blade table for rigid materials or honeycomb for thin sheets
- Add a CCD camera for contour cutting of printed materials
- Upgrade to servo motors for higher precision and speed
- Install an automatic focusing head for varying material thicknesses
Comparison
How It Compares With The Alternatives
| Smaller 6040 desktop laser | The 1325 handles full-size sheets without tiling, but it requires more floor space and a larger exhaust system |
|---|---|
| Mechanical CNC router | The laser cuts without physical contact, preventing material shifting, but it cannot cut thick metals or 3D shapes |
| Galvo laser marker | The 1325 cuts through thick materials at a slower speed, whereas a galvo marks quickly but cannot cut |
Operating Notes
Use Guide
- Ensure the water chiller is filled with distilled water to prevent scale buildup
- Check the air assist pressure to keep the lens clean during cutting
- Use the exhaust fan to remove fumes, especially when cutting acrylic or PVC
- Clean the lens regularly with a soft cloth and alcohol to maintain power
- Verify the material is flat on the blade table to ensure consistent focus
Buyer Questions
1325 Laser Cutting Machine FAQ
What is the maximum laser power available?
The machine is available with laser tubes ranging from 80 W up to 300 W, depending on your cutting needs.
How long does the laser tube last?
The default Reci laser tube has a rated lifespan of up to 10,000 hours under normal operating conditions.
Can it cut metal?
No, this is a CO2 laser designed for non-metals like acrylic, wood, and fabric. It cannot cut metal.
What software does it support?
It supports files from CorelDraw, AutoCAD, and PhotoShop, and accepts BMP, PLT, DST, DXP, and AI formats.
Is the bed adjustable?
Yes, the blade table features individual leveling devices for each strip to ensure a flat cutting surface.
What warranty is included?
We provide a two-year warranty on the whole machine and free lifetime technical support.
