3D Printing Filament
Strong 3D Printing Filament Anti Jamming Anti Clogging
Model OP-WH
Opaque white, and the roll that addresses the failure every sign workshop knows: an overnight print that jams at three in the morning and wastes both the material laid down and the machine hours. PETG-S is rated easy to print with no jamming, and the diameter consistency behind that rating is what makes unattended running realistic.
- Rated easy to print with no jamming which makes overnight running practical
- Consistent diameter avoids the under extrusion that leads to a clog
- 50 MPa tensile strength for structural parts and returns
- Opaque white blocks light for returns backs and non lit elements
Product Overview
Opaque white, and the roll that addresses the failure every sign workshop knows: an overnight print that jams at three in the morning and wastes both the material laid down and the machine hours. PETG-S is rated easy to print with no jamming, and the diameter consistency behind that rating is what makes unattended running realistic.
Who It Is For
- Production workshops running machines unattended
- Managers measuring scrap and yield per shift
- Sign makers printing structural parts in white
Problems It Solves
- A jam halfway through an overnight print wastes material and a shift of machine time
- Clogged nozzles force a strip down and a restart
- Weak structural parts fail at fixing points after installation
- Frequent roll changes interrupt long production runs
Key Benefits
- Rated easy to print with no jamming which makes overnight running practical
- Consistent diameter avoids the under extrusion that leads to a clog
- 50 MPa tensile strength for structural parts and returns
- Opaque white blocks light for returns backs and non lit elements
- 340 meters per roll reduces the number of roll changes on long jobs
Technical Features
- Filament type PETG-S at 1.75 MM diameter
- 340 meters per roll at 1.0 KG net and 1.3 KG gross
- Recommended printing temperature 230 to 250 degrees and bed 40 to 60 degrees
- Printing speed 40 to 120 MM per second in FDM mode
- Glass transition temperature 85 degrees with a working range of minus 40 to 70 degrees
- Tensile strength 50 MPa and bending strength 68 MPa
- Density 1.25 G per CM3 and moisture absorption 0.12 percent
- Outdoor durability 5 to 10 years
- Opaque white colour
- Grade of printing difficulty rated easy with no jamming
- Tensile strength 50 MPa
- Nozzle aperture of 0.6 or 0.8 MM recommended for signage
Application Scenarios
- Unattended overnight printing of large letters
- Structural returns and back panels
- White non lit dimensional lettering
- High volume production where yield decides profitability
- Workshops running several machines with one operator
Customisation Options
- Custom colour matched to your reference from a minimum of 100 rolls
- Spool and carton labelling on request

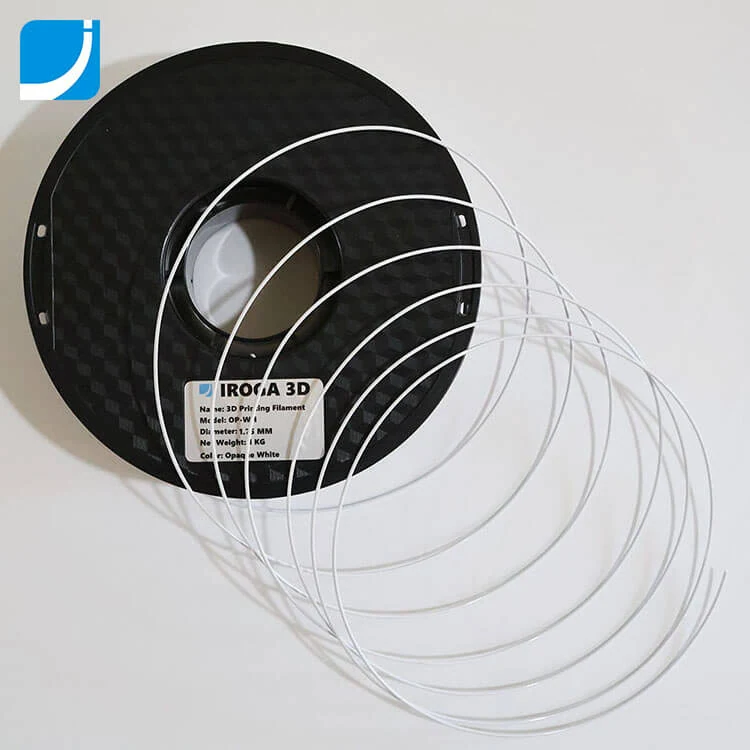

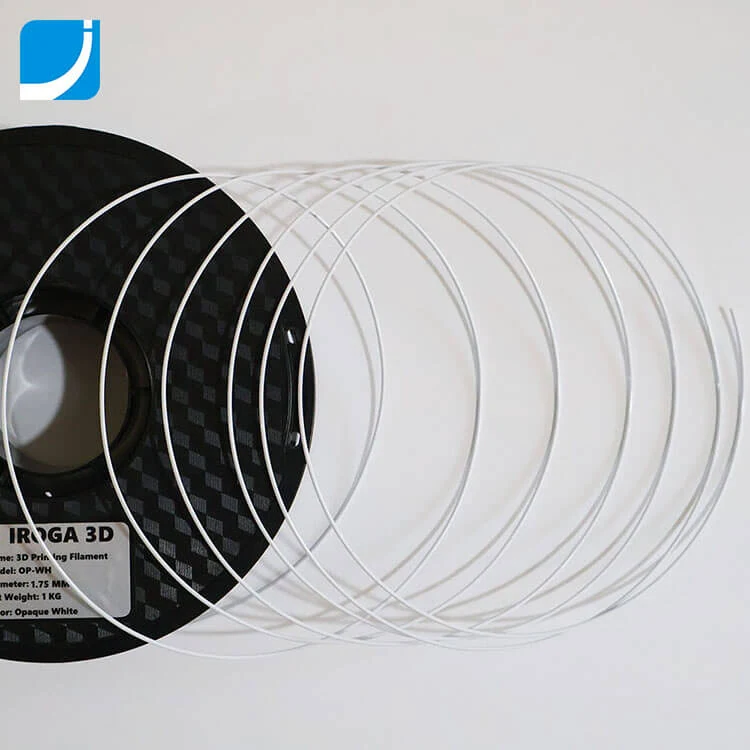

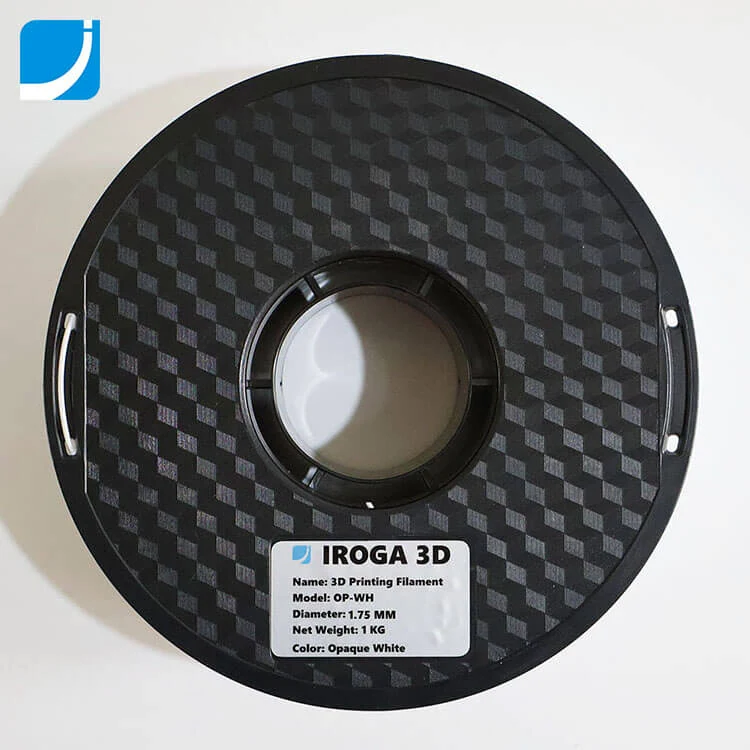

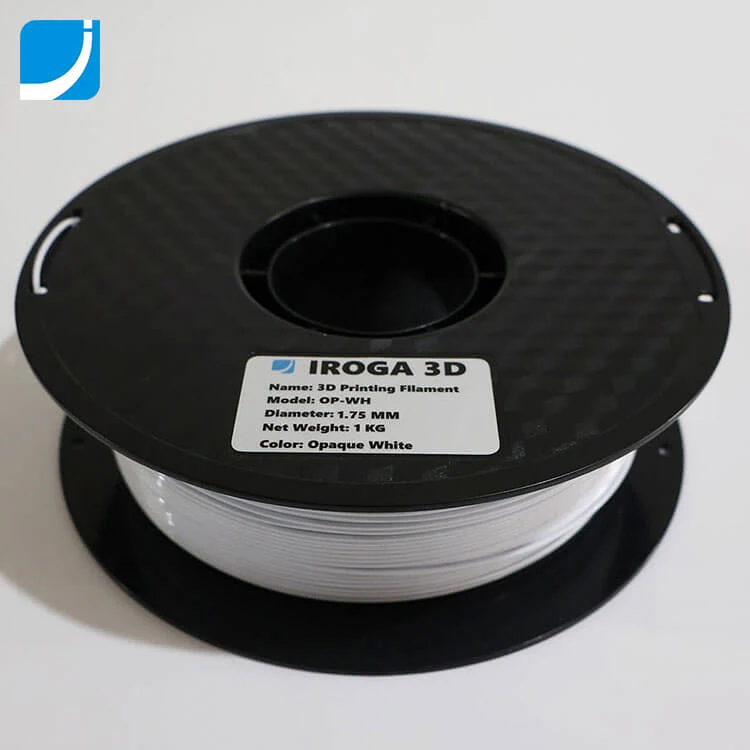

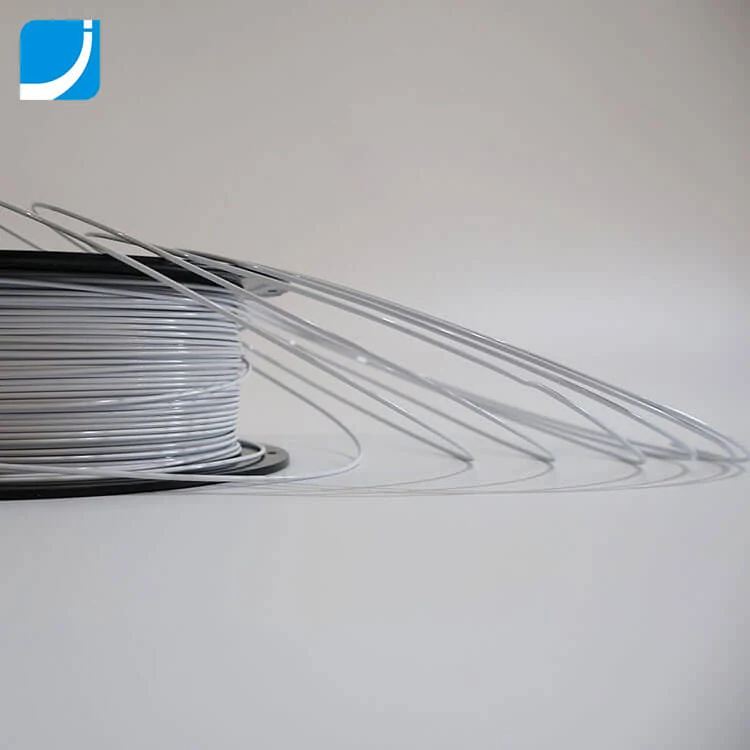

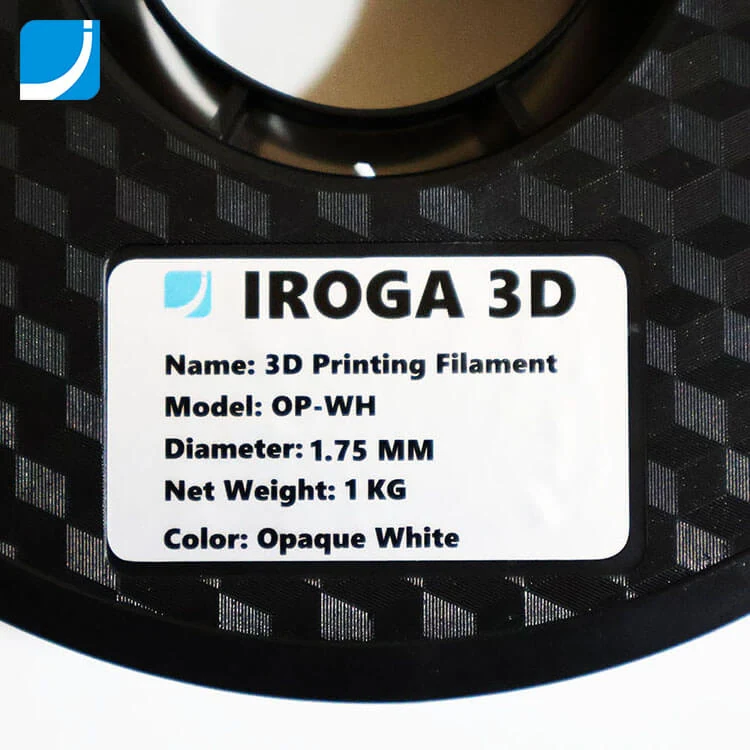

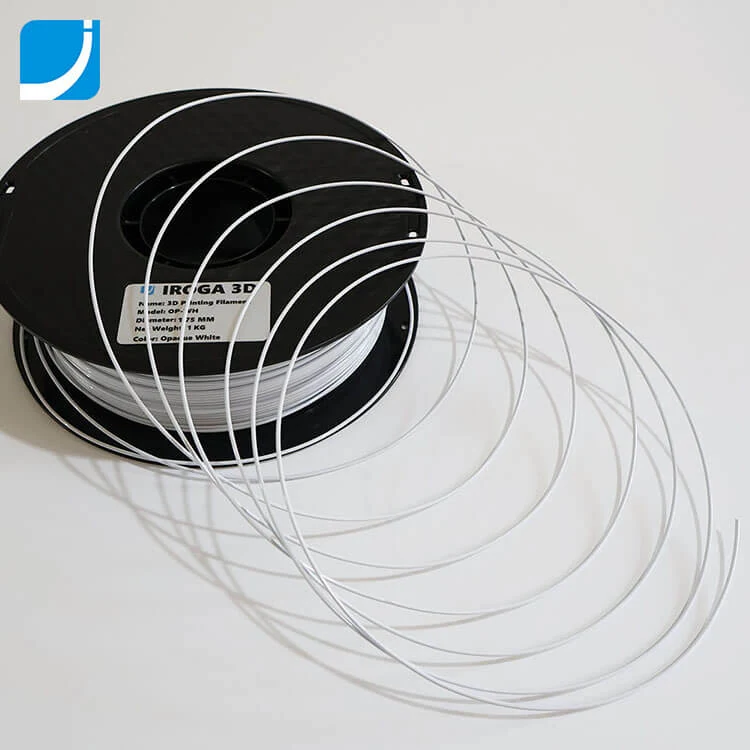

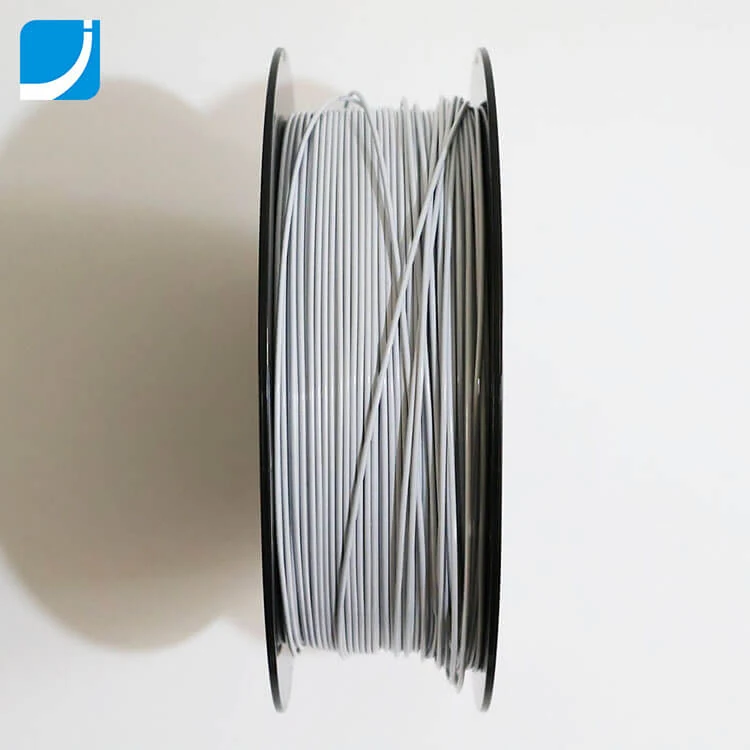

Product Gallery
Specifications
| Product Model | OP-WH |
|---|---|
| Filament Type | PETG-S |
| Brand Name | IROGA 3D |
| Color | Opaque White |
| Length | 340 Meters/Roll |
| Diameter | 1.75 MM |
| Net Weight | 1.0 KG |
| Gross Weight | 1.3 KG |
| Application | 3D Channel Letter Printers / 3D Model Printers |
Materials
- PETG-S signage grade copolyester
Manufacturing and Quality Control
Process
- Material selection
- Compounding and pelletizing
- Filament extrusion
- Filament spooling
- Quality control
- Vacuum bagging and carton packing
Quality Control
- Diameter monitored during extrusion so feeding stays consistent
- Colour checked against the reference sample for each batch
- Each roll vacuum bagged then packed 12 rolls per export carton
Comparison With Other Options
Compared with Translucent white
Translucent white passes light and is the face material. Opaque white blocks light and is the structural choice.
Compared with Fine diameter modelling filament
Signage printing uses a 0.6 or 0.8 mm nozzle precisely because a larger aperture prints faster and jams less.
Use Guide
- Fit a 0.6 or 0.8 mm nozzle for signage work rather than a fine modelling nozzle
- Purge until the flow is even before starting a long unattended job
- Keep spare nozzles at the machine so a blockage costs minutes not hours
- Store rolls sealed so damp material does not cause extrusion faults
Questions
Frequently Asked Questions
Answers to what buyers ask before ordering Strong 3D Printing Filament Anti Jamming Anti Clogging.
Why do prints jam and how does this help
Jamming usually follows inconsistent diameter or a fine nozzle. This filament is rated easy to print with no jamming, and signage machines use a 0.6 or 0.8 mm nozzle for the same reason.
Can I leave a print running overnight
Unattended running is normal in signage production. Purge until the flow is even before you start and keep the roll dry.
How strong is it
Tensile strength is 50 MPa with 68 MPa bending strength.
Is opaque white used for faces
No. Opaque white blocks light and is used for returns backs and non lit parts. Use translucent white for faces.
What is the minimum order quantity
1 roll for stocked colours. A customised colour has a minimum of 100 rolls.
How is the filament packed for export
Each roll goes into a vacuum bag and 12 rolls are packed per standard export carton, at 440 x 440 x 220 MM.
What warranty applies
One year quality warranty on all products with lifetime technical support.
