LED Channel Letter with Trimmed Face Made by 3D Slicing Software and 3D Printing Machine
The trim edge is printed into the face instead of being an applied trim cap
View product

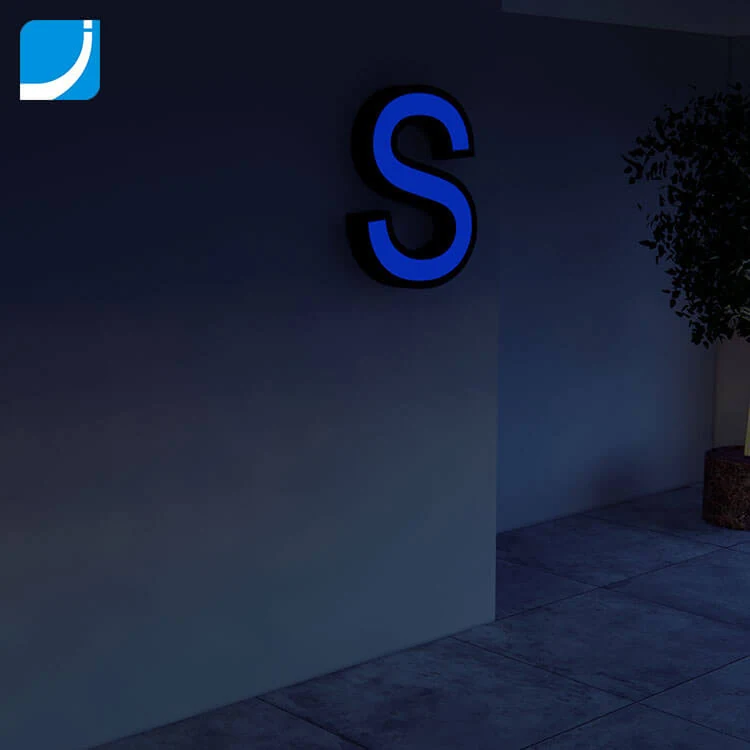

Frontlit Channel Letter with a Printed Trim Edge Instead of a Trim Cap
A channel letter design that specifies a contrasting outline colour around the letterform.
Client Background
A channel letter design that specifies a contrasting outline colour around the letterform.
Project Challenge
On a fabricated letter that outline is a plastic trim cap pushed around the face. It is fitted by hand, it discolours at a different rate from the acrylic, and it is usually the first visible defect.
Customer Pain Points
- Trim cap discolours at a different rate from the face it surrounds
- Hand fitting gives inconsistent trim width across a letter set
- A loose trim cap is a callback long before the letter fails
- Two colour faces otherwise require masking spraying or vinyl
Our Solution
The trim was defined as a second colour in the slicing file and printed as part of the face, so the finished letter has no trim cap component at all.
Manufacturing Process
- Letterform and trim path defined as separate layers in the artwork
- Two colour face configured in the Iroga 3D slicing software
- Letter front side and back printed on the sign printer
- Front and back parts glued together, both exported from the same file so they match
- Frontlit LED strip installed before closing
Supply Chain Coordination
Face material return material and LED strip specified as one package, which is what keeps the lit colour predictable.
Quality Control
Trim width checked across the letter set and every letter lit tested before packing.
Final Result
A frontlit letter with a two colour trimmed face and one fewer component than the fabricated equivalent.
Customer Benefit
Nothing to come loose in service, and identical trim width on every letter because it comes from the file rather than from a hand.
Related Products
What Was Used
Industrial 3D Printer with UV Curing Machine for 3D Printing Wall and Liquid Acrylic Face
Premium acrylic face capability in a workshop that cannot host the 1200 mm column
View product
3200K Warm White LED Strip Light for 3D Signages and Channel Letters from IROGA 3D
3200 K warm output matches hospitality interiors instead of clashing with them
View product
Questions
Frequently Asked Questions
Answers to what buyers ask before ordering this type of project.
Can this construction be produced to our own artwork
Yes. Send vector artwork and it is prepared in CorelDRAW then sliced in the Iroga 3D slicing software before printing.
What quantity can you produce
Large or small quantity with the same setup, including a single sample piece before a full order.
What material is used
PETG-S signage filament, which is UV resistant waterproof and specified for 5 to 10 years of outdoor use.
How long will it take
Lead time is 7 to 30 days according to the product and the quantity.
How is it shipped
By sea air or train under EXW FOB CIF or DDP terms, with damage in transit covered by replacement or refund.
Have A Similar Project
Send your artwork and the site conditions. We will confirm construction material and lighting before you commit.
