Translucent White 3D Printing Filament for Illuminated Signs
Model TR-WH
Translucent white is the workhorse face material for illuminated signage. It diffuses the LED output evenly so the face glows as a surface rather than showing a row of bright points, and because white is neutral it lets the LED colour temperature set the final appearance of the sign.
- Even diffusion across the face with no visible LED hotspots
- Neutral base so the LED colour temperature decides the final look
- Most commonly ordered face colour so it is the easiest to reorder for repairs
- Works with warm standard or cold white strip depending on the effect wanted
Product Overview
Translucent white is the workhorse face material for illuminated signage. It diffuses the LED output evenly so the face glows as a surface rather than showing a row of bright points, and because white is neutral it lets the LED colour temperature set the final appearance of the sign.
Who It Is For
- Sign makers producing white faced letters in volume
- Workshops that keep one face colour in deep stock
- Advertising companies delivering franchise rollouts
Problems It Solves
- Clear faces show individual LEDs as bright points
- Uneven diffusion makes a letter look patchy at night
- Matching a replacement letter to an existing set is hard with unusual colours
Key Benefits
- Even diffusion across the face with no visible LED hotspots
- Neutral base so the LED colour temperature decides the final look
- Most commonly ordered face colour so it is the easiest to reorder for repairs
- Works with warm standard or cold white strip depending on the effect wanted
- Full outdoor rating so one stock covers interior and exterior faces
Technical Features
- Filament type PETG-S at 1.75 MM diameter
- 340 meters per roll at 1.0 KG net and 1.3 KG gross
- Recommended printing temperature 230 to 250 degrees and bed 40 to 60 degrees
- Printing speed 40 to 120 MM per second in FDM mode
- Glass transition temperature 85 degrees with a working range of minus 40 to 70 degrees
- Tensile strength 50 MPa and bending strength 68 MPa
- Density 1.25 G per CM3 and moisture absorption 0.12 percent
- Outdoor durability 5 to 10 years
- Translucent white colour
- Light diffusing effect rated good
- Transparency type translucent
Application Scenarios
- Standard white faced channel letters
- Lightbox faces where diode visibility must be avoided
- Signs that will be lit warm in one branch and cool in another
- Repair and replacement letters matching existing white faces
- High volume franchise letter sets
Customisation Options
- Custom colour matched to your reference from a minimum of 100 rolls
- Spool and carton labelling on request

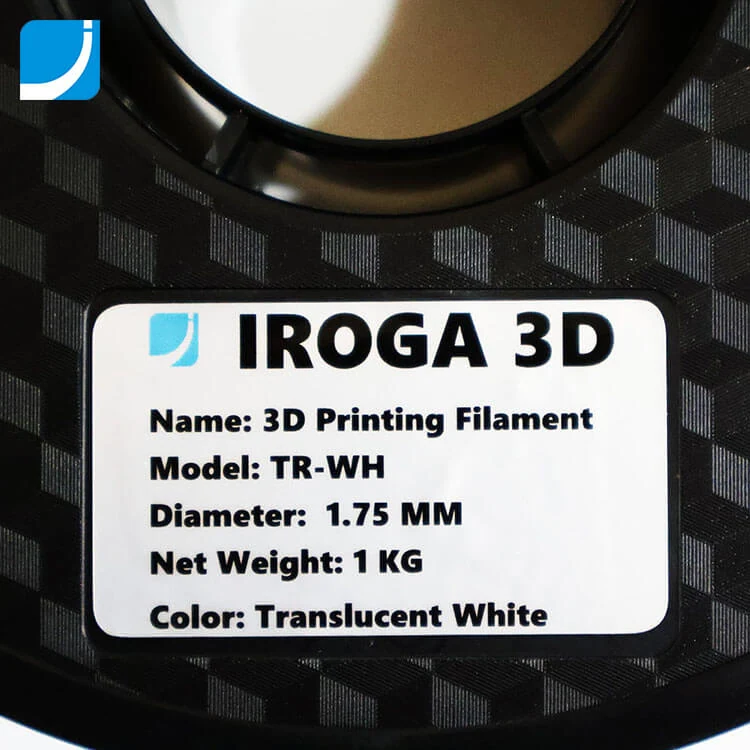

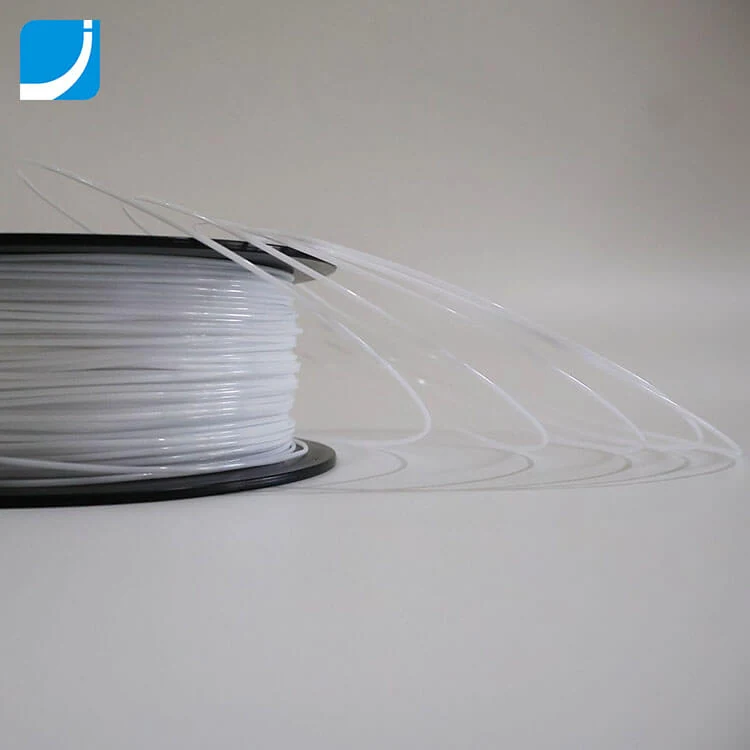

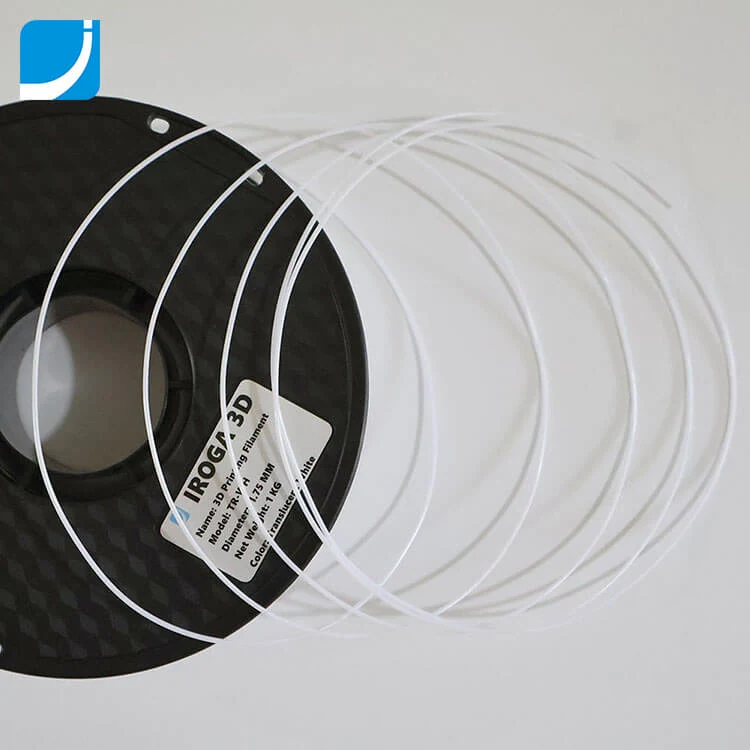

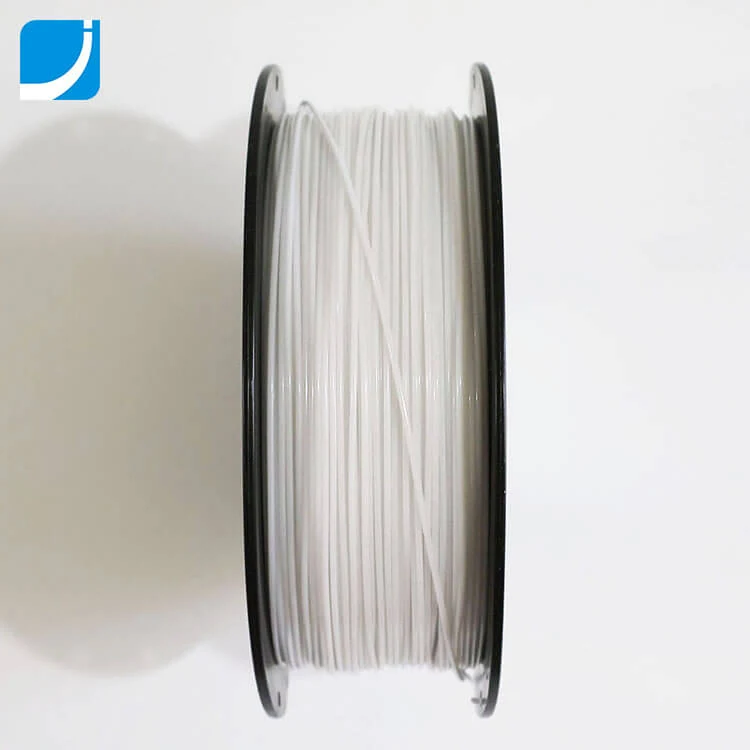

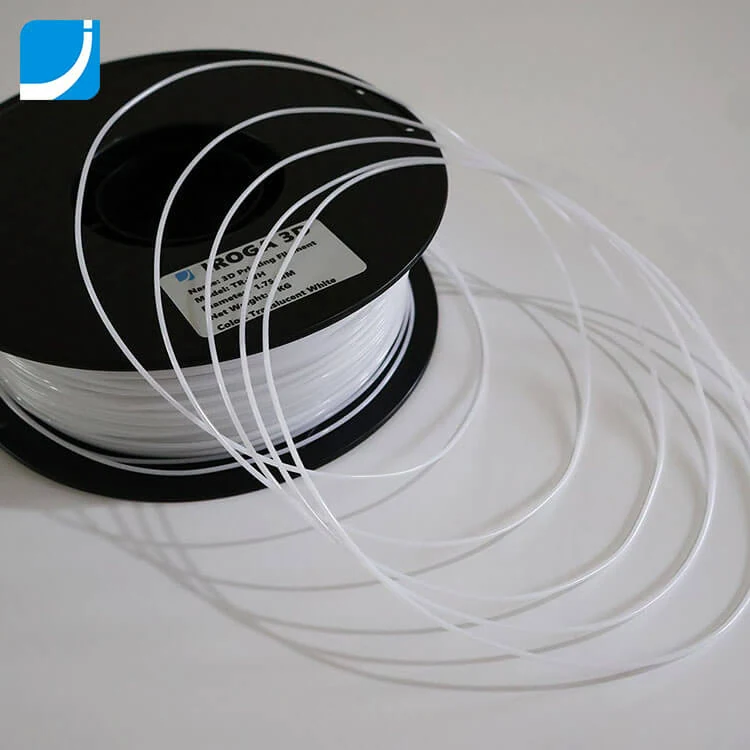

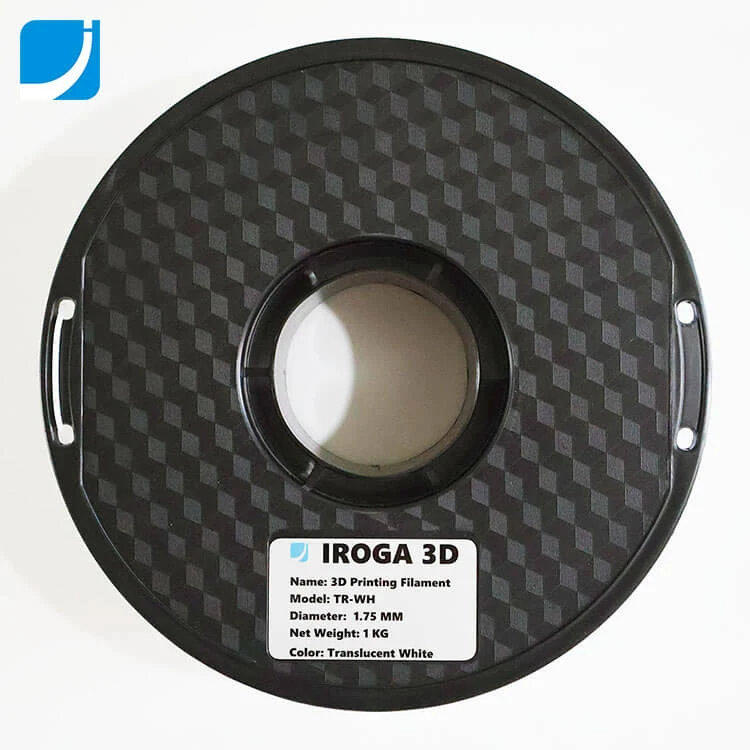

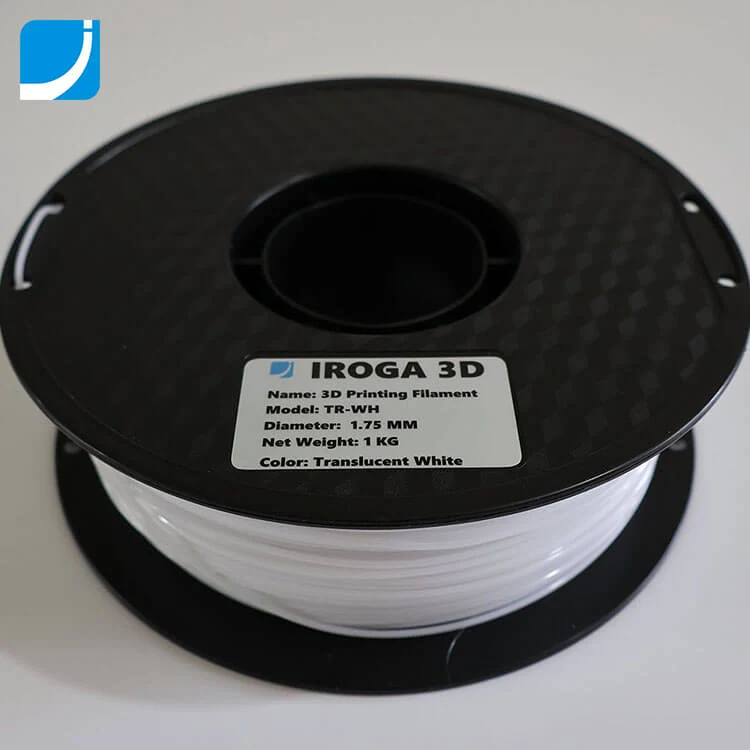

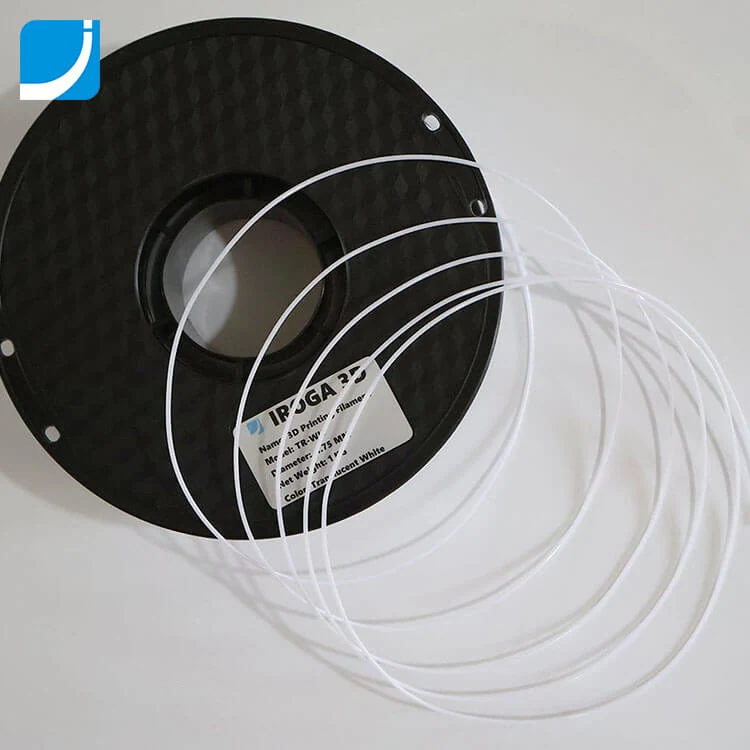

Product Gallery
Specifications
| Product Model | TR-WH |
|---|---|
| Filament Type | PETG-S |
| Brand Name | IROGA 3D |
| Color | Translucent White |
| Length | 340 Meters/Roll |
| Diameter | 1.75 MM |
| Net Weight | 1.0 KG |
| Gross Weight | 1.3 KG |
| Application | 3D Printer of Channel Letters / 3D Printer of Models |
Materials
- PETG-S signage grade copolyester
Manufacturing and Quality Control
Process
- Material selection
- Compounding and pelletizing
- Filament extrusion
- Filament spooling
- Quality control
- Vacuum bagging and carton packing
Quality Control
- Diameter monitored during extrusion so feeding stays consistent
- Colour checked against the reference sample for each batch
- Each roll vacuum bagged then packed 12 rolls per export carton
Comparison With Other Options
Compared with Transparent clear
Clear is brighter but shows the diodes. Translucent white trades some brightness for an even glow.
Compared with Opaque white
Opaque white blocks light and is for returns and structure. Translucent white is the face material.
Use Guide
- Use translucent white for faces and an opaque colour for returns
- Choose the LED colour temperature deliberately because white shows it directly
- Keep face wall thickness consistent across a letter set
- Reorder from the same batch when adding letters to an existing sign
Questions
Frequently Asked Questions
Answers to what buyers ask before ordering Translucent White 3D Printing Filament for Illuminated Signs.
Why is translucent white the usual face material
It diffuses the LED output evenly so the face glows as a surface instead of showing individual diodes.
Does it look white at night
The lit appearance follows the LED colour temperature. 6500 K reads neutral, 3200 K reads warm and 10000 K reads cold.
What is the difference from opaque white
Opaque white blocks light and is used for returns and structure. Translucent white passes light and is used for faces.
Can I match an existing installed sign
Order from one batch and match the LED colour temperature already installed.
What is the minimum order quantity
1 roll for stocked colours. A customised colour has a minimum of 100 rolls.
How is the filament packed for export
Each roll goes into a vacuum bag and 12 rolls are packed per standard export carton, at 440 x 440 x 220 MM.
What warranty applies
One year quality warranty on all products with lifetime technical support.
