Translucent White 3D Printing Filament for Illuminated Signs
Even diffusion across the face with no visible LED hotspots
View product
3D Printing Filament
3D Printing Signage Filament in Translucent Clear Color
Model TR-CL
Clear PETG-S passes the most light of any colour in the range, which makes it the base for faces that will be tinted by the LED rather than by the material. It is also what you print when a client wants the letter to read as glass by day and as pure colour by night.
- Highest light transmission in the range for the brightest lit face
- Colour of the sign can be set by the LED instead of the filament
- Reads as clear glass in daylight and as pure LED colour at night
- One clear stock can serve many brand colours when paired with RGB lighting
Product Overview
Clear PETG-S passes the most light of any colour in the range, which makes it the base for faces that will be tinted by the LED rather than by the material. It is also what you print when a client wants the letter to read as glass by day and as pure colour by night.
Who It Is For
- Sign makers building colour changing signs
- Workshops that want one face stock for many colours
- Advertising companies producing glass effect lettering
Problems It Solves
- Coloured faces fix the sign to one colour for its whole life
- Dark translucent colours cut brightness and need more LED to compensate
- Stocking every brand colour in filament ties up capital
Key Benefits
- Highest light transmission in the range for the brightest lit face
- Colour of the sign can be set by the LED instead of the filament
- Reads as clear glass in daylight and as pure LED colour at night
- One clear stock can serve many brand colours when paired with RGB lighting
- Same outdoor durability as the coloured options at 5 to 10 years
Technical Features
- Filament type PETG-S at 1.75 MM diameter
- 340 meters per roll at 1.0 KG net and 1.3 KG gross
- Recommended printing temperature 230 to 250 degrees and bed 40 to 60 degrees
- Printing speed 40 to 120 MM per second in FDM mode
- Glass transition temperature 85 degrees with a working range of minus 40 to 70 degrees
- Tensile strength 50 MPa and bending strength 68 MPa
- Density 1.25 G per CM3 and moisture absorption 0.12 percent
- Outdoor durability 5 to 10 years
- Transparent clear colour
- Highest light transmission of the translucent range
Application Scenarios
- Faces lit by RGB strip where the colour changes with the campaign
- Crystal and glass effect lettering
- Lightbox faces requiring maximum brightness
- Prototype letters used to test LED brightness before colour is chosen
- Layered faces where clear sits over a coloured element
Customisation Options
- Custom colour matched to your reference from a minimum of 100 rolls
- Spool and carton labelling on request
Product Gallery
Specifications

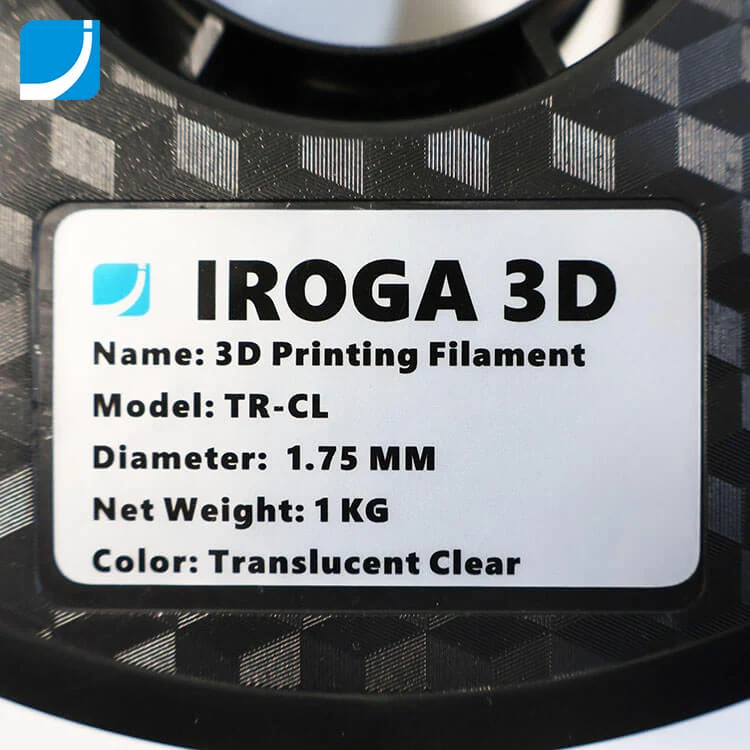

| Product Model | TR-CL |
|---|---|
| Filament Type | PETG-S |
| Brand Name | IROGA 3D |
| Color | Translucent Clear |
| Length | 340 Meters/Roll |
| Diameter | 1.75 MM |
| Net Weight | 1.0 KG |
| Gross Weight | 1.3 KG |
| Application | 3D Printers for Signages / 3D Printers for Models |
Materials
- PETG-S signage grade copolyester
Manufacturing and Quality Control
Process
- Material selection
- Compounding and pelletizing
- Filament extrusion
- Filament spooling
- Quality control
- Vacuum bagging and carton packing
Quality Control
- Diameter monitored during extrusion so feeding stays consistent
- Colour checked against the reference sample for each batch
- Each roll vacuum bagged then packed 12 rolls per export carton
Comparison With Other Options
Compared with Translucent white
White diffuses light evenly and hides the LEDs. Clear transmits more light but shows the diodes unless the face is designed for it.
Compared with Coloured translucent filament
A coloured face is fixed. A clear face with RGB lighting can change colour after installation.
Use Guide
- Pair clear faces with RGB strip when a colour changing sign is wanted
- Increase face wall thickness or add texture if diode hotspots are visible
- Test one letter before committing a set to a clear face
- Keep the platform clean because marks show through a clear print
Questions
Frequently Asked Questions
Answers to what buyers ask before ordering 3D Printing Signage Filament in Translucent Clear Color.
Is a clear face brighter than a coloured one
Yes. Clear transmits more light than any tinted colour in the range.
Will the LEDs be visible through a clear face
They can be. Design the face thickness accordingly or choose translucent white when even diffusion matters more than brightness.
Can one clear stock replace several colours
With an RGB strip the sign colour is set by the lighting, so one clear face can serve many brand colours.
Is clear suitable outdoors
Yes, with the same 5 to 10 year outdoor durability as the rest of the PETG-S range.
What is the minimum order quantity
1 roll for stocked colours. A customised colour has a minimum of 100 rolls.
How is the filament packed for export
Each roll goes into a vacuum bag and 12 rolls are packed per standard export carton, at 440 x 440 x 220 MM.
What warranty applies
One year quality warranty on all products with lifetime technical support.
