LED Signage Light
RGB Flexible S-shape LED Light Strip for Illuminated Signages Letters IP67 Rainproof Waterproof
Model SL-RGB

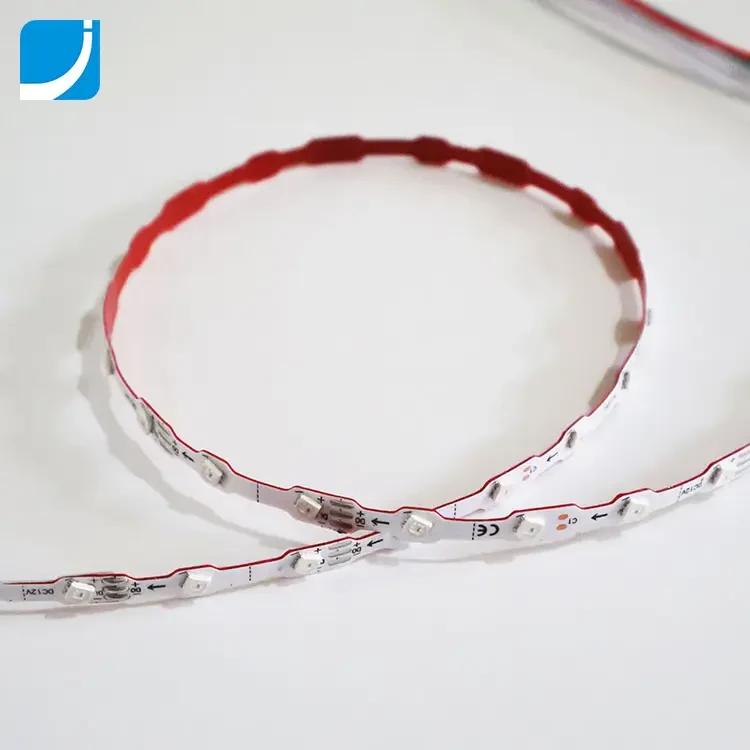

A colour changing RGB strip built for the inside of 3D printed channel letters and lightboxes. The S-shape body bends sideways as well as flat, so one continuous run follows tight curves thin strokes and script fonts without cutting and re-soldering at every corner. The IP67 rating means the same roll works on an indoor counter sign and on an outdoor storefront in rain.
- Colour changes through an LED controller so one sign can switch scenes for promotions evenings or holidays
- S-shape geometry bends in more than one direction which removes the corner cuts and solder joints that cause dead segments
- IP67 rating covers rain and outdoor exposure so the same stock serves indoor and outdoor jobs
- DC 12 V matches the low voltage drivers already used in channel letter production
Product Overview
A colour changing RGB strip built for the inside of 3D printed channel letters and lightboxes. The S-shape body bends sideways as well as flat, so one continuous run follows tight curves thin strokes and script fonts without cutting and re-soldering at every corner. The IP67 rating means the same roll works on an indoor counter sign and on an outdoor storefront in rain.
Who It Is For
- Sign makers who quote colour changing letters as an upsell
- Advertising companies fitting out retail chains
- 3D signage workshops printing letters on MITO series machines
- Installers who need one strip type for both indoor and outdoor jobs
Problems It Solves
- Rigid strips crack or lose segments when forced around a tight letter radius
- Every corner cut and re-solder is a future failure point and a warranty callback
- Single colour letters cannot be reused when a client changes campaign colours
- Separate indoor and outdoor strip stock ties up working capital
Key Benefits
- Colour changes through an LED controller so one sign can switch scenes for promotions evenings or holidays
- S-shape geometry bends in more than one direction which removes the corner cuts and solder joints that cause dead segments
- IP67 rating covers rain and outdoor exposure so the same stock serves indoor and outdoor jobs
- DC 12 V matches the low voltage drivers already used in channel letter production
- 10 meter roll suits letter by letter jobs where a 100 meter roll would be cut to waste
Technical Features
- RGB colour mixing driven by an LED controller
- 60 SMD per meter for even fill across the letter face
- 32 LM luminous flux
- 6.3 MM strip width fits narrow letter returns
- 10 W per meter at DC 12 V
- IP67 sealed body rated rainproof and waterproof
Application Scenarios
- Storefront channel letters with script or handwriting fonts
- Frontlit and sidelit lightboxes that need a colour changing mode
- Shopping mall and food court fascia signs
- Event and pop up branding where colour is switched per campaign
- Retrofit of existing acrylic letters that were built for single colour lighting
Customisation Options
- Roll length and controller pairing on request
- Cut point spacing to suit letter height
Product Gallery
Specifications
| Product Model | SL-RGB |
|---|---|
| Brand Name | IROGA 3D |
| LED Color | RGB |
| Voltage | DC 12 V |
| Power | 10 W/Meter |
| Controlling Mode | LED Controller |

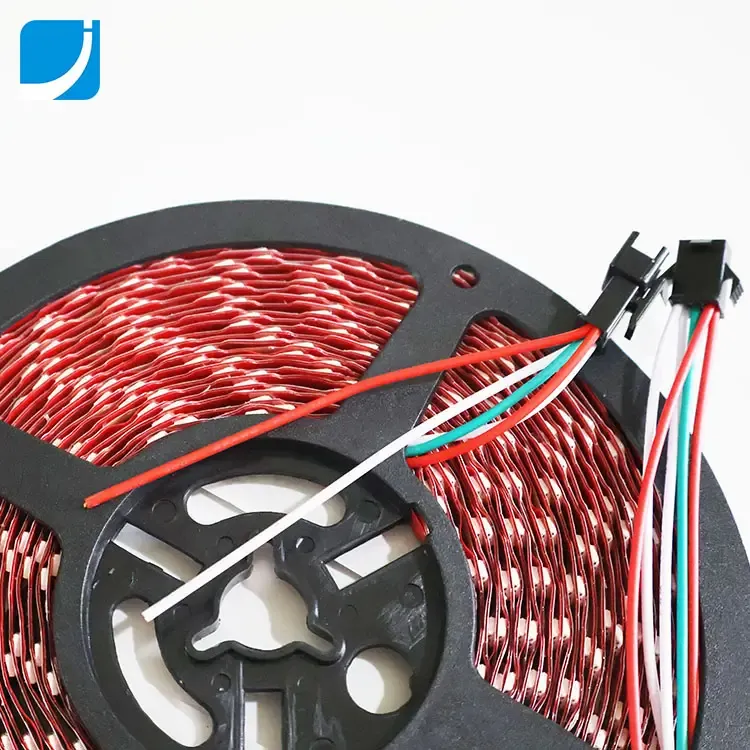

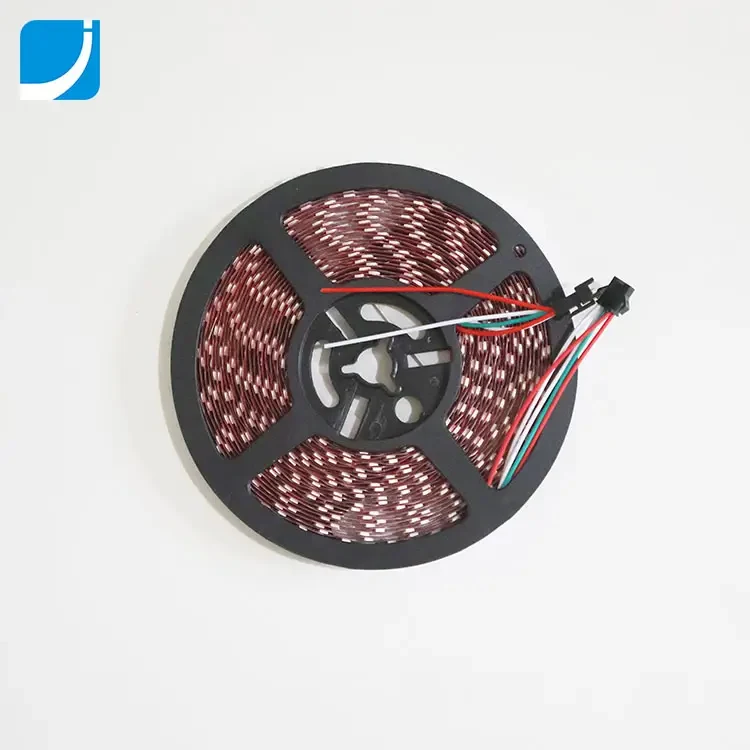

| Strip Length | 10 Meters/Roll |
| Strip Width | 6.3 MM |
| SMD Quantity | 60 SMD/Meter |
| Luminous Flux | 32 LM |
| IP Grade | IP67 |
| Certificate | CE |
Materials
- Flexible PCB with SMD LEDs in an IP67 sealed jacket
Certifications
- CE
Manufacturing and Quality Control
Process
Produced to the specification above.
Quality Control
- Lit and colour checked before packing
- Sealing inspected on the IP67 jacket
Comparison With Other Options
Compared with Rigid LED module
Modules need one unit per stroke segment and leave dark gaps in thin script fonts. A continuous S-shape strip fills the stroke in one run.
Compared with Single colour white strip
White strips are cheaper per meter but cannot be re-themed. RGB lets one installed sign change colour without re-opening the letter.
Use Guide
- Lay the strip inside the letter return before closing the face panel
- Follow the printed cut marks and seal any cut end before outdoor installation
- Size the DC 12 V supply for 10 W per meter plus headroom
- Pair with an RGB controller and test all colour channels before the face is fixed
Questions
Frequently Asked Questions
Answers to what buyers ask before ordering RGB Flexible S-shape LED Light Strip for Illuminated Signages Letters IP67 Rainproof Waterproof.
What voltage and power does this RGB strip need
It runs on DC 12 V and draws 10 W per meter, so size the driver for the total installed length plus headroom.
Is this strip suitable for outdoor signs
Yes. The IP grade is IP67, which covers rain and outdoor exposure as well as indoor use.
How long is one roll
10 meters per roll, which suits letter by letter jobs rather than long fascia runs.

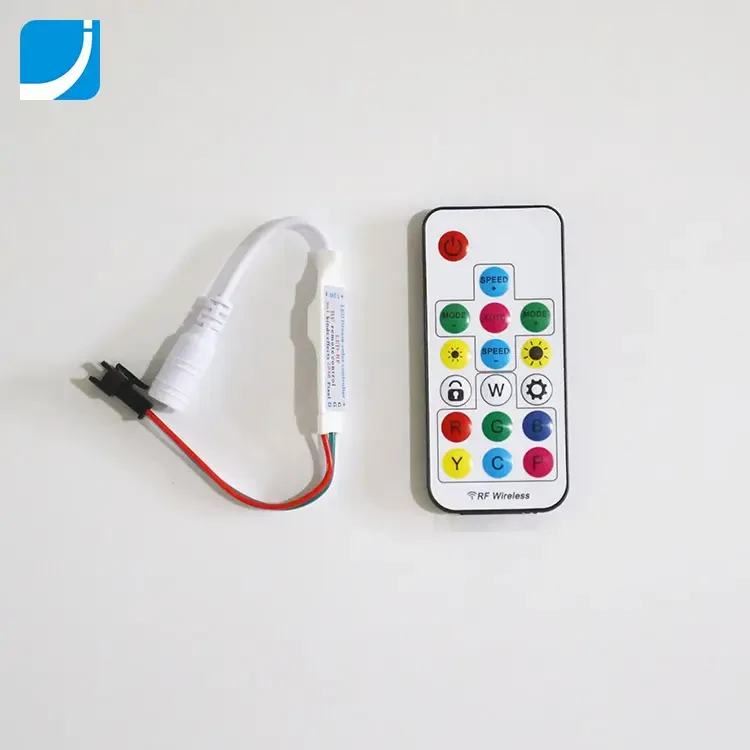

How do I change the colours
The strip is driven through an LED controller, which handles the RGB colour mixing and scene changes.
Does it carry a certificate
Yes, the strip is CE certified.
What price and payment terms do you offer
We can quote EXW, FOB, CIF or DDP. Payment is normally by telegraphic transfer with 30 percent deposit and 70 percent balance.
