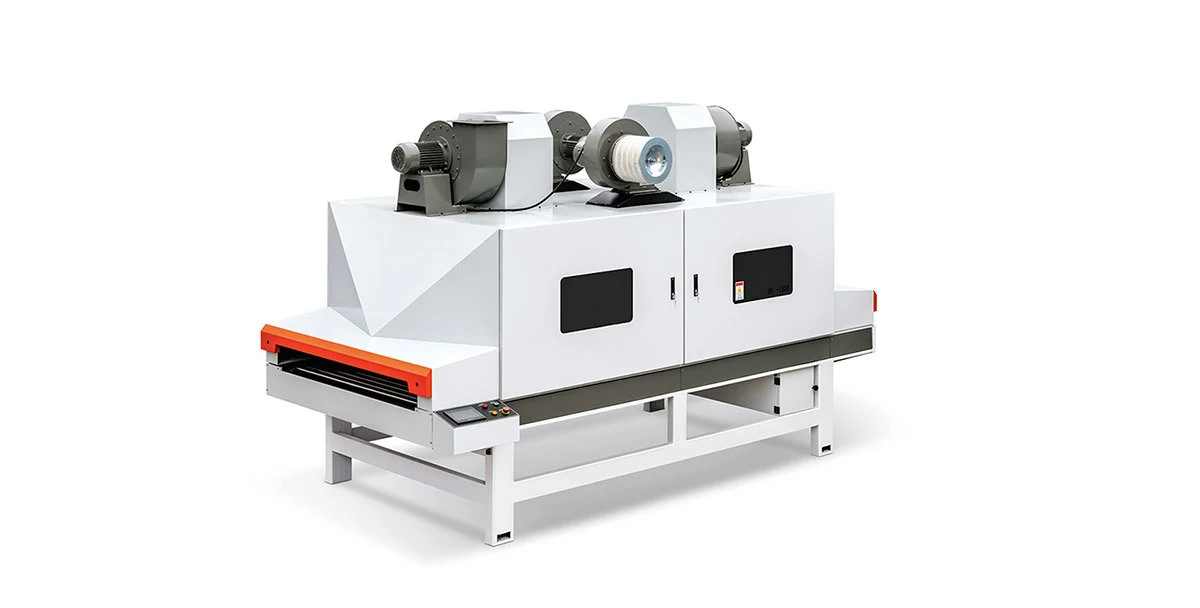

UV Dryer For 6 Lamp Uv Curing
The six lamp configuration, the highest cure capacity in the range.
A UV dryer for curing UV paint film, supplied with the lamp count your line speed needs. Each lamp group has its own heat dissipation system. Used in roller coating and spray painting lines, it can halve the number of UV lamps otherwise needed for the same cure, which is where the operating cost saving comes from. The six lamp ICTD6-UV takes panels 2-120 mm thick at 1300 mm wide.
1 lamp2 lamp3 lamp4 lamp6 lamp ICTD6-UV
Key Benefits
What This Machine Changes On Your Floor
1
Each group of UV lamps has an independent heat dissipation system
2
Halves the number of UV lamps needed for the same cure, cutting operating cost
3
Connects directly to a roller or curtain coater so panels are cured straight after painting
4
Compact and versatile, integrates into complex finishing lines
5
Available with 1, 2, 3, 4 or 6 lamps, and other counts to order
Who It Is For
Plants That Buy This Machine
- UV roller coating lines curing primer and top coat
- Spray lines curing UV paint on cabinet fronts
- Plants adding cure capacity to an existing coater
Problems It Solves
What It Removes From Your Process
- UV lamps run hot and the panel scorches under a long tunnel
- Cure is incomplete at line speed so the top coat stays soft
- Handling panels from the coater to a separate dryer picks up dust
Application Scenarios
Typical Jobs It Runs
Curing UV primer between two roller coater passes
Final cure after a curtain coater on high gloss panels
Curing UV top coat on MDF and plywood board
Technical Features
How It Is Built
- Direct connection to roller or curtain coating machines
- Lamp quantity customised to line speed and paint system
- Independent heat dissipation on each lamp group
- Plug and play installation into an existing line
Specifications
Technical Data
| Parameter | Value |
|---|---|
| Model | ICTD6-UV |
| Processing Width | 1300mm |
| Working Thickness | 2-120mm |
| Working Table Height | 850-950mm |
| TTotal Power | 64.55kw |
| Dimension(L x W x H) | 4050*1840*2400mm |
| Net Weight | 2000kg |
All machines can be customised to the buyer's requirement. Figures are the published data for this model series.
Quality Control
Checked Before It Leaves The Floor
- Lamp output measured group by group
- Heat dissipation fans run tested on each group
- Cure checked by solvent rub on sample panels at line speed
Customisation Options
Specified Per Order
- Lamp quantity set for your line speed and paint
- Processing width matched to your coater
- Table height set to your conveyor line
Comparison
How It Compares With The Alternatives
vs IR heating leveller
IR levels the wet film. The UV dryer is what actually cures it. Most lines run both
vs Longer tunnel with more lamps
Because the design halves the lamp count needed, the operating cost per cured panel is lower for the same throughput
Use Guide
Setting The Machine Up For A Run
Match lamp count to the line speed you intend to run
Set table height to align with the coater conveyor
Let the lamps reach working output before the first panel
Test cure with a solvent rub on the first panel of each batch
