Dryer Machine

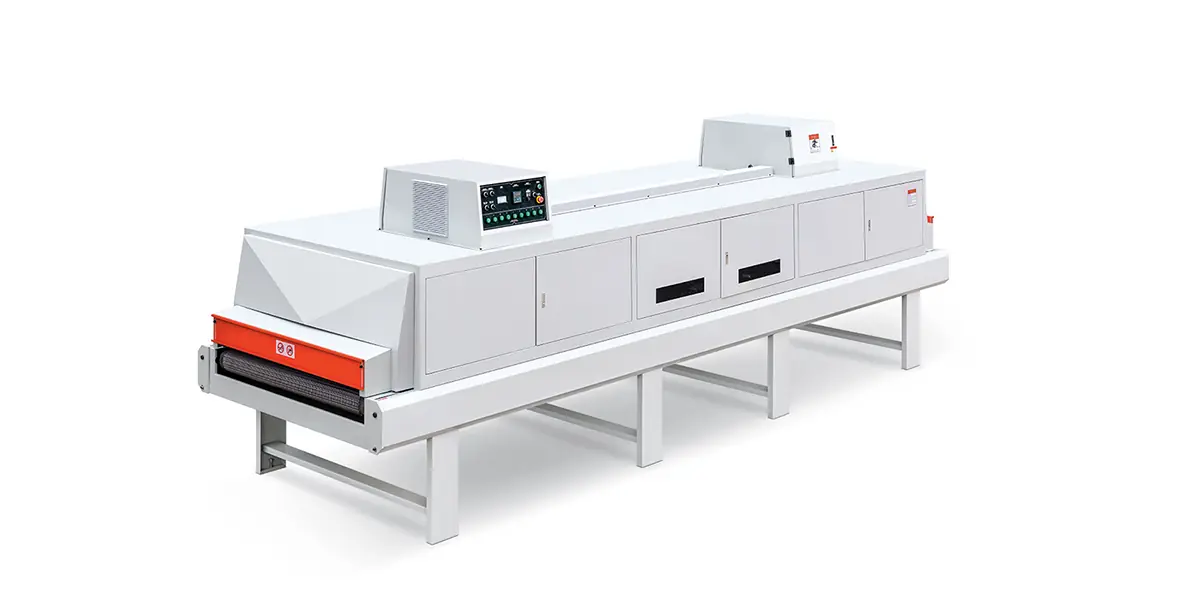

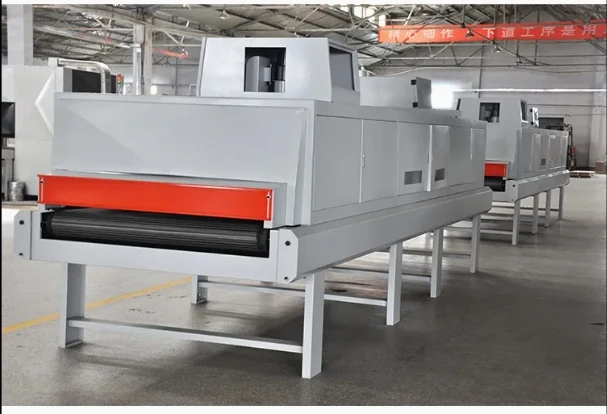

Wood Panel UV Coating Line IR Heating Leveling Machine IR Heating
Infrared flash off tunnel that levels the wet film and drives out bubbles. The IR heating leveller build, placed between the coater and the UV lamps.
Product Overview
IR Heating Leveling Machine For Ir Heating And Leveling For Uv Coating Lines
The IR heating leveller build, placed between the coater and the UV lamps.
An IR heating leveller heats the wet paint film within a short distance of the coater, so the film flows level and the bubbles and unevenness left by coating disappear before cure. An axial flow fan keeps internal air moving and temperature uniform. Working widths are 600, 1000 and 1300 mm on a 6120 mm long tunnel.
ICHG600ICHG1000ICHG1300
Key Benefits
What This Machine Changes On Your Floor
1
Infrared heating levels and dries the film in a very short time after painting
2
Axial flow fan makes the tunnel temperature uniform and eliminates air bubbles
3
Works on flat surfaces and on workpieces with some concave and convex relief
4
Can be used alone or together with an automatic jet and UV surface painting machine
Who It Is For
Plants That Buy This Machine
- Spray lines drying solvent before the panel enters a dryer
- Plants troubleshooting bubbles and orange peel in the cured film
- UV coating lines that need a flash off stage before the lamps
Problems It Solves
What It Removes From Your Process
- Orange peel from the coater is still visible after curing
- The film skins on the surface while the layer underneath is still wet
- Bubbles and pinholes set into the film before it reaches the UV lamps
Application Scenarios
Typical Jobs It Runs
Levelling after spray application on cabinet fronts
Drying water borne coatings on flat panel
Flash off between a roller coater and a UV dryer

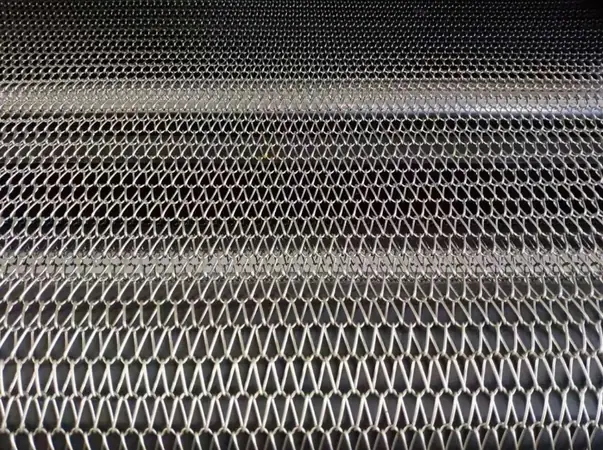

Technical Features
How It Is Built
- Advanced infrared heating technology for rapid film levelling
- Axial flow fan enhances internal air flow and temperature uniformity
- Suitable for flat and moderately profiled workpieces
- 6120 mm tunnel length in all three widths
Specifications
Technical Data
| Parameter | ICHG600 | ICHG1000 | ICHG1300 |
|---|---|---|---|
| Working Width | 600mm | 1000mm | 1300mm |
| Working Thickness | 0-100mm | 0-100mm | 0-100mm |
| Feeding Speed | 2-20m/mim | 2-20m/mim | 2-20m/mim |
| Feeding Power | 1.5kw | 1.5kw | 1.5kw |
| Fan Power | 0.24kw | 0.64kw | 0.64kw |
| TTotal Power | 10.74kw | 11.94kw | 29.14kw |
| Dimension(L x W x H) | 6120*1060*1400mm | 6120*1460*1400mm | 6120*1760*1400mm |
| Net Weight | 1890kg | 2260kg | 2300kg |
All machines can be customised to the buyer's requirement. Figures are the published data for this model series.
Quality Control
Checked Before It Leaves The Floor
- Tunnel temperature profile measured along the 6120 mm length
- Fan airflow checked against design
- Sample panels run and inspected for bubbles after cure
Customisation Options
Specified Per Order
- 600, 1000 or 1300 mm working width
- Zone count and heater power set for your line speed
- Connection to an upstream coater and downstream UV dryer
Comparison
How It Compares With The Alternatives
vs Going straight from coater to UV lamps
Without a flash off stage the bubbles in the wet film are cured into the finish
vs Vertical dryer
The IR tunnel levels the film in line. A vertical dryer gives long holding time in a small footprint
Use Guide
Setting The Machine Up For A Run

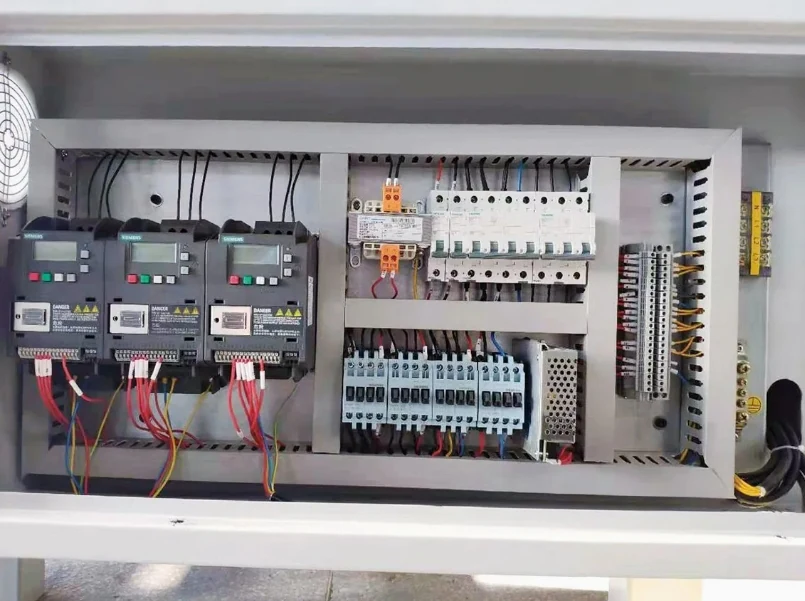

Set feed speed between 2 and 20 m per minute to match the coater
Bring the tunnel to temperature before the first panel
Check the film under raking light at the tunnel exit
Adjust heater zones if the film is levelling too late in the tunnel
Related Machines
vertical drying Mahcine Vertical Dryer House For Paint On Furniture Pane
Stacked tray dryer that buys long flash off time without a long tunnel. Built to order.
View Machine Data →
Wood Panel Vertical dryer machine drying machine
Stacked tray dryer that buys long flash off time without a long tunnel. Built to order.
View Machine Data →
Automatic Coating Line UV dryer machine flash off machine Heater Tunne
Infrared flash off tunnel that levels the wet film and drives out bubbles. Built to order.
View Machine Data →
Questions About This Machine
Is this model set up for IR heating and leveling for UV coating lines?
Yes. The IR heating leveller build, placed between the coater and the UV lamps. Every machine is built to order, so the configuration is confirmed against your own panel size and coating system before production.
What is the tunnel length?
6120 mm.
What is the feed range?
2 to 20 m per minute.
What does the IR leveller actually do?
It heats the wet paint film so it flows level and the bubbles and unevenness formed during coating disappear before cure.
Can it handle profiled work?
It suits flat surfaces and workpieces with a certain concave or convex relief.
Can it be used on its own?
Yes, alone or together with an automatic jet and UV surface painting machine.
Ask For A Quotation On The Wood Panel UV Coating Line IR Heating Leveling Machine IR Heating
Send your panel size, coating system and line speed. You will get the model recommendation, full technical data and a price.
