Layers Vertical Drying Oven vertical dryer machine
Stacked tray dryer that buys long flash off time without a long tunnel. Built to order.
View Machine Data →
Dryer Machine
Wood Panel Vertical dryer machine drying machine

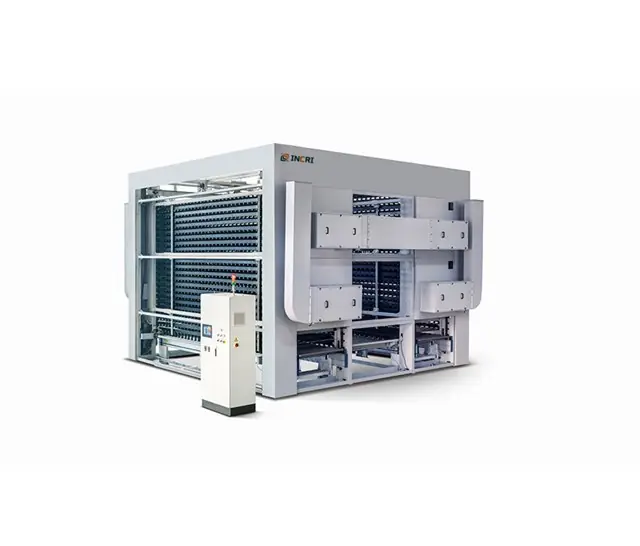

Stacked tray dryer that buys long flash off time without a long tunnel. The wood panel configuration of the vertical dryer.
Product Overview
Vertical Drying Oven For Wood Panel Vertical Drying
The wood panel configuration of the vertical dryer.
A vertical dryer designed for leveling and heating a range of wood board. Trays overlap inside the chamber and air enters at different speeds and temperatures on a recycling principle, which is how the machine gives long leveling time and a fast feed speed at the same time. Compared with a long IR oven it saves floor space and energy.
ILVC 2/2ILVC 3/2ILVC 4/2ILVC 4/4
Key Benefits
What This Machine Changes On Your Floor
1
Trays overlap and air enters at different speeds and temperatures on a recycling principle
2
Four ventilating zones in every configuration
3
Tray count from 30 up to 114 depending on the chamber arrangement
4
Long leveling time with a fast feeding speed in the same machine
5
Saves space and energy against a long IR oven
Who It Is For
Plants That Buy This Machine
- Lines running PU, water borne or NC coatings that need holding time
- Plants with limited floor length for a horizontal tunnel
- Furniture panel producers drying between coats
Problems It Solves
What It Removes From Your Process
- A long IR tunnel would take a whole aisle of floor space
- Water borne and PU coatings need holding time the line cannot give
- Energy cost of a long heated tunnel is hard to justify at current volumes
Application Scenarios
Typical Jobs It Runs
Holding water borne coated panels until they are through flash off
Leveling PU primer before a sanding stage
Drying stained board before the next coat
Technical Features
How It Is Built
- Designed for a variety of wood board leveling and heating
- Overlapping tray design with recycling air principle
- Four ventilating zones in each configuration
- Chamber arrangements from 2 tray chambers up to 4 tray chambers
Specifications
Technical Data
| Parameter | Value |
|---|---|
| Model | ILVC 2/2 / ILVC 3/2 / ILVC 4/2 / ILVC 4/4 |
| Chambers | 2 tray chambers / 2 tray + 1 distance chamber / 2 tray + 2 distance chambers / 4 tray chambers |
| Ventilating zones | 4 in all configurations |
| Number of trays | 30-62 / 32-62 / 34-62 / 56-114 |
All machines can be customised to the buyer's requirement. Figures are the published data for this model series.
Quality Control
Checked Before It Leaves The Floor
- Zone temperature checked in all four ventilating zones
- Tray travel and indexing run tested through a full cycle
- Air recycling balance measured chamber by chamber
Customisation Options
Specified Per Order
- Chamber configuration from ILVC 2/2 to ILVC 4/4
- Tray count within the range for the chosen configuration
- Tray clearance set for your panel thickness
Comparison
How It Compares With The Alternatives
vs Long IR oven
The vertical dryer gives comparable holding time in a fraction of the floor length, and uses less energy doing it
vs UV dryer
UV cures UV paint in seconds. The vertical dryer is for coatings that need minutes of holding time
Use Guide
Setting The Machine Up For A Run
Choose the chamber configuration for the holding time your coating needs
Set tray clearance for panel thickness
Balance the four ventilating zones before the first batch
Check panels from the top and bottom trays for even dry
Related Machines
vertical drying Mahcine Vertical Dryer House For Paint On Furniture Pane
Stacked tray dryer that buys long flash off time without a long tunnel. Built to order.
View Machine Data →
Wood Panel UV Coating Line IR Heating Leveling Machine IR Heating
Infrared flash off tunnel that levels the wet film and drives out bubbles. Built to order.
View Machine Data →
Automatic Coating Line UV dryer machine flash off machine Heater Tunne
Infrared flash off tunnel that levels the wet film and drives out bubbles. Built to order.
View Machine Data →
Questions About This Machine
Is this model set up for wood panel vertical drying?
Yes. The wood panel configuration of the vertical dryer. Every machine is built to order, so the configuration is confirmed against your own panel size and coating system before production.
How many ventilating zones are there?
Four in every configuration.
What can it dry?
It is designed for a variety of wood board leveling and heating.
Can the tray clearance be changed?
Tray clearance is set to suit the panel you run, and the machine can be customised to requirement.
Why choose a vertical dryer over an IR tunnel?
It offers long leveling time and fast feeding speed while saving floor space and energy.
How many trays does it hold?
From 30 to 62 trays depending on configuration, and up to 114 on the ILVC 4/4.
Ask For A Quotation On The Wood Panel Vertical Dryer Machine Drying Machine
Send your panel size, coating system and line speed. You will get the model recommendation, full technical data and a price.
