Spray Painting Machine
Automatic UV PE Slightness Surface Wood Furniture Work Piece Profile Spraying
Three gun sprayer for narrow profile stock from 10 to 400 mm wide. The profile configuration, for UV and PE paint on smooth surface work pieces.
Product Overview
Profile Spraying Machine For Profile Spraying For Smooth Surface Work Pieces
The profile configuration, for UV and PE paint on smooth surface work pieces.
A profile spraying machine for narrow work: door frames, mouldings and strip components from 10 mm to 200 or 400 mm wide, fed at up to 50 m per minute. Three guns apply to three surfaces of a strip workpiece in one pass. Total power is 2.25 kW.
ISPM200 for 10-200 mmISPM400 for 10-400 mm
Key Benefits
What This Machine Changes On Your Floor
1
2.25 kW total power, the lowest of the spray range
2
Paint width from 10 mm, so small mouldings are in range
3
Three guns cover three surfaces of a strip workpiece such as a door frame
4
Feed speed to 50 m per minute on narrow stock
Who It Is For
Plants That Buy This Machine
- Flooring plants coating profile trim to match the board
- Furniture plants with narrow component lines
- Moulding and door frame producers
Problems It Solves
What It Removes From Your Process
- Three faces of a strip need three separate handling operations
- Feed rate on narrow stock is limited by how fast an operator can move
- Mouldings and frames are sprayed by hand because they are too narrow for a panel booth
Application Scenarios
Typical Jobs It Runs
Coating skirting and architrave to match flooring
Finishing narrow furniture components
Spraying door frame stock on three faces in one pass
Technical Features
How It Is Built
- Sealed paint room with air exhaust system
- Feed speed 0-50 m per minute

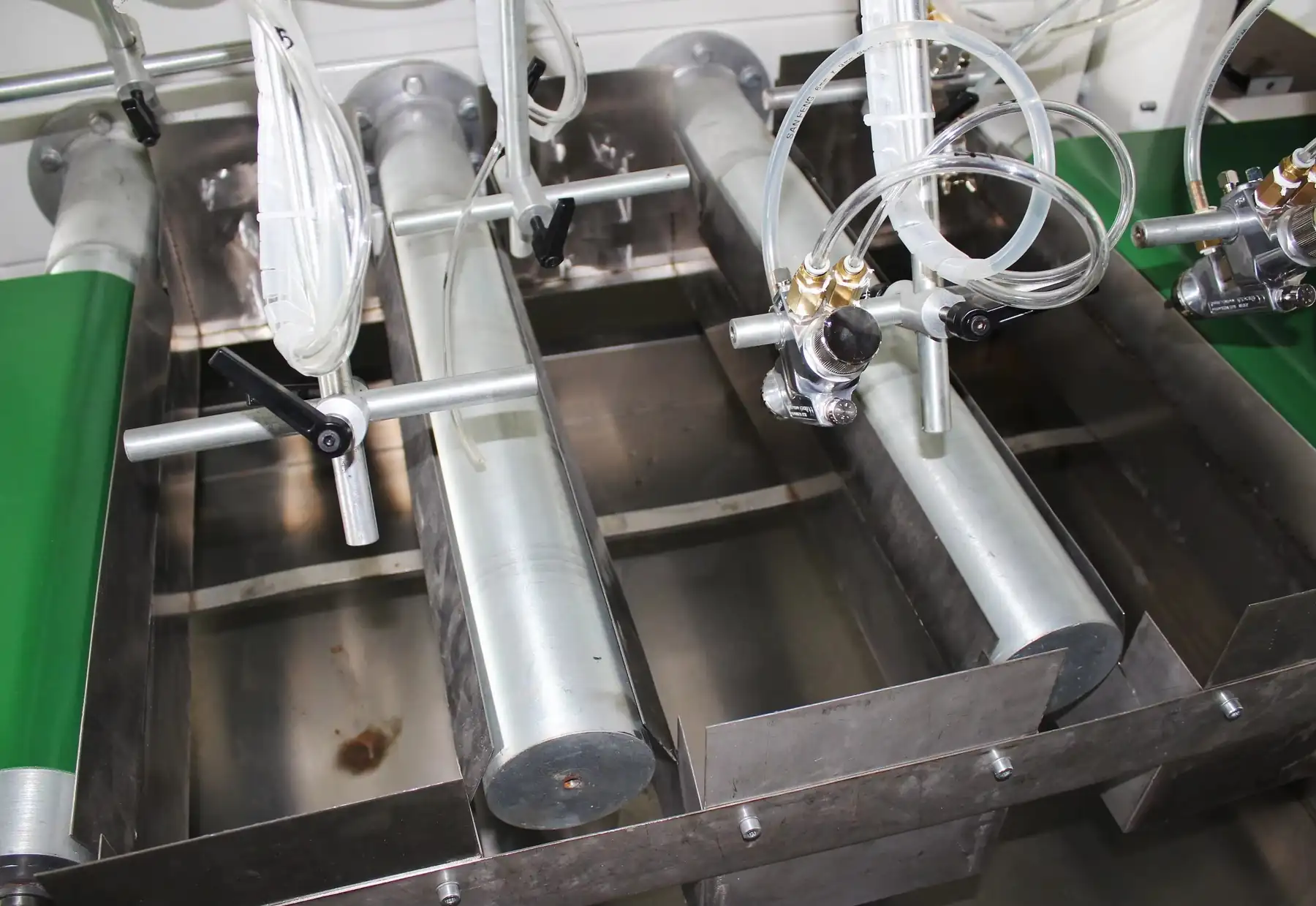

- Three guns applying to three surfaces of a strip workpiece
- Photoelectric induction controlling paint time and range
Specifications
Technical Data
| Parameter | ISPM200 | ISPM400 |
|---|---|---|
| Paint Width | 10-200mm | 10-400mm |
| Working Thickness | 10-100mm | 10-100mm |
| Min. Working Length | 700mm | 700mm |
| Feeding Speed | 0-50m/min | 0-50m/min |
| Gun Qty | 3pcs | 3pcs |
| Working Air Pressure | 0.5-0.8Mpa | 0.5-0.8Mpa |
| TTotal Power | 2.25kw | 2.25kw |
| Dimension (Length x Width x Height) | 3500*1600*2000mm | 3500*1700*2560mm |
| Net Weight | 1500kg | 1600kg |
All machines can be customised to the buyer's requirement. Figures are the published data for this model series.
Quality Control
Checked Before It Leaves The Floor
- Gun alignment checked on all three faces of a sample profile
- Feed speed verified to 50 m per minute
- Booth exhaust and sealing tested
Customisation Options
Specified Per Order
- Paint width to 200 mm or 400 mm
- Gun arrangement for your profile section
- Paint system set for UV, PE or water based
Comparison
How It Compares With The Alternatives
vs Panel spray machine
A panel booth is built around a flat face. This machine wraps three faces of a narrow strip in one pass
vs Hand spraying mouldings
At 50 m per minute the machine covers a length of moulding in the time it takes to pick one up by hand
Use Guide
Setting The Machine Up For A Run
Set air pressure between 0.5 and 0.8 MPa
Position the three guns for the profile section you run
Feed a sample length and inspect all three faces
Clean the guns between colours
Related Machines
Woodworking Furniture Spray painting machine Panel Spraying machine for UV PE
Enclosed reciprocating spray booth that paints 1300 mm panels at a controlled film weight. Built to order.
View Machine Data →
Woodworking Furniture Panel Spraying machine Spray painting machine
Enclosed reciprocating spray booth that paints 1300 mm panels at a controlled film weight. Built to order.
View Machine Data →
Automatic UV PE Spray painting Machine Slightness Surface Wood Furniture Spraying
Long bed reciprocating sprayer built around a 2400 mm door leaf. Built to order.
View Machine Data →
Questions About This Machine
Is this model set up for profile spraying for smooth surface work pieces?
Yes. The profile configuration, for UV and PE paint on smooth surface work pieces. Every machine is built to order, so the configuration is confirmed against your own panel size and coating system before production.
How fast is the feed?
Up to 50 m per minute.
What is the connected load?
2.25 kW.
What width of profile can it spray?
10 to 200 mm on the ISPM200 and 10 to 400 mm on the ISPM400.
How many guns does it have?
Three, applying to three surfaces of a strip workpiece.
What is the shortest piece it can take?
Minimum working length is 700 mm.
Ask For A Quotation On The Automatic UV PE Slightness Surface Wood Furniture Work Piece Profile Spraying
Send your panel size, coating system and line speed. You will get the model recommendation, full technical data and a price.
