Profile Spraying Machine for UV PE water based paint woodworking flat
Complete spray line for irregular shaped doors and cupboard fronts run by three people. Built to order.
View Machine Data →
Profile Spraying Machine Line

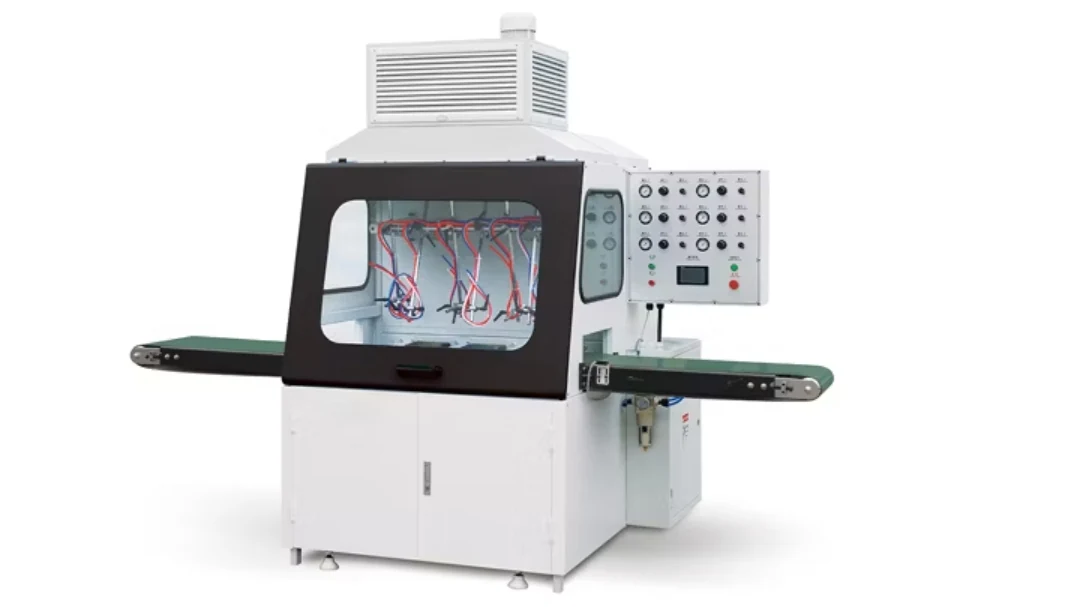

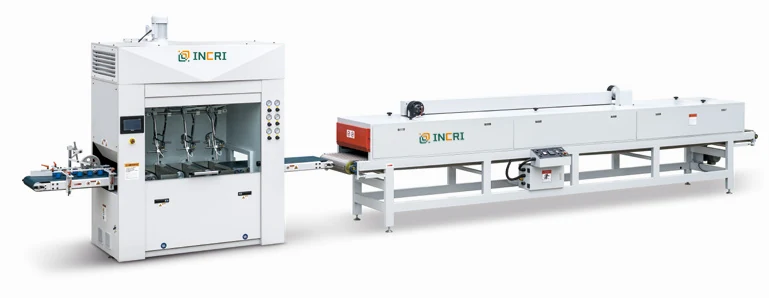

Profile Spraying Machine for flat board UV PE water based paint
Complete spray line for irregular shaped doors and cupboard fronts run by three people. The flat board configuration of the profile spraying line.
Product Overview
Profile Spraying Machine Line For Flat Board Spraying
The flat board configuration of the profile spraying line.
A complete automatic spray line for irregular shaped wood doors and kitchen cupboard fronts. It sprays primer and top coat in sequence and runs UV, water based and PU paints. Three operators run the line at 12-20 m per minute inside a 6 x 18 m working area on a minimum 70 kW supply.
Configured for flat boardConfigured for profiled and irregular workpieces
Key Benefits
What This Machine Changes On Your Floor
1
Sprays primer and topcoat for irregular shaped wood door and kitchen cupboard fronts
2
Three operators run the whole line
3
12-20 m per minute line speed with steady quality
4
UV, water based and PU paints all available on the same line
5
6 x 18 m working area, which is a realistic footprint for a mid size plant
Who It Is For
Plants That Buy This Machine
- Door factories that cannot use flat line roller coating
- Finishers moving from manual booths to an automated line
- Kitchen cupboard plants running shaped and routed fronts
Problems It Solves
What It Removes From Your Process
- A spray room full of manual operators gives a different finish every shift
- Primer and top coat are done on separate days because they share one booth
- Shaped door fronts cannot go through a flat panel coater at all
Application Scenarios
Typical Jobs It Runs
Coating moulded interior door leaves
Water based finishing on shaped furniture fronts
Primer and top coat on routed MDF cupboard doors
Technical Features
How It Is Built
- Suitable for irregular shaped workpieces
- UV, water based and PU paint compatible
- Fast spraying with steady quality
- Automatic spray line for primer and topcoat in one pass sequence
Specifications
Technical Data
| Parameter | Value |
|---|---|
| Workers needed | 3 persons |
| Line speed | 12-20 m/min |
| Minimum power | 70 kW |
| Working area | 6 x 18 m |
All machines can be customised to the buyer's requirement. Figures are the published data for this model series.
Quality Control
Checked Before It Leaves The Floor
- Full line commissioned and run with sample workpieces before shipment
- Gun coverage checked on shaped profiles
- Line speed verified across the 12-20 m/min range
Customisation Options
Specified Per Order
- Line length and working area set to your building
- Paint system specified for UV, PU or water based
- Number of spray stations set for your coat build
Comparison
How It Compares With The Alternatives
vs Roller coater line
Roller coating is faster on flat board. This line exists because shaped fronts cannot be roller coated
vs Manual spray booths
Three people run the whole line at a constant 12-20 m per minute rather than a rate set by hand
Use Guide
Setting The Machine Up For A Run
Confirm your building can take the 6 x 18 m working area and a 70 kW supply
Set the primer and top coat stations for your paint system
Run sample doors and check coverage in the profile
Plan the line layout with our engineers before the building work starts
Related Machines
180 degree Curve return line Machine Return production Line for woodworking
90 and 180 degree return table that sends the panel back to the operator. Built to order.
View Machine Data →
woodworking panel Automatic Spraying line UV PU paint primer coating top
Full spray line that replaces 8 to 12 painting workers with a crew of three. Built to order.
View Machine Data →
Back Coating Machine For solid wood floor Back Coating Equipment
Seals the underside of solid wood flooring so boards stop cupping in service. Built to order.
View Machine Data →
Questions About This Machine
Is this model set up for flat board spraying?
Yes. The flat board configuration of the profile spraying line. Every machine is built to order, so the configuration is confirmed against your own panel size and coating system before production.
What line speed does it run at?
12 to 20 m per minute.
What power supply is needed?
A minimum of 70 kW.
How much floor space?
A working area of 6 x 18 m.
Which paints can I use?
UV paint, water based paint and PU.
Can the line be customised?
Yes, the whole line is built to the buyer's requirement.
How many operators does the line need?
Three.
Ask For A Quotation On The Profile Spraying Machine for Flat Board UV PE Water Based Paint
Send your panel size, coating system and line speed. You will get the model recommendation, full technical data and a price.
