Roller conveyor machine for wood door floor production conveyor machine
Rubber roller link conveyor for loading and unloading at the ends of a line. The standard roller conveyor build for door and flooring lines.
Product Overview

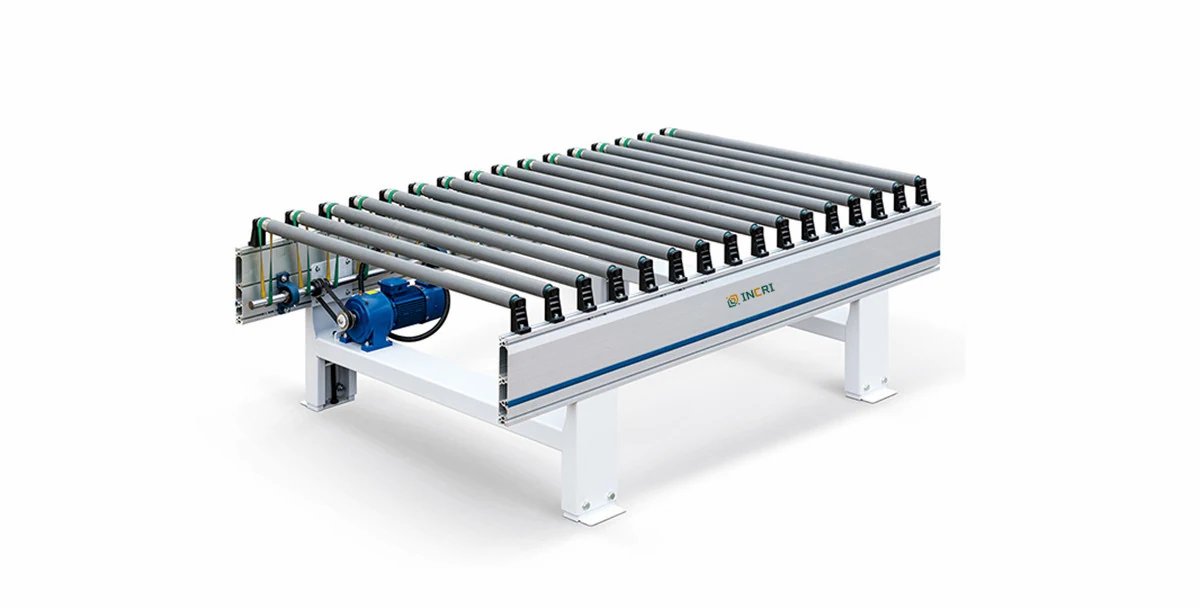

Rubber Roller Conveyor For Roller Conveying For Door And Floor Lines
The standard roller conveyor build for door and flooring lines.
A rubber roller conveyor used to connect the transport systems of machines in a line, normally at the entrance and exit where loading and offloading happen. The transport system is driven by an imported motor and inverter for smooth transfer. Transfer widths are 600 and 1300 mm at 0-20 m per minute.
ICSS600-GICSS1300-G
Key Benefits
What This Machine Changes On Your Floor
1
Imported motor and inverter give smooth transfer without jerking the panel
2
Rubber rollers protect the panel face
3
Links the transport systems of machines into one continuous line
4
Placed at the entrance and exit it makes loading and offloading easier
Who It Is For
Plants That Buy This Machine
- Plants extending an existing line
- Any plant joining two woodworking machines into a line
- Door and flooring lines needing a load and offload station
Problems It Solves
What It Removes From Your Process
- Loading and offloading is awkward at the ends of the line
- Two machines have transport systems that do not meet
- Panels are set down on the floor between stages
Application Scenarios
Typical Jobs It Runs
Linking a dust cleaner to a roller coater
Infeed table ahead of a wide belt sander
Offload table after a coating line
Technical Features
How It Is Built
- Two transfer widths on a common frame height of 920 mm
- Rubber roller surface to protect the panel
- Imported motor with inverter speed control
Specifications
Technical Data
| Parameter | ICSS600-G | ICSS1300-G |
|---|---|---|
| Transfer Width | 600mm | 1300mm |
| Transfer Speed | 0-20m/min | 0-20m/min |
| Transfer Power | 0.75kw | 1.5kw |
| Dimension(Length x Width x Height) | 3030*850*920mm | 3260*1580*920mm |
| Net Weight | 210kg | 310kg |
All machines can be customised to the buyer's requirement. Figures are the published data for this model series.
Quality Control
Checked Before It Leaves The Floor
- Roller alignment and rubber surface inspected
- Inverter speed range verified
- Frame height checked at 920 mm
Customisation Options
Specified Per Order
- 600 or 1300 mm transfer width
- Length set for your line gap
- Frame height matched to the machines either side
Comparison
How It Compares With The Alternatives
vs Belt conveyor
Rubber rollers suit heavier and longer panels. A flat belt supports small and thin parts better
vs Manual transfer
A powered link keeps panel faces off the floor and keeps the line moving at a set speed
Use Guide
Setting The Machine Up For A Run
Set the conveyor height to match both machines
Match transfer speed to the slower machine
Check roller surfaces for paint build up regularly
Related Machines
Rubber Roller conveyor machine for wood door floor production conveyor machine
Rubber roller link conveyor for loading and unloading at the ends of a line. Built to order.
View Machine Data →
Flat belt series belt conveyor Belt conveyor machine
Flat belt link conveyor for connecting machines and supporting small parts. Built to order.
View Machine Data →
Flat belt series belt conveyor for wooden door factory
Flat belt link conveyor for connecting machines and supporting small parts. Built to order.
View Machine Data →
Questions About This Machine
Is this model set up for roller conveying for door and floor lines?
Yes. The standard roller conveyor build for door and flooring lines. Every machine is built to order, so the configuration is confirmed against your own panel size and coating system before production.
What width can it transfer?
600 mm or 1300 mm.
What is the frame height?
920 mm.
How fast does it run?
0 to 20 m per minute.
Will it mark the panel?
The rollers are rubber coated to protect the panel surface.
How heavy is it?
210 kg for the 600 mm and 310 kg for the 1300 mm model.
