Conveyor Machine

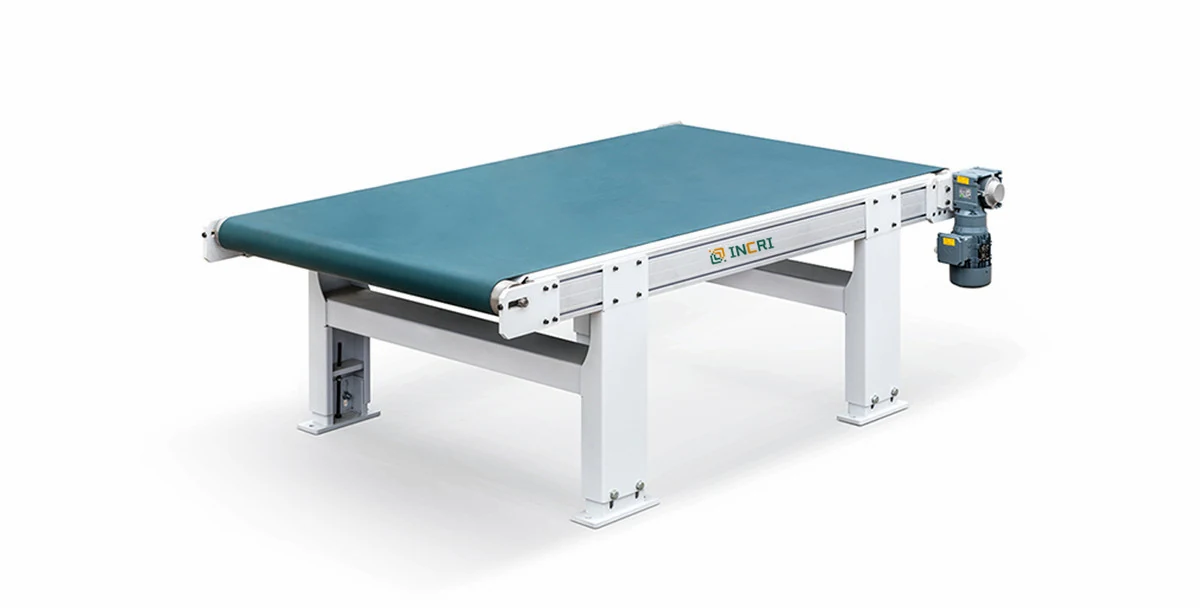

Flat belt series belt conveyor Belt conveyor machine
Flat belt link conveyor for connecting machines and supporting small parts. The flat belt series build.
Product Overview
Flat Belt Conveyor For Flat Belt Conveying
The flat belt series build.
A flat belt conveyor from the ICSS series that links the transport systems of machines into a line. The continuous belt supports small and thin parts that would drop between rollers. Transfer widths are 600, 1000 and 1300 mm at 0-20 m per minute with an imported motor and inverter.
ICSS600ICSS1000ICSS1300
Key Benefits
What This Machine Changes On Your Floor
1
Three widths at 600, 1000 and 1300 mm on a 920 mm frame height
2
Continuous flat belt supports small and thin workpieces
3
Links machine transport systems into one line
4
Imported motor and inverter for smooth transfer
Who It Is For
Plants That Buy This Machine
- Door and furniture plants running mixed panel sizes
- Lines handling small components between machines
- Plants building a line from separate machines
Problems It Solves
What It Removes From Your Process
- Small parts fall between the rollers of a roller conveyor
- Thin panels tip as they cross a gap between machines
- The line has a gap that nothing currently bridges
Application Scenarios
Typical Jobs It Runs
Connecting a dust cleaner to a curtain coater
Supporting small cabinet parts between two stages
Load and offload station at the ends of a coating line
Technical Features
How It Is Built
- Flat belt surface supporting the whole workpiece
- Imported motor with inverter control
- Three widths on a common 920 mm frame height
Specifications
Technical Data
| Parameter | ICSS600 | ICSS1000 | ICSS1300 |
|---|---|---|---|
| Transfer Width | 600mm | 1000mm | 1300mm |
| Transfer Speed | 0-20m/min | 0-20m/min | 0-20m/min |
| Transfer Power | 0.75kw | 1.5kw | 1.5kw |
| Dimension(L x W x H) | 3030*850*920mm | 3260*1300*920mm | 3260*1780*920mm |
| Net Weight | 210kg | 260kg | 310kg |
All machines can be customised to the buyer's requirement. Figures are the published data for this model series.
Quality Control
Checked Before It Leaves The Floor
- Belt tracking run in before shipment
- Inverter speed range verified
- Frame height and squareness checked
Customisation Options
Specified Per Order
- 600, 1000 or 1300 mm transfer width
- Belt length set for your line gap
- Belt surface selected for your workpiece
Comparison
How It Compares With The Alternatives
vs Rubber roller conveyor
A flat belt carries small and thin parts that would fall between rollers. Rollers suit heavy panels better
Use Guide
Setting The Machine Up For A Run
Set conveyor height to 920 mm or to match the machines either side
Set transfer speed to the slower machine in the pair
Check belt tracking weekly
Related Machines
Rubber Roller conveyor machine for wood door floor production conveyor machine
Rubber roller link conveyor for loading and unloading at the ends of a line. Built to order.
View Machine Data →
Roller conveyor machine for wood door floor production conveyor machine
Rubber roller link conveyor for loading and unloading at the ends of a line. Built to order.
View Machine Data →
Flat belt series belt conveyor for wooden door factory
Flat belt link conveyor for connecting machines and supporting small parts. Built to order.
View Machine Data →
Questions About This Machine
Is this model set up for flat belt conveying?
Yes. The flat belt series build. Every machine is built to order, so the configuration is confirmed against your own panel size and coating system before production.
What is the transfer speed?
0 to 20 m per minute.
Why choose a belt over rollers?
The continuous belt supports small and thin workpieces that would drop between rollers.
What is the frame height?
920 mm.
What power does it use?
0.75 kW at 600 mm and 1.5 kW at 1000 and 1300 mm.
What widths are available?
600, 1000 and 1300 mm.
Ask For A Quotation On The Flat Belt Series Belt Conveyor Belt Conveyor Machine
Send your panel size, coating system and line speed. You will get the model recommendation, full technical data and a price.
