Woodworking Cabinet Door Automatic Curved Surface Sanding Machine for door
Disc brush sander that reaches into raised panel profiles and routed grooves. The curved surface configuration, for doors where the face is shaped rather than flat.
Product Overview
Curved Surface Brush Polishing Sander For Curved Surface Doors
The curved surface configuration, for doors where the face is shaped rather than flat.

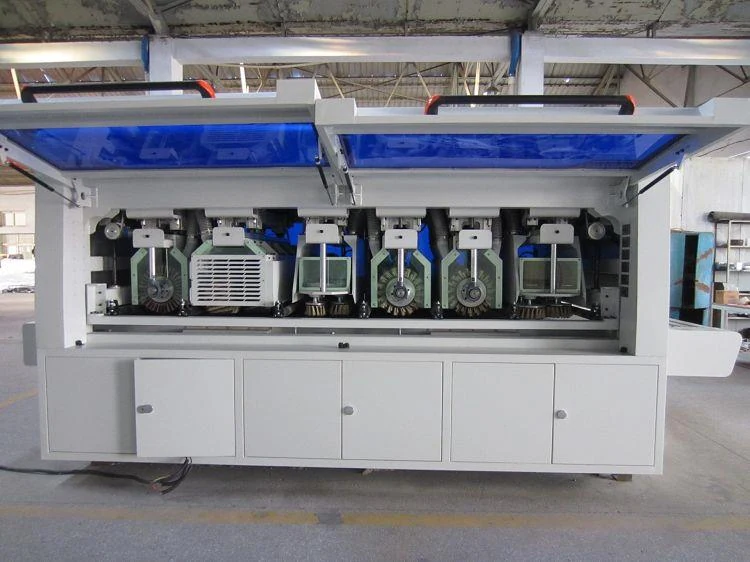

A brush polishing sanding machine built for doors, cabinet fronts and furniture with curved and profiled surfaces. Rotating brush discs carry the abrasive into the shaped areas that a flat belt cannot touch. Working width is 1300 mm, dust extraction moves 1500 m3 per hour and total power is 18.8 kW.
ICYS1300, 1300 mm working width
Key Benefits
What This Machine Changes On Your Floor
1
1300 mm working width covers full size door fronts
2
Brush discs flex into grooves, coves and raised panel fields
3
High speed disassembly brush disc shortens the paper change against a traditional structure
4
1500 m3 per hour extraction keeps dust out of the following coating step
Who It Is For
Plants That Buy This Machine

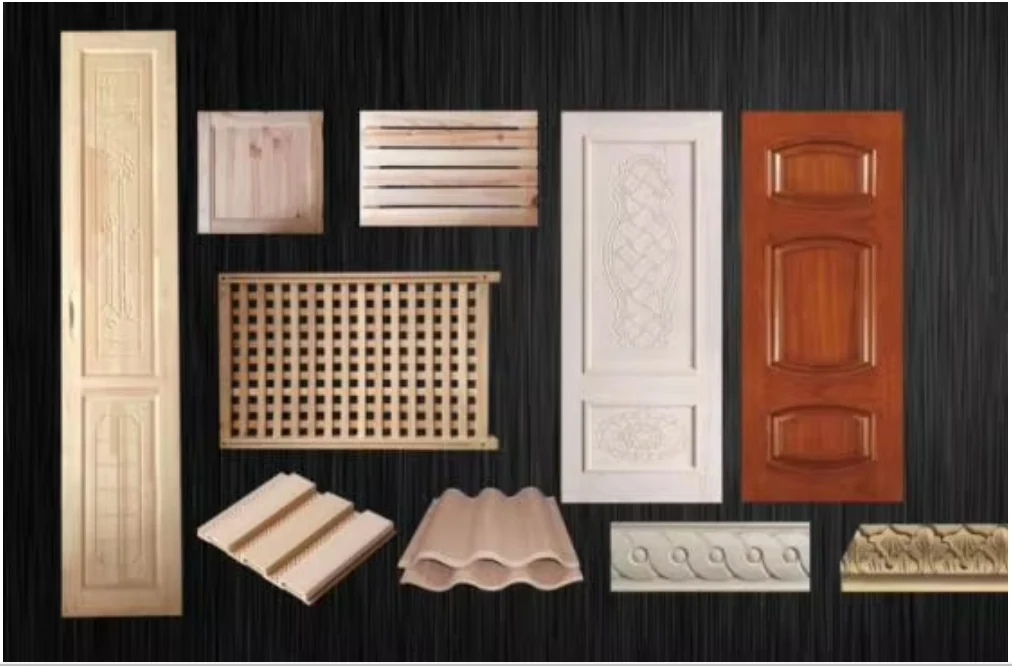

- Finishers denibbing profiled parts between coats
- Cabinet door plants running raised panel and routed fronts
- Furniture makers with carved or moulded components
Problems It Solves
What It Removes From Your Process
- Changing sandpaper on the brush heads takes so long the machine sits idle
- A wide belt sander flattens the high points of a raised panel and never reaches the profile
- Hand sanding shaped door fronts is the bottleneck and the finish varies by operator
Application Scenarios
Typical Jobs It Runs
Denibbing shaped components between primer and top coat
Sanding raised panel kitchen doors before priming
Polishing routed MDF fronts after a CNC operation
Technical Features
How It Is Built
- Vacuum absorption 7.5-11 kW with 1500 m3/h dust adsorption

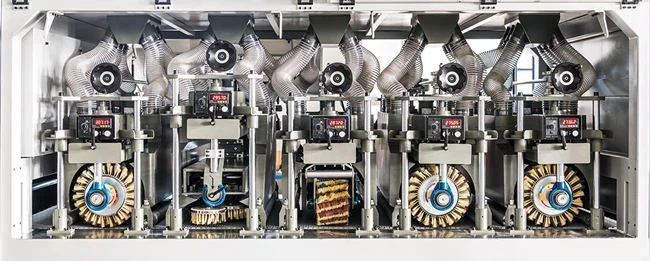

- Brush disc with high speed disassembly structure for fast abrasive changes
- Large diameter sanding roller with quality abrasive and Mexican sisal, soft and flexible for complex shapes
- Each sanding unit has a thickness display, memory function optional
Specifications
Technical Data
| Parameter | Value |
|---|---|
| Model | ICYS1300 |
| Working Width | 1300mm |
| Working Thickness | 0-100mm |
| Feeding Speed | 0—25m/min |
| Feeding Power | 4kw |
| Vacuum Absorption Power | 7.5-11kw |
| Dust Adsorption | 1500m3/h |
| Total Power | 18.8kw |
| Dimension(L x W x H) | 4120*2250*2130mm |
| Net Weight | 6200kg |
All machines can be customised to the buyer's requirement. Figures are the published data for this model series.
Quality Control
Checked Before It Leaves The Floor
- Brush disc balance and swing checked on the machine
- Extraction airflow measured against the 1500 m3/h figure
- Sample profiled panels sanded and inspected in the grooves
Customisation Options
Specified Per Order
- Brush disc count and arrangement set for your profile depth
- Abrasive grade selected for primer or raw wood duty
- Feed speed range matched to your line
Comparison
How It Compares With The Alternatives
vs Wide belt sander
A belt only touches the high points of a profile. The brush discs reach into the groove and the cove
vs Hand sanding shaped fronts
Brush sanding gives the same result on the hundredth door as on the first, at 0-25 m per minute
Use Guide
Setting The Machine Up For A Run
Set panel thickness within the 0-100 mm range
Choose brush abrasive grade for raw wood or cured primer
Start extraction before feeding the first panel
Run a sample and check the groove corners under raking light
Related Machines
Woodworking Cabinet Door Automatic Brush Polishing Sanding Machine
Disc brush sander that reaches into raised panel profiles and routed grooves. Built to order.
View Machine Data →
180 degree Curve return line Machine Return production Line for woodworking
90 and 180 degree return table that sends the panel back to the operator. Built to order.
View Machine Data →
woodworking panel Automatic Spraying line UV PU paint primer coating top
Full spray line that replaces 8 to 12 painting workers with a crew of three. Built to order.
View Machine Data →
Questions About This Machine
Is this model set up for curved surface doors?
Yes. The curved surface configuration, for doors where the face is shaped rather than flat. Every machine is built to order, so the configuration is confirmed against your own panel size and coating system before production.
What panel thickness does it take?
0 to 100 mm.
How quickly can brush abrasive be changed?
The brush disc uses a high speed disassembly structure, which is faster than a traditional fixed disc.
Can it sand a raised panel door?
Yes, that is what the brush discs are for. They flex into the profile instead of riding over it.
What is the working width?
1300 mm.
How much extraction does it need?
1500 m3 per hour, with a vacuum absorption power of 7.5 to 11 kW.
