Roller Coater Line
woodworking panel Automatic roller coater line for kitchen cupboard door
UV roller coating line rated at 5000 square metres per day with zero VOC paint. The kitchen cupboard door configuration of the UV roller coating line.
Product Overview

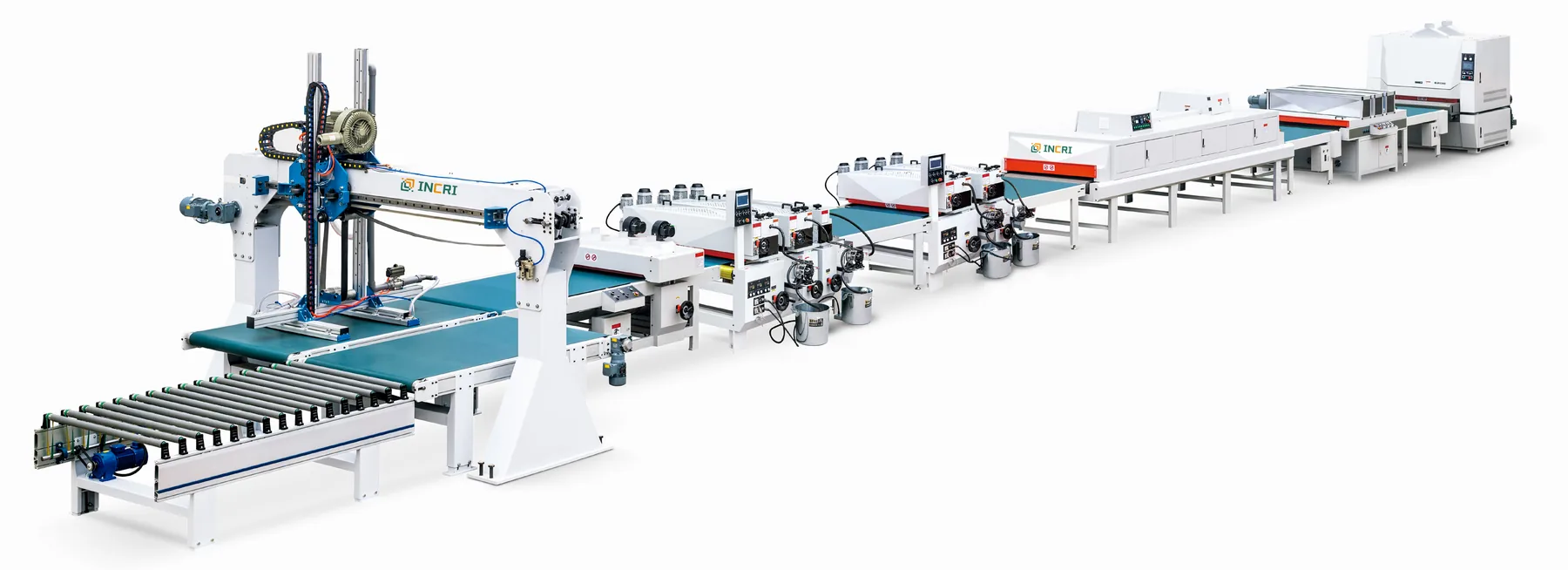

Automatic Roller Coater Line For Kitchen Cupboard Doors
The kitchen cupboard door configuration of the UV roller coating line.
A complete automatic UV roller coating line with a capacity of 5000 square metres per day. High gloss and matt finishes are both available, and because the UV paint is 100 percent recycled with 0 percent VOC, the line has no solvent emission to handle. Three to five operators run it at 12-20 m per minute in a 6 x 20 m area on a minimum 120 kW supply.
High gloss configurationMatt configuration
Key Benefits
What This Machine Changes On Your Floor
1
5000 square metres per day capacity from one line
2
100 percent paint recycling and 0 percent VOC with UV coatings
3
High gloss and matt finishes both available
4
Widely used for kitchen cupboards, wooden doors, flooring and other flat material
5
12-20 m per minute with 3 to 5 operators
Who It Is For
Plants That Buy This Machine
- Flat panel producers scaling past single machine output
- Cabinet and door plants in markets with VOC limits
- Flooring producers running high daily volume
Problems It Solves
What It Removes From Your Process
- Panel output is capped by a single coater and a separate dryer
- Solvent emission regulations make a spray line expensive to permit
- Paint cost per square metre is too high because overspray is lost
Application Scenarios
Typical Jobs It Runs
High gloss kitchen cupboard fronts at volume
UV coated engineered flooring
Flat door skins in a continuous coat and cure line
Technical Features
How It Is Built
- 100 percent paint recycling, 0 percent VOC
- Suited to kitchen cupboards, wooden doors and flooring
- Complete UV roller coating line, coater and dryer integrated
- High gloss and matt both available
Specifications
Technical Data
| Parameter | Value |
|---|---|
| Capacity | 5000 m2 per day |
| Workers needed | 3-5 persons |
| Line speed | 12-20 m/min |
| Minimum power | 120 kW |
| Working area | 6 x 20 m |
| Paint | UV, 100 percent recycled, 0 percent VOC |
All machines can be customised to the buyer's requirement. Figures are the published data for this model series.
Quality Control
Checked Before It Leaves The Floor
- Line commissioned and run at rated speed before shipment
- Coating film weight measured at each coater group
- UV cure verified at line speed on sample panels
Customisation Options
Specified Per Order
- Number of coater and dryer stages
- Line length set to your building
- Panel width matched to your product
Comparison
How It Compares With The Alternatives
vs Standalone roller coater plus dryer
The line integrates coating, levelling and curing so 5000 m2 a day is achievable with 3 to 5 people
vs Automatic spraying line
Roller coating is faster and wastes less paint on flat board. Spraying is for shaped work
Use Guide
Setting The Machine Up For A Run
Check the 6 x 20 m area and 120 kW supply against your building
Set the coater groups for your primer and top coat build
Run at rated speed and confirm cure with a solvent rub
Plan panel feed and stacking to keep the line fed at 12-20 m per minute
Related Machines
180 degree Curve return line Machine Return production Line for woodworking
90 and 180 degree return table that sends the panel back to the operator. Built to order.
View Machine Data →
woodworking panel Automatic Spraying line UV PU paint primer coating top
Full spray line that replaces 8 to 12 painting workers with a crew of three. Built to order.
View Machine Data →
Back Coating Machine For solid wood floor Back Coating Equipment
Seals the underside of solid wood flooring so boards stop cupping in service. Built to order.
View Machine Data →
Questions About This Machine
Is this model set up for kitchen cupboard doors?
Yes. The kitchen cupboard door configuration of the UV roller coating line. Every machine is built to order, so the configuration is confirmed against your own panel size and coating system before production.
What is the daily capacity?
5000 square metres per day.
How many operators are needed?
Three to five.
What power supply is required?
A minimum of 120 kW.
Does the line emit VOC?
The UV paint is 100 percent recycled with 0 percent VOC.
What products is it used for?
Kitchen cupboards, wooden doors, flooring and other flat material.
How much floor area?
A working area of 6 x 20 m.
Ask For A Quotation On The Woodworking Panel Automatic Roller Coater Line for Kitchen Cupboard Door
Send your panel size, coating system and line speed. You will get the model recommendation, full technical data and a price.
