The ELCB is a residual current device designed for earth leakage protection in low-voltage circuits.

Get a Price for This ModelSpecifications
ELCB 1P 2P 3P 4P circuit breaker on DIN rail front view

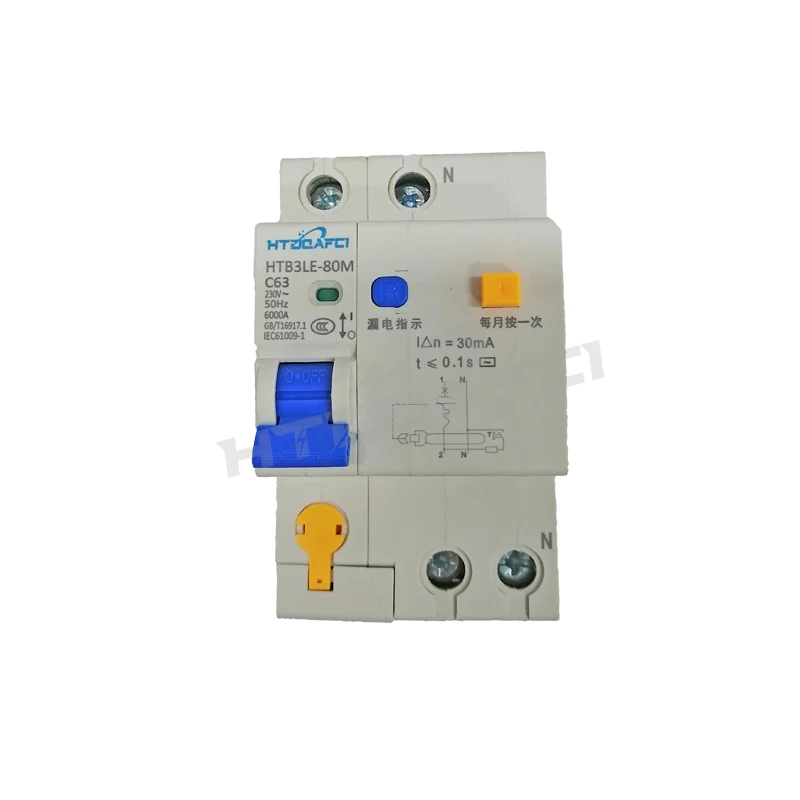

ELCB showing toggle handle and terminal connections

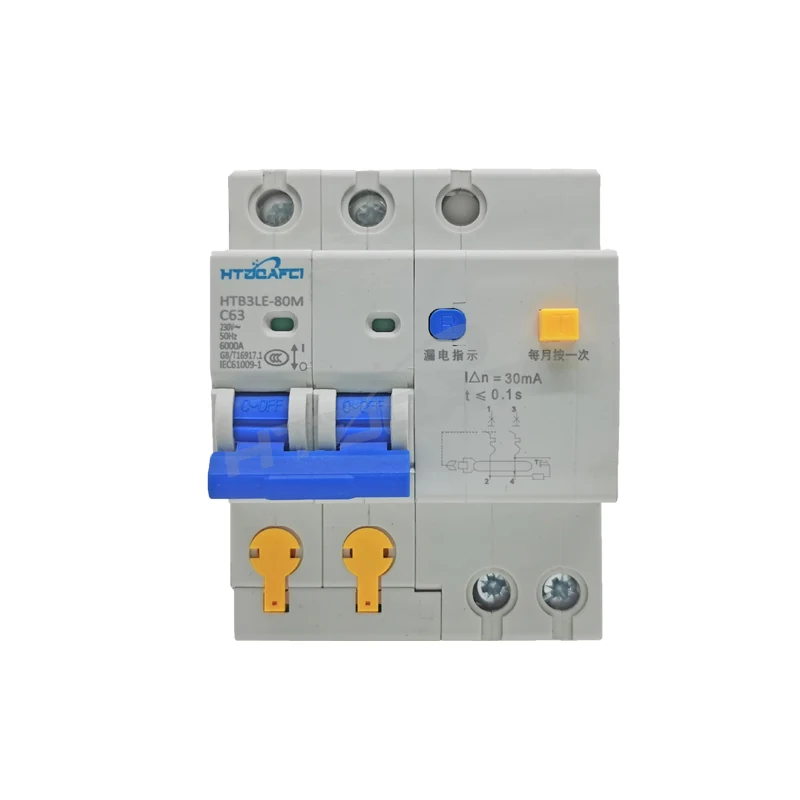

ELCB wiring terminals close up with live and neutral connections

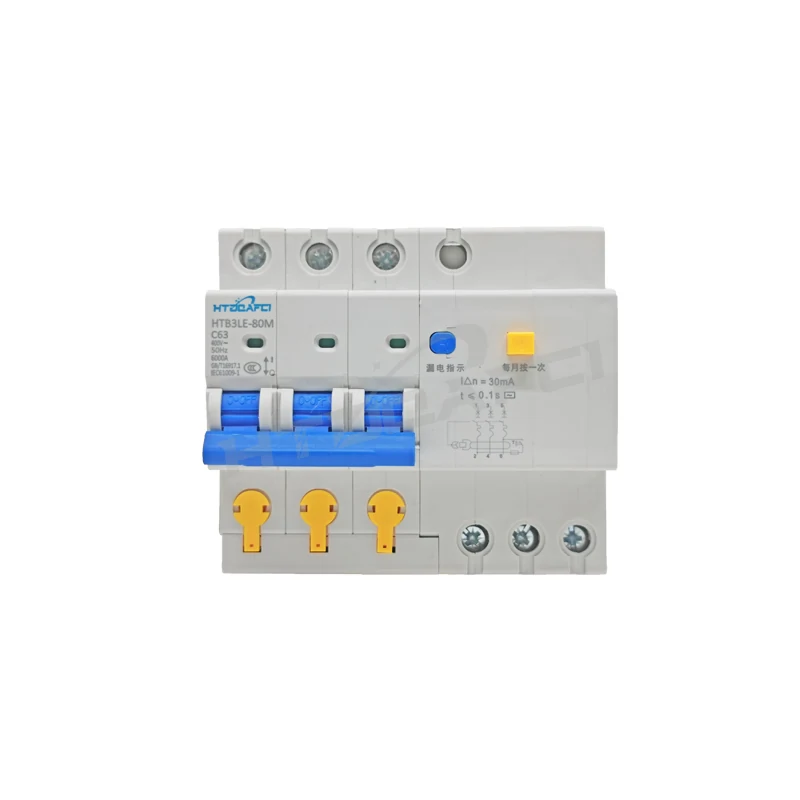

ELCB installed in a distribution board with multiple poles

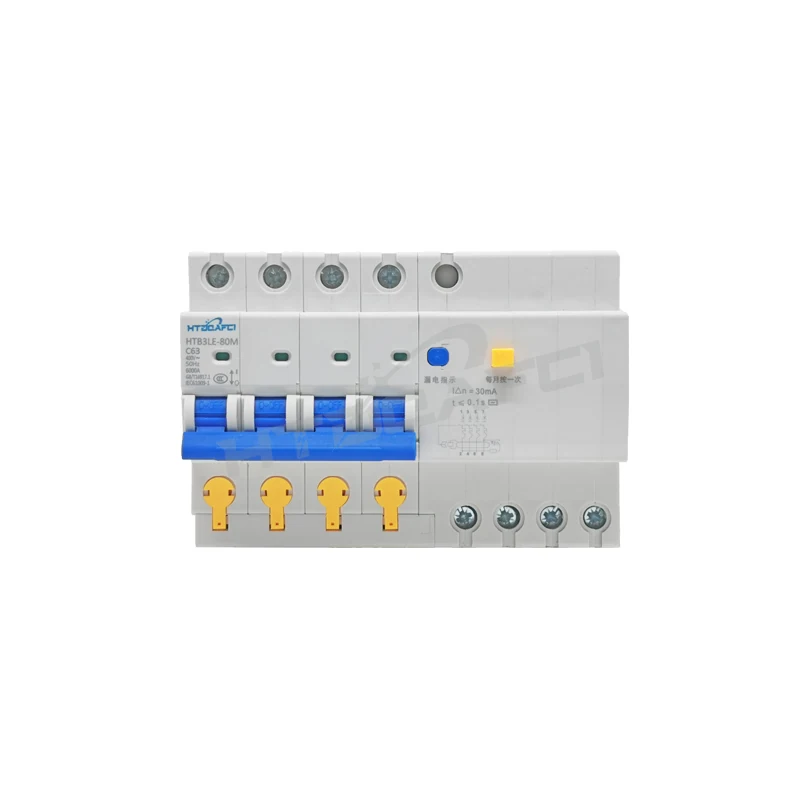

ELCB with test button and label showing 30mA sensitivity
Product Overview

What This Model Does

The ELCB is a residual current device designed for earth leakage protection in low-voltage circuits. It is suitable for use in distribution boards and panel assemblies where personal and equipment protection against earth faults is required. For panel builders and installers, it offers a compact, DIN rail-mounted solution that integrates directly into existing electrical systems without additional wiring or control logic.

Key Benefits

  • Provides automatic disconnection on earth leakage current exceeding the rated threshold
  • Maintains mechanical and electrical protection functions of a standard MCB while adding earth fault detection
  • Compact DIN rail design allows direct replacement in existing distribution boards
  • No external power supply needed; operates from the live circuit itself
ELCB 1P 2P 3P 4P circuit breaker on DIN rail front view
ELCB 1P 2P 3P 4P circuit breaker on DIN rail front view

Who It Is For

  • Electrical wholesalers stocking earth leakage protection devices alongside conventional MCBs
  • Panel builders specifying integrated protection in distribution boards
  • Switchgear assemblers integrating ELCBs into custom-built control panels
  • Solar EPC contractors installing protection in solar DC/AC distribution systems
  • OEM/ODM buyers sourcing a compliant earth leakage device for branded electrical products

Problems It Solves

  • A circuit remains energized despite a ground fault, risking electric shock or fire
  • No single device combines overcurrent and earth leakage protection, requiring two separate components
  • Lack of standardized earth leakage protection in older or unregulated installations
  • Difficulty in retrofitting earth fault protection without rewiring or adding external relays
  • Inconsistent protection levels across multiple circuits due to mismatched or missing devices

Application Scenarios

  • Residential distribution boards where earth leakage protection is required for socket circuits
  • Commercial buildings with multiple circuits needing individual earth fault monitoring
  • Industrial control panels where equipment grounding must be monitored for safety
  • Panel builders integrating a single device for both overcurrent and earth leakage protection
  • Renewable energy installations such as solar inverters requiring earth fault detection
Technical Features

How It Is Built

  • Automatic disconnection on earth leakage current exceeding rated sensitivity
  • Designed for DIN rail mounting in standard distribution boards

Materials and Construction

  • Silver-alloy contacts with a thermal-magnetic trip mechanism
  • Integrated earth leakage detection coil and trip mechanism inside the breaker body

Quality Control

  • Insulation and dielectric withstand test performed before packing
Specifications

Stated Ratings for This Model

Specifications for ELCB
Instantaneous Trip TypeC

Ratings are as published for this model. Where a value is not published we mark it TBC rather than estimating it.

Values that could not be confirmed against the published catalogue text for this model are marked TBC and confirmed by email before order: Standards Compliant, Rated Voltage, Frequency, Rated Current, Rack Rated Current, Protection Level, Specified Use Temperature, Mechanical Life, Electrical Life, Earth Leakage Sensitivity, Trip Time, Mounting.
