Electric Extrusion Herb Decoction Machine DJY25L

Name: Electric Extrusion Herb Decoction Machine DJY25L
Brand: Huayan Medical
SKU: DJY25L

The DJY25L is an airtight stainless steel TCM herb decoction machine engineered with an integrated manual extrusion mechanism for single-recipe extraction batches.

Product Overview

What the DJY25L Is Built To Do

The DJY25L is an airtight stainless steel TCM herb decoction machine engineered with an integrated manual extrusion mechanism for single-recipe extraction batches. Built for TCM hospital pharmacies, acupuncture clinics and health centres, the unit operates under a hermetic seal that traps herbal aromas and performs high-temperature sterilisation during the boiling cycle. With a 25,000 ml pot capacity, automatic transfer from soft fire to strong fire, and a mechanical hand squeezer to extract residual liquid from dregs, it prepares batches of 5 to 25 prescription pairs for direct consumption or transfer into a separate liquid packing machine.

Request A Quote Email For Specifications

At A Glance

Model: DJY25L
Series: DJY series electric extrusion TCM herb decoction machine
Brand: Huayan Medical
Decoction pot capacity: 25,000 ml
Prescription capacity: 1 recipe per time
Decoction dosage: 5 to 25 pairs per time

Huayan DJY25L electric extrusion airtight TCM herb decoction machine with stainless steel pot and hand press

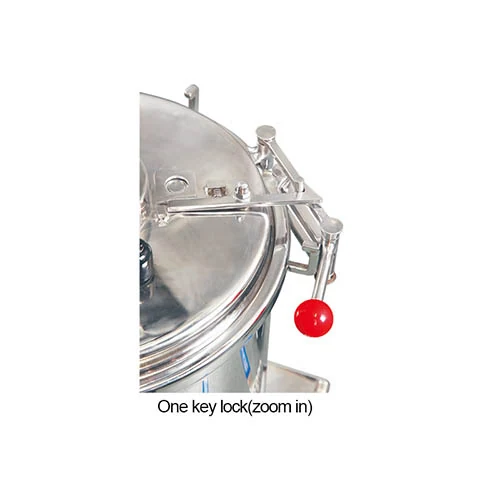

Detail view of the single-action sliding lock handle mechanism and safety valve assembly on the decoction pot

Key Benefits

Why Buyers Specify the DJY25L

Airtight stainless steel decoction pot retains herbal aromatics within the vessel and reduces dispensary smell
Manual extrusion press squeezes concentrated liquid out of herbal dregs to prevent active ingredient loss
Automatic switching from soft fire to strong fire follows standard decoction principles without constant oversight
Triple safety guarantee combines a single-action sliding lock, double safety valves and a float-controlled valve
Visible pressure and real-time temperature displays let the operator monitor the vessel state safely
Compact 480 by 490 mm footprint fits easily into small clinic preparation rooms and hospital dispensaries

Problems It Solves

Open boiling pans vent strong herbal odours throughout clinic waiting rooms and outpatient treatment areas
Valuable herbal liquid remains trapped in boiled botanical dregs when strained without mechanical pressing
Unpressurised open pots provide inconsistent boiling temperatures that shorten the storage life of prepared decoctions
Traditional screw-down pressure vessel lids require slow multi-point fastening that increases operator turnover time
Unmonitored boiling risks pressure buildup without clear real-time cylinder pressure and temperature readouts
Manual flame adjustments during long extraction cycles demand continuous monitoring by pharmacy staff

Where It Is Used

Where the DJY25L Is Used

Application Scenarios

TCM hospital pharmacy preparing concentrated decoction batches of 5 to 25 prescription pairs
Acupuncture clinic decocting single herbal formulas under sanitary closed-vessel conditions for outpatients
TCM health centre boiling course-based herbal teas and tonics without releasing strong odours into treatment areas
Community clinic dispensary running hermetic decoction before transferring liquid to an external pouch packing machine
Specialist rehabilitation centre decocting clean herbal liquid medicine for inpatient daily administration
Small-batch botanical preparation room boiling fruit beverages, juices and herb teas under sealed temperature control

Who It Is For

TCM hospital dispensary supervisors needing airtight decoction to eliminate boiling odours in clinical areas
Acupuncture clinic directors seeking a compact stainless steel decoction vessel with manual dreg pressing
Pharmacy technicians wanting visual monitoring of boiling pressure and automatic soft-to-strong fire transitions
Medical equipment distributors supplying registered TCM clinics, health centres and overseas hospital pharmacies
TCM practitioners wanting to extract residual liquid thoroughly from boiled raw herbs using mechanical extrusion

Technical Features

Inside the DJY25L

Airtight stainless steel decoction pot engineered for sealed boiling without vapour escape
Integrated hand extrusion device to squeeze herbal liquid thoroughly from spent botanical raw material
Automatic heating transition system shifting reliably between soft fire and strong fire stages
Single-action sliding lid lock enabling rapid and secure one-time closure of the decoction pot
Triple safety architecture incorporating a float-controlled valve and independent double safety valves
Continuous real-time temperature readout visible to the operator across the entire boiling cycle
Visible cylinder pressure indicator allowing constant observation of internal vessel pressure
High-temperature sterilisation action during the hermetic cycle to help improve decoction liquid shelf life
Electric heating system rated at 1,800 W total power for controlled extraction

Materials and Build

Stainless steel decoction pot and internal contact parts suited for sanitary herbal extraction
Heavy-gauge stainless steel outer housing and frame designed for easy wipe-down cleaning
Food-grade sealing gaskets and pressure-rated mechanical safety valves

Specifications

Electric Extrusion Herb Decoction Machine DJY25L Technical Data

Figures below are taken from the manufacturer data sheet for this model. Tell us your local voltage and dosing practice and we will confirm the build before the order.

Model	DJY25L
Series	DJY series electric extrusion TCM herb decoction machine
Brand	Huayan Medical
Decoction pot capacity	25,000 ml
Prescription capacity	1 recipe per time
Decoction dosage	5 to 25 pairs per time
Total power	1,800 W
Rated voltage	220 V, special customization available
Operating pressure	Visible pressure in stainless steel cylinder
Cover locking mechanism	One-time sliding lock handle
Safety system	Double safety valve plus float-controlled valve
Packaging function	Non (cooperate with herbal liquid packing machine)
Machine dimensions	1150 mm height x 490 mm width x 480 mm length
Net weight	70 kg

How It Is Made and Checked

How the DJY25L Is Built and Checked

How This Model Is Built and Tested

Place weighed herbal raw material and prescribed water into the 25,000 ml stainless steel pot
Close the vessel cover and secure the sliding lock handle in a single operation
Set the decoction time on the visual panel to begin the automatic soft fire stage
The machine automatically transitions from soft fire to strong fire at the designated cycle point
Monitor real-time pot temperature and cylinder pressure on the visual display indicators
Engage the hand extrusion device to squeeze remaining concentrated extract out of the herb dregs
Discharge sanitary herbal liquid for consumption or direct feeding into an external pouch packing machine

Quality Control

Every unit undergoes heating, pressure vessel verification and safety valve testing before dispatch
Extrusion mechanism is cycle-tested to ensure smooth mechanical pressing under operating heat
Manufactured in a facility operating under ISO 9001 and ISO 13485 quality management systems
CE certified to meet applicable safety standards for medical and clinic equipment export

Certification Held By The Plant

ISO 9001ISO 13485CE markingTested as a complete cycle before packing

Customization

Building the DJY25L To Your Practice

Custom voltage configurations available on order for regions outside standard 220 V supply
Direct compatibility setup with Huayan separate herb liquid packing machines
Selection among alternative DJY series pot sizes including 15,000 ml and 40,000 ml models
Documentation and operating guidance provided in English for overseas dispensary teams

Use Guide

Install the machine on a level, stable floor adjacent to a grounded 220 V power source
Inspect the lid seal and ensure pressure relief channels and float valve move freely before loading
Load herbal material and required water volume into the pot without exceeding the 25,000 ml boundary
Engage the sliding lock mechanism fully until the cover handle sits completely locked
Select the required boiling cycle time on the control panel and initiate the automatic fire sequence
Observe visible pressure and temperature gauges throughout the strong fire boiling phase
Depress the manual extrusion handle once boiling completes to squeeze remaining liquid from the dregs
Discharge hot herbal liquid into clean collection vessels or transfer directly to an external packing unit
Rinse the stainless steel vessel interior and wipe down the extrusion plate after every batch

Comparison

How the DJY25L Compares

An honest read on where this model wins and where another one suits you better.

vs Normal-pressure decoction and packing machine HCK2000

The HCK2000 boils three recipes simultaneously in open glass pots with pouch packing, while the DJY25L operates as a dedicated airtight single-recipe vessel with mechanical extrusion

vs Standard unsealed boiling pots

Traditional open pots lose volatile herbal aromas and require manual squeezing of hot dregs, whereas the DJY25L seals vapours and extrudes dregs with an integrated mechanical press

vs DJY15L electric extrusion decoction machine

The DJY15L offers a smaller 15,000 ml volume on a 55 kg frame, while the DJY25L provides 25,000 ml capacity for larger clinics managing 5 to 25 prescription pairs per run

vs DJY40L electric extrusion decoction machine

The DJY40L delivers 40,000 ml capacity in a 100 kg footprint, whereas the DJY25L balances 25,000 ml capacity with a more compact 70 kg unit size

Who Buys This

Industries Using the DJY25L

TCM Hospital Pharmacies

Pharmacy managers decocting to a timetable, who need pot count and sealing rate to clear the dispensing window.

TCM Clinics and Acupuncture Practices

Clinic owners with one dispensary corner and one member of staff, who still want patients leaving with pouches.

TCM Health and Wellness Centres

Wellness centres running course-based herbal programmes and therapy sessions for self-paying clients.

Questions Buyers Ask

DJY25L Questions and Answers

What is the batch capacity of the DJY25L decoction machine?

The stainless steel pot has a 25,000 ml capacity and processes one prescription of 5 to 25 pairs per decoction cycle.

Does the DJY25L package liquid directly into pouches?

No. The DJY25L has no built-in packaging unit. It is designed to cooperate with a separate herbal liquid packing machine.

What safety mechanisms protect against vessel overpressure?

It uses a triple safety system consisting of a one-time sliding lock, dual safety valves, and an integrated float-controlled valve.

Can this machine run on electrical supplies other than 220 V?

Yes. Standard supply is 220 V at 1,800 W, but special voltage customization is available on order for export markets.

What is the typical production lead time after payment?

Lead time is generally about 6 days after payment is received, depending on model specifications and order quantity.

What warranty and replacement parts support do you provide?

Huayan provides a one-year free warranty from qualified commissioning with free part replacements, plus wear parts packed with shipment.

Can the machine decoct liquids other than traditional Chinese herbs?

Yes. In addition to TCM herbs, the airtight stainless steel pot can decoct fruit beverages, juices and herbal teas.
