Airtight Decoction

Composite Airtight Herb Decoction Machine HYY15L x2

Name: Composite Airtight Herb Decoction Machine HYY15L x2
Brand: Huayan Medical
SKU: HYY15L x2

The HYY15L*2 is an airtight TCM herb decoction machine featuring two 15,000 ml hermetically sealed stainless steel pots designed to boil herbal raw materials under sealed...

Product Overview

What the HYY15L x2 Is Built To Do

The HYY15L*2 is an airtight TCM herb decoction machine featuring two 15,000 ml hermetically sealed stainless steel pots designed to boil herbal raw materials under sealed conditions. Built for TCM hospitals, clinics, and health centres, it keeps herbal aromas contained within the pots while processing mass dosages of 2 to 12 pairs per pot. An integrated hand extrusion device thoroughly squeezes residual liquid from the dregs, electric mixing promotes liquid backflow during boiling, and the unit can be paired with an optional HCB2000 liquid packing machine for clean dispensing.

Request A Quote Email For Specifications

At A Glance

Model: HYY15L*2
Brand: Huayan Medical
Series: Airtight herb decoction machine
Rated voltage: 220 V, special customization available
Total power: 3,600 W
Decoction pot quantity: 2 stainless steel pots

Huayan HYY15L*2 twin airtight stainless steel herb decoction machine front view

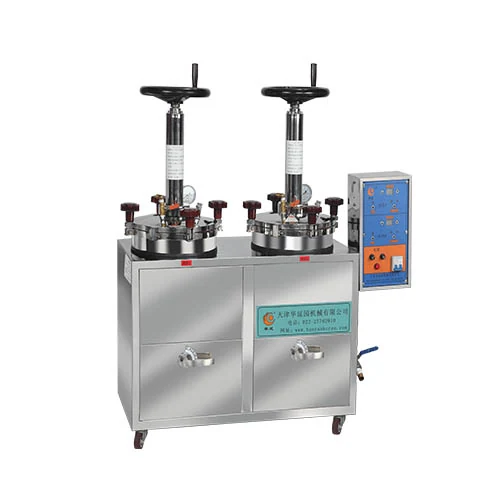

Two 15,000 ml stainless steel airtight decoction pots with locking handle mechanisms

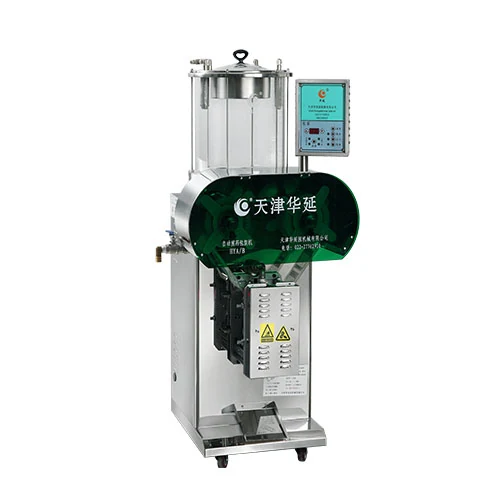

Airtight herb decoction unit connected to an optional HCB2000 liquid packaging machine

Key Benefits

Why Buyers Specify the HYY15L x2

Airtight stainless steel pots retain volatile herbal aromas inside the vessel during the entire boiling cycle
Two 15,000 ml pots handle mass dosage decoctions of 2 to 12 pairs per pot simultaneously
Manual extrusion device squeezes residual herbal liquid thoroughly out of boiled raw material dregs
Electric mixing function forces herbal liquid backflow to enhance extraction effect during decoction
Automatic transfer from soft fire to strong fire follows traditional decoction principles without manual intervention
Compact frame measuring 1000 mm by 400 mm fits into workrooms with limited floor space

Problems It Solves

Open boiling allows aromatic active components and strong herbal odours to escape into clinical rooms
Valuable herbal liquid remains trapped in boiled dregs when pots lack an extrusion mechanism
Static boiling without liquid backflow reduces the overall extraction yield from dense herbal raw materials
Boiling rooms without temperature displays make fire transfer and process monitoring inconsistent across batches
Unsealed decoction processes introduce airborne contamination risks before liquid is packaged for patients

Where It Is Used

Where the HYY15L x2 Is Used

Application Scenarios

TCM hospital pharmacies boiling outpatient herbal formulas under airtight conditions to contain strong herbal aromas
TCM acupuncture clinics requiring clean and sanitary liquid decoction for daily patient treatments
TCM health centres preparing batch herbal tea and tonic drinks in 15,000 ml quantities
Herbal dispensing workrooms preparing juice and liquid plant extractions for scheduled patient collection
Clinical pharmacies pairing decoction pots with an optional HCB2000 machine for sealed liquid packaging

Who It Is For

TCM hospital pharmacy managers wanting to eliminate strong boiling odours across clinical and dispensing areas
Acupuncture clinic directors seeking sealed stainless steel decoction pots with integrated dreg squeezing mechanisms
TCM health centre operators who decoct large batches of herbal tea or patient prescriptions
Medical equipment distributors supplying registered TCM clinics and hospital rehabilitation wards in overseas markets

Technical Features

Inside the HYY15L x2

Dual 15,000 ml stainless steel decoction pots designed for full hermetic airtight operation
Manual mechanical hand extrusion device to squeeze herbal liquid completely out of raw materials
Electric mixing function that circulates herbal liquid backflow to improve decoction results
Automatic fire transfer mechanism switching smoothly between soft fire and strong fire stages
Visual display of real-time temperature and internal pressure inside the stainless steel cylinder
Audible voice warning that notifies the operator immediately when the decoction cycle finishes
Quick-operation locking handle with safety guarding to secure the airtight lid during heating
High temperature sterilization function designed to improve the storage life of finished liquid

Materials and Build

Stainless steel hermetic decoction pots and structural frame built for sanitary wipe-down maintenance
Mechanical steel hand extrusion screw and pressing plates for squeezing herbal dregs
High-temperature seals on the airtight locking lids to contain internal steam and odour

Specifications

Composite Airtight Herb Decoction Machine HYY15L x2 Technical Data

Figures below are taken from the manufacturer data sheet for this model. Tell us your local voltage and dosing practice and we will confirm the build before the order.

Model	HYY15L*2
Brand	Huayan Medical
Series	Airtight herb decoction machine
Rated voltage	220 V, special customization available
Total power	3,600 W
Decoction pot quantity	2 stainless steel pots
Capacity per pot	15,000 ml x 2 pots
Decoction prescription quantity	1 recipe per time
Dosage of decoction	(2-12) pairs/time * 2 pairs
Cylinder pressure	Visible pressure display
Packaging function	Non-packaging base unit, HCB2000 liquid packing machine optional
Dimensions (L x W x H)	1000 mm x 400 mm x 1100 mm
Weight	110 kg

How It Is Made and Checked

How the HYY15L x2 Is Built and Checked

How This Model Is Built and Tested

Load raw herbs and measured water into the 15,000 ml stainless steel decoction pots
Close the lids and secure the quick-operation locking handles for airtight sealing
Configure decoction cycle times and monitor soft fire and strong fire settings visually
Engage electric mixing to create liquid backflow during the automated heating sequence
Operate the hand extrusion device when boiling finishes to squeeze residual liquid from dregs
Hear the audible voice warning signal and transfer hot liquid to an optional packing machine

Quality Control

Airtight pressure integrity and pot seal tightness verified before equipment leaves the factory
Electric mixing motors and automated heating controls tested under continuous simulated operating loads
Manufactured in compliance with ISO 9001 and ISO 13485 medical device quality systems
CE certified to meet technical safety requirements for export into international healthcare markets

Certification Held By The Plant

ISO 9001ISO 13485CE markingTested as a complete cycle before packing

Customization

Building the HYY15L x2 To Your Practice

Voltage configuration customized from standard 220 V to suit regional electrical supply standards
Can be paired with an optional HCB2000 liquid packing machine for direct pouch sealing
Optional 25,000 ml pot capacity configuration available on the HYY25L*2 sister model frame
Operating panels and instructional documentation provided in English for international technical staff

Use Guide

Install the 110 kg unit on a level, solid surface with access to a grounded 220 V outlet
Verify pot seals are clean before loading herbs and water into the two stainless steel vessels
Fasten the quick locking handles securely to maintain an airtight seal throughout boiling
Set boiling times and observe the visible temperature and pressure readings on the panel
Turn the hand extrusion handle at the end of decoction to squeeze liquid from the herbal dregs
Discharge finished liquid and clean the stainless steel pots thoroughly after the audible completion signal

Comparison

How the HYY15L x2 Compares

An honest read on where this model wins and where another one suits you better.

vs Normal-pressure glass pot decoction machines

Normal-pressure glass units allow visual liquid inspection but release herbal aromas, whereas airtight stainless pots contain smells and steam completely.

vs Three-pot airtight models like HYY15L*3

The HYY15L*3 adds a third 15,000 ml pot for higher daily volume, but the HYY15L*2 requires less power and a smaller footprint.

vs Integrated decoction and packing machines

Integrated units seal pouches on the same chassis, whereas the HYY15L*2 leaves packing optional so buyers choose standalone or connected pouch sealers.

Who Buys This

Industries Using the HYY15L x2

TCM Hospital Pharmacies

Pharmacy managers decocting to a timetable, who need pot count and sealing rate to clear the dispensing window.

TCM Clinics and Acupuncture Practices

Clinic owners with one dispensary corner and one member of staff, who still want patients leaving with pouches.

TCM Health and Wellness Centres

Wellness centres running course-based herbal programmes and therapy sessions for self-paying clients.

Questions Buyers Ask

HYY15L x2 Questions and Answers

What is the typical lead time for the HYY15L*2 decoction machine?

Lead time is generally about 6 days after payment is received via T/T, depending on exact order quantity.

Can this machine package herbal liquid directly into pouches?

The base HYY15L*2 is a non-packaging decoction unit, but it can be operated together with an optional HCB2000 herb liquid packing machine.

What power supply does the machine require?

Standard rated voltage is 220 V with a total power consumption of 3,600 W, and special voltage customization is available on request.

What quality management certifications apply to this equipment?

Huayan Medical operates under ISO 9001 and ISO 13485 quality management systems, and the equipment is CE certified.

How does the warranty handle replacement parts?

You receive a one-year free warranty from qualified commissioning with faulty parts replaced free, and standard wear parts are packed with the shipment.

Can the machine decoct liquids other than Traditional Chinese Medicine?

Yes, in addition to TCM raw herbs, the stainless steel pots can decoct other health drinks, herbal teas, fruit juices, and plant liquids.
