Composite Airtight Decoction and Packing Machine HYY15

Name: Composite Airtight Decoction and Packing Machine HYY15
Brand: Huayan Medical
SKU: HYY15

The HYY15LBX is an airtight TCM herb decoction and packing machine that combines two hermetic stainless steel boiling pots and an integrated pouch packaging unit on a single...

Product Overview

What the HYY15 Is Built To Do

The HYY15LBX is an airtight TCM herb decoction and packing machine that combines two hermetic stainless steel boiling pots and an integrated pouch packaging unit on a single footprint. Designed for TCM hospitals, clinics, and health centres, it boils raw herbal materials under airtight conditions to contain strong herbal odours, improve extraction efficiency, and carry out high-temperature sterilization. Two 15,000 ml stainless steel pots, a manual extrusion squeezing mechanism, a 20,000 ml glass liquid storage pot, and an 800 W heat-seal packing head allow clinic staff to decoct mass dosages and seal sanitary liquid pouches without carrying hot liquid between workstations.

Request A Quote Email For Specifications

At A Glance

Model: HYY15LBX
Series: Airtight TCM herb decoction and machine
Brand: Huayan Medical
Rated voltage: 220 V (special customization available)
Decoction pots: 2 stainless steel pots
Capacity per decoction pot: 15,000 ml x 2 pots

Huayan HYY15LBX airtight TCM herb decoction and packaging machine with dual stainless steel pots and integrated pouch sealer

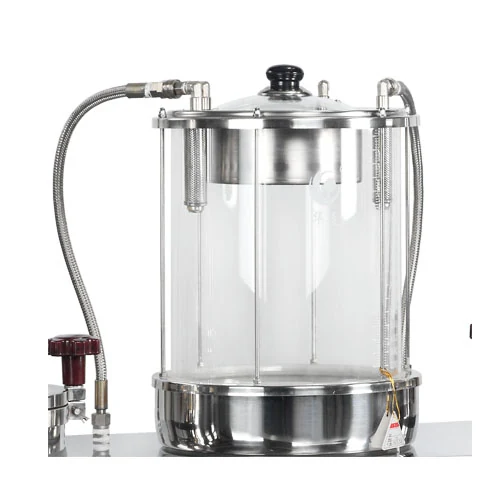

Glass liquid storage pot assembly on Huayan airtight TCM herb decoction unit

Key Benefits

Why Buyers Specify the HYY15

Two 15,000 ml hermetic stainless steel pots allow decoction of 2 to 12 pairs per pot without releasing strong herbal smells
Airtight environment retains volatile active substances and improves overall extraction effectiveness
Integrated heat-seal packing machine packages herbal liquid, herbal tea, or juice on the same compact frame
Hand extrusion device lets the operator squeeze liquid residue thoroughly out of herbal dregs
High-temperature sterilization during processing helps improve the shelf life of sealed herbal liquid
Overpressure protection with double insurance brake and dry-heating prevention protect clinic operators
Automatic fire transfer from soft fire to hot fire follows traditional TCM extraction principles visually

Problems It Solves

Open boiling releases strong herbal aromas throughout clinic waiting areas and hospital wards
Herbal dregs retain valuable medicinal liquid if not thoroughly pressed after boiling
Moving boiling herbal liquid from pots to separate packing equipment causes spill and scald hazards
Boiled herbal liquids spoil quickly without an integrated high-temperature sterilization cycle
Unmonitored boiling risks dry-heating hazards and vessel overpressure during long extraction cycles
Separate boiling pots and packaging stations demand double the floor space and multiple operators

Where It Is Used

Where the HYY15 Is Used

Application Scenarios

TCM hospital pharmacies decocting bulk outpatient prescriptions in airtight batches
Acupuncture and TCM clinics preparing clean, ready-to-take hermetic liquid doses for patients
TCM health centres dispensing herbal tea and wellness formulas in sealed single-dose pouches
Hospital pharmacies requiring high-temperature sterilization to extend herbal medicine storage life
Clinics with limited workspace needing both airtight extraction and liquid packing in one machine
Workrooms packaging herbal tea, plant liquids, or fruit juice into sanitary drink pouches

Who It Is For

TCM hospital pharmacy heads replacing open boiling pots with odour-contained airtight extraction
Clinic owners who need to hand out hygienic ready-to-drink pouches rather than raw herb packages
TCM health centre managers standardising multi-pair formula decoction and pouch packaging
Distributors supplying TCM physical therapy and decoction equipment to hospital pharmacies overseas
Acupuncture clinic operators looking to eliminate steam and herbal odours in treatment areas

Technical Features

Inside the HYY15

Airtight stainless steel decoction pots with quick-operation locking handle mechanisms
Built-in manual extrusion device to squeeze herbal liquid out of boiled residue
Visual setting for decoction time and transition from soft fire to hot fire
Audible voice warning signal triggered automatically when the decoction cycle finishes
High-temperature display showing internal status throughout the extraction process
Double insurance brake providing active overpressure protection during airtight boiling
Prevent dry heating safety function to protect equipment and clinic personnel
Visible pressure monitoring inside the stainless steel decoction cylinder
Integrated 800 W heat-seal packaging unit and 20,000 ml glass storage pot

Materials and Build

Stainless steel airtight decoction cylinders with secure locking handle assemblies
Glass liquid storage reservoir with 20,000 ml holding capacity
Stainless steel working surfaces and frame suitable for routine wipe-down sanitization
Heat-sealable TCM liquid packaging film compatible with the integrated packaging head

Specifications

Composite Airtight Decoction and Packing Machine HYY15 Technical Data

Figures below are taken from the manufacturer data sheet for this model. Tell us your local voltage and dosing practice and we will confirm the build before the order.

Model	HYY15LBX
Series	Airtight TCM herb decoction and machine
Brand	Huayan Medical
Rated voltage	220 V (special customization available)
Decoction pots	2 stainless steel pots
Capacity per decoction pot	15,000 ml x 2 pots
Glass storage liquid pot	20,000 ml x 1 pot
Decoction power	1800 W x 2 pots
Heat seal packing power	800 W
Motor power	25 W x 2
Dosage of decoction	(2 to 12) x 2 pairs
Dimensions	1200 mm height x 540 mm width x 1400 mm length
Weight	170 kg
Pressure monitoring	Visible pressure in stainless steel cylinder
Package function	Yes (integrated)

How It Is Made and Checked

How the HYY15 Is Built and Checked

How This Model Is Built and Tested

Load raw herbs into the two 15,000 ml stainless steel airtight pots with water and lock the handles
Set decoction time and observe the visual soft fire to hot fire heating transition
Internal pressure and extraction temperature remain visible throughout the airtight heating cycle
Use the manual extrusion device to squeeze remaining herbal liquid from the dregs
Audible voice warning notifies the operator once extraction and high-temperature sterilization finish
Transfer the herbal liquid into the 20,000 ml glass pot and run the 800 W heat-seal pouch packaging unit

Quality Control

Manufactured under an ISO 9001 and ISO 13485 quality management system
Carries CE marking for compliance with European equipment standards
Overpressure safety mechanisms and double insurance brake tested before factory release
Dry-heating prevention cut-offs verified on each heating circuit prior to dispatch
Complete operational cycle of decoction heating and pouch sealing run before crating

Certification Held By The Plant

ISO 9001ISO 13485CE markingTested as a complete cycle before packing

Customization

Building the HYY15 To Your Practice

Alternative voltage configurations built to order upon customer request
Choice of 15,000 ml (HYY15LBX) or 25,000 ml (HYY25LBX) pot capacities depending on prescription volume
Optional liquid packaging machine configurations tailored to facility needs
English language operating documentation and control labels available
Compatible non-woven herb bags and liquid packing film supplied as consumables

Use Guide

Position the unit on a level floor with appropriate electrical grounding for a 220 V 4,500 W supply
Inspect the pot lid seals and securely engage the quick-operation locking handles before heating
Program extraction parameters and monitor internal cylinder pressure and temperature on the display
Engage the hand extrusion device after boiling to press remaining herbal liquid out of the herb dregs
Listen for the voice warning prompt confirming cycle completion and sterilization
Direct liquid into the pouch packaging section and check the first sealed pouch before continuous bagging
Flush the pots, extrusion components, and liquid lines with clean water at the end of every work session

Comparison

How the HYY15 Compares

An honest read on where this model wins and where another one suits you better.

vs Normal-pressure herb decoction machine HCK2000

The HCK2000 boils open to ambient air in glass pots for easy viewing, while the HYY15LBX operates under airtight pressure to seal in herbal aromas and improve extraction

vs Standalone airtight decoction pot HYY13L

The HYY13L only handles the airtight boiling stage, whereas the HYY15LBX integrates two extraction pots, manual extrusion, and an 800 W pouch packing machine on one chassis

vs Larger capacity airtight model HYY25LBX

The HYY25LBX uses two 25,000 ml pots and draws 5,500 W total power, while the HYY15LBX uses two 15,000 ml pots at 4,500 W for lower electrical load and smaller batches

vs Open boiling range with separate manual bottling

Manual bottling exposes operators to steam burns and spills, while the HYY15LBX extracts under pressure and seals directly into single-dose pouches

Who Buys This

Industries Using the HYY15

TCM Hospital Pharmacies

Pharmacy managers decocting to a timetable, who need pot count and sealing rate to clear the dispensing window.

TCM Clinics and Acupuncture Practices

Clinic owners with one dispensary corner and one member of staff, who still want patients leaving with pouches.

TCM Health and Wellness Centres

Wellness centres running course-based herbal programmes and therapy sessions for self-paying clients.

Questions Buyers Ask

HYY15 Questions and Answers

What is the delivery lead time for this unit?

Lead time is generally about 6 days after payment is received via T/T, depending on the exact order quantity and factory schedule.

Can the HYY15LBX run on electrical supplies other than 220 V?

Standard input is 220 V at 4,500 W total power, but special customization is available on request. Please inform us of your local facility voltage during enquiry.

What is the warranty coverage on this decoction and packing unit?

We provide a one year free warranty from the date of qualified commissioning, with faulty parts replaced free of charge during this period.

Are replacement wear parts included with the shipment?

Yes. Routine wear parts are packed directly with the machine shipment. After warranty expiration, parts are supplied at factory cost with buyer covering freight.

How does the machine contain strong herbal odours?

The pots are full hermetic stainless steel cylinders with locking handles, keeping herbal smells sealed inside throughout the high-temperature decocting process.

What operator training and installation assistance is provided?

Free video guidance is provided for installation and fault diagnosis. For multi-unit orders, on-site installation and operator training can be arranged, or staff can train at our Tianjin factory.

Can this unit package drinks other than TCM herbal medicine?

Yes. Beyond TCM herbal liquid, the system can decoct and package other plant drinks, fruit juices, and herbal teas into sealed liquid pouches.
