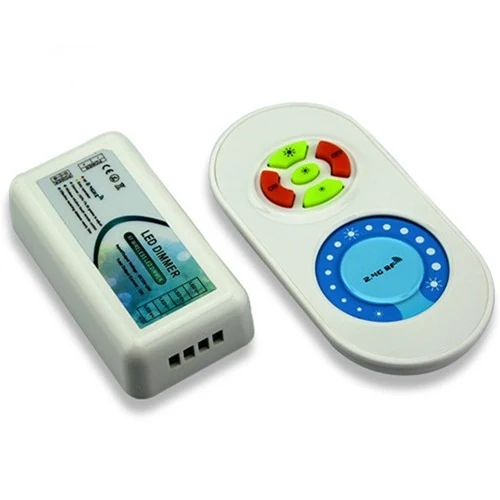

WWCW RF LED Controller
Part number CRCT-RF-06
This LED controller is made for RGB, RGBW and tunable white installations that need zoned control, and WWCW RF LED Controller is the model that covers it. It is specified with body of L85xW45xH22mm, input of DC12V-24V and control range of 30meters. Handsets get lost, so they have to be orderable as spares years later. It is catalogued as CRCT-RF-06.
- Working Voltage
- DC12V-24V
What This Model Gives You
Body dimensions L85xW45xH22mm
Physical fit can be checked on paper before the order is placed, not after the goods land.
Control range 30meters
Coverage can be planned against the building rather than discovered after the fittings are in the ceiling.
ABS construction
The material is what gives the LED a heat path, and heat is what decides how long the product actually lasts.
Against a wired DALI or DMX system
No control cabling and no commissioning software for a straightforward colour room.
Technical Data For WWCW RF LED Controller
Every figure below is taken from the manufacturer's specification for this model. Where a value is not listed it is not published, and we will confirm it against current production before you order.
| P/N | CRCT-RF-06 |
|---|---|
| Power Supply | AAA batteryx2pcs |
| Cover Material | ABS |
| Working Voltage | DC12V-24V |
| Output Control | 2circuits |
| Control Current | 6A/circuit |
| Connection Method | common anode |
| Dimension | L85xW45xH22mm |
| Receiving Range | 30meters |
How It Is Built
- Electrical input: DC12V-24V
- Control: 2circuits
- Construction: ABS
- RF Wireless Touching LED Remote Controller.
- (Both color temperature and Brightness Adjusting).
- Technical Parameters(remote controller).
Materials
- ABS
Buyers This Model Suits
- Distributors stocking our strip, panel or bulb ranges
- Sign and display makers needing zoned colour control
- Buyers replacing lost or failed handsets
- Installers commissioning RGB and tunable white rooms
Application Scenarios
- Replacement handsets for existing installations
- Retail display lighting with scene changes
- Hospitality rooms with zoned colour and brightness
- Signage and channel letter colour control
Objections This Model Removes
Control range proves inadequate once the walls are up
Replacement handsets cannot be sourced years after installation
Every colour product in a building arrives with its own incompatible remote
Large rooms need independent zones but not a control system
How This Product Is Made
Production runs at our Shenzhen plant, Shenzhen Chiclits Technology Co., Ltd..
PCB population and RF or WiFi module integration
Firmware loading and address configuration
ABS enclosure assembly
Pairing test and receiving range verification
What Gets Checked
- Enclosure fit and button action check
- Pairing verification on every unit
- Receiving range test against the published figure
- Output channel and current capacity test
What You Can Change
- Packaging and instruction sheet in your language
- Channel configuration matched to your luminaires
- Zone count and address configuration
- Own-brand handset printing at project volume
Certification
Our LED bulb line holds CE (LVD) and RoHS certificates issued by Shenzhen BST Technology, with the numbers published on our Trust page. Ask us in writing for the certification position on this specific model before you quote it into a regulated market - we will tell you what is held and what is not.
How It Compares With The Alternatives
| Compared with | What changes |
|---|---|
| A wired DALI or DMX system | No control cabling and no commissioning software for a straightforward colour room |
| An IR remote system | RF does not need line of sight, so the receiver can sit behind the ceiling or inside a cabinet |
| A WiFi-only control system | Keeps working when the network does not, which matters in commercial installations |
Getting It Right On Site
Assign zones before handing the handset to the client
Keep the receiver within the published range of the handset
Match the controller channel count to the luminaire type before ordering
Order a spare handset with the original installation
Other Models In LED Controllers And Remotes
WiFi LED Controller For Strip Lights
4-Zone RGBW RF LED Remote Control
4-Zone WWCW RF LED Remote Control
RGBW RF LED Controller
RGB RF LED Controller
433MHz RF LED Dimmer Controller
Where This Product Fits A Build
Retail Store Display Lighting Specification
A worked specification for a single-floor retail unit, covering display accent lighting, general ceiling light and shelf illumination.
Read the specificationOwn Brand Consumer Strip Light Launch
A worked specification for launching a retail strip light range under an importer's own brand, in two packaging formats.
Read the specificationGuides That Cover This Product
How To Power And Cut LED Strip Light Without Killing It
Sizing the driver, understanding voltage drop, and cutting at the right place every time.
Installation GuideWiFi Versus Bluetooth Versus RF For LED Control
Three control technologies, three different failure modes, and how to choose between them.
ComparisonWWCW RF LED Controller Questions
What are the physical dimensions?
L85xW45xH22mm. Check that against the fitting or the ceiling opening before you order in quantity.
How far will the control signal reach?
30meters. Walls and floors between the handset and the receiver will reduce that in a real building.
Can I order a replacement handset later?
Yes. The handsets are catalogue items with their own part numbers.
What range does this controller have?
The receiving range is published in the specification on this page. Building fabric between handset and receiver will reduce it.
Will it drive strip from another supplier?
Electrically it is specified for common constant-voltage strip, but we only warrant the combination when both parts come from us.
What is the minimum order quantity and lead time for this model?
Both depend on the configuration, the packaging and the quantity, and neither is published as a blanket figure. Send us the model and quantity by email and we will confirm in writing.
