Colour Box Packed White LED Strip Light Kit
Within the LED Strip Light Kits range this is the retail LED strip light kit built for consumer home lighting sold in blister or colour box through retail. It draws 36W, with a body of 5000x10mm / 5000x8mm, a 120° beam angle and an input of 12Vdc. The packaging is as much a part of this product as the strip inside it.
- Power
- 36W/Roll / 72W/Roll / 24W/Roll / 48W/Roll
- Beam Angle
- 120°
What This Model Gives You
120° beam angle
Beam angle is specified as part of the product rather than left as a surprise on site.
Body dimensions 5000x10mm / 5000x8mm
Physical fit can be checked on paper before the order is placed, not after the goods land.
Against the other packing format of this same kit
Blister suits hanging displays; colour box suits shelf display and gifting.
Against bulk strip on a reel
Fixed length and included control, which is what a consumer actually wants.
Technical Data For Colour Box Packed White LED Strip Light Kit
Every figure below is taken from the manufacturer's specification for this model. Where a value is not listed it is not published, and we will confirm it against current production before you order.
| LED Type | White |
|---|---|
| LED Chips | 5050 / 3528 |
| LED Quantity | 30Pcs/M / 60Pcs/M / 120Pcs/M |
| IR Controller | 14KEY |
| PCB Size | 5000*10mm / 5000*8mm |
| Power | 36W/Roll / 72W/Roll / 24W/Roll / 48W/Roll |
| Voltage | 12Vdc |
| Beam Angle | 120° |
How It Is Built
- Light source: White
- LED count: 30Pcs/M / 60Pcs/M / 120Pcs/M
- Electrical input: 12Vdc
- Control: 14KEY
Buyers This Model Suits
- E-commerce sellers in home and lighting categories
- Own-brand retail programmes
- Distributors supplying consumer lighting
- Retail and DIY chain buyers
Application Scenarios
- Seasonal and gift retail displays
- Camping and vehicle lighting through the USB kit
- Consumer home lighting projects
- Under-cabinet and shelf lighting sold at retail
Objections This Model Removes
Hanging and shelf displays need different packaging formats
Remote key count does not match what the customer expected on the shelf
Own-brand programmes need the same kit specification batch after batch
Consumers buy strip then discover they also need a controller and a driver
How This Product Is Made
Production runs at our Shenzhen plant, Shenzhen Chiclits Technology Co., Ltd..
Strip production on the specified LED platform
IR controller and remote pairing and test
Kit assembly with accessories and instructions
Blister sealing or colour box packing and weight check
What Gets Checked
- Carton weight and count verification
- Functional test of the complete kit before packing
- Remote pairing verification on every unit
- Packaging seal and print quality inspection
What You Can Change
- Blister or colour box packaging format
- 14-key, 24-key or 44-key IR remote
- White or RGB strip platform
- Own-brand artwork, barcode and instruction sheet
Certification
Our LED bulb line holds CE (LVD) and RoHS certificates issued by Shenzhen BST Technology, with the numbers published on our Trust page. Ask us in writing for the certification position on this specific model before you quote it into a regulated market - we will tell you what is held and what is not.
How It Compares With The Alternatives
| Compared with | What changes |
|---|---|
| Bulk strip on a reel | Fixed length and included control, which is what a consumer actually wants |
| Buying strip, controller and driver separately | One SKU, one price and a working result out of one box |
| The other packing format of this same kit | Blister suits hanging displays; colour box suits shelf display and gifting |
Getting It Right On Site
Check the total run length in the kit before planning the installation
Keep the IR remote in line of sight of the controller
Clean the surface before applying the adhesive backing
Do not cut the strip except at the marked intervals
Other Models In LED Strip Light Kits
Colour Box Packed RGB LED Strip Light Kit
SMD3528 USB LED Strip Light Kit
Portable Waterproof Camping LED Strip Light 1.5m
Blister Packed RGB LED Strip Light Kit
Blister Packed White LED Strip Light Kit
Where This Product Fits A Build
Retail Store Display Lighting Specification
A worked specification for a single-floor retail unit, covering display accent lighting, general ceiling light and shelf illumination.
Read the specificationOwn Brand Consumer Strip Light Launch
A worked specification for launching a retail strip light range under an importer's own brand, in two packaging formats.
Read the specificationGuides That Cover This Product
How To Power And Cut LED Strip Light Without Killing It
Sizing the driver, understanding voltage drop, and cutting at the right place every time.
Installation GuideSMD LED Chip Types Explained 2835 3014 3528 5050 And 5630
What the four-digit numbers mean, how they differ in output and heat, and where each belongs.
Component GuideIP67 Versus IP68 Choosing Waterproof LED Strip
What the two digits mean, where each grade belongs, and the specification trap in outdoor strip.
Material GuideColour Box Packed White LED Strip Light Kit Questions
What are the physical dimensions?
5000x10mm / 5000x8mm. Check that against the fitting or the ceiling opening before you order in quantity.
What beam angle is this model?
120°. Beam angle is a separate part number in this range, so order the angle you need rather than adjusting on site.
Can you print our own artwork?
Yes. Both formats are already in production, so switching artwork and barcode is routine.

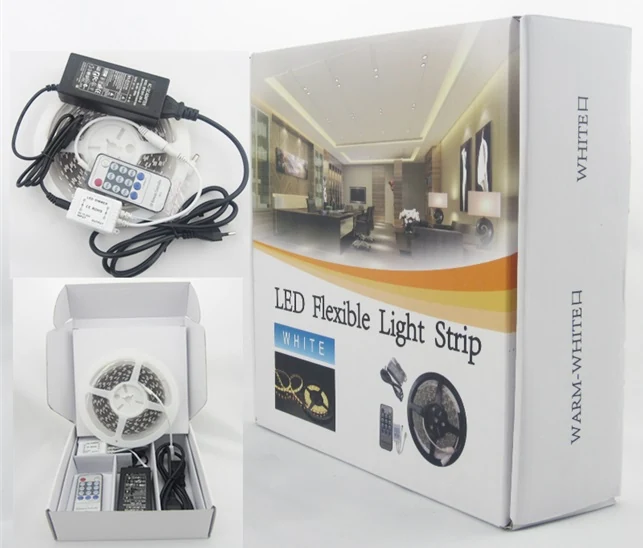

What is included in this kit?
Strip, an IR controller and remote handset and retail packaging. The LED type, density and power per roll are listed in the specification on this page.
Which packaging format should I order?
Blister for hanging displays and high-traffic retail, colour box for shelf display and a more premium presentation.
What is the minimum order quantity and lead time for this model?
Both depend on the configuration, the packaging and the quantity, and neither is published as a blanket figure. Send us the model and quantity by email and we will confirm in writing.
Get Pricing For Colour Box Packed White LED Strip Light Kit
Send the quantity and destination market. We reply with pricing, packaging options, lead time and a written position on certification.
