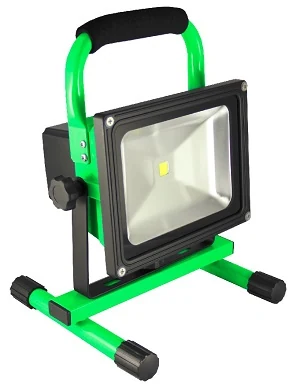

20W Dimmable 24-Hour Rechargeable LED Flood Light
Part number CRFL-RE-05
Within the Rechargeable LED Flood Lights range this is the rechargeable LED flood light built for work sites, vehicles, camping and emergency use away from mains power. It draws 20W and is specified at 1600-1800 lumens, with colour temperature 2700~3500K / 4000~4500K / 5500~6500K, a body of 215X185X285mm and a 120° beam angle. The absence of a cable is the entire specification here. It is catalogued as CRFL-RE-05.
- Luminous Flux
- 1600~1800lm
- Color Temperature
- 2700~3500K / 4000~4500K / 5500~6500K
- Beam Angle
- 120°
- Color Rendering Index
- Ra>70
What This Model Gives You
Colour temperature 2700~3500K / 4000~4500K / 5500~6500K
The band is published, so the shelf label and the light in the box agree.
Body dimensions 215X185X285mm
Physical fit can be checked on paper before the order is placed, not after the goods land.
120° beam angle
Beam angle is specified as part of the product rather than left as a surprise on site.
Colour rendering Ra>70
Colours under this light read closer to how they look in daylight, which matters wherever product or skin tone is on display.
Stated LED life of 50,000 Hours
A published life figure gives a maintenance interval you can plan replacement stock around.
Technical Data For 20W Dimmable 24-Hour Rechargeable LED Flood Light
Every figure below is taken from the manufacturer's specification for this model. Where a value is not listed it is not published, and we will confirm it against current production before you order.
| P/N | CRFL-RE-05 |
|---|---|
| Light Source | High power integrated LED |
| Luminous Flux | 1600~1800lm |
| Charging Time | About 10hours |
| Working Time | About 8~24 hours |
| Color Temperature | 2700~3500K / 4000~4500K / 5500~6500K |
| Color Rendering Index | Ra>70 |
| Beam Angle | 120° |
| Life Span | 50,000 Hours |
| Operating Temperature | -25°C to 50°C |
| Humidity | 0~90% |
| Unit Dimension | 215X185X285mm |
| Inner Box Size | 211X201X240mm |
| Carton Size | 450X415X500mm |
| Packing Quantity | 8PCS/CTN |
| Warranty | 2 Years or 500 Times Charging Cycle |
How It Is Built
- Light source: High power integrated LED
- Operating temperature: -25°C to 50°C
- Grey, Green, Red, Yellow, Black.
Buyers This Model Suits
- Camping, marine and outdoor retailers
- Emergency services and civil protection buyers
- Event and equipment hire companies
- Site services, construction and maintenance suppliers
Application Scenarios
- Roadside and vehicle emergency use
- Camping, festivals and outdoor events
- Power cut and emergency preparedness stock
- Construction and maintenance work away from mains power
Objections This Model Removes
One colour temperature does not suit both work sites and hospitality use
Work continues after dark on sites with no mains supply
A single internal battery limits a job to one charge
Emergency stock sits unused for years and then fails when needed
How This Product Is Made
Production runs at our Shenzhen plant, Shenzhen Chiclits Technology Co., Ltd..
Aluminium housing production and heat sink finishing
LED board population and lens assembly
Battery pack assembly and charge circuit integration
Charge and discharge cycle test before packing
What Gets Checked
- Output measurement against the published luminous flux
- Charge input polarity and protection test
- Housing seal and drop test
- Charge and discharge cycle verification on the battery pack
What You Can Change
- Sealed or replaceable battery case version
- Own-brand packaging for retail
- Charger and plug specification for your market
- Colour temperature from 2700-3500K, 4000-4500K or 5500-6500K
Certification
Our LED bulb line holds CE (LVD) and RoHS certificates issued by Shenzhen BST Technology, with the numbers published on our Trust page. Ask us in writing for the certification position on this specific model before you quote it into a regulated market - we will tell you what is held and what is not.
How It Compares With The Alternatives
| Compared with | What changes |
|---|---|
| A mains-powered flood light with an extension lead | No cable run, no generator and no trip hazard across the working area |
| A handheld work torch | Wide area coverage that leaves both hands free |
| A petrol generator and a halogen lamp | Silent, fume-free and usable indoors as well as outdoors |
Getting It Right On Site
Check the recharge input voltage before connecting to a vehicle supply
Store partially charged rather than flat if the unit is emergency stock
Charge fully before first use and recharge after each job
Use the lower output modes where full brightness is not needed to extend runtime
Other Models In Rechargeable LED Flood Lights
10W Rechargeable Emergency LED Flood Light
20W Rechargeable Emergency LED Flood Light
10W Dimmable Rechargeable LED Flood Light
20W Dimmable Rechargeable LED Flood Light
10W Rechargeable LED Flood Light With Replaceable Battery
5W Rechargeable LED Flood Light With Replaceable Battery
20W Portable Rechargeable LED Flood Light
20W RGB Rechargeable LED Flood Light
Guides That Cover This Product
How To Size LED Flood Lights Using Lux At Distance
Why wattage is the wrong starting point, and how to use published illuminance figures instead.
Design GuideRechargeable Flood Lights Understanding Battery Capacity And Runtime
How amp-hours, charging time and working time relate, and what to check before a volume order.
Buying Guide20W Dimmable 24-Hour Rechargeable LED Flood Light Questions
How much light does the 20W version give?
1600-1800 lumens. Both the output and the power draw are published so you can compare this model directly against whatever else you are quoting.
What are the physical dimensions?
215X185X285mm. Check that against the fitting or the ceiling opening before you order in quantity.
What beam angle is this model?
120°. Beam angle is a separate part number in this range, so order the angle you need rather than adjusting on site.
How is this unit recharged?
Through its DC 12/24V recharge input, which covers a mains adaptor and a vehicle supply.
How long will it run on one charge?
Runtime depends on the output mode selected. Where the runtime is not published for this model we will confirm it against current production before you order.
What is the minimum order quantity and lead time for this model?
Both depend on the configuration, the packaging and the quantity, and neither is published as a blanket figure. Send us the model and quantity by email and we will confirm in writing.
Get Pricing For 20W Dimmable 24-Hour Rechargeable LED Flood Light
Send the quantity and destination market. We reply with pricing, packaging options, lead time and a written position on certification.
