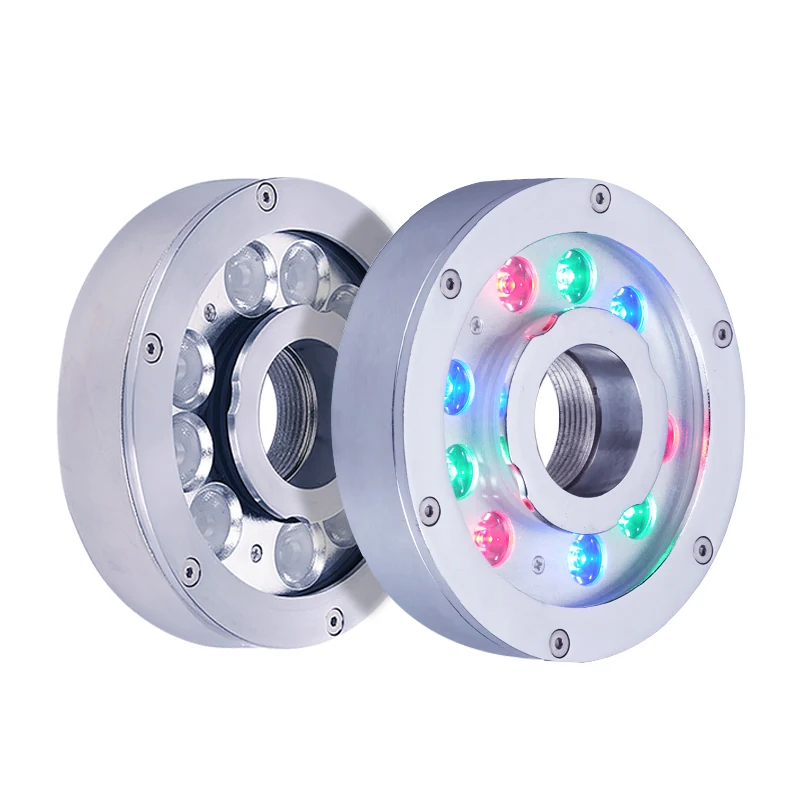

Stainless Steel 316 Underwater Fountain Light
The FD-UF010C18 is an 18W underwater luminaire designed for fountains, pools, and water features where corrosion resistance and long-term sealing are critical. The fixture uses stainless steel 316 for the housing, which resists pitting and crevice corrosion in chlorinated or saltwater environments. It operates on DC24V, making it suitable for low-voltage systems common in aquatic installations. The Osram LED chip delivers consistent output across a range of colour temperatures from 2800K to 6500K, or full RGB/RGBW colour control. The IP68 rating ensures complete protection against dust and continuous immersion in water, suitable for permanent submersion.
| Model | FD-UF010C18 |
|---|---|
| Power | 18W |
| Input Voltage | DC24V |
| IP Rating | IP68 |
| Dimension | D160 x 36 mm, hole 50 mm |
| Warranty | 3 years |
Key Benefits
- Stainless steel 316 housing resists corrosion in chlorinated and saltwater pools and fountains
- IP68 rating ensures permanent submersion without ingress or failure
- DC24V input matches low-voltage control systems used in aquatic lighting
- Adjustable colour temperature from 2800K to 6500K or full RGB/RGBW control for dynamic effects
- 18W power delivers sufficient output for small to medium water features
- Compact D160 x 36mm size fits into tight spaces around fountain jets and pool edges
Application Scenarios
- Illuminating fountain jets and waterfalls in public parks and hotel courtyards
- Highlighting pool edges and underwater architectural features in residential and commercial pools
- Creating dynamic colour effects in water features using RGB/RGBW control
- Lighting small water channels and reflecting pools in landscape and garden designs
Who It Is For
- Lighting contractors installing underwater fixtures in fountains and pools
- Landscape lighting designers specifying durable, corrosion-resistant underwater lights
- Electrical wholesalers supplying aquatic lighting for pool and fountain projects
- Brand owners sourcing OEM underwater luminaires under their own label
Problems It Solves
- Carbon steel or aluminium housings corrode quickly in chlorinated or saltwater environments
- IP67-rated fixtures may fail under prolonged submersion, requiring replacement
- High-voltage systems increase risk in wet environments and require additional safety measures
- Fixed colour temperature lights limit design flexibility in dynamic water features
- Lack of robust sealing leads to early failure in submerged installations
Technical Features
- Stainless steel 316 housing for resistance to pitting and crevice corrosion
- IP68 sealing for continuous immersion in water, suitable for permanent submersion
- DC24V input for compatibility with low-voltage aquatic lighting systems
- Osram LED chip for stable lumen output and long life in wet conditions
- Available in 2800K to 6500K CCT or RGB/RGBW for colour-tunable applications
- Compact D160 x 36mm body with 50mm cut-out hole for easy installation
Materials

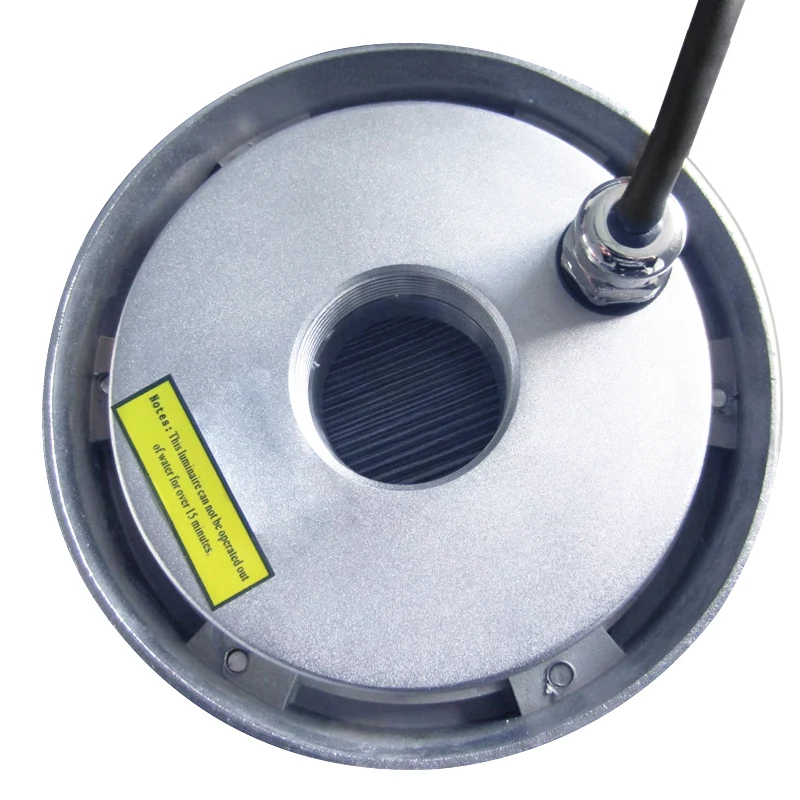

- Stainless steel 316 housing for long-term durability in corrosive water environments
- Tempered glass lens to protect the LED while allowing full light transmission
- EPDM or silicone gasket for IP68 sealing at the joint between housing and lens
Manufacturing Process
- Stainless steel 316 housing forming and polishing
- LED board assembly with Osram packages and driver integration
- Sealing with EPDM or silicone gasket and pressure test to IP68

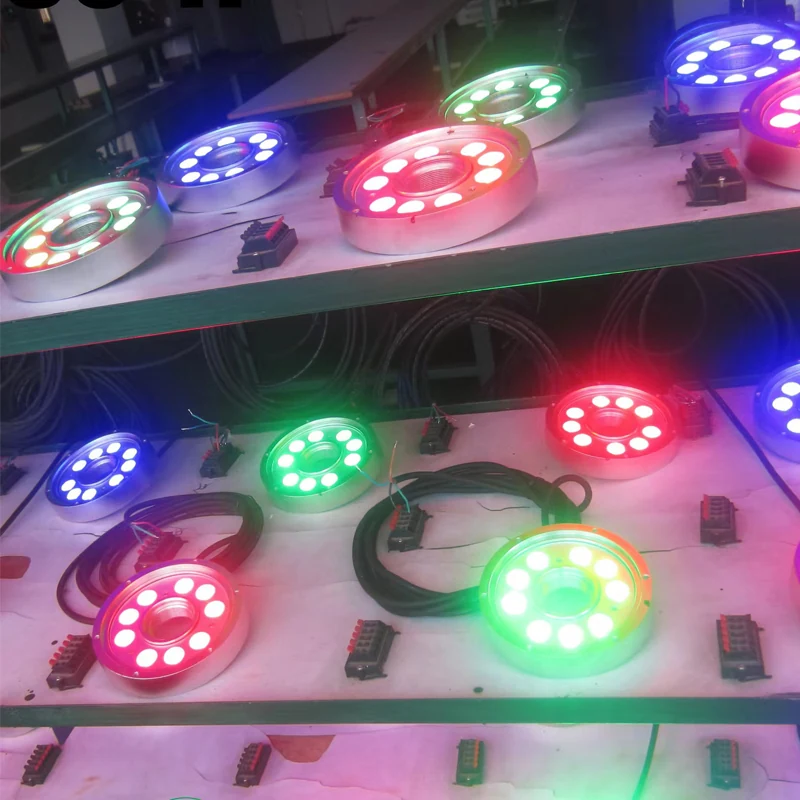

- Aging and performance test under water before packing
- Final inspection and packaging for shipping
Quality Control
- Incoming inspection of Osram LED chips and DC24V drivers
- IP68 pressure test on every fixture before sealing
- Submersion test for 24 hours to verify no ingress
- Aged under power for 72 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing, confirmed against an approved sample before production
- Available in 2800K to 6500K CCT or RGB/RGBW for colour-tunable applications
- DC24V input standard, no other voltage options listed
- OEM and ODM production for buyers selling under their own brand
Compared With the Alternatives
Stainless steel 304 underwater light
316 has better resistance to chlorides and saltwater, reducing risk of pitting in harsh aquatic environments
Aluminium underwater light
Aluminium is lighter but prone to corrosion in chlorinated water; 316 steel lasts longer in aggressive water conditions
IP67-rated underwater fixture
IP67 is not rated for continuous immersion; IP68 is required for permanent submersion in fountains and pools
Use Guide
- Drill a 50mm hole in the fountain or pool wall at the desired location
- Install the fixture with the gasket in place and tighten the retaining nut evenly
- Connect to a DC24V power supply with proper cable sizing to avoid voltage drop
- For RGB/RGBW models, ensure the controller supports the required signal protocol
- Avoid direct contact with the lens during installation to prevent scratches
Stainless Steel 316 Underwater Fountain Light Questions
What is the cut-out size for this underwater light?
The fixture requires a 50mm hole for installation.
Is it rated for permanent submersion?
Yes. The IP68 rating confirms it is designed for continuous immersion in water.
Can it run on AC voltage instead of DC24V?
No. The model is specified for DC24V input only.
What colour temperatures are available?
Available in 2800K to 6500K CCT, or RGB/RGBW for colour-changing effects.
What is the warranty period?
This model carries a 3 year warranty. Across the FENGDIAN range, warranty is 2 to 5 years depending on the product.
Can we order a sample before a project order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship in 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
