Stainless steel 316 High Waterproof LED Underwater Light
The FD-UW080R27 is a 27W stainless steel 316 underwater luminaire designed for permanent submersion in pools, fountains, and water features. The fixture is rated IP68 for full waterproofing, with a compact D152 x H89 mm body and a choice of beam angles from 15° to 45°. It operates on DC12V or DC24V, making it suitable for low-voltage systems common in aquatic lighting. The colour options include fixed white (2800K to 6500K) or RGB 3-in-1 for dynamic lighting effects. The stainless steel 316 body resists corrosion in chlorinated and saltwater environments.
| Model | FD-UW080R27 |
|---|---|
| Power | 27W |
| Input Voltage | DC12/24V |
| IP Rating | IP68 |

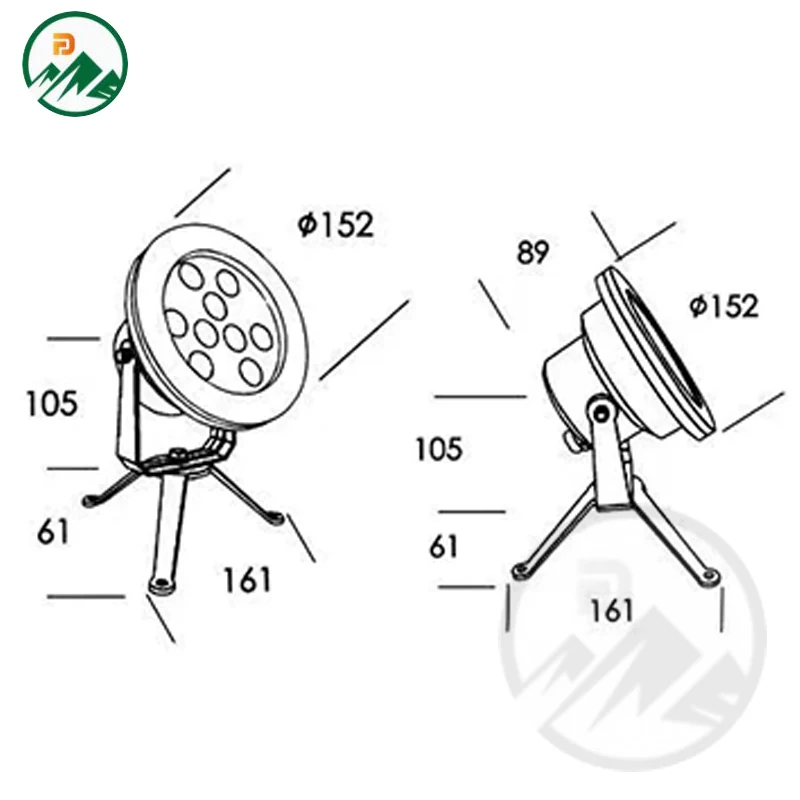

| Dimension | D152 x H89 mm |
| Material | Stainless steel 316 |
| Colour | 2800-6500K/R/G/B/RGB 3 IN1 |
| Beam Angle | 15/25/30/45° |
| Life Span | ≥50000 Hours |
| Warranty | 2 Years |
Key Benefits
- IP68 rating ensures full protection against water ingress during permanent submersion
- Stainless steel 316 body resists corrosion in chlorinated and saltwater pools and fountains
- DC12V or DC24V input matches low-voltage systems used in aquatic installations
- Multiple beam angles (15° to 45°) allow precise control of light spread in water
- RGB 3-in-1 option enables dynamic lighting effects without changing fixtures
- 27W power delivers sufficient output for accent and feature lighting in water features
Application Scenarios
- Accent lighting for pool edges, steps, and underwater architectural features
- Dynamic colour-changing effects in fountains and water sculptures
- Illumination of submerged statues, rocks, and garden features in water gardens
- Lighting for indoor and outdoor pools with low-voltage control systems
- Water feature lighting in public parks and commercial landscape projects
Who It Is For
- Landscape lighting contractors installing underwater fixtures in pools and fountains
- Facade and landscape designers specifying dynamic or fixed white underwater lighting
- Electrical wholesalers supplying aquatic lighting components for pool and fountain projects
- Brand owners sourcing OEM underwater luminaires under their own label
Problems It Solves
- Standard fixtures with lower corrosion resistance fail prematurely in chlorinated or saltwater
- Fixed beam angles require multiple SKUs to cover different lighting needs in water
- Inadequate waterproofing leads to early failure in permanently submerged installations
- Lack of low-voltage compatibility forces the use of higher-voltage systems in aquatic zones
- Limited colour options require separate fixtures for static and dynamic lighting effects
Technical Features
- Stainless steel 316 body for resistance to corrosion in chlorinated and saltwater
- IP68 rating for permanent submersion in water features
- DC12V or DC24V input suitable for low-voltage aquatic lighting systems
- Beam angles available in 15°, 25°, 30°, and 45° to match application needs
- Fixed white colour options from 2800K to 6500K, or RGB 3-in-1 for dynamic effects
- LED life span of at least 50,000 hours under continuous operation
Materials
- Stainless steel 316 body for long-term resistance to corrosion in water
- Sealed internal components with gaskets to maintain IP68 integrity
- LED module with driver integrated into the housing for compact design
Manufacturing Process
- Stainless steel 316 body machining and polishing
- LED module assembly with driver and optical lens
- Sealing with gaskets and O-rings to achieve IP68
- Pressure testing of sealed units before packing
- Aged operation test under water before shipment
Quality Control
- Incoming inspection of stainless steel 316 material and LED components
- IP68 pressure test on each unit before final sealing
- Powered ageing test under water for 24 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Supplied with or without driver to match the site's control system
- DC12V or DC24V input version based on project needs
- Fixed white (2800K to 6500K) or RGB 3-in-1 colour option selected at order stage
- OEM and ODM production for buyers selling under their own brand
Compared With the Alternatives
Stainless steel 304 underwater light
More expensive, but stainless steel 316 offers better corrosion resistance in saltwater and chlorinated environments
Plastic-bodied underwater light
Less durable and prone to cracking or yellowing over time, especially under UV exposure
Fixed beam angle underwater light
Requires multiple SKUs for different applications, but this model offers multiple beam angles in one fixture
Use Guide
- Install the fixture in a dry environment before submerging to avoid water ingress during assembly
- Ensure the sealing gasket is correctly positioned and undamaged before mounting
- Use only DC12V or DC24V power supplies compatible with the fixture’s input
- Avoid direct contact with sharp objects during installation to prevent damage to the body
- Clean the lens periodically during maintenance to maintain light output
Stainless steel 316 High Waterproof LED Underwater Light Questions
What is the input voltage for this underwater light?
It operates on DC12V or DC24V, suitable for low-voltage aquatic lighting systems.
Is the fixture rated for permanent submersion?
Yes. The IP68 rating confirms it is designed for full waterproofing and permanent submersion in water features.
Can the beam angle be changed after installation?
No. The beam angle is fixed at the time of manufacturing. Choose the correct angle based on the application before ordering.
What colour options are available?
Options include fixed white (2800K to 6500K) or RGB 3-in-1 for dynamic colour effects.
What is the warranty period?
This model carries a 2-year warranty. Across the FENGDIAN range, warranty varies from 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
