IP68 Stainless Steel 304 Material LED Underwater Light

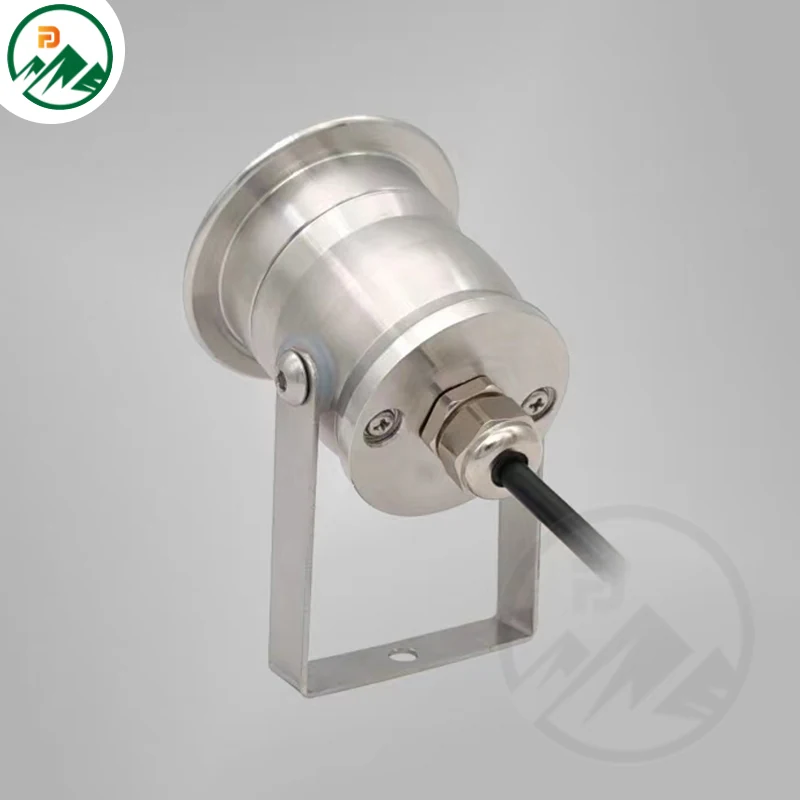

The FD-UW060R03 is a 3W LED underwater light built for landscape and architectural applications where fixtures are submerged in water. The housing is made from stainless steel 304, providing corrosion resistance in wet environments. It operates on AC/DC12V or DC24V, allowing integration with low-voltage systems common in pools, fountains and water features. The fixture is rated IP68 for permanent immersion, and the driver is not included, so it can be used with site-supplied or centralised drivers. The light output is adjustable across a range of 2800K to 6500K, suitable for warm to cool white lighting in aquatic settings.
| Model | FD-UW060R03 |
|---|---|
| Power | 3W |
| Input Voltage | AC/DC12V/24V |
| IP Rating | IP68 |

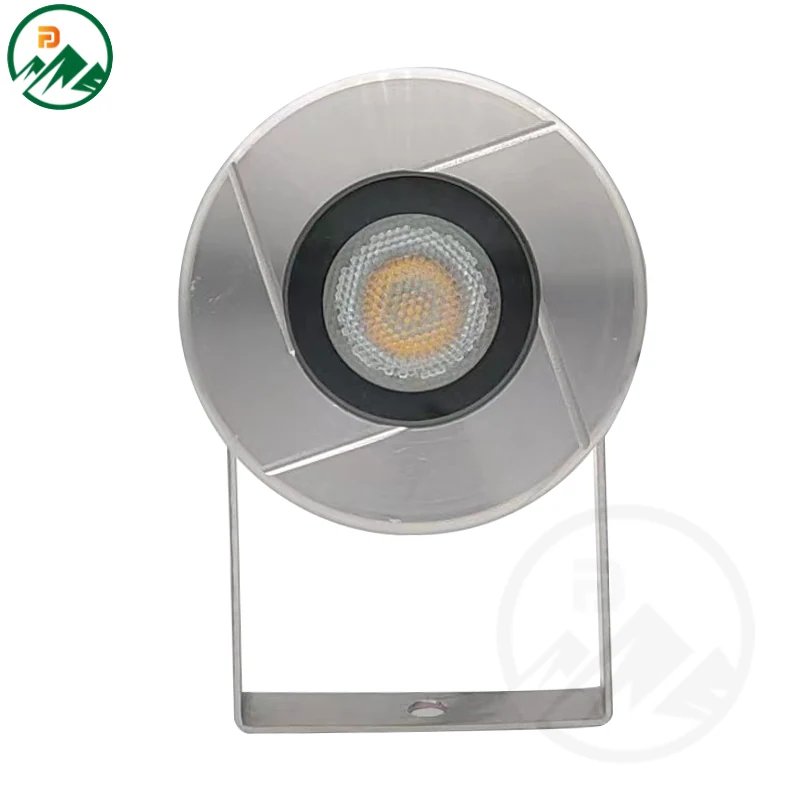

| Dimension | D45 x L53 x H49 mm |
| Material | Stainless steel 304 |
| LED Chip | CREE |
| Driver | Not included |
| Colour | 2800-6500K |
| Life Span | ≥50000 Hours |
| Cable Length | 360mm |
| Warranty | 2 Years |
Key Benefits
- Stainless steel 304 housing resists corrosion in continuous water exposure
- IP68 rating ensures permanent submersion without failure
- AC/DC12V or DC24V input supports low-voltage systems used in pools and fountains
- No driver included, so it fits into centralised or site-specific driver setups
- 3W power draws minimal energy while delivering visible output in underwater applications
- Adjustable colour temperature from 2800K to 6500K allows matching of ambient lighting schemes
Application Scenarios
- Illuminating pool edges and underwater steps in residential and commercial pools
- Lighting fountains, waterfalls and reflecting pools in landscape and public spaces
- Highlighting underwater sculptures, rocks and plant life in garden water features
- Enhancing the visual depth of water features in hotel lobbies and commercial atriums
Who It Is For
- Landscape lighting contractors installing underwater fixtures in pools and fountains
- Facade and landscape designers specifying submerged lighting for aquatic features
- Electrical wholesalers supplying low-voltage lighting components for water features
- Brand owners sourcing OEM underwater luminaires under their own label
Problems It Solves
- Aluminium or plastic housings degrade in saltwater or chlorinated environments
- Fixtures with built-in drivers limit flexibility when centralised driver systems are used
- IP67-rated lights fail in permanent immersion, requiring replacement after submersion
- Fixed colour temperature lights cannot adapt to different design moods or ambient lighting
Technical Features
- Stainless steel 304 housing for long-term resistance to water and corrosion
- IP68 rating for permanent submersion in water
- AC/DC12V or DC24V input to match low-voltage site wiring
- CREE LED chip for consistent light output and long life
- Driver not included, so it can be used with site-supplied or centralised drivers
- Adjustable colour temperature from 2800K to 6500K for flexible lighting design
Materials
- Stainless steel 304 housing for corrosion resistance in continuous water exposure
- Tempered glass lens to protect the LED chip while allowing light transmission
- Waterproof cable gland and sealing gasket for IP68 integrity
Manufacturing Process
- Stainless steel 304 housing forming and finishing
- LED board assembly with CREE packages
- Sealing and gasket fitting to achieve IP68
- Cable assembly and strain relief installation
- Powered ageing test before packing
Quality Control
- Incoming inspection of CREE LED packages and cable components
- IP68 sealing check before final closure
- Powered ageing run for 24 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing, confirmed against an approved sample before production
- Supplied without driver to match site-specific driver configurations
- AC/DC12V or DC24V input version available
- OEM and ODM production for buyers selling under their own brand
Compared With the Alternatives
IP67 underwater light
IP67 is not rated for permanent immersion, so it fails in fully submerged applications
Aluminium-bodied underwater light
Aluminium corrodes faster in chlorinated or saltwater, while stainless steel 304 resists degradation
Light with built-in driver
Built-in drivers limit system flexibility; this model allows use with centralised or site-supplied drivers
Use Guide
- Install the fixture in a dry location before submerging, ensuring the cable gland is sealed
- Route the cable away from sharp edges or high-flow water areas to prevent abrasion
- Use only AC/DC12V or DC24V power sources to match the input specification
- Verify the colour temperature setting matches the intended design mood before final installation
- Clean the lens periodically during maintenance to maintain output levels
IP68 Stainless Steel 304 Material LED Underwater Light Questions
What is the input voltage for this underwater light?
It operates on AC/DC12V or DC24V, so it can be used with low-voltage systems common in pools and fountains.
Is the driver included?
No. The driver is not included, so it can be used with site-supplied or centralised drivers.
Can it be used in saltwater or chlorinated pools?
Yes. The stainless steel 304 housing resists corrosion in saltwater and chlorinated environments.
What is the warranty period?
This model carries a 2 year warranty. Across the FENGDIAN range the warranty is 2 to 5 years depending on the product.
Is the light rated for permanent immersion?
Yes. It is rated IP68, which covers permanent submersion in water.
Can we order a sample before a project quantity?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship in 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
