Small Customize Size LED Floor Tile Lamp

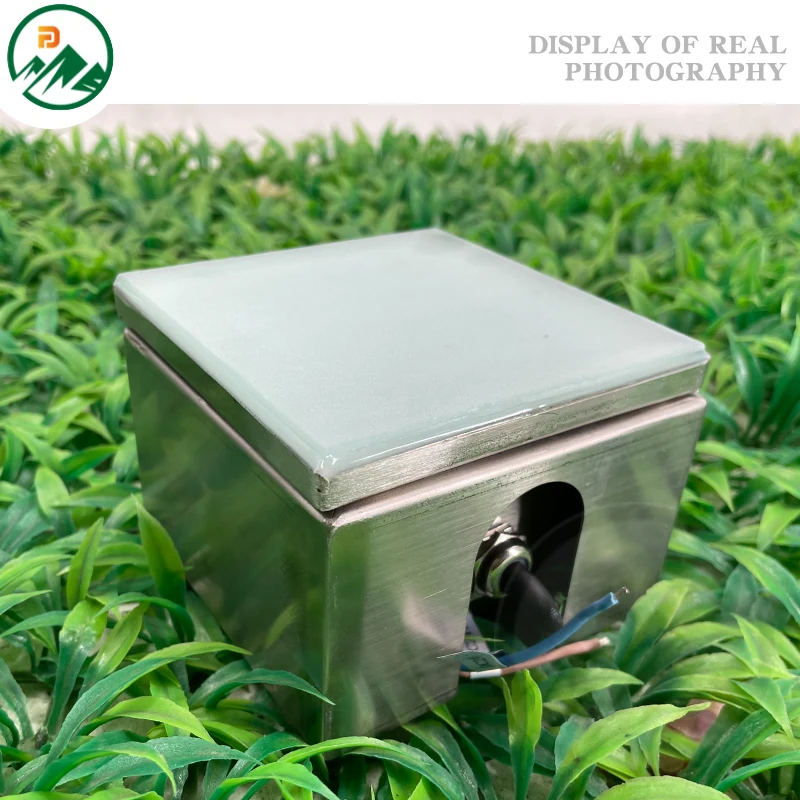

The FD-FT010S03 is a 3W recessed floor tile luminaire designed for landscape and architectural applications where a compact, flush-mounted light is needed in paved or walkable surfaces. The fixture is built with a stainless steel 201 body and frosted tempered glass cover, rated IP67 for installation in areas exposed to water and foot traffic. It operates on DC24V, making it suitable for low-voltage systems commonly used in landscape and underground lighting schemes. The light output spans from warm white to cool white, covering 2800K to 6500K, and the driver is not included, allowing integration with site-specific control systems.
| Model | FD-FT010S03 |
|---|---|
| Power | 3W |
| Input Voltage | DC24V |
| IP Rating | IP67 |
| Dimension | L96 x W96 x H71 mm |
| Material | Stainless steel 201+Frosted Tempered Glass |
| LED Chip | EPISTAR |
| Driver | Not included |
| Colour Temperature | 2800-6500K |
| Warranty | 3 Years |
Key Benefits
- Compact size fits into tight spaces in paving and walkways
- IP67 rating ensures performance in wet and flooded conditions
- DC24V input allows use in low-voltage landscape and underground systems
- Frosted tempered glass diffuser provides even light distribution without glare
- Stainless steel 201 body resists deformation under foot traffic
- No driver included, so it can be integrated into centralised or distributed control systems
Application Scenarios

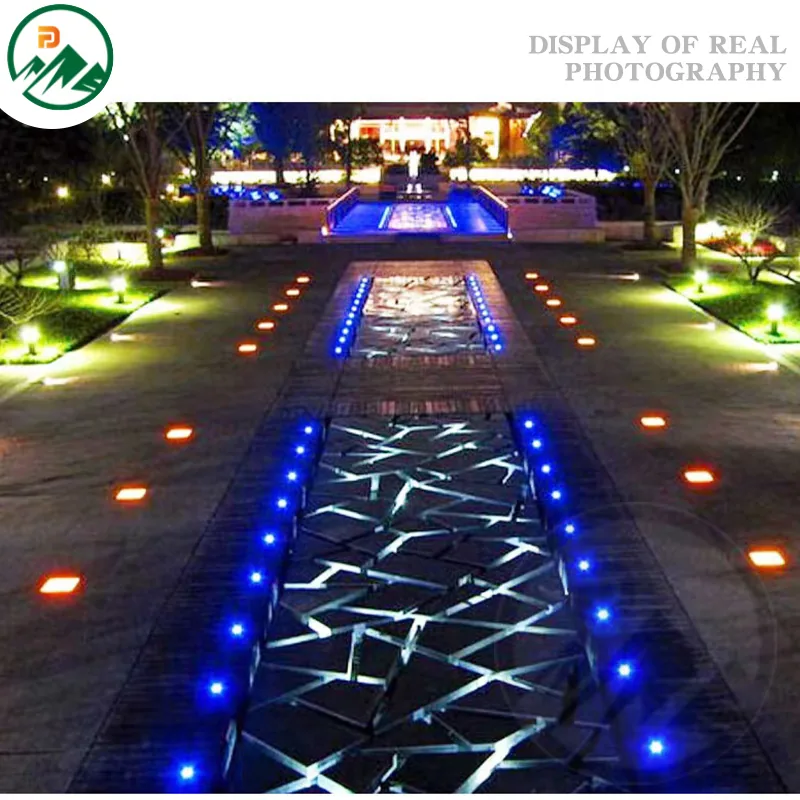

- Marking pedestrian pathways and garden edges in residential and commercial landscapes
- Highlighting steps, landings, and thresholds in outdoor building entrances
- Lighting small courtyards and internal walkways in mixed-use developments
- Accentuating paving patterns and architectural details in urban plazas
Who It Is For
- Landscape lighting contractors installing recessed lights in paved areas
- Facade and landscape designers specifying low-profile lighting in walkable surfaces
- Electrical wholesalers supplying small-scale LED floor tile fixtures for European and Middle Eastern projects
- Brand owners sourcing OEM floor tile lights under their own label
Problems It Solves
- Large or bulky floor lights disrupt the surface finish and create trip hazards
- Non-IP67 rated fixtures fail when exposed to standing water after rain
- Fixed voltage or driver-integrated lights limit system flexibility in low-voltage designs
- Glass covers that are not tempered break under foot traffic or impact
- Lack of colour temperature range forces multiple SKUs for different lighting moods
Technical Features
- Recessed floor tile design for flush installation in paving
- Stainless steel 201 body with frosted tempered glass cover for durability and light diffusion
- IP67 sealing for use in areas subject to temporary immersion
- EPISTAR LED chip for consistent light output
- DC24V input with driver not included, allowing site-specific control integration
- Adjustable colour temperature from 2800K to 6500K to match design intent
Materials
- Stainless steel 201 body for structural integrity under foot traffic

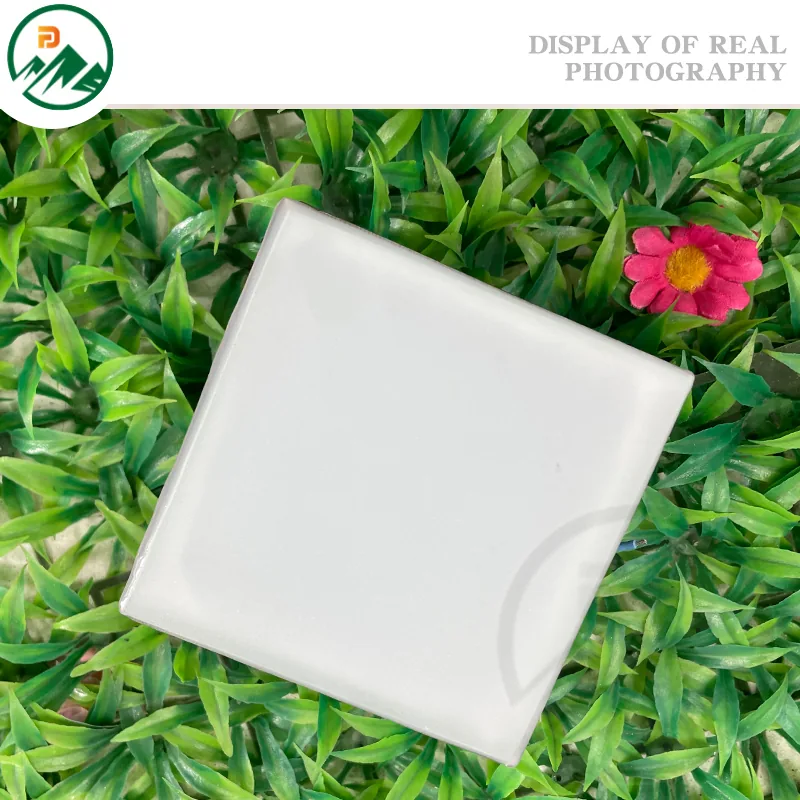

- Frosted tempered glass cover to diffuse light and resist breakage
- Sealing gasket for IP67 performance in wet environments
Manufacturing Process
- Stainless steel 201 body forming and surface treatment
- Frosted tempered glass cover cutting and edge polishing
- LED board assembly with EPISTAR chips
- Sealing and gasket fitting to achieve IP67

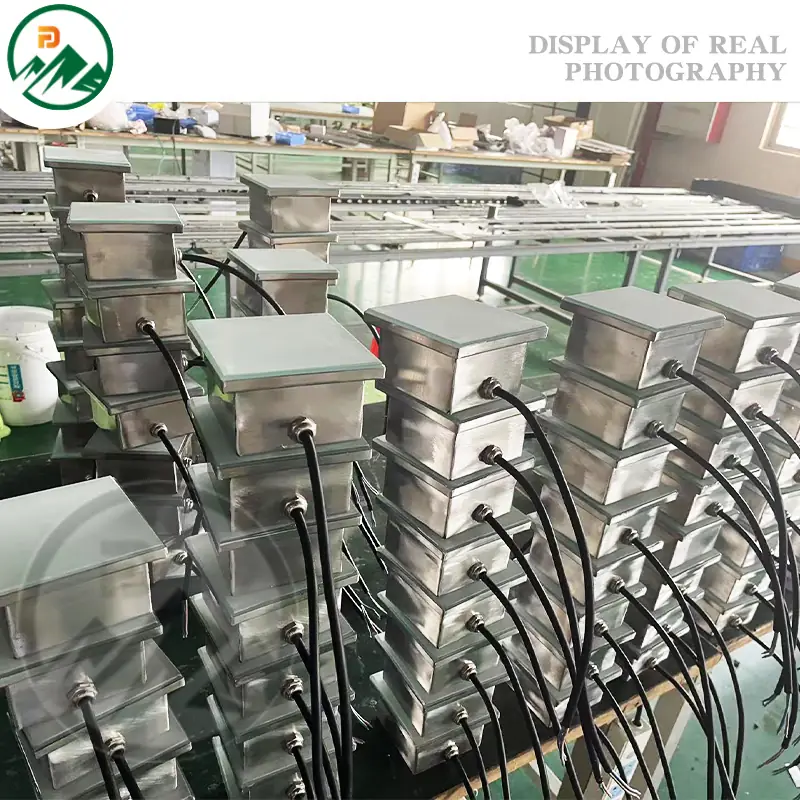

- Powered ageing test before packing
Quality Control
- Incoming inspection of EPISTAR LED packages
- IP67 sealing check before final closure
- Powered ageing run for 24 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing, confirmed against an approved sample before production
- Driver can be supplied or omitted based on site wiring strategy
- Colour temperature range from 2800K to 6500K is fixed per model, but can be specified in order
- OEM and ODM production available for buyers selling under their own brand
Compared With the Alternatives
Surface-mounted floor light
Requires a raised profile, which can be a trip hazard; this recessed model is flush with the surface
Larger in-ground light
Higher power and larger size; this model fits in tighter spaces and uses less power
Fixture with built-in driver
More expensive and less flexible; this model allows integration with centralised or distributed driver systems
Use Guide
- Cast or core a recessed pot with dimensions matching the fixture's L96 x W96 x H71 mm
- Ensure the base is level and provides drainage below the fixture to prevent water pooling
- Install the fixture flush with the finished paving surface to avoid tripping hazards
- Connect to a DC24V power supply with proper cable sizing to avoid voltage drop
- Clean the glass surface during routine maintenance to maintain light output
Small Customize Size LED Floor Tile Lamp Questions
What is the cut-out size for this floor tile lamp?
The fixture is L96 x W96 x H71 mm, so a recessed pot of the same dimensions is required, with drainage below.
Can it run on 24V DC only?
Yes. The model is designed for DC24V input, which is standard for low-voltage landscape and underground lighting systems.
Is the driver included?
No. The driver is not included, so it can be supplied separately to match the site’s control strategy.
Is IP67 sufficient for a floor tile in a wet area?
Yes. IP67 covers temporary immersion, which is typical for floor tiles exposed to rain or flooding. For permanent submersion, use an underwater-rated fixture instead.
What is the warranty?
This model carries a 3 year warranty. Across the FENGDIAN range, warranty is 2 to 5 years depending on the product.
Can I order a sample before placing a full order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
