New Design of 30W LED Spike Light

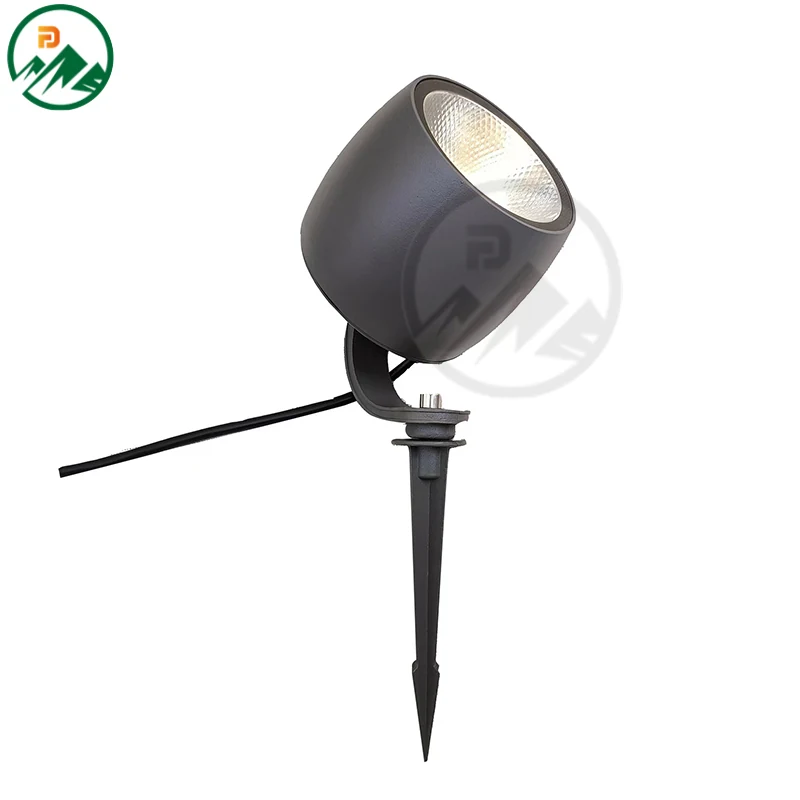

The FD-PL020R30 is a 30W LED spike light designed for landscape and flood lighting applications where durable, weatherproof mounting on grass or soil is required. The die-cast aluminium body provides structural strength and heat dissipation, while the IP67 rating ensures protection against dust and temporary immersion. It operates on AC85-265V, allowing direct connection to standard mains supply without a transformer. The beam angle of 24° delivers focused illumination suitable for highlighting architectural features, trees, or signage in outdoor environments.
| Model | FD-PL020R30 |
|---|---|
| Power | 30W |
| Input Voltage | AC85-265V |
| IP Rating | IP67 |

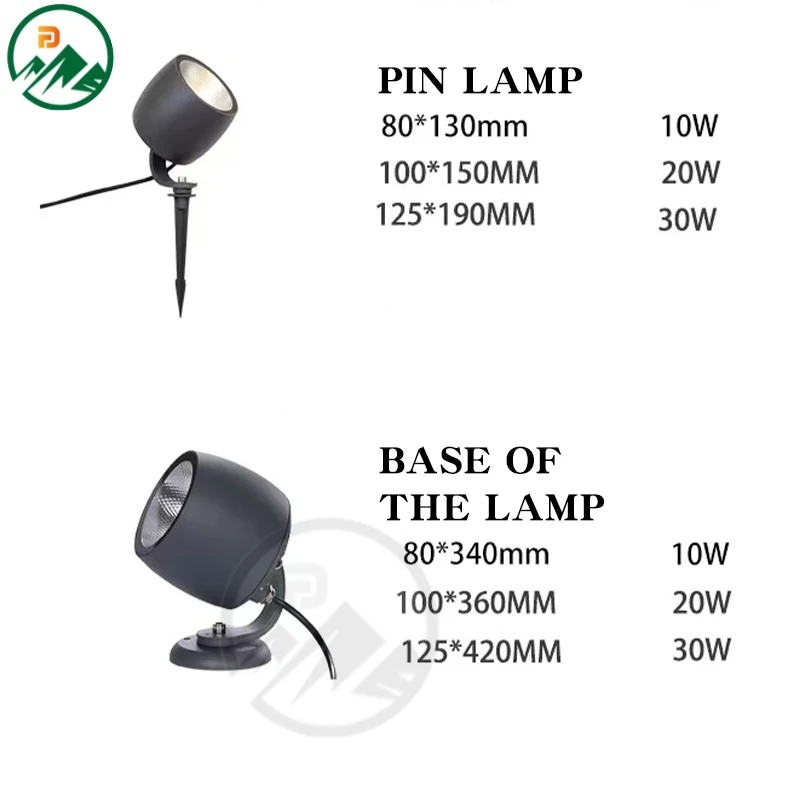

| Dimension | D120 x H 420 mm |
| Material | Die-casting Aluminium |
| LED Chip | BRIDGELUX |
| Driver | Included |
| Colour Temperature | 2800-6500K |
| Beam Angle | 24° |
| Warranty | 3 Years |
Key Benefits
- IP67 rating ensures reliable performance in wet soil and after heavy rain
- Die-cast aluminium body offers strength and effective heat dissipation
- 24° beam angle provides focused light for precise uplighting and accent lighting
- AC85-265V input allows direct mains connection without additional power conversion
- 30W power delivers high output in a compact spike form factor
- CCT range of 2800K to 6500K allows selection of warm to cool white light for different design needs
Application Scenarios

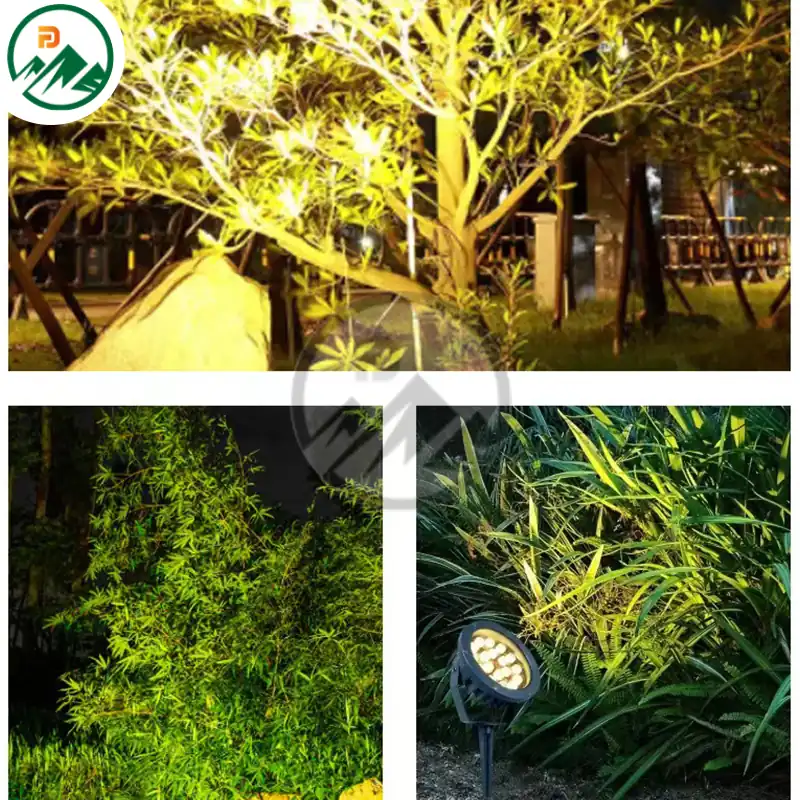

- Uplighting trees, shrubs, and garden features in residential and commercial landscapes
- Accent lighting for architectural details such as columns, walls, and facades
- Flood lighting for signage, monuments, and outdoor art installations
- Lighting in parks and public spaces where fixtures are exposed to soil and moisture
Who It Is For
- Landscape lighting contractors installing spike lights in grass or soil
- Facade and landscape designers specifying durable, focused lighting for outdoor projects
- Electrical wholesalers supplying spike lights for landscape and commercial applications
- Brand owners sourcing OEM spike lights under their own label for distribution
Problems It Solves
- Non-IP67 spike lights fail quickly in damp soil or after rain
- Aluminium spike lights with poor heat dissipation degrade faster under continuous operation
- Fixed beam angles limit flexibility when the target feature is not known at the time of installation
- Low-power spike lights cannot deliver sufficient output for larger landscape features
- Inconsistent colour temperature across fixtures leads to mismatched lighting effects
Technical Features
- Die-cast aluminium body for structural integrity and thermal management
- IP67 sealing for protection against dust and temporary immersion in water
- 24° beam angle for focused, directional light output
- Bridgelux LED chip for consistent lumen output and long life
- DONE driver for stable performance under varying input voltage
- AC85-265V input compatible with standard mains supply across regions
Materials
- Die-cast aluminium body for strength and heat dissipation
- Polycarbonate or tempered glass lens for optical clarity and impact resistance
- Sealing gasket for IP67 protection against dust and water ingress
Manufacturing Process
- Die-casting of aluminium body with precision machining
- Surface treatment for corrosion resistance and finish quality
- LED board assembly with Bridgelux chips and DONE driver
- Sealing and gasket fitting to achieve IP67 rating
- Final lighting and performance test before packing
Quality Control
- Incoming inspection of Bridgelux LED chips and DONE drivers
- IP67 sealing verification using pressure and water spray test
- Powered ageing test for 24 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Supplied with or without driver to match site-specific control strategies
- AC85-265V input version for direct mains connection
- OEM and ODM production for buyers selling under their own brand
Compared With the Alternatives
Plastic spike light
More durable and heat-resistant, but costs more upfront
Non-IP67 spike light
Survives wet soil and rain better, but may fail in prolonged moisture exposure
Fixed beam angle spike light
Same beam angle, but allows for on-site aiming adjustments if the fixture were adjustable
Use Guide
- Install the spike into firm soil or grass with the base fully embedded
- Ensure the fixture is vertical and the beam is aimed at the target feature
- Avoid over-tightening the mounting screw to prevent damage to the housing
- Clean the lens periodically to maintain light output in dusty or dirty environments
- Do not submerge the fixture permanently; it is rated for temporary immersion only
New Design of 30W LED Spike Light Questions
What is the beam angle of this spike light?
The beam angle is 24°, providing focused illumination for accent and flood lighting.
Is the driver included?
Yes. The fixture is supplied with a DONE driver, but can be omitted if centralised drivers are used.
Can it be used in wet soil?
Yes. The IP67 rating ensures protection against dust and temporary immersion, making it suitable for soil and rain exposure.
What is the warranty period?
This model carries a 3 year warranty. Across the FENGDIAN range, warranty is 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
Is the colour temperature adjustable?
No. The CCT range is 2800K to 6500K, but the fixture is manufactured with a fixed colour temperature per batch. Choose the desired CCT when ordering.
