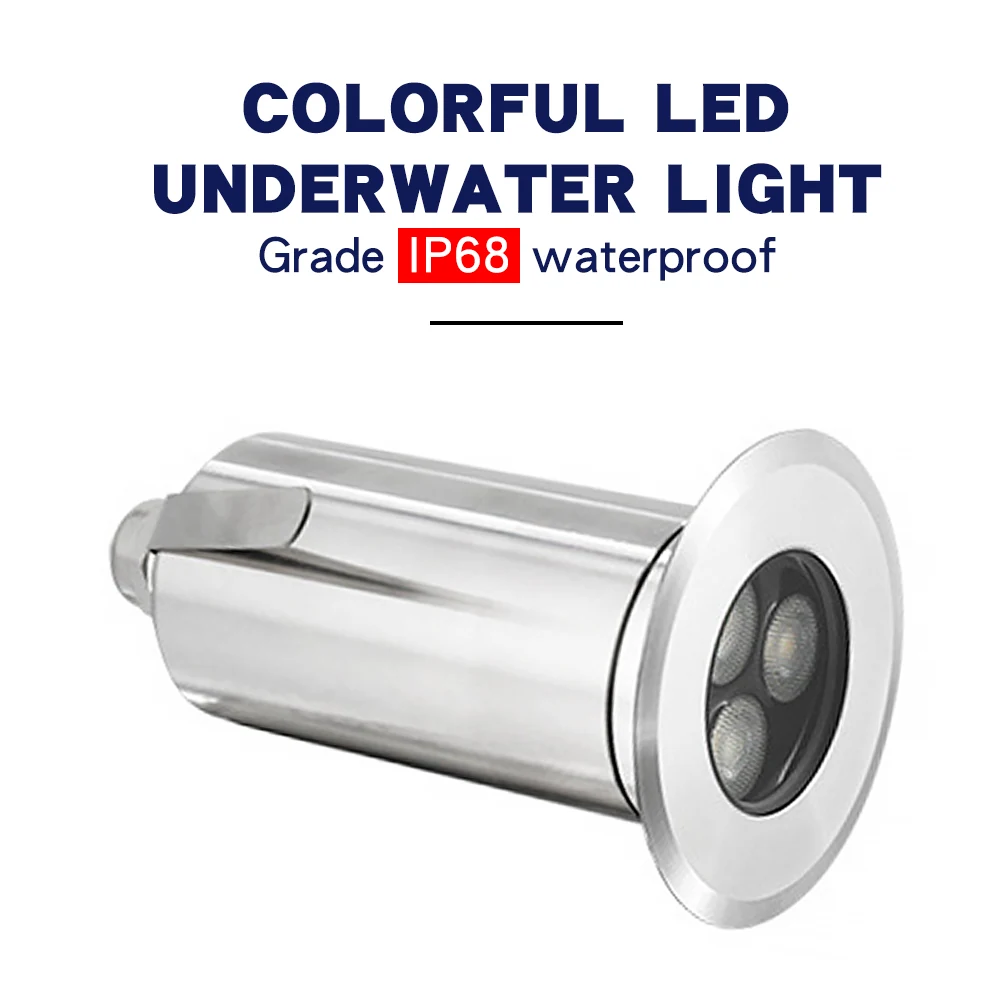

Mini Size 9W LED Underground Light
The FD-UW010R09 is a 9W recessed in-ground luminaire designed for landscape and architectural applications where compact size and high protection are required. The fixture is built with a stainless steel 304 cover and an aluminium body, rated IP68 for permanent immersion. It operates on AC or DC12/24V, allowing integration into both mains and low-voltage systems. The driver is not included, so it can be supplied with site-specific drivers or omitted when centralised control is used.
| Model | FD-UW010R09 |
|---|---|
| Power | 9W |
| Input Voltage | AC/DC12/24V |
| IP Rating | IP68 |
| Dimension | D62 x H103 mm |
| Material | Stainless steel 304 |
| LED Chip | CREE |
| Driver | Not included |
| Warranty | 3 Years |
Key Benefits
- IP68 rating ensures performance in permanently submerged conditions, such as in fountains or water features
- Compact D62 x H103 mm size fits into tight spaces without disrupting paving or hardscape design

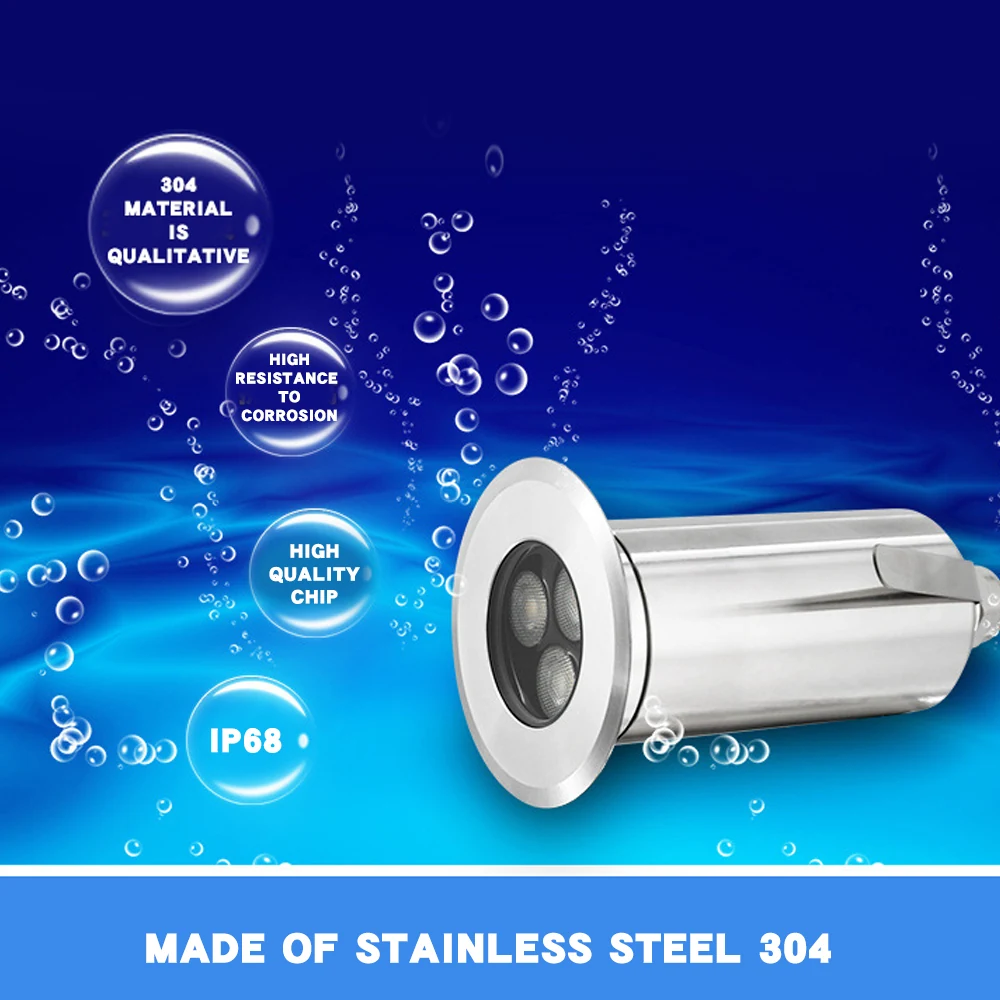

- Stainless steel 304 cover resists corrosion in wet, salted, or frequently washed environments
- AC/DC12/24V input supports both low-voltage and mains-fed systems, reducing the need for multiple SKUs
- Driver not included allows for site-specific driver selection and centralised power management
- CREE LED chip provides reliable light output with consistent performance over time
Application Scenarios
- Lighting pathways and garden edges in residential and public parks with frequent rainfall
- Illuminating fountains, water basins, and submerged landscape features
- Highlighting small architectural details in paved courtyards and plazas
- Integrating lighting into low-profile hardscapes where a flush finish is required
- Installing in areas with high moisture exposure, such as near swimming pools or outdoor spas
Who It Is For
- Landscape lighting contractors installing recessed fixtures in wet or frequently washed paving
- Facade and landscape designers specifying compact, high-protection luminaires
- Electrical wholesalers supplying low-voltage or mains-fed landscape projects
- Brand owners sourcing OEM in-ground luminaires under their own label
Problems It Solves
- Standard IP67 fixtures may fail in permanently submerged applications, requiring replacement
- Large in-ground lights disrupt paving continuity and are difficult to install in tight spaces
- Aluminium or plated trims degrade in wet or salted environments, leading to early failure
- Projects using mixed voltage systems need multiple fixture types, increasing inventory and complexity
- Centralised driver systems require fixtures without built-in drivers, which this model supports
Technical Features
- IP68 rating for permanent immersion in water, suitable for fountains and submerged applications
- Stainless steel 304 cover over an aluminium body for corrosion resistance and heat dissipation
- AC or DC12/24V input voltage to match site power systems
- CREE LED chip for stable and efficient light output
- Driver not included, allowing site-supplied or centralised driver integration
- Compact D62 x H103 mm dimensions for minimal disruption to paving and hardscape
Materials
- Stainless steel 304 cover for the exposed surface, resistant to corrosion in wet or salted environments
- Aluminium body for heat dissipation into the surrounding backfill
- Tempered glass lens over the LED module for impact and weather resistance
Manufacturing Process
- Aluminium body machining and finishing
- Stainless steel 304 cover forming and polishing
- LED board assembly with CREE packages
- Sealing and gasket fitting to IP68 standard
- Ageing and lighting test before packing
Quality Control
- Incoming inspection of CREE LED packages and drivers
- IP68 sealing check before the fixture is closed
- Powered ageing run before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing, confirmed against an approved sample before production
- Driver not included, so the fixture can be used with site-specific or centralised drivers
- AC/DC12/24V input version for compatibility with different site power systems
- OEM and ODM production for buyers selling under their own brand
Compared With the Alternatives
IP67 in-ground light
IP68 supports permanent immersion, suitable for fountains and submerged applications where IP67 may fail
Larger in-ground fixture
Smaller D62 x H103 mm size fits into tight spaces without disrupting paving continuity
Aluminium-trim in-ground light
Stainless steel 304 cover resists corrosion better in wet or salted environments, extending service life
Use Guide
- Cast or core a hole matching the D62 mm diameter and provide drainage below the fixture
- Ensure the cover is flush with the finished paving level to avoid trip hazards
- Use a sealed conduit or junction box when connecting to DC12/24V systems to prevent moisture ingress
- Size the cable for voltage drop over the full circuit length when using DC12/24V
- Clean the glass lens during routine maintenance to maintain light output
Mini Size 9W LED Underground Light Questions
What is the cut-out size for this underground light?
The fixture requires a D62 mm hole, with drainage provided below the pot.
Can it run on 12V or 24V DC?
Yes. The model supports AC, DC12V, and DC24V input, so it can be used in low-voltage systems.
Is the driver included?
No. The driver is not included, so the fixture can be used with site-supplied or centralised drivers.
Is IP68 suitable for permanent submersion?
Yes. IP68 rating means the fixture is designed for continuous immersion in water, suitable for fountains and submerged applications.
What is the warranty?
This model carries a 3 year warranty. Across the FENGDIAN range the warranty is 2 to 5 years depending on the product.
Can we order a sample before a project quantity?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship in 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
