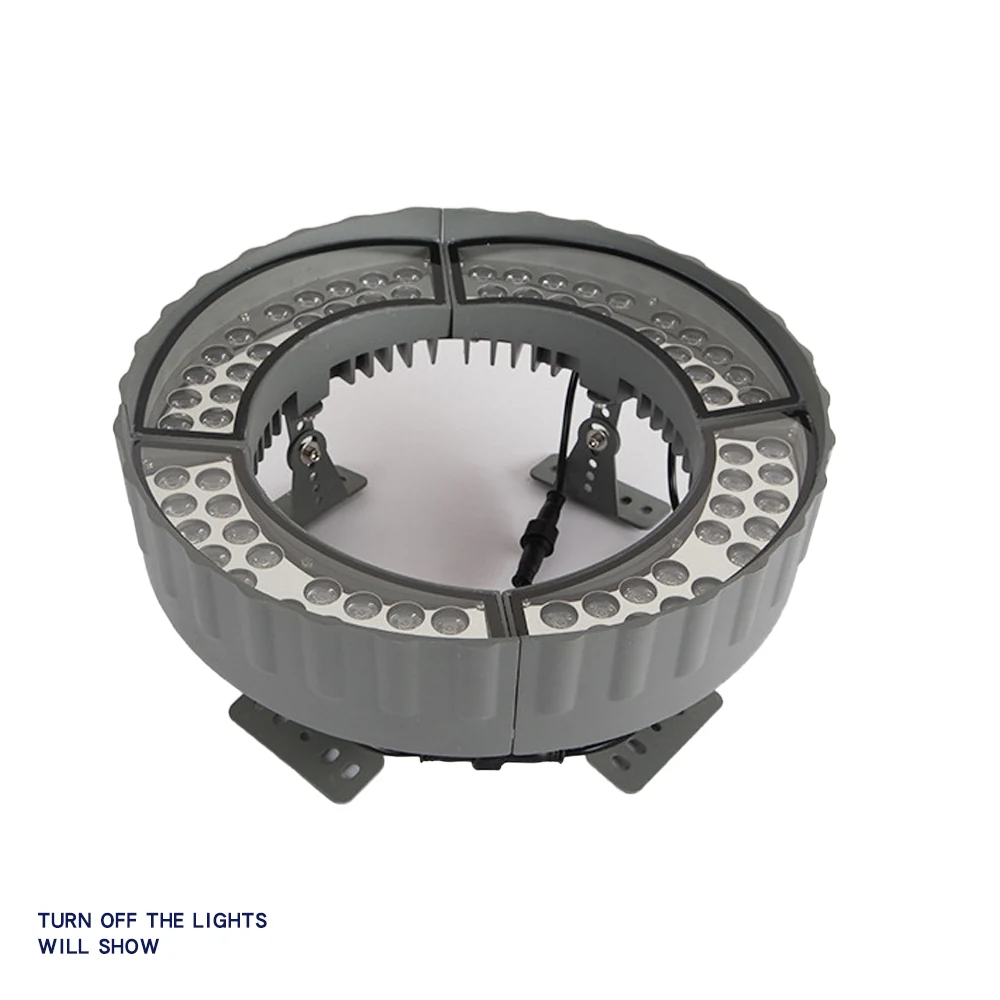

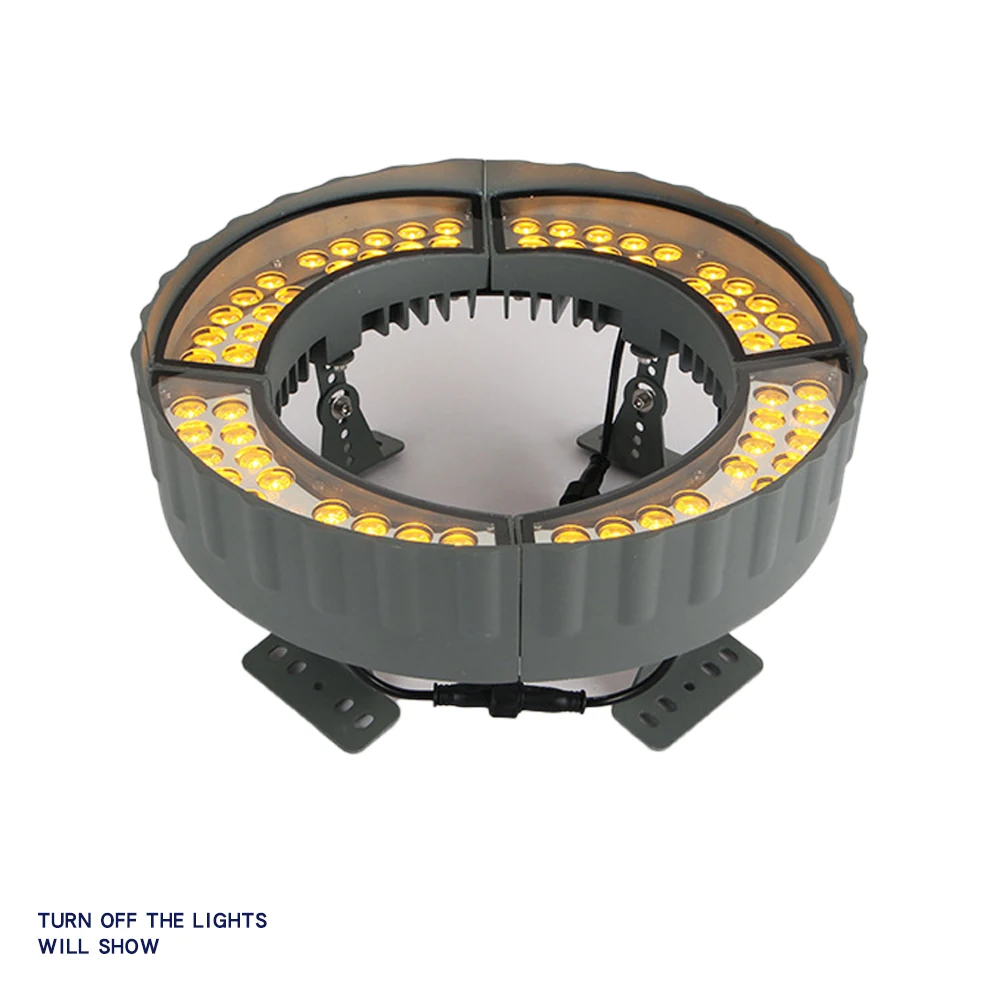

LED Flood Light For Three Holding
The FD-TH010R12 is a 12W LED flood light designed for landscape and architectural applications where multiple units are used in a single installation. It is supplied in sets of four, each with a choice of 2800-6500K white or RGB colour options. The fixture is built for outdoor use with an aluminium alloy body and IP67 sealing, making it suitable for wet or exposed locations. It operates on either DC24V or AC85-265V input, allowing integration into both low-voltage and mains-powered systems. The driver can be included or omitted based on site requirements.

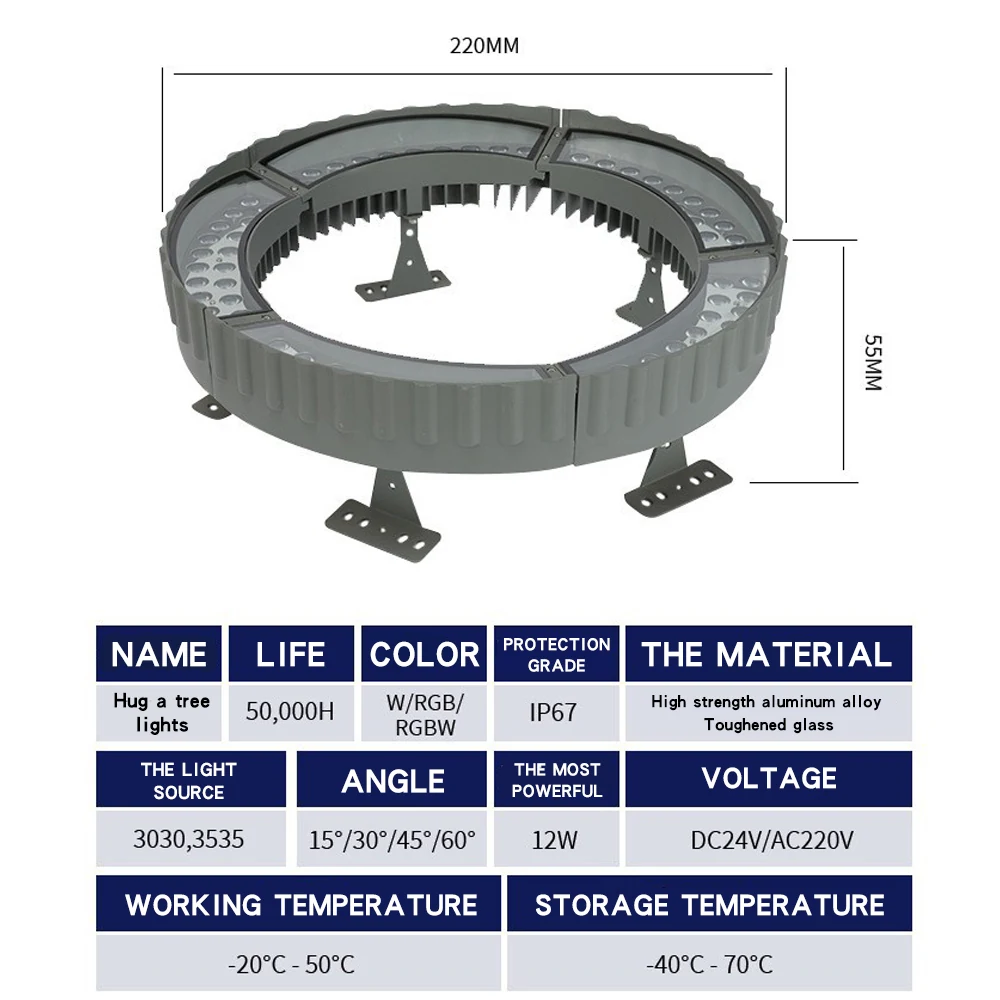

| Model | FD-TH010R12 |
|---|---|
| Power | 12W/PC |
| Input Voltage | DC24V/AC85-265V |
| IP Rating | IP67 |
| Material | Aluminium Alloy |
| LED Chip | OSRAM/CREE |
| Driver | Included or without |
| Colour Temperature | 2800-6500K/RGB |
| Control System | ON/OFF |
| Warranty | 3 Years |
Key Benefits
- Four units per set reduce handling and packaging costs for bulk installations
- Adjustable colour temperature from 2800K to 6500K or RGB allows matching of design intent across multiple fixtures
- IP67 rating ensures performance in wet or high-moisture environments
- Aluminium alloy body provides good heat dissipation and durability
- Dual input voltage options support both DC24V and AC85-265V systems
- Driver can be supplied fitted or omitted to match centralised or distributed control strategies
Application Scenarios

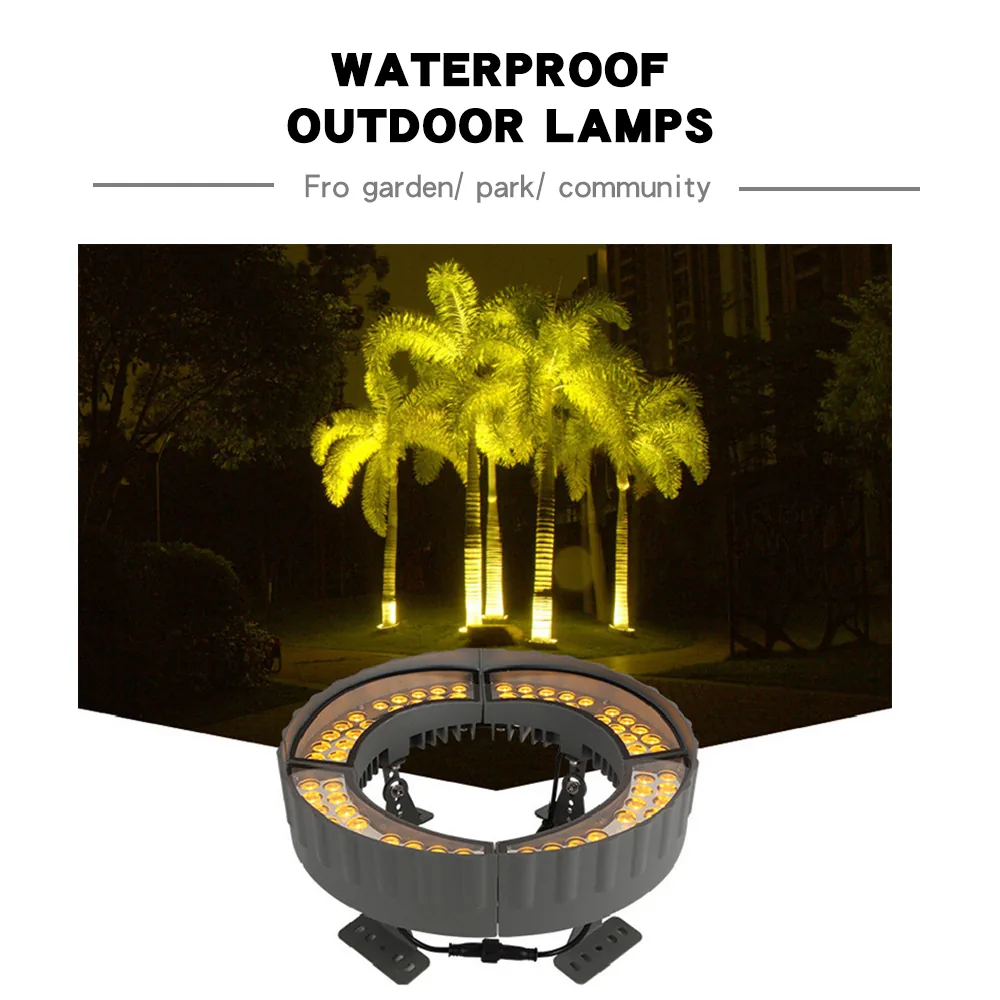

- Illuminating building facades with consistent colour temperature across multiple flood lights
- Highlighting landscape features such as trees, sculptures, and garden walls in residential and commercial sites
- Installing in groups for uniform lighting in parks, plazas, and public spaces
- Using RGB mode for dynamic lighting effects in themed or seasonal landscape displays
Who It Is For
- Landscape lighting contractors installing multiple flood lights in a single project
- Facade lighting designers specifying consistent colour output across a building envelope
- Electrical wholesalers supplying LED flood lights for outdoor architectural schemes
- Brand owners sourcing OEM flood lights under their own label with custom colour and driver options
Problems It Solves
- Requiring multiple individual units for a single installation increases handling and shipping costs
- Inconsistent colour temperature between fixtures can disrupt visual continuity in a lighting scheme
- Lack of IP67 rating leads to early failure in wet or high-moisture outdoor locations
- Fixed driver options force projects to use centralised or distributed drivers regardless of site design
- RGB capability is not available on standard flood lights, limiting dynamic lighting options
Technical Features
- Four units per set for efficient bulk delivery and installation
- 2800-6500K white or RGB colour options for flexible lighting design
- Aluminium alloy body for effective heat dissipation and long-term durability
- IP67 sealing for protection against dust and temporary immersion
- Dual input voltage: AC85-265V or DC24V to suit different site wiring systems
- Driver can be supplied fitted or omitted based on project control strategy
Materials
- Aluminium alloy body for heat dissipation and structural strength
- Sealed housing with gaskets to maintain IP67 rating
- Tempered glass lens to protect the LED array from impact and weather
Manufacturing Process
- Aluminium alloy body machining and surface finishing
- LED board assembly with OSRAM or CREE packages
- Driver integration or omission based on order specification
- Sealing and gasket fitting to achieve IP67
- Final lighting and voltage test before packing
Quality Control
- Incoming inspection of LED chips and drivers
- IP67 sealing check before final closure
- Powered ageing test for 24 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Driver can be supplied fitted or omitted to match site control strategy
- AC85-265V or DC24V input version available
- OEM and ODM production for buyers selling under their own brand
Compared With the Alternatives
Single-unit flood light
Higher cost per unit, but sets reduce handling and shipping for large projects
Non-IP67 flood light
Less reliable in wet or high-moisture areas, but IP67 ensures long-term performance in exposed locations
Fixed colour temperature flood light
Limited flexibility in design, but adjustable CCT or RGB allows matching across multiple fixtures
Use Guide
- Install each unit in a fixed position using the mounting bracket, ensuring the lens is clean and undamaged
- Set the colour temperature or RGB mode before final installation to verify the desired output
- Ensure the input voltage matches the site supply: AC85-265V or DC24V
- For DC24V systems, size the cable to prevent voltage drop over long runs
- Clean the lens periodically during maintenance to maintain light output
LED Flood Light For Three Holding Questions
How many lights are in one set?
One set contains four units, sold as a single order item.
Can the colour temperature be adjusted on site?
Yes. The model offers 2800-6500K white or RGB colour options, selectable during installation.
Is the driver included?
It can be supplied with or without the driver. The option is selected based on the project’s control system.
What is the IP rating for this flood light?
The fixture has an IP67 rating, suitable for outdoor use in wet or high-moisture environments.
What is the warranty period?
This model carries a 3-year warranty. Across the FENGDIAN range, warranty varies between 2 and 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
