H800 H600mm10W LED Garden Light
The FD-GD010S10 is a 10W LED garden light designed for landscape and outdoor applications where a tall, slim profile is needed. The fixture is made from die-casting aluminium with a compact base and a vertical height of either 600mm or 800mm. It operates on AC85-265V, making it compatible with standard mains voltage across Europe and the Middle East. The IP65 rating ensures protection against water jets, suitable for exposed outdoor positions. The light uses an EPISTAR LED chip and a DONE driver, and is available with a 3-year warranty.
| Model | FD-GD010S10 |
|---|---|
| Power | 10W |
| Input Voltage | AC85-265V |
| IP Rating | IP65 |
| Dimension | D120 x H600/800 mm |
| Material | Die-casting aluminium |
| LED Chip | EPISTAR |
| Driver | Included |
| Warranty | 3 Years |
Key Benefits
- Die-casting aluminium body provides durable, long-term performance in outdoor conditions
- IP65 rating protects against water jets, suitable for exposed garden and landscape installations
- AC85-265V input works with standard mains voltage in Europe and the Middle East
- Available in two heights, 600mm and 800mm, to suit different planting and architectural contexts
- 10W power level offers efficient lighting for low to medium intensity garden applications
- EPISTAR LED chip ensures consistent light output and reliability over time
Application Scenarios

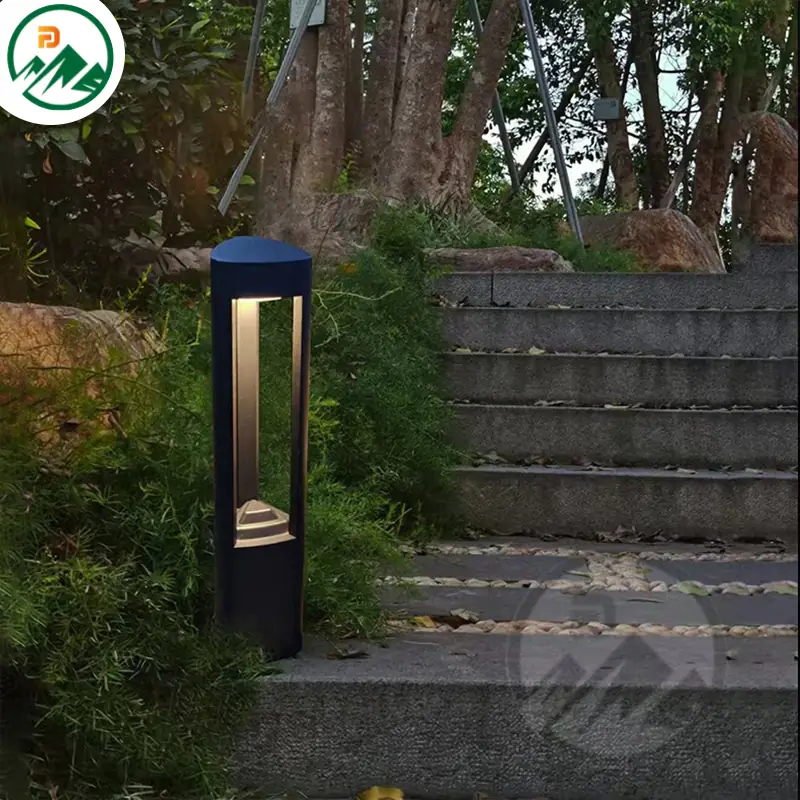

- Lighting pathways and garden borders in residential and public parks
- Highlighting trees, shrubs, and low hedges in landscape designs
- Illuminating garden edges and architectural features in mixed-use developments
- Providing ambient lighting along walkways in hotel and resort grounds
Who It Is For
- Landscape lighting contractors installing garden lights in outdoor projects
- Facade and landscape designers specifying vertical lighting elements in garden schemes
- Electrical wholesalers supplying LED garden lights to regional distributors
- Brand owners sourcing OEM garden lights under their own label for European and Middle Eastern markets
Problems It Solves
- Fixed-height garden lights often do not match the desired planting or architectural scale
- Non-IP65 rated fixtures fail in exposed positions where rain or cleaning jets occur
- Low-power lights with poor drivers lead to early failure in outdoor conditions
- Inconsistent light output from low-grade LED chips affects design intent over time
Technical Features

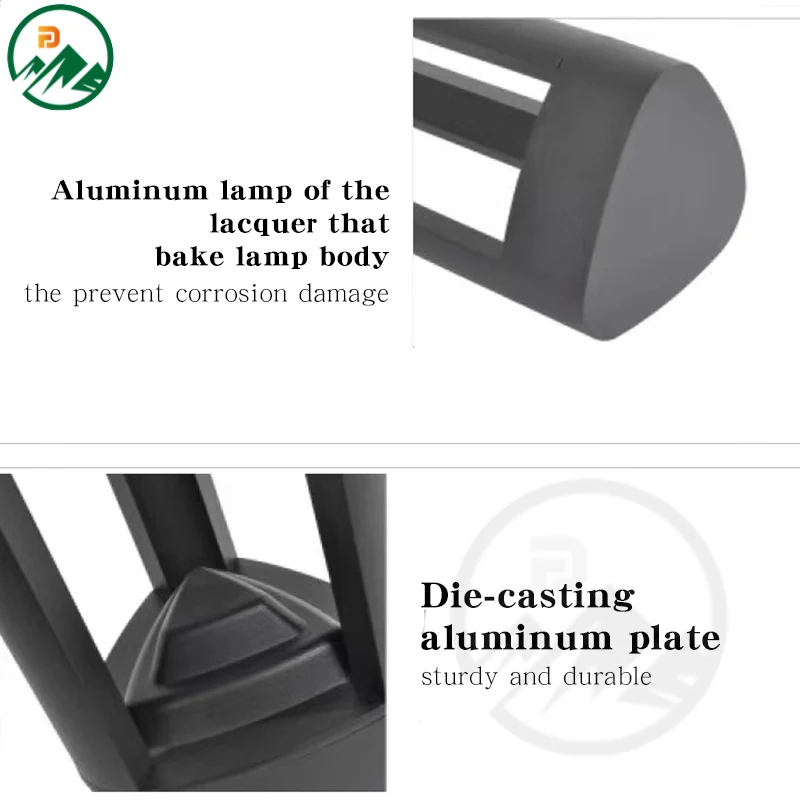

- Die-casting aluminium body for structural strength and heat dissipation
- IP65 rating for protection against water jets from any direction
- AC85-265V input compatible with standard mains voltage in Europe and the Middle East
- EPISTAR LED chip for stable light output and long life
- DONE driver integrated into the fixture for reliable operation

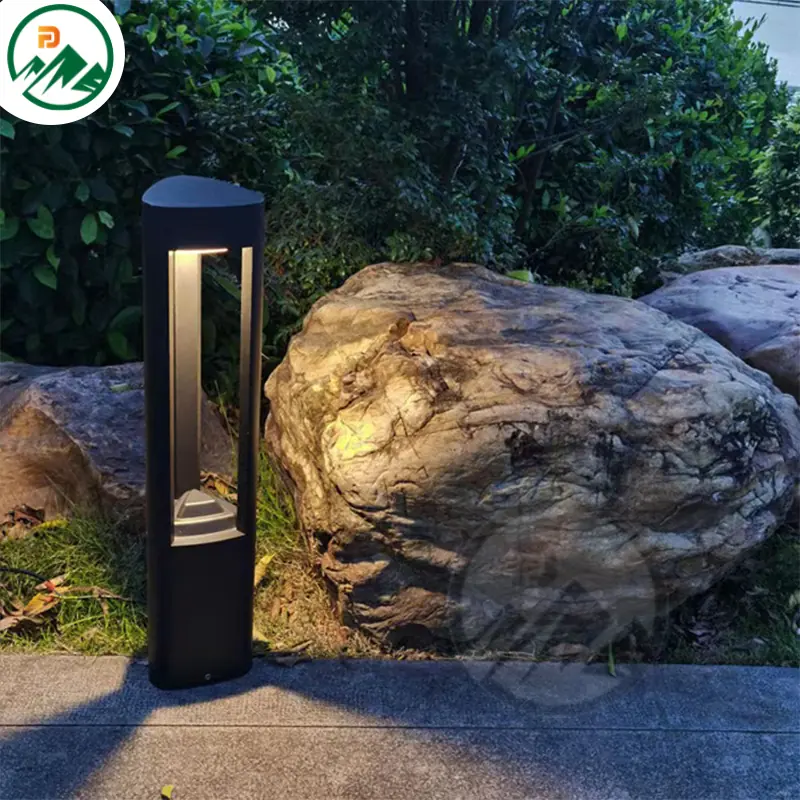

- Available in two heights: 600mm and 800mm to match site-specific design needs
Materials
- Die-casting aluminium body for structural integrity and thermal management
- EPISTAR LED chip for consistent light output and reliability
- DONE driver for stable power regulation and long-term operation
Manufacturing Process
- Die-casting of aluminium body with precision moulding
- Surface treatment and powder coating for weather resistance
- Assembly of EPISTAR LED chip and DONE driver onto the circuit board
- Sealing of joints and connections to achieve IP65 rating
- Final testing under operational voltage before packaging
Quality Control
- Incoming inspection of EPISTAR LED chips and DONE drivers
- IP65 sealing verification using spray test before final closure
- Powered operation test for 24 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Available in two heights: 600mm and 800mm to suit different site layouts
- Driver is integrated and cannot be removed; no option for site-supplied driver
- OEM and ODM production available for buyers selling under their own brand
Compared With the Alternatives
Plastic garden light
More durable and weather-resistant, but higher cost and heavier
Lower height garden light
Better for tall plantings and architectural features, but requires deeper mounting
Non-IP65 rated light
Less reliable in exposed positions, more prone to failure from water ingress
Use Guide
- Mount the fixture on a vertical post or wall using the provided mounting hardware
- Ensure the base is level and securely fixed to prevent movement in wind or vibration
- Position the light to avoid direct exposure to high-pressure cleaning jets
- Use the 600mm or 800mm height version based on the planting height and design intent
- Clean the lens periodically with a soft cloth to maintain light output
H800 H600mm10W LED Garden Light Questions
What are the available heights for this garden light?
The fixture is available in two heights: 600mm and 800mm.
Is the driver included in the fixture?
Yes. The DONE driver is integrated into the fixture and cannot be removed.
Can it be used in high-wind or coastal areas?
Yes. The die-casting aluminium body and IP65 rating provide durability in exposed and coastal environments.
What is the input voltage range?
The light operates on AC85-265V, compatible with standard mains voltage in Europe and the Middle East.
What is the warranty period?
This model carries a 3-year warranty. Across the FENGDIAN range, warranty is 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
