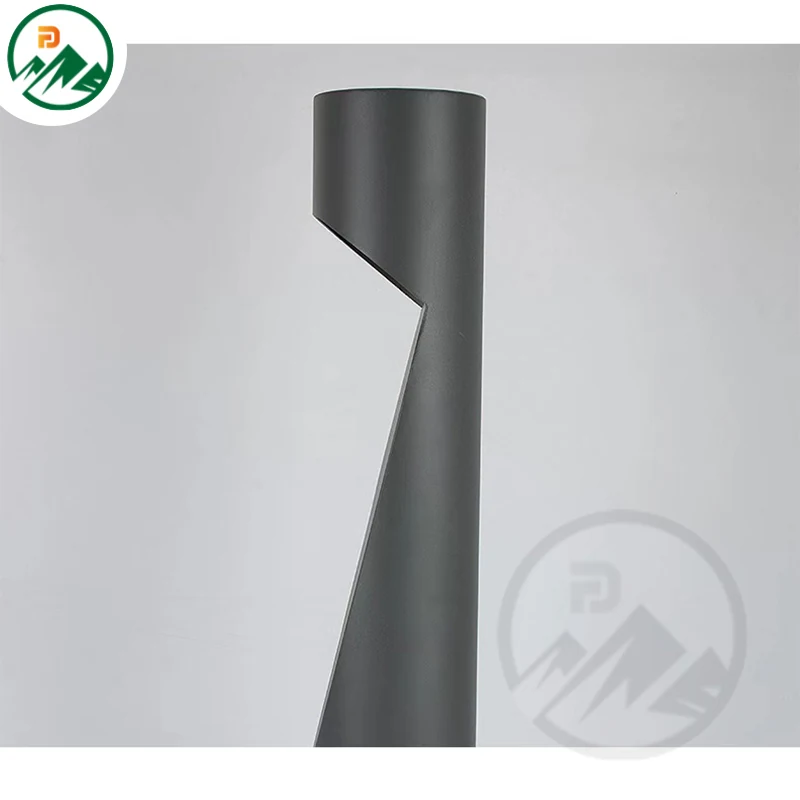

Die-casting aluminium 10W LED Garden Light
The FD-GD050H10 is a 10W die-casting aluminium garden light designed for landscape and outdoor applications where durability and weather resistance are required. The fixture is built for vertical mounting on walls, posts or poles, with a height of 600 or 800mm. It operates on AC85-265V, allowing direct connection to standard mains wiring without a separate driver. The IP65 rating ensures protection against water jets, making it suitable for exposed positions in gardens, courtyards and public spaces. The OSRAM LED chip delivers consistent output with a long service life.
| Model | FD-GD050H10 |
|---|---|
| Power | 10W |
| Input Voltage | AC85-265V |
| IP Rating | IP65 |
| Dimension | D150 x H600/800 mm |
| Material | Die-casting aluminium |
| LED Chip | OSRAM |
| Driver | Included |
| Warranty | 3 Years |
Key Benefits
- Die-casting aluminium body provides strong mechanical support and effective heat dissipation
- IP65 rating resists water jets from any direction, suitable for outdoor exposure
- AC85-265V input allows direct mains connection without a separate driver
- Available in two heights to suit different mounting and lighting height requirements
- OSRAM LED chip ensures stable lumen output and long-term reliability
- Single fixture type reduces SKU count for projects with varied mounting heights
Application Scenarios

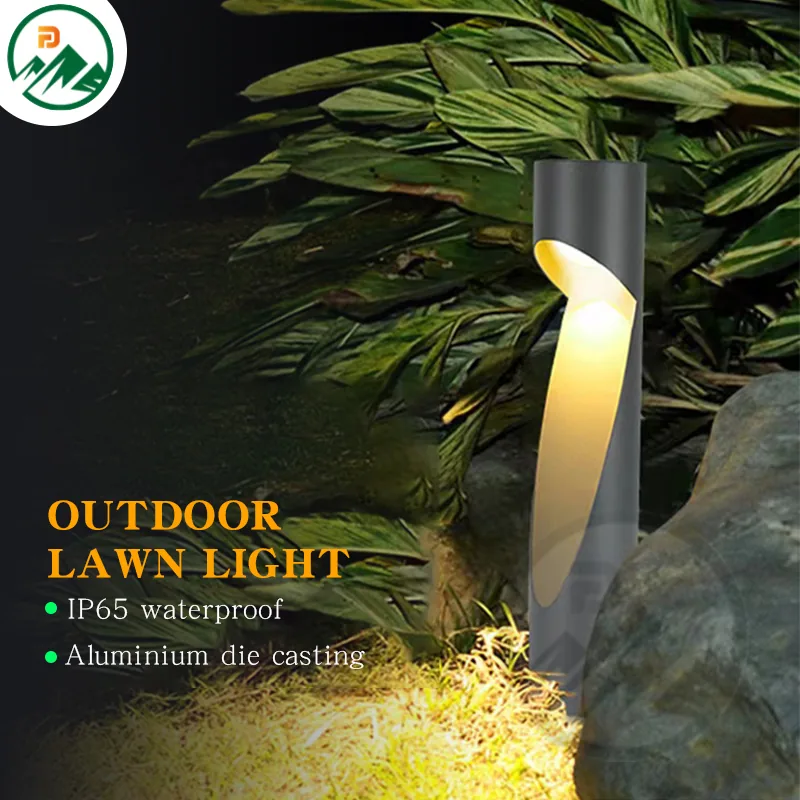

- Lighting garden paths and walkways in residential and commercial developments
- Illuminating courtyard edges and perimeter boundaries in mixed-use sites
- Mounting on walls or posts in public parks and community green spaces
- Providing ambient lighting in landscape schemes with exposed outdoor fixtures
Who It Is For
- Landscape lighting contractors installing outdoor fixtures in gardens and public areas
- Lighting designers specifying durable, low-maintenance fixtures for exposed positions
- Electrical wholesalers supplying garden and landscape lighting to European and Middle Eastern markets
- Brand owners sourcing OEM garden lights under their own label with custom logo printing
Problems It Solves
- Fragile plastic or thin metal garden lights fail quickly in outdoor exposure
- Fixtures requiring separate drivers increase wiring complexity and cost
- Lack of weatherproofing leads to early failure in wet or high-spray environments
- Single-height fixtures limit design flexibility when different lighting levels are needed
- Inconsistent LED performance reduces output over time in low-quality fixtures
Technical Features

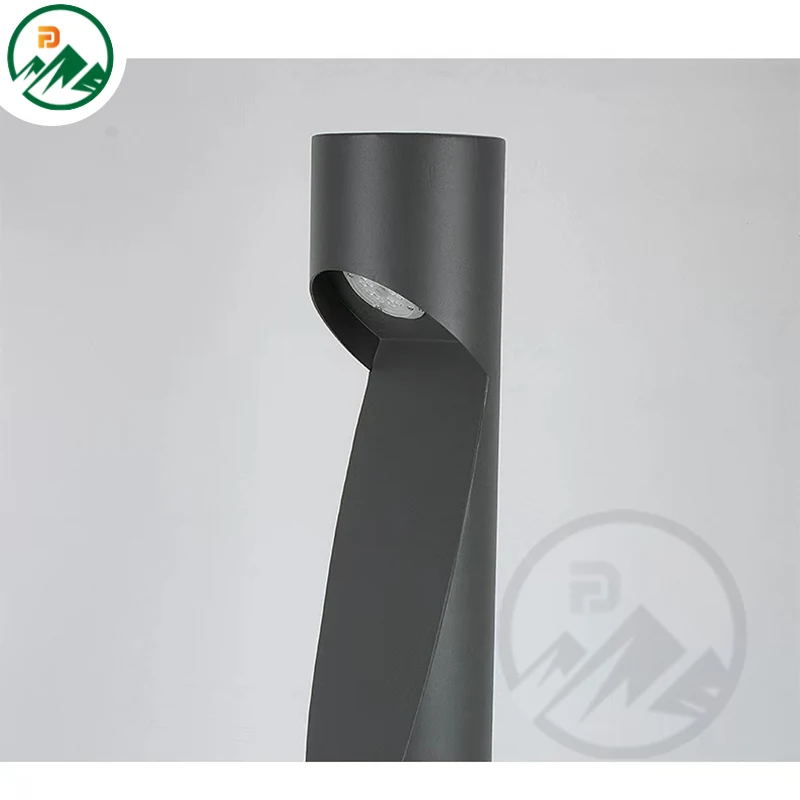

- Die-casting aluminium body for structural strength and heat dissipation
- IP65 rating for protection against water jets from any direction
- AC85-265V input voltage range for direct mains connection
- OSRAM LED chip for consistent light output and longevity
- Driver integrated into the fixture (DONE), no external driver needed

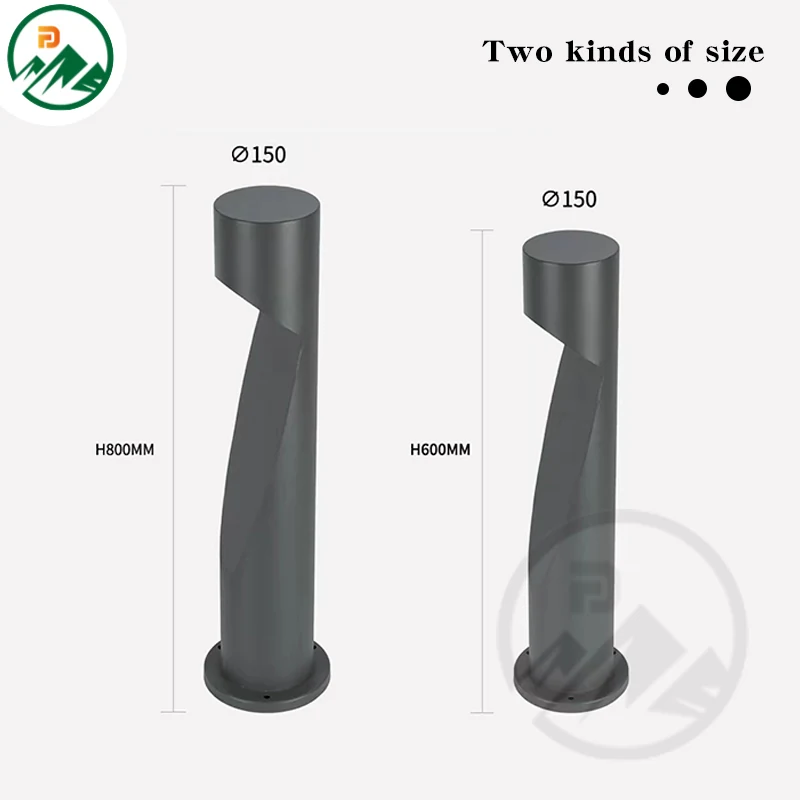

- Two height options: 600mm or 800mm to match different mounting and lighting needs
Materials
- Die-casting aluminium body for structural integrity and heat transfer
- Integrated driver (DONE) housed within the fixture body
- Weather-resistant housing with sealed joints to maintain IP65
Manufacturing Process
- Die-casting of aluminium body with precision moulding
- Surface treatment and finishing for corrosion resistance
- Assembly of OSRAM LED chip and integrated driver
- Sealing and IP65 testing before final assembly
- Aged lighting test under full voltage before packing
Quality Control
- Incoming inspection of OSRAM LED chips and DONE drivers
- IP65 sealing verification using water jet test
- Powered ageing run for 24 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Integrated driver (DONE) supplied as standard, no option to omit
- Two height variants (600mm or 800mm) available for project-specific mounting
- OEM and ODM production for buyers selling under their own brand
Compared With the Alternatives
Plastic garden light
More durable and heat-resistant, but costs more upfront
Fixture with external driver
Simpler installation and wiring, but requires separate driver housing
Lower IP-rated fixture
Better protection against rain and spray, but higher cost and weight
Use Guide
- Mount the fixture on a wall, post or pole using the provided mounting hardware
- Ensure the mounting surface is stable and can support the fixture's weight
- Connect directly to AC85-265V mains wiring; no external driver required
- Avoid directing water jets directly at the fixture face during cleaning
- Clean the surface periodically with a soft cloth to maintain appearance and output
Die-casting aluminium 10W LED Garden Light Questions
What is the height of this garden light?
The fixture is available in two heights: 600mm or 800mm.
Is the driver included?
Yes. The driver is integrated into the fixture (DONE), so no external driver is needed.
Can it be used with a 24V system?
No. The fixture is designed for AC85-265V input only.
What does IP65 mean for this light?
IP65 means the fixture is protected against dust and water jets from any direction.
What is the warranty?
This model carries a 3 year warranty. Across the FENGDIAN range, warranty is 2 to 5 years depending on the product.
Can I order a sample?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship in 3-5 days.
How long is mass production lead time?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
