Dark Black Arch Shape LED Garden Light
The FD-GD030H10 is a 10W dark black arch-shaped LED garden light designed for landscape and garden applications where a sleek, low-profile fixture is needed. The die-casting aluminium body provides structural rigidity and heat dissipation. The arch shape allows for flexible mounting on walls, posts or ground bases. It operates on AC85-265V, making it compatible with standard mains voltage across Europe and the Middle East. The IP65 rating ensures protection against water jets, suitable for outdoor use in exposed garden areas.
| Model | FD-GD030H10 |
|---|---|
| Power | 10W |
| Input Voltage | AC85-265V |
| IP Rating | IP65 |
| Dimension | L200 x W100 x H400/600/800 mm |
| Material | Die-casting aluminium |
| LED Chip | OSRAM |
| Driver | Included |
| Warranty | 3 Years |
Key Benefits
- Arch shape allows for discreet mounting on walls, posts or ground bases without visual obstruction
- Die-casting aluminium body provides durability and effective heat dissipation
- IP65 rating protects against water jets, suitable for exposed garden and landscape positions
- AC85-265V input supports standard mains voltage in Europe and the Middle East
- 10W power level offers low energy use for long-term operation in garden lighting schemes
- Dark black finish blends into garden backgrounds, reducing visual impact
Application Scenarios
- Illuminating garden pathways and borders in residential and commercial landscapes
- Highlighting low-level planting, hedges, and ground cover in mixed-use developments
- Mounting on garden walls or fences to provide ambient lighting without obstruction
- Installing on ground bases to mark edges or define garden zones in public parks
- Using in landscape schemes where a low-profile, non-intrusive light is required
Who It Is For
- Landscape lighting contractors installing garden lights in residential and public projects
- Facade and landscape designers specifying low-profile lighting for garden integration
- Electrical wholesalers supplying garden lighting for Middle East and European markets
- Brand owners sourcing OEM garden lights under their own label with custom logo
Problems It Solves
- Fixed-position lights often obstruct garden views or create visual clutter
- Non-durable materials degrade quickly in outdoor garden environments
- Lights with low IP ratings fail when exposed to rain or garden cleaning jets
- Incompatible voltage inputs require additional transformers or control gear
- Lack of low-profile design forces fixtures to stand out in natural garden settings
Technical Features
- Die-casting aluminium body for structural strength and heat dissipation
- Arch-shaped design for flexible mounting on walls, posts or ground bases
- IP65 rating for protection against water jets from any direction
- OSRAM LED chip for consistent light output and long life
- AC85-265V input compatible with standard mains voltage in Europe and the Middle East
- Driver supplied as 'DONE' meaning it is included in the fixture
Materials
- Die-casting aluminium body for structural strength and heat transfer
- Dark black powder-coated finish for weather resistance and visual blending
- Tempered glass or polycarbonate lens (implied by IP65 and typical design)
Manufacturing Process
- Die-casting of aluminium body with precision moulding
- Surface treatment and powder coating in dark black finish
- LED board assembly with OSRAM chips
- Driver integration (DONE) and electrical connection
- IP65 sealing and gasket fitting
- Final inspection and ageing test before packing
Quality Control
- Incoming inspection of OSRAM LED packages and drivers
- IP65 sealing verification using pressure and spray test
- Powered ageing run for 24 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production

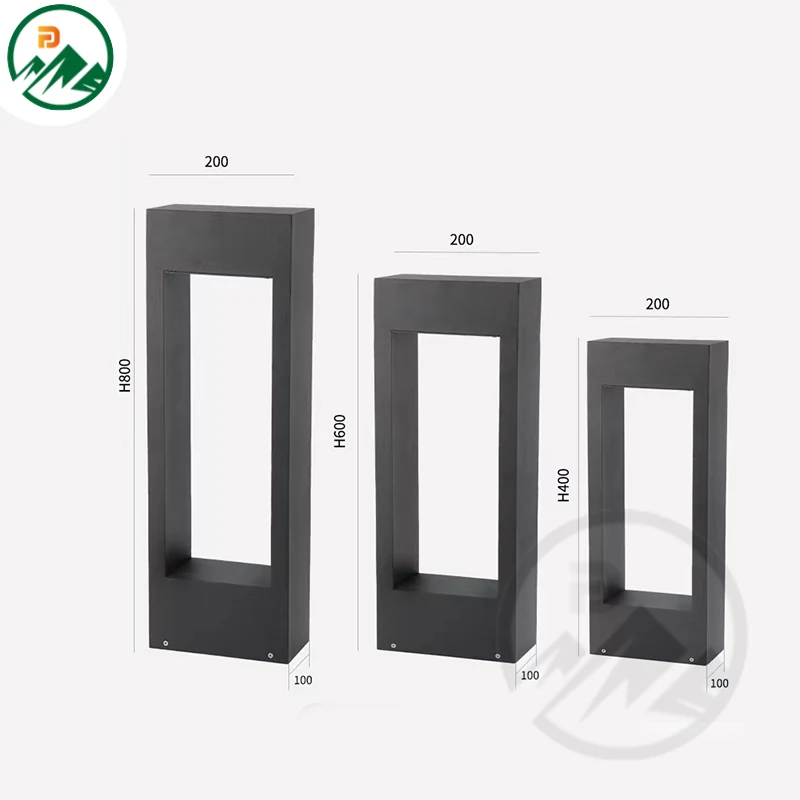

- Available in three height variants: 400mm, 600mm, and 800mm
- Driver supplied as included (DONE), no option to omit
- OEM and ODM production for buyers selling under their own brand
Compared With the Alternatives
Standard vertical garden post light
The arch shape allows for wall or post mounting without blocking the view or obstructing pathways
Plastic-bodied garden light
Die-casting aluminium offers better durability and heat dissipation in outdoor conditions
Light with no driver included
Driver is supplied as 'DONE', reducing site wiring complexity and ensuring compatibility
Use Guide
- Choose the appropriate height (400mm, 600mm, or 800mm) based on the mounting surface and lighting target
- Mount the fixture on a wall, post or ground base using the provided mounting hardware
- Ensure the fixture is positioned to avoid direct exposure to high-pressure water jets
- Use standard AC85-265V wiring, no additional transformer required
- Clean the lens periodically with a soft cloth to maintain light output
Dark Black Arch Shape LED Garden Light Questions
What are the available heights for this garden light?
The fixture is available in three heights: 400mm, 600mm, and 800mm.
Is the driver included?
Yes. The driver is supplied as 'DONE', meaning it is included in the fixture.
What is the input voltage?
The light operates on AC85-265V, compatible with standard mains voltage in Europe and the Middle East.
Is it suitable for outdoor use in rain?
Yes. The IP65 rating provides protection against water jets, suitable for outdoor garden use.
What is the warranty?
This model carries a 3 year warranty. Across the FENGDIAN range, the warranty is 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship in 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
