40W 60W 80W All-in-one Solar Street Light

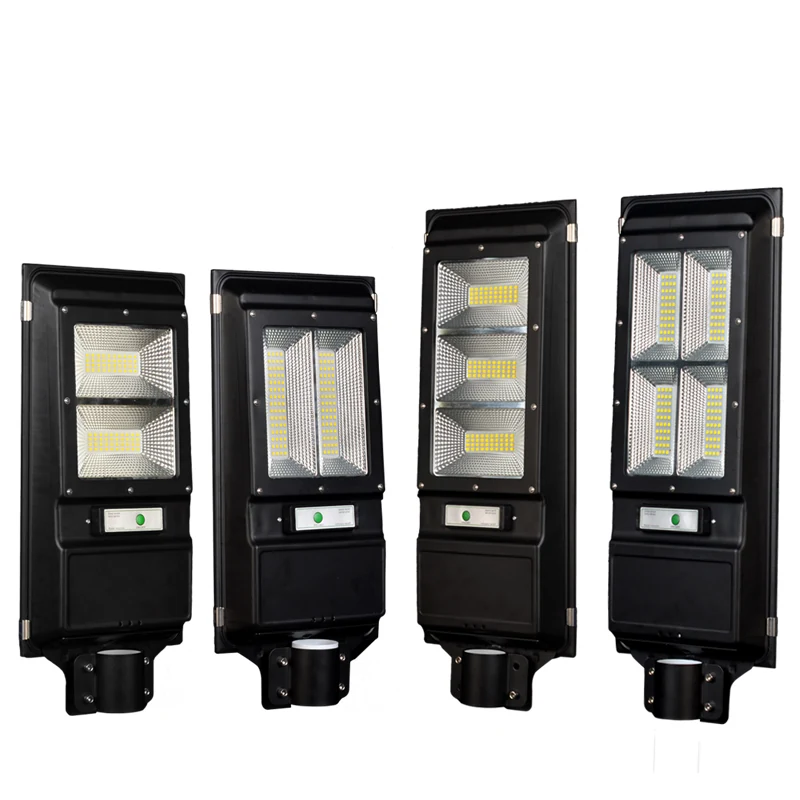

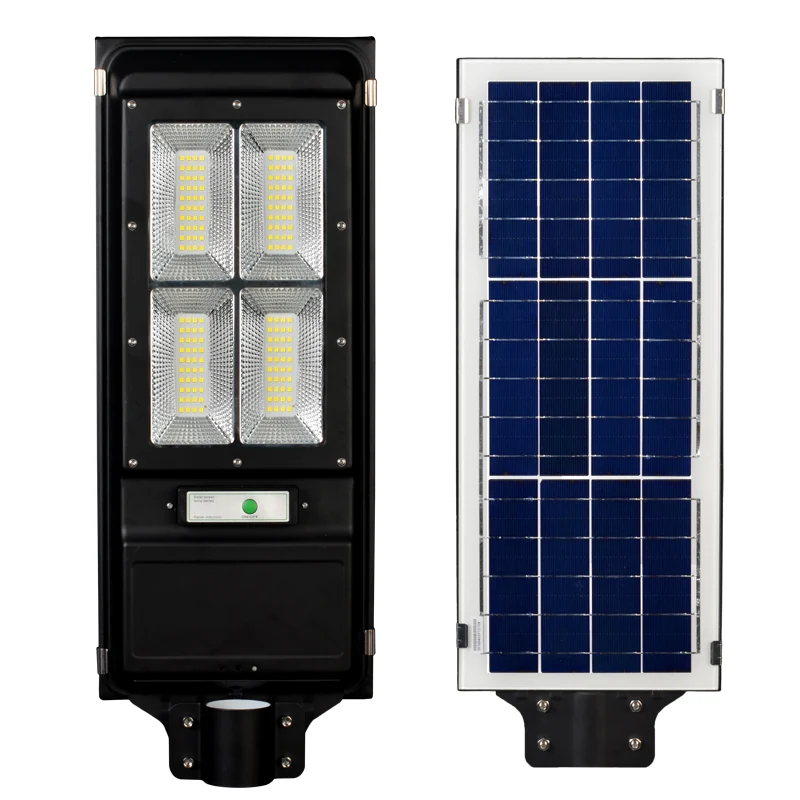

The FD-SSL-40W is a 40W all-in-one solar street light designed for standalone outdoor lighting in areas without grid access. The unit integrates a 6V8W solar panel, 3.2V/8AH battery, and 80pcs 3030SMD LED source into a single iron housing. It provides illumination over a 40 square metre area and is suitable for pathways, driveways, and small public spaces. The fixture is mounted on a pole with a set screw, and the solar panel is positioned to capture maximum sunlight during daylight hours.
| Model | FD-SSL-40W |
|---|---|
| Material | Iron |
| LED Light Source | 80pcs 3030SMD |
| Solar Panel | 6V8W |
| Battery | 3.2V/8AH |
| Warranty | 3 Years |
Key Benefits
- All-in-one design eliminates the need for separate solar panel, battery and controller installations
- 40 square metre irradiated area covers typical residential and small commercial pathways
- Iron housing provides durable structure for outdoor mounting in urban and rural settings
- 3.2V/8AH battery supports operation through multiple cloudy days
- Set screw mounting allows secure attachment to standard poles without additional hardware
- No wiring to the grid required, reducing installation cost and complexity
Application Scenarios
- Illuminating residential driveways and garden paths without grid connection
- Lighting small public plazas and community walkways in off-grid areas
- Providing security lighting along perimeter fences and access roads
- Supporting landscape lighting in parks and recreational zones with no power supply
Who It Is For
- Lighting project contractors installing off-grid solar solutions in the Middle East and Europe
- Facility managers seeking low-maintenance outdoor lighting for remote zones
- Electrical wholesalers supplying solar street lights to regional distributors
- Brand owners sourcing OEM solar luminaires under their own label
Problems It Solves
- Separate solar panels, batteries and controllers require multiple mounting points and wiring
- Grid connection is not feasible in remote or newly developed areas
- Frequent battery replacement due to poor integration in non-all-in-one designs
- Inconsistent light output from mismatched components in DIY solar setups
- Mounting instability when using generic fasteners on poles
Technical Features
- Integrated 6V8W solar panel for daylight energy capture
- 3.2V/8AH battery for energy storage and night-time operation
- 80pcs 3030SMD LED light source for even illumination across the target area
- All-in-one iron housing with built-in solar panel and battery compartment

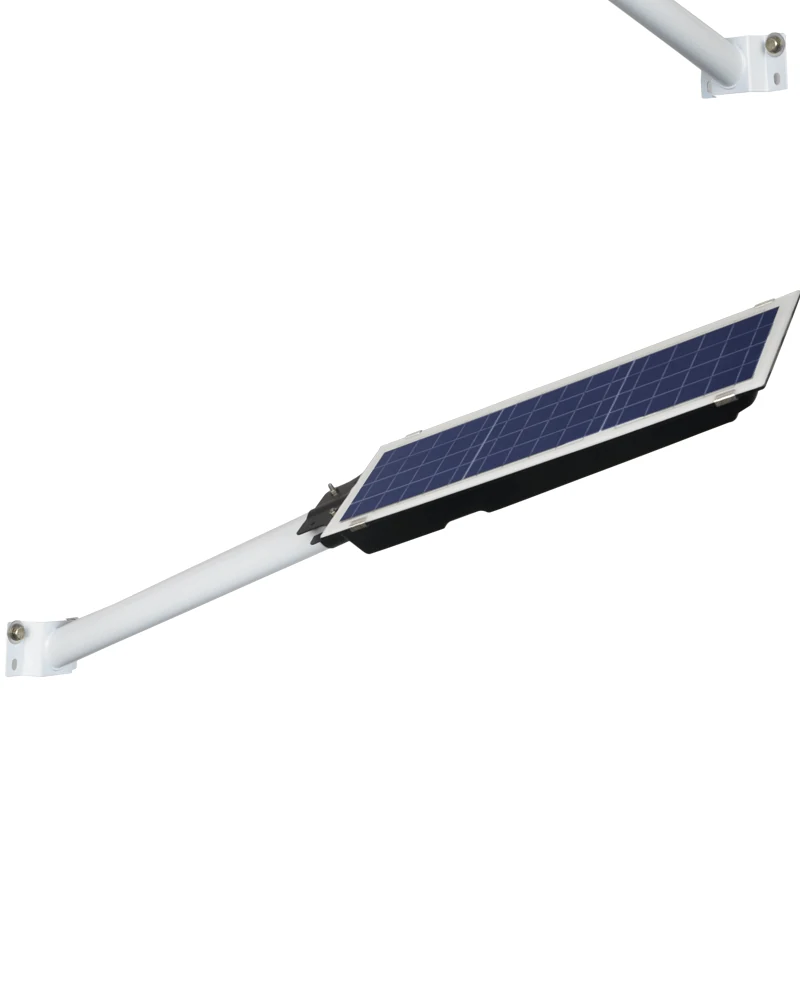

- Set screw for secure pole mounting without additional brackets
- Irradiated area of 40 square metre per fixture, suitable for low to medium brightness needs
Materials
- Iron housing for structural strength and outdoor durability
- 6V8W solar panel for energy harvesting
- 3.2V/8AH battery for energy storage
- 80pcs 3030SMD LEDs for consistent light output
- Set screw for pole attachment
Manufacturing Process
- Iron housing fabrication and surface treatment
- Solar panel assembly and connection to internal wiring
- Battery integration and safety circuit connection
- LED board mounting with 80pcs 3030SMD packages
- Final assembly and sealing of all components
- Functional testing under simulated daylight and night conditions
Quality Control
- Incoming inspection of solar panels, battery and LED components
- Functional test of solar charging and battery discharge cycle
- Irradiated area verification under controlled conditions
- Sealing check to prevent moisture ingress in the housing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing, confirmed against an approved sample before production
- Option to supply with or without driver, though the unit is all-in-one
- Power variants available: 40W, 60W, 80W (as per product line)
- OEM and ODM production for buyers selling under their own brand
Compared With the Alternatives
Separate solar panel, battery and controller setup
Higher installation cost and complexity, but allows component-level replacement
Grid-powered street light
No need for trenching or electrical permits, but limited to areas with power access
Low-power solar light with smaller battery
Longer runtime and better performance in cloudy conditions due to 3.2V/8AH battery
Use Guide

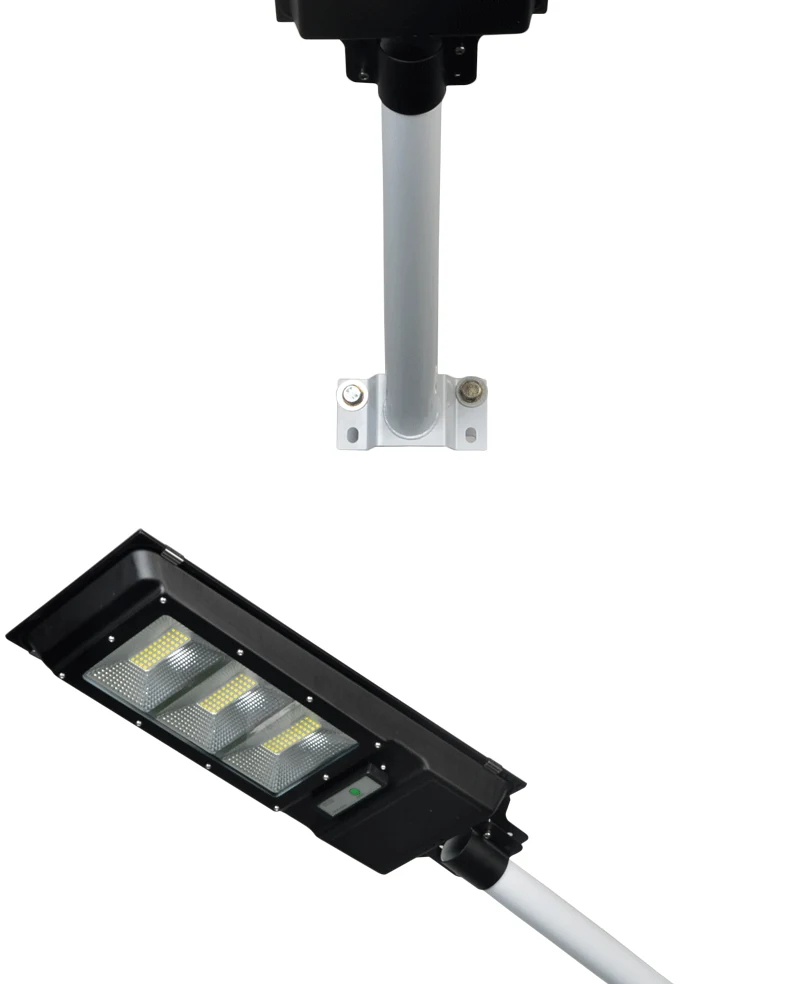

- Mount the fixture on a standard pole using the provided set screw
- Position the solar panel to face south (in the northern hemisphere) with minimal shading
- Ensure the panel is clean and free of debris to maintain charging efficiency
- Do not cover the solar panel during operation or storage
- The fixture operates automatically on a built-in light sensor; no manual control required
- Check battery performance after 3-6 months of operation to verify charge retention
40W 60W 80W All-in-one Solar Street Light Questions
What is the irradiated area of this solar street light?
The fixture provides illumination over a 40 square metre area.
Is the battery replaceable?
The battery is integrated into the housing and not designed for user replacement. Replacement requires factory service.
Can I use this light in areas with frequent cloud cover?
Yes. The 3.2V/8AH battery supports operation through multiple cloudy days, though output may be reduced on extended overcast periods.
What is the warranty period?
This model carries a 3 year warranty. Across the FENGDIAN range, the warranty is 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship in 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
Is the solar panel included in the fixture?
Yes. The 6V8W solar panel is integrated into the all-in-one housing and is not sold separately.
