30W Flood Lighting LED Spike Light
The FD-PL010R30 is a 30W LED spike light designed for landscape and architectural flood lighting applications where durable, weatherproof fixtures are needed in exposed outdoor positions. The die-cast aluminium body provides structural strength and heat dissipation, while the IP67 rating ensures performance in wet or dusty environments. It operates on AC85-265V, allowing direct connection to standard mains wiring without additional transformers. The fixture uses a BRIDGELUX LED chip and a DONE driver, delivering consistent output across a range of colour temperatures from 2800K to 6500K.
| Model | FD-PL010R30 |
|---|---|
| Power | 30W |
| Input Voltage | AC85-265V |
| IP Rating | IP67 |

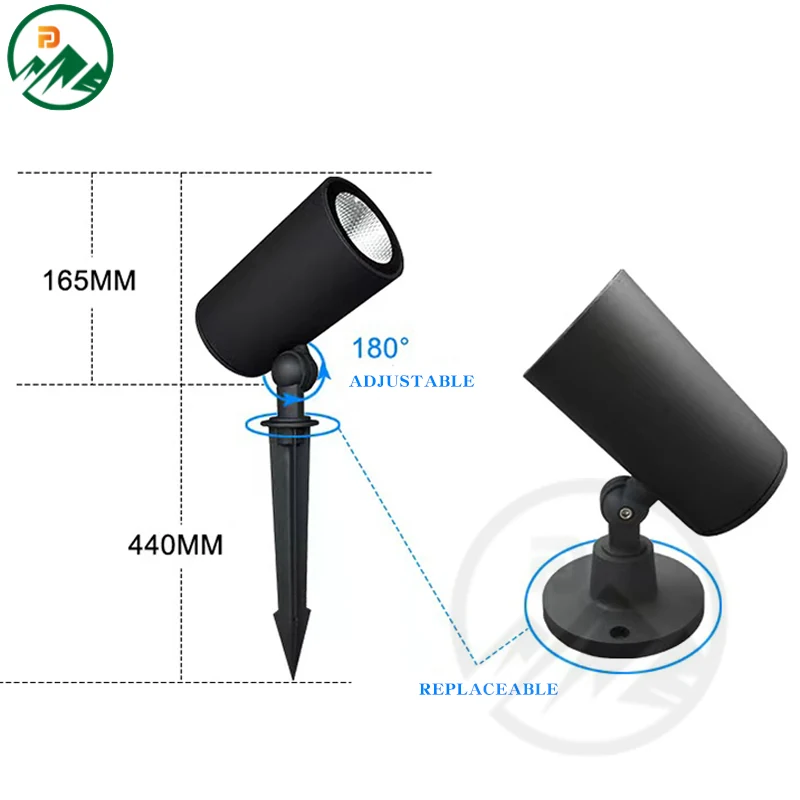

| Dimension | D110 x H165 mm, Spike H 440 mm |
| Material | Die-casting Aluminium |
| LED Chip | BRIDGELUX |
| Driver | Included |
| Colour Temperature | 2800-6500K |
| Warranty | 3 Years |
Key Benefits
- IP67 rating protects against dust and temporary immersion, suitable for outdoor installations in rain or high humidity
- Die-cast aluminium body resists deformation and provides efficient heat dissipation
- AC85-265V input allows direct connection to standard mains supply without external power conversion
- Adjustable colour temperature from 2800K to 6500K enables matching of lighting schemes across different project phases
- 30W power delivers high output for flood lighting on walls, trees, and architectural features
- Spike height of 440mm provides sufficient clearance for ground-level installation and optimal beam reach
Application Scenarios
- Flood lighting of building facades and stone walls in residential and commercial landscape projects
- Highlighting trees, shrubs, and garden features in public parks and private gardens
- Illuminating pathways and entrance areas in mixed-use developments and residential complexes
- Lighting architectural details such as columns, arches, and decorative elements in outdoor spaces
Who It Is For
- Landscape lighting contractors installing spike lights in hardscape and softscape environments
- Facade and outdoor lighting designers specifying durable, weatherproof fixtures for exposed positions
- Electrical wholesalers supplying LED flood lights for architectural and landscape projects in Europe and the Middle East
- Brand owners sourcing OEM spike lights under their own label with custom logo printing
Problems It Solves
- Non-weatherproof spike lights fail prematurely in wet or dusty outdoor conditions
- Low-power spike lights require multiple fixtures to achieve adequate flood coverage
- Fixtures with fixed colour temperature cannot adapt to different design phases or client preferences
- Inadequate heat dissipation in plastic or thin metal bodies leads to early LED degradation
- Lack of spike height standardization forces custom installation solutions for different ground levels
Technical Features
- Die-cast aluminium body for structural integrity and heat dissipation
- IP67 sealing for protection against dust and temporary immersion
- AC85-265V input voltage range for compatibility with standard mains supply
- BRIDGELUX LED chip for consistent light output and long life
- DONE driver for stable performance under variable voltage conditions
- Adjustable colour temperature from 2800K to 6500K to suit different lighting design needs
- Spike height of 440mm ensures proper ground clearance and beam reach
Materials
- Die-cast aluminium body for strength and thermal conductivity
- Stainless steel fasteners and internal components for corrosion resistance
- Sealing gaskets and O-rings to maintain IP67 integrity
Manufacturing Process
- Die-casting of aluminium housing with precision machining
- Surface treatment and powder coating for weather resistance
- LED board assembly with BRIDGELUX chips and DONE driver
- Sealing and gasket fitting to achieve IP67 rating
- Final inspection and powered ageing test before packing
Quality Control
- Incoming inspection of BRIDGELUX LED chips and DONE drivers
- IP67 sealing verification using pressure and water spray tests
- Powered ageing run for 24 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Supplied with or without driver to match site-specific control systems
- AC85-265V input standard, no other voltage options listed
- OEM and ODM production available for buyers selling under their own brand
Compared With the Alternatives
Plastic-bodied spike light
More durable and heat-resistant, but costs more per unit
Low-voltage spike light
Requires a transformer or central power supply, but reduces wiring complexity in low-voltage systems
Fixed colour temperature spike light
Offers flexibility across design stages, but may require more SKUs for different CCTs
Use Guide
- Install the spike into firm soil or concrete base to ensure stability under wind and vibration
- Ensure the fixture is level and the beam direction is aligned with the target surface
- Avoid burying the spike deeper than the base allows to prevent damage to the internal components
- Clean the lens periodically to maintain light output, especially in dusty or polluted areas
- Verify that the local mains voltage falls within the AC85-265V range before connection
30W Flood Lighting LED Spike Light Questions
What is the input voltage range for this spike light?
The fixture operates on AC85-265V, which covers standard mains supply in most countries.
Is the driver included in the fixture?
Yes, the DONE driver is included as standard. It can also be supplied without the driver if centralised drivers are used.
What does IP67 mean for this spike light?
IP67 means the fixture is dust-tight and can withstand temporary immersion in water up to 1 meter deep, suitable for outdoor use in wet conditions.
Can the colour temperature be changed after installation?
No, the colour temperature is fixed per unit. The model offers a range of 2800K to 6500K, but each unit is manufactured at one specific CCT.
What is the warranty period?
This model carries a 3 year warranty. Across the FENGDIAN product range, warranty varies from 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods are shipped via DHL, UPS, FedEx, or TNT with 3-5 days in transit, or by air or sea freight.
